Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Новый дизайн 380 В 3 фазы MPPT 5hp 10hp Солнечный VFD водяной насос
- Категория: Solar Pump Inverter >>>
- Поставщик: Shenzhen,ZK,Electric,Technology,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 148.58 $* | 155.11 $* |
| Aug-15-2025 | 146.39 $* | 153.54 $* |
| Jul-15-2025 | 123.11 $* | 129.52 $* |
| Jun-15-2025 | 144.93 $* | 151.86 $* |
| May-15-2025 | 125.61 $* | 131.28 $* |
| Apr-15-2025 | 141.76 $* | 148.56 $* |
| Mar-15-2025 | 140.36 $* | 147.67 $* |
| Feb-15-2025 | 139.83 $* | 146.62 $* |
| Jan-15-2025 | 138.10 $* | 145.26 $* |
Характеристики
Products Description

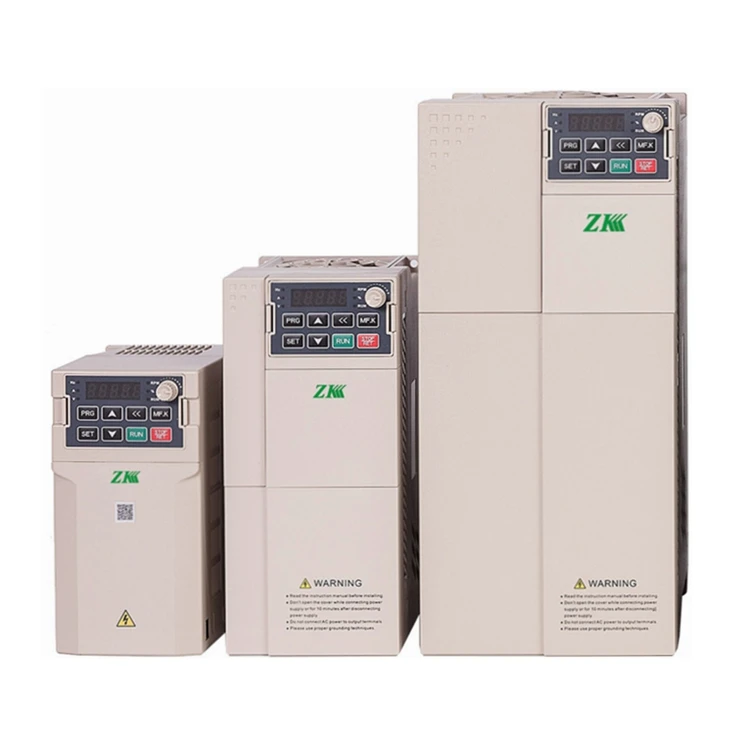

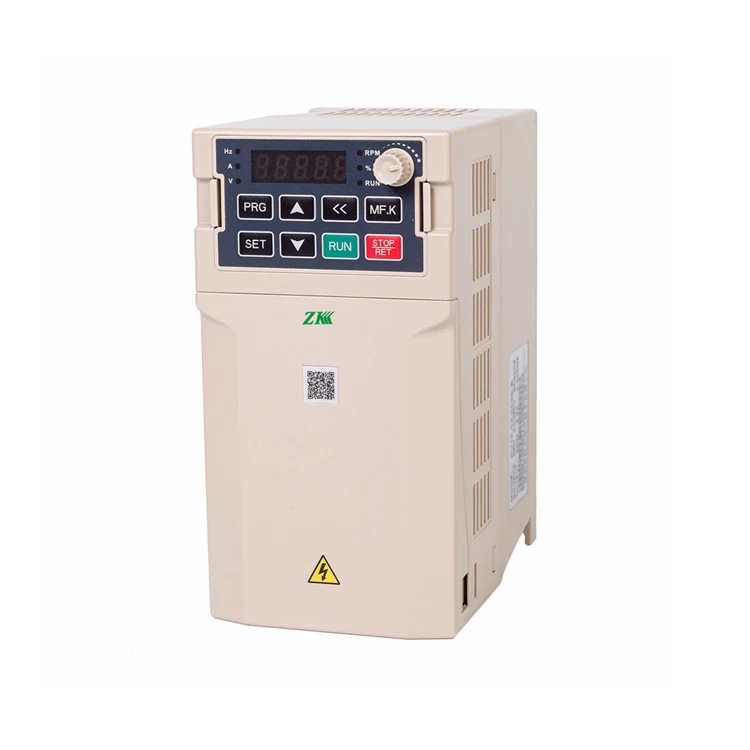

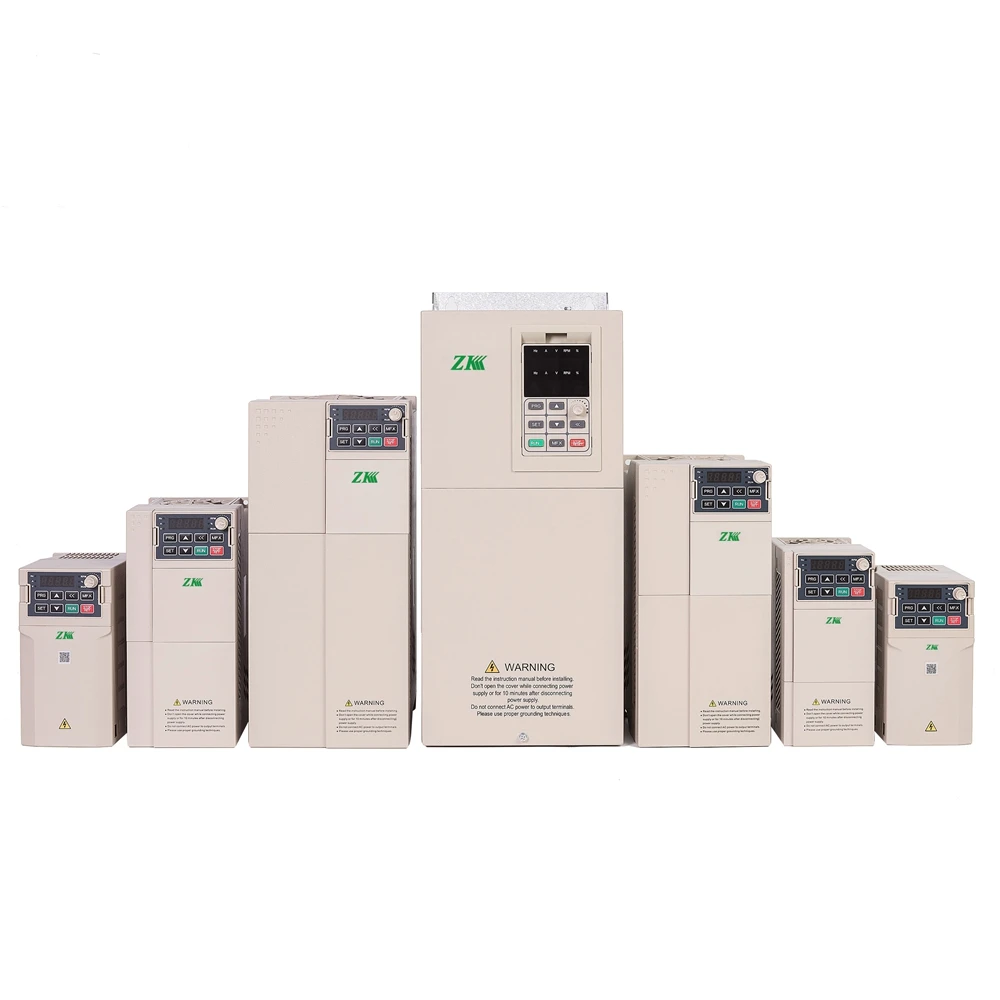

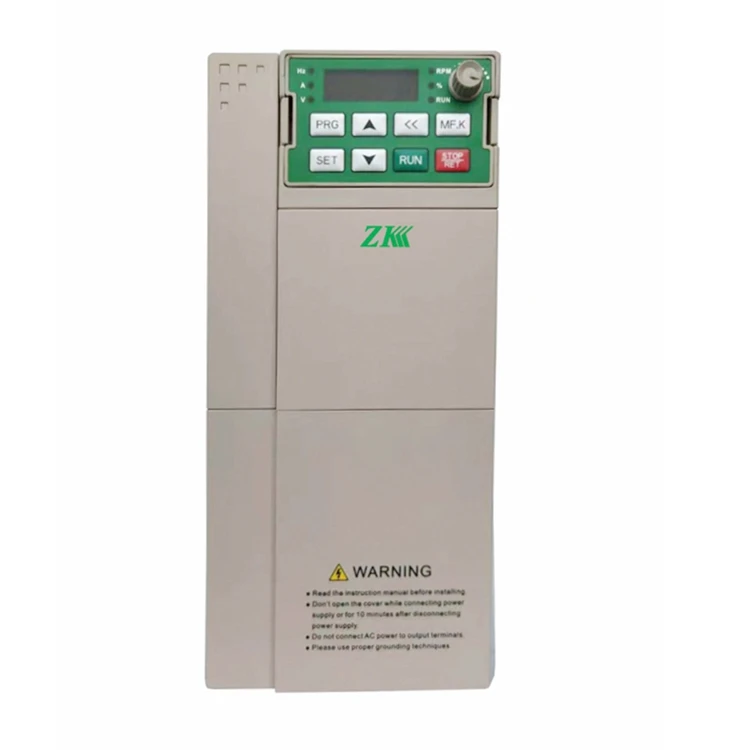

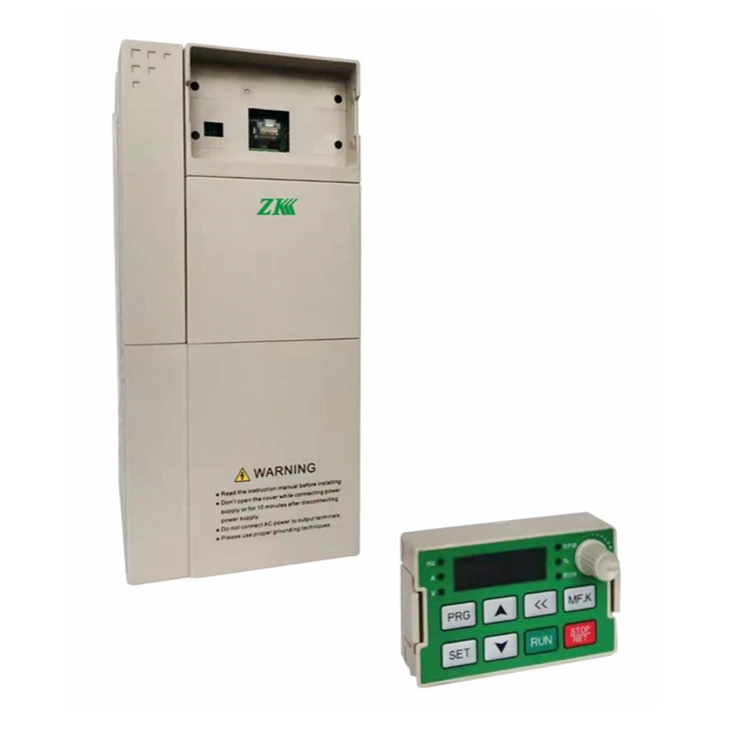

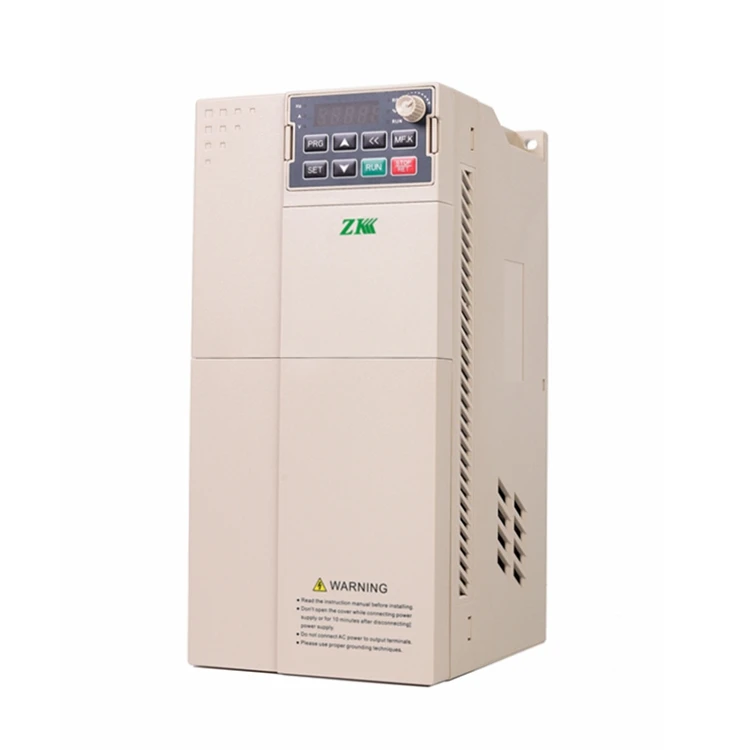

ZUN & ZK SG900 MPPT solar pump inverter mainly features:
1. MPPT efficiency more than 99%.
2. Drives well all 1/3 phase AC pumps and PMSM in solar pumping system.
3. VMP of solar panel can set by manual or MPPT automatically tracking.
4. Solar DC & Grid AC power input,
5. Short circuit, over load, over current... motor production.
6. Dry run & Full water tank protection.
7. The PQ (power/flow) performance curve enables calculating the flow output from the pump
8. Ambient temperature for using: -10 to +50˚C.
9. Inverter Power range:
220V: 0.75KW to 75KW.
380V/440/460/480V: 0.75KW to 250KW.
2. Drives well all 1/3 phase AC pumps and PMSM in solar pumping system.
3. VMP of solar panel can set by manual or MPPT automatically tracking.
4. Solar DC & Grid AC power input,
5. Short circuit, over load, over current... motor production.
6. Dry run & Full water tank protection.
7. The PQ (power/flow) performance curve enables calculating the flow output from the pump
8. Ambient temperature for using: -10 to +50˚C.
9. Inverter Power range:
220V: 0.75KW to 75KW.
380V/440/460/480V: 0.75KW to 250KW.
Input voltage range | 80V to 450VDC input, 3PH 110VAC output, 1S model 150V to 450VDC input, 3PH 220VAC output, 2S/2T model 250V to 800/900VDC input, 3PH 380/440/480VAC output, 4T model |
Recommended input voltage (Voc and Vmp) | Voc 180VDC, Vmp 155VDC for 1S model & 110VAC pumps Voc 370VDC, Vmp 310VDC for 2T model & 220VAC pumps Voc 650VDC, Vmp 540VDC for 4T model & 380VAC pumps |
Motor type | Control for permanent magnet servo motor and asynchronous motor pumps. |
Input power | DC power from solar arrays or AC grid power |
Maximum DC power input | 450VDC for 220AC output & 800/900VDC for 380V AC output, (900V needs remark) |
Rated output voltage | Single phase 220V, 3-phase 220V/380V/480V |
Output frequency range | 0~50/60Hz (0-400HZ for PMSM) |
MPPT efficiency | 99.6%, |
Ambient temperature range | G-type inverter with submersible pumps, and P type for general pumps. |
Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating. |
Protection function | Phase loss protection, phase short circuit protection , ground to phase circuit protection , input and output short circuit protection. Stall protection |
Protection degree | IP20, Air force cooling |
Running mode | MPPT , CVT, variable frequency mode |
Standard | CCC, CE, IEC |
Recommend Products
Company Profile
Certifications
Product packaging
ZUN & ZK SG900 solor pump inverter drives well all kind of AC pump including 220V Single phase pump.
MPPT Efficiency more than 99%.
MPPT Efficiency more than 99%.
Kindly contact Jay for details!
