Характеристики
Product Group
Details Images
QDQF-680 Automatic Stipping Machine
Main Function:

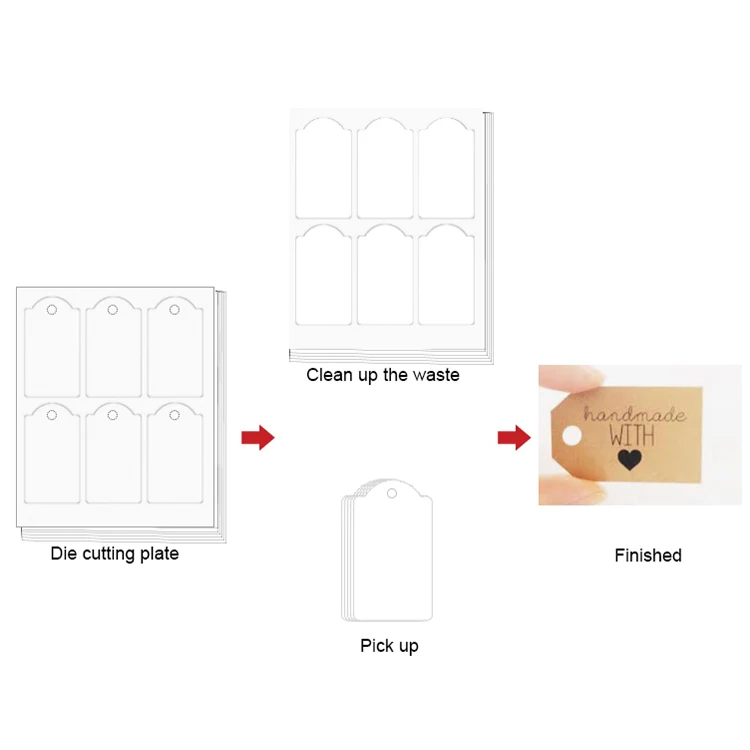

1. Taking out finished product after die cutting process,for waste stripping.

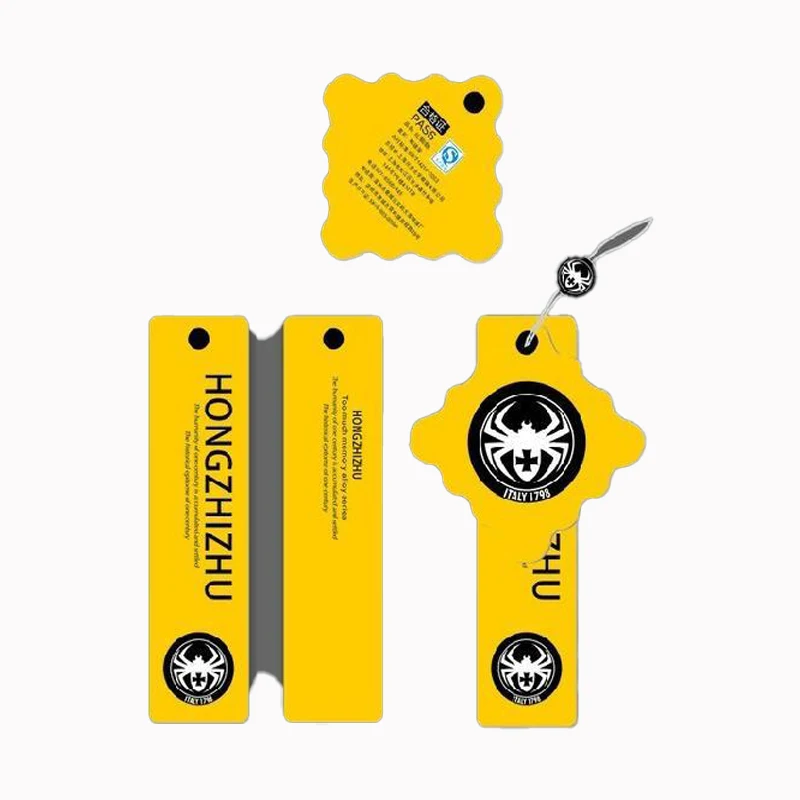

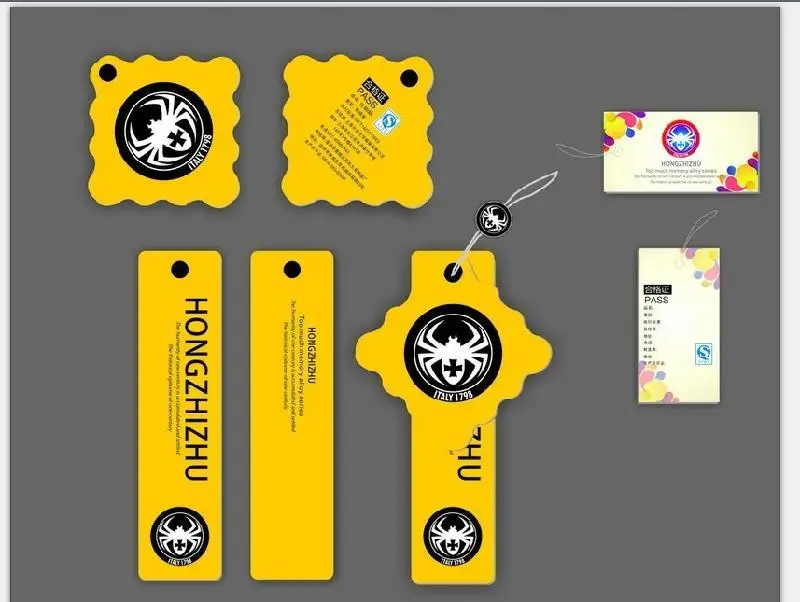

2. Applied for many die-cut products such as labels, hang tags, business cards,
gift box, food box, paper cups and other die cutting products in paper or plastic,
PU leather.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.
5. Different shape products can be custom-made as customer requirement.
2. Applied for many die-cut products such as labels, hang tags, business cards,
gift box, food box, paper cups and other die cutting products in paper or plastic,
PU leather.
3. PLC controlled with smart & easy operation.
4. Automatic lubrication system for machine better maintenance.
5. Different shape products can be custom-made as customer requirement.
Adjustable hydraulic system
Safety fence
Centralized lubrication system
Paper gauge with hidden motor and ball screw
Products Description
Machine Technical Parameters | ||||||
Model | QDQF-680 | QDQF-920 | QDQF-1080 | |||
Machine Size | 1910x1480x1940 | 2400x1800x1980 | 2760x2050x1950 | |||
Max sheet size (X x Y) mm | 680 x 480 | 920 x 680 | 1080 x 780 | |||
Min sheet size (X x Y) mm | 400 x 300 | 550 x 400 | 650 x 450 | |||
Max pile height mm | 100 | 100 | 100 | |||
Min pile height mm | 40 | 40 | 40 | |||
Work table height mm | 850 | 850 | 850 | |||
Max product size to be punched out | 230*230 | 360 x 360 | 390 x 390 | |||
Min. product size to be punched out | 30*30 | 30*30 | 30*30 | |||
Stripping speed times/min | 15-22 | 15-22 | 15-22 | |||
Max. force (bar) | 70 | 70 | 70 | |||
Air consumption L/min | 2 | 2 | 2 | |||
Max Power | 4.2kw 380V | 4.2kw 380V | 4.2kw 380V | |||
Net Weight | 1.5T | 1.9T | 2.3T | |||
Package Size | 2100x1500x2200 | 2600x1950x2250 | 3000x2150x2200 | |||
Gross Weight | 1.8T | 2.2T | 2.6T | |||
