Автоматическая машина для выпрямления и резки арматуры
- Категория: Metal Straightening Machinery >>>
- Поставщик: Anping,County,Dechen,Wire,Mesh,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2737.94 $* | 2874.2 $* |
| Aug-15-2025 | 2714.85 $* | 2850.51 $* |
| Jul-15-2025 | 2277.95 $* | 2391.70 $* |
| Jun-15-2025 | 2668.13 $* | 2801.47 $* |
| May-15-2025 | 2323.94 $* | 2439.17 $* |
| Apr-15-2025 | 2622.91 $* | 2753.37 $* |
| Mar-15-2025 | 2599.93 $* | 2729.74 $* |
| Feb-15-2025 | 2576.58 $* | 2705.14 $* |
| Jan-15-2025 | 2553.85 $* | 2681.63 $* |
Характеристики
Product Description
Product Application
This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire
Main Features
1) Simple structure in linear type ,easy in installation and maintain.
2) The length could adjust according to customers demand.
3) This machine has many advantages, such as neat cutting mouth, less error and good functions.Model | DC2-6 | DC3-6 | DC4-8 | DC5-12 |
Wire diameter | 2-3.5mm | 3-6mm | 4-8mm | 5-12mm |
Cutting length | 300-3000mm | 300-6000mm | 300-12000mm | 1000-12000mm |
Cutting error | ±1mm | ±1mm | ±1mm | ±1mm |
Max. working speed | 50-60m/min | 60-70m/min | 70-80m/min | 70-130m/min |
Straightening motor | 3kw | 4kw | 5.5kw | 7.5kw |
Cutting motor motor | 0.75kw | 1.5kw | 2.5kw | 4kw |
Rated voltage | 380v 50hz | 380v 50hz | 380v 50hz | 380v 50hz |
Machine weight | 200kg | 300kg | 350kg | 800kg |
Main machine dimension | 1300*500*1200mm | 1300*500*1200mm | 1300*700*1300mm | 1700*900*1500mm |

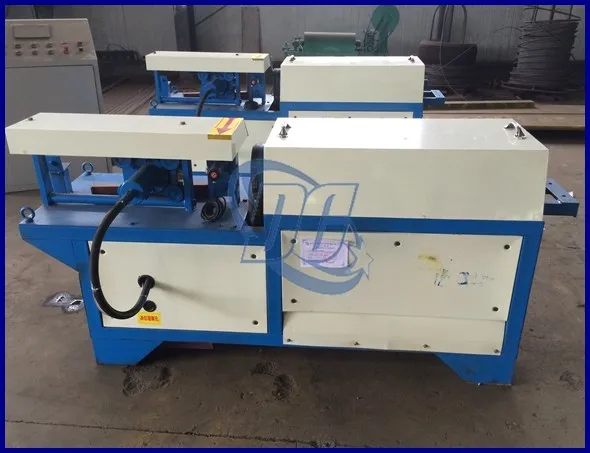

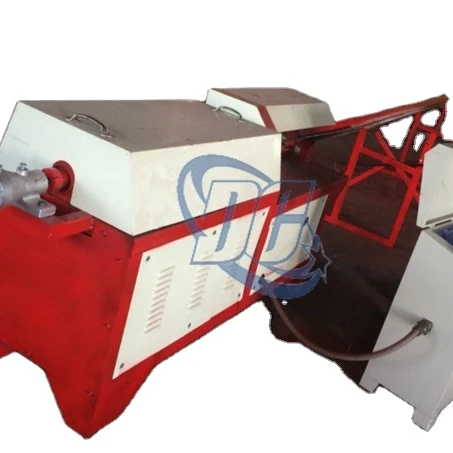

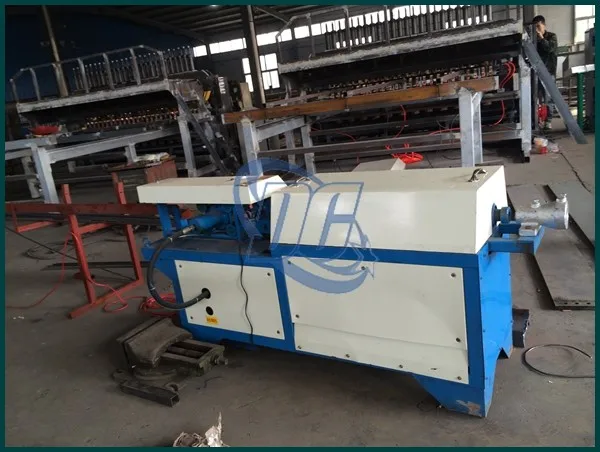

Detailed Images

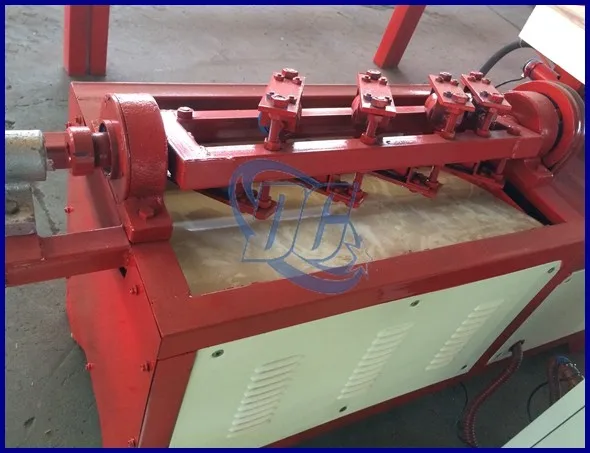

Machine Parts
Brand: Dechen
Original: Hebei,China
Domestic famous engines, neat cutting mouth, less error and good functions.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

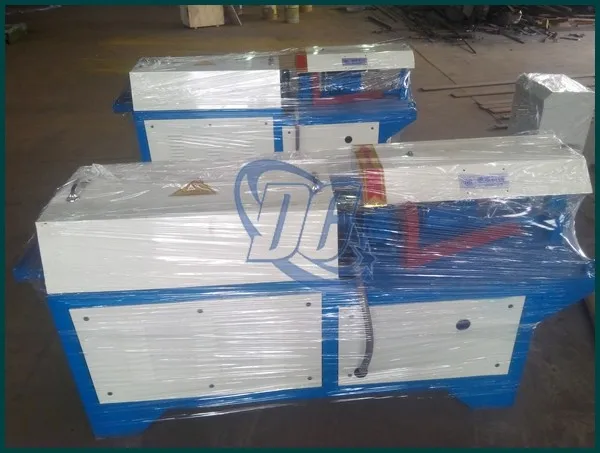

Packing & Delivery
Packaging | ||
Size | 1500*800*700mmmm | |
Weight | 350kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
