Контроллер заряда солнечных батарей TBB 12 В 24 48 20 А 40 60 70 80 100
- Категория: Solar Charger Controllers >>>
- Поставщик: Xiamen,Tbb-startop,Trading,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 329.85 $* | 336.61 $* |
| Jul-15-2025 | 267.30 $* | 272.75 $* |
| Jun-15-2025 | 324.1 $* | 330.57 $* |
| May-15-2025 | 321.88 $* | 327.7 $* |
| Apr-15-2025 | 256.2 $* | 261.38 $* |
| Mar-15-2025 | 316.64 $* | 322.47 $* |
| Feb-15-2025 | 313.21 $* | 319.88 $* |
| Jan-15-2025 | 311.54 $* | 317.42 $* |
Характеристики

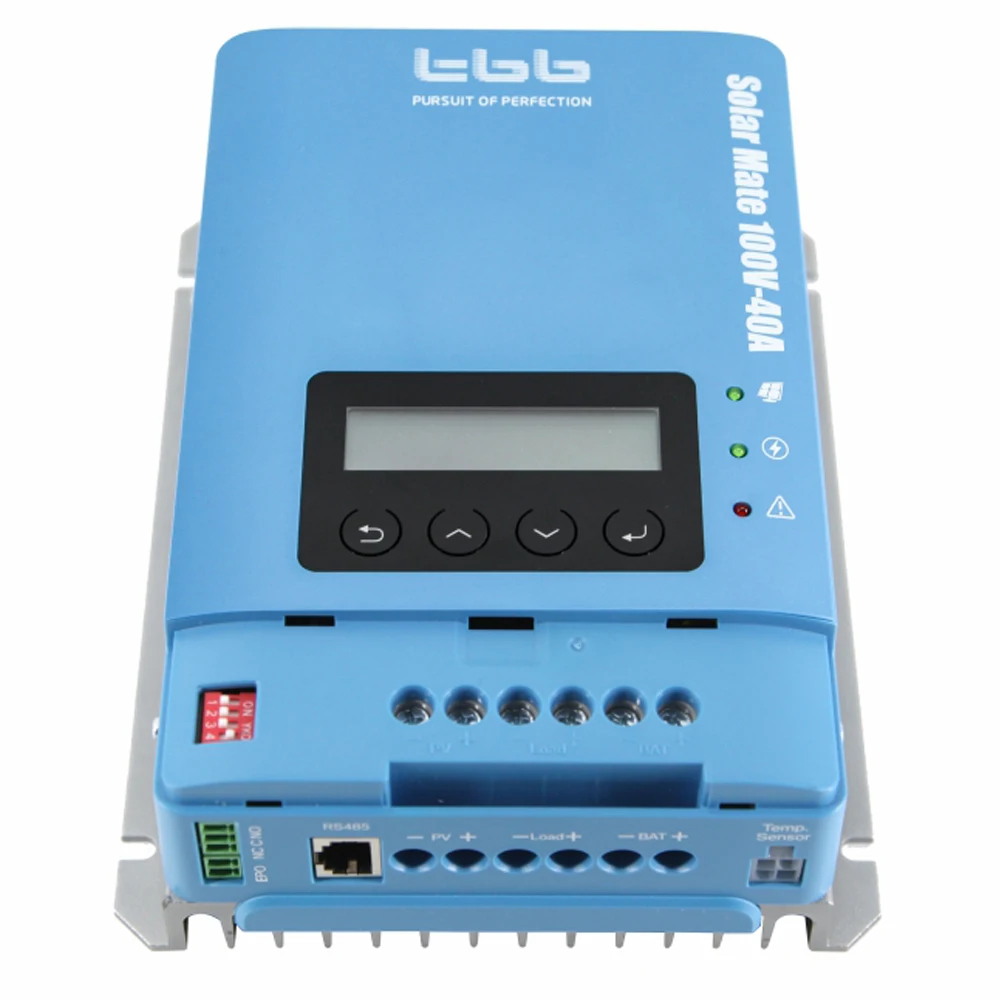

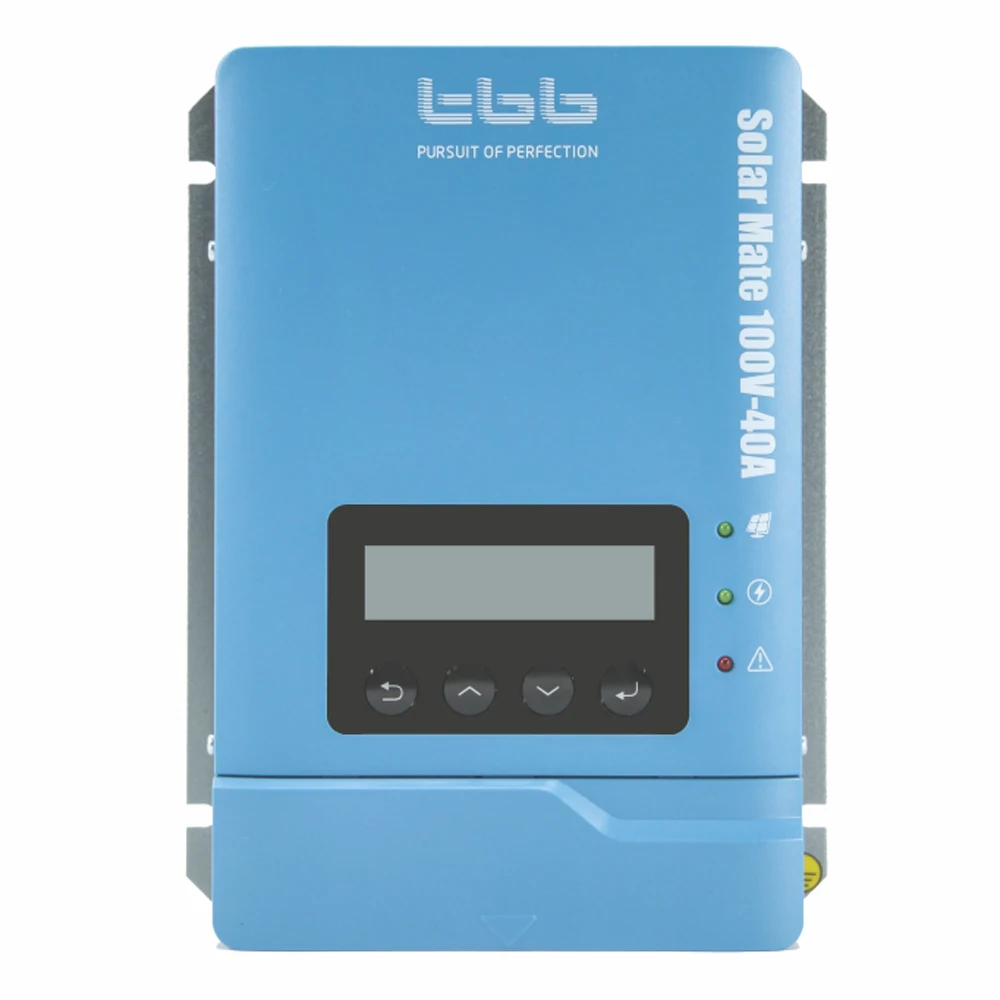

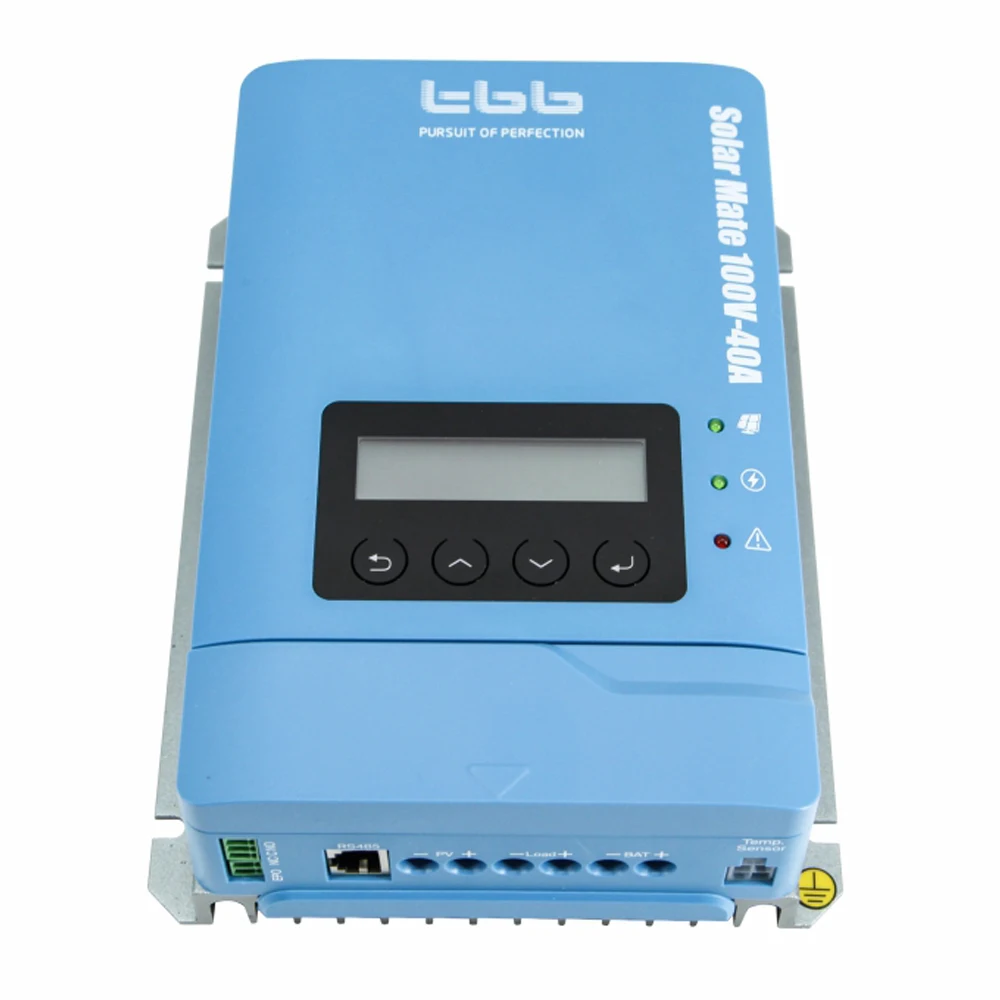

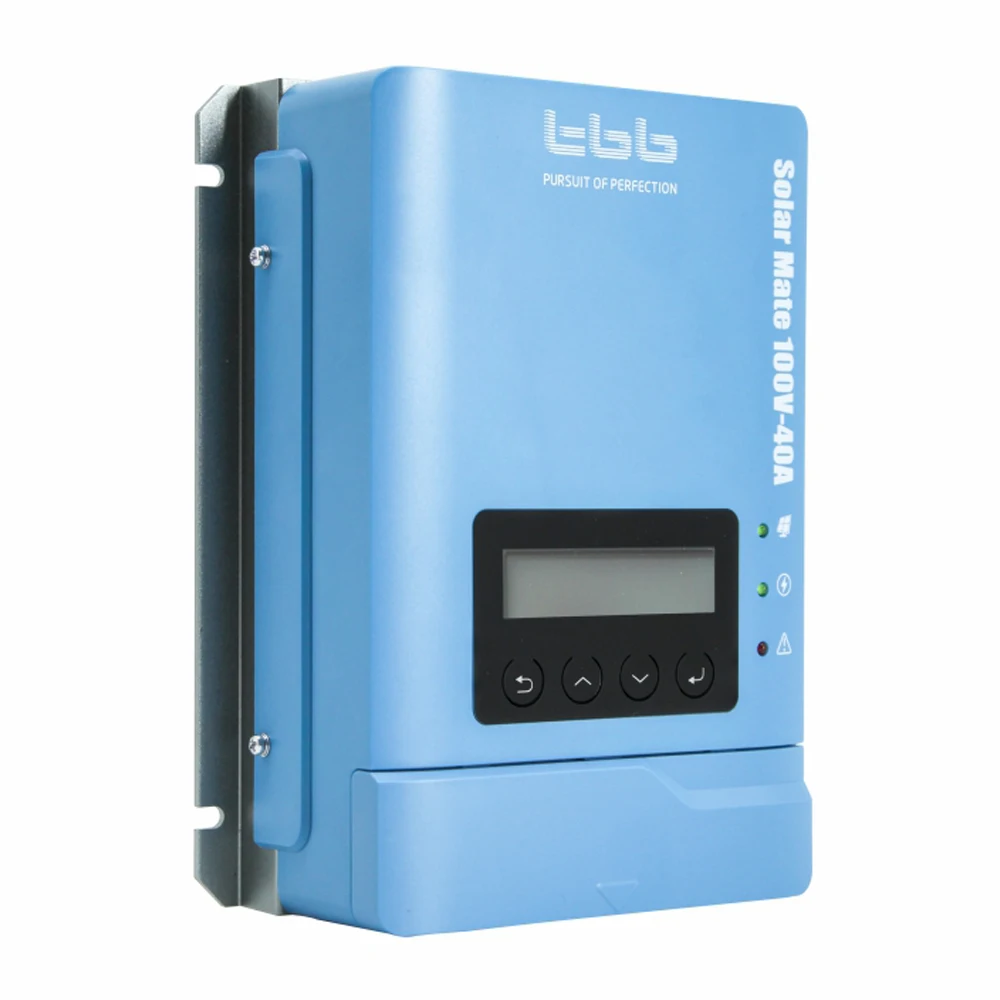

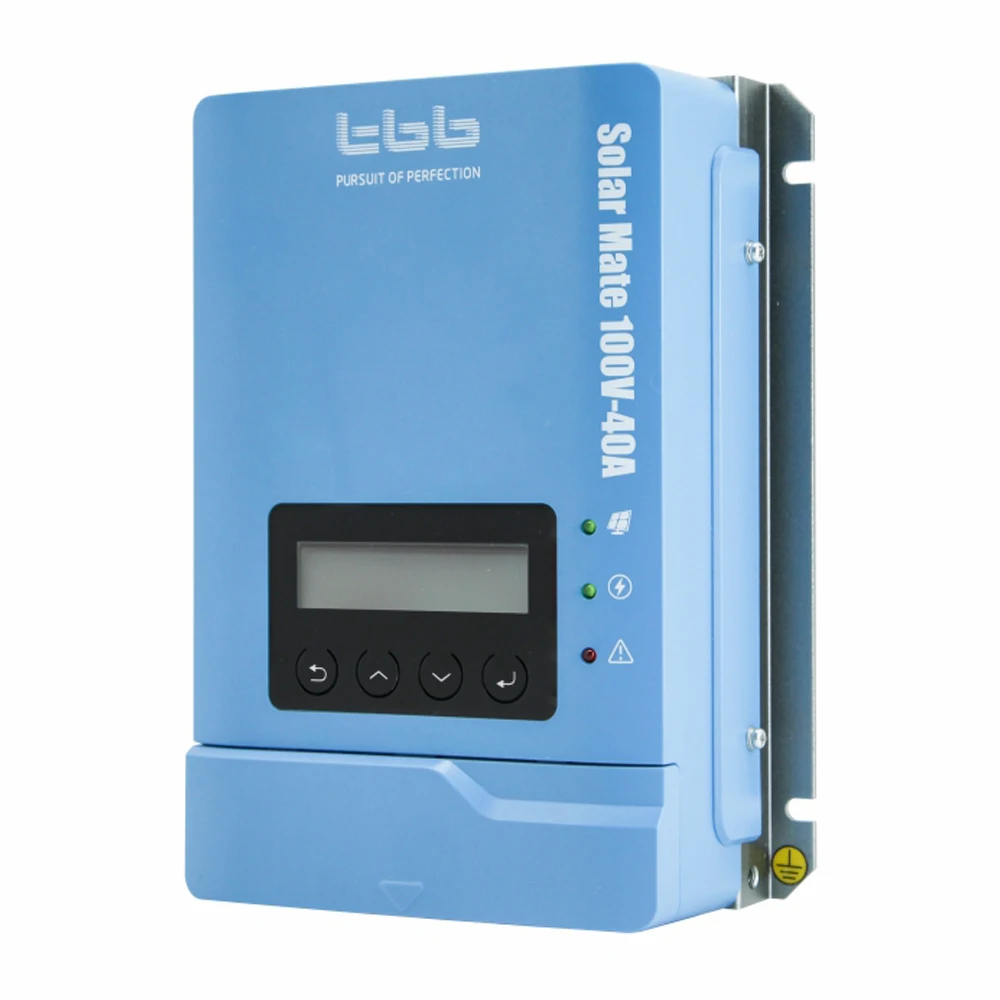

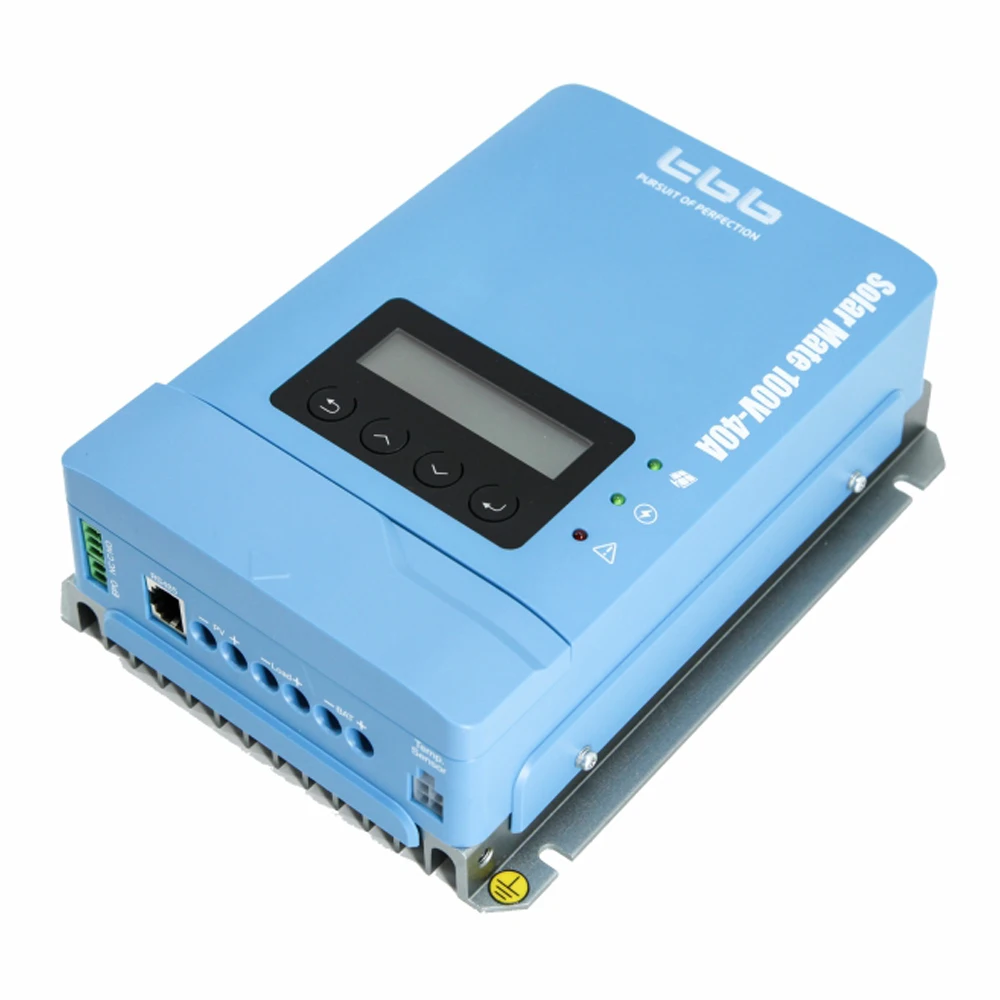

TBB 12v 24v 48v MPPT Solar Charge Controller 20A 40A 60A 70A 80A 100A 120A Solar Battery Charger Controller
Product Description
Why choose the TBB SOLAR CHARGE CONTROLLER??
What is TBB solar charge controller?
Solar Mate is a solar charge controller with built in MPPT(Maximum Power Point Tracking)technology, which enables them to increase the output from a PV(solar photovoltaic) array by as much as 30% compared with non-MPPT designs.
Solar Mate can optimize the PV's output and eliminate the fluctuation due to shading or temperature variables.It is a multi-voltage MPPT with built in sophisticated battery charging algorithm for both lead acid battery or lithium-ion battery, of which could support a wide variety of system designs.Meanwhile,the data management with 365 days of history record can tell user actual performance of its system.
Thanks to its self cooling design, it is suitable for most rugged environment with dust or bugs.All range products can operate at their full rating in ambient temperatures as high as 40℃.
What are TBB solar charge controllers' advantages:
1.MPPT conversion efficiency 99.9%
No power derating for continuous output
2.Wide MPPT operating voltage range from 50V to 250V
3.Up to 8 units in parallel
4.12V/24V/48Vbattery system automatic recognition
5.TBB premium multiple stages charging for lead acid batteries
Low self consumption Data logging 365 days
No power derating for continuous output
2.Wide MPPT operating voltage range from 50V to 250V
3.Up to 8 units in parallel
4.12V/24V/48Vbattery system automatic recognition
5.TBB premium multiple stages charging for lead acid batteries
Low self consumption Data logging 365 days
What is the application of a solar charge controller?
Solar charge controllers are widely used in following DC systems
Where Need the SOLAR CHARGE CONTROLLER??
Solar Home System
Solar home system are typically used for home photovoltaic power
Generation system, to solve electricity demand of none power or unstable power region.
Generation system, to solve electricity demand of none power or unstable power region.
Also the power level rage is between hundred watts to kilowatts.
Solar RVs/Vessels System
Solar RVs/Vessels system are typically used for reducing the RVs and the vessels electricity cost, by setting up solar system to assist gasoline/diesel power generator.
1.DC consumers
Solar panels feed the consumers directly. The solar charge controller controls the voltages for the consumers and the batteries.
2.AC consumers
An inverter is added to provide the AC output for AC consumers..
Application:
3.Hybrid power
Generator is added to the system when there is no enough sun. An inverter charger is used instead of inverter.
4.Backup system
Solar energy can also combine with a grid connection, and when there is a power outage, a generator can be added to the system.
Specification
Model No. | SP100-20 | SP100-40 | SP150-60 | SP150-80 | SP150-120 | SP250-70 | SP250-100 | |||||||||
Electrical | ||||||||||||||||
Nominal battery voltage | 12VDC,24VDC or 48VDC | 24 VDC or 48VDC | ||||||||||||||
Maximum charging current (A) | 20 | 40 | 60 | 80 | 120 | 70 | 100 | |||||||||
Maximum charging power(W) | 12VDC | 294 | 588 | N/A | ||||||||||||
24VDC | 588 | 1176 | 1764 | 2352 | 3528 | 2058 | 2940 | |||||||||
48VDC | 1176 | 2352 | 3528 | 4704 | 7056 | 4116 | 5880 | |||||||||
MaximumPV input power (W) | 12VDC | 300 | 600 | N/A | ||||||||||||
24VDC | 600 | 1200 | 2250 | 3000 | 4500 | 2700 | 3750 | |||||||||
48VDC | 1200 | 2400 | 4500 | 6000 | 9000 | 5400 | 7500 | |||||||||
PV open circuit voltage (Voc) (VDC) | 100 | 150 | 250 | |||||||||||||
MPPT voltage range (VDC) | (Vbat+5)~95 | (Vbat+5)~90 | 65~145 | 65~245 | ||||||||||||
Max. PV short circuit current(A) | 20 | 40 | 80 | |||||||||||||
Max efficiency | 98.2% @48Vdc system | 98%@48Vdc system | ||||||||||||||
Max MPPT efficiency | 99.9% | |||||||||||||||
Self-consumption (mA) | Less than 1mA@12Vdc/ 3mA @24Vdc/5mA@48Vdc | Less than 60mA@24Vdc/ 37mA @ 48Vdc | ||||||||||||||
Charge voltage 'absorption' (VDC) | Default setting: 14.1/28.2/56.4 | Default setting: 28.2/ 56.4 | ||||||||||||||
Charge voltage 'float' (VDC) | Default setting: 13.5 /27/54 | Default setting: 27 / 54 | ||||||||||||||
Charging algorithum | TBB II multiple stages | |||||||||||||||
Temperature compensation | Default setting: -3mV/℃/cell | |||||||||||||||
Equalization charging | Programmable | |||||||||||||||
Others | ||||||||||||||||
DisPlay | LED+LCD | |||||||||||||||
Communication port | RS485 | |||||||||||||||
Dry contact | 30Vdc/2A | |||||||||||||||
Remote on/off | Yes (2 pole connector) | |||||||||||||||
Data logging | 365 days of history record,daily,monthly and total production;Real time figure including solar array voltage,battery voltage,charging current,charging power;Record the daily PV start charging time,absorb to floating transfer time,PV power loss time and etc; Real time fault time and information. | |||||||||||||||
Storage temperature | '-40℃~70℃ | |||||||||||||||
Operating temperature | '-40℃~70℃ (power derated above 50℃) | '-40℃~70℃ (power derated above 30℃) | '-25℃~ 60℃ (power derated above 40℃) | |||||||||||||
Humidity | '5%~95%, non-condensing | |||||||||||||||
Altitude | '3000m (full rated output up to 2000m) | |||||||||||||||
Max wire sizes (mm2) | 16 | 35 | ||||||||||||||
Protection category | IP31 | IP21 | ||||||||||||||
Dimension (L*W*H) - mm | 205*160*65 | 327.5*293*116.2 | 353*293*116.2 | |||||||||||||
Weight (kg) | 1.4 | 7.2 | 7.5 | |||||||||||||
Cooling | Natural cooling | Forced fan | ||||||||||||||
Standard | EN61000-6-1,EN61000-6-3, EN62109-1 | |||||||||||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Founded in 2007, TBB Power is a national high-tech enterprise specializing in integrated power supply solutions and intelligence.Head quartered in Dongfu Industrial Park, Haicang District, Xiamen, covers an area of over 10, 000 square meters. Products are exported to more than 50 countries and regions.
TBB Power has the most complete product line in the industry and is one of the world's best suppliers of modified car power systems and independent power solution.
The products mainly cover three markets:
TBB Power attaches great importance to technological innovation, The research and development team accounts for more than 30% of the total employees of the company. TBB Power has a complete production system and quality assurance system, and has passed ISO9001, IATF16949 certification. The product line has passed CE, EMARK, UL and other product certifications.
Certifications
Global Exhibitions
Project Reference
Our Team
FAQ
Q1:Why choose TBB Riio Sun series solar inverter charger with MPPT?
Q2: How to get a suitable solar inverter?
A2: Tell us your requirements, then our sales will recommend a cost-effective inverter to you
Q3: What's eco mode in RIIO SUN inverter?
A3: Under eco mode,inverter will reduce output voltage, then reduce the loads power consumption for extending power supply time. You can enjoy longer loads working time.
Q4: What's generator power assist in RIIO SUN inverter?
A4: Riio Sun support generator power assist function. For example,loads are 5KW, generator only suppor 3KW,then inverter can provide another 2KWfrom battery to power the loads and avoid generator auto shutdown.
Q5: How about the delivery time?
A5:7 days for sample order and 25 days for bulk order. If your order is urgently, we will try to meet your demands
Q6: What is the warranty of inverter?
A6:24 months warranty on TBB inverter products,our after-sales team will help to confirm the issues,and we wil offer free parts to repair. If you require for longer warranty period then can be discussed base on your order quantity and case.
Q7: How to get after-sales service?
A5: 7X24 hours after-sales service from technical support, below as contact information.
A2: Tell us your requirements, then our sales will recommend a cost-effective inverter to you
Q3: What's eco mode in RIIO SUN inverter?
A3: Under eco mode,inverter will reduce output voltage, then reduce the loads power consumption for extending power supply time. You can enjoy longer loads working time.
Q4: What's generator power assist in RIIO SUN inverter?
A4: Riio Sun support generator power assist function. For example,loads are 5KW, generator only suppor 3KW,then inverter can provide another 2KWfrom battery to power the loads and avoid generator auto shutdown.
Q5: How about the delivery time?
A5:7 days for sample order and 25 days for bulk order. If your order is urgently, we will try to meet your demands
Q6: What is the warranty of inverter?
A6:24 months warranty on TBB inverter products,our after-sales team will help to confirm the issues,and we wil offer free parts to repair. If you require for longer warranty period then can be discussed base on your order quantity and case.
Q7: How to get after-sales service?
A5: 7X24 hours after-sales service from technical support, below as contact information.
