Машина для холодной резки внутренней трубы продажи металла. Сплав Алюминий. Из нержавеющей стали Автоматическая 0 8 -- 1.5kw
- Категория: Pipe Cutting Machines >>>
- Поставщик: Shanghai,CHD,Welding,&,Cutting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1269.0 $* | 1294.9 $* |
| Jul-15-2025 | 1029.37 $* | 1050.94 $* |
| Jun-15-2025 | 1249.97 $* | 1274.6 $* |
| May-15-2025 | 1239.77 $* | 1264.73 $* |
| Apr-15-2025 | 989.46 $* | 1009.37 $* |
| Mar-15-2025 | 1219.55 $* | 1243.4 $* |
| Feb-15-2025 | 1209.1 $* | 1233.63 $* |
| Jan-15-2025 | 1199.74 $* | 1223.27 $* |
Характеристики
APPLICATION
This is Internal expansion type beveling machine. "T"shape design can be perfect for jobs at sny orientation in restricted areas. The portable design can realize indoor and outdoor grooving work as long as there is power supply. It is widely applied for pipeline construction and maintenance in various industry, such as pertrolum, chemical industry, electric power, water transportation, boiler, and so on.FUNCTION
The installation is simple and convenient, groove assignment is fast. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter. As it adopts mechnical cutting groove method, it can keep the mechinical properties of material quality well. And it also could do flat-end, V, X, U shape beveling to the pipe. Thus, it could meet with all the requirements for butt welding.
FEATURES
1. Portable design
2. Work at any orientation in restricted areas
3. Adopt high performance motor drive
4. Strong proplusion and smooth groove
5. Easy and quick operation, self-fixed at the pipe center
6. Can do 0°-37° groove
7. High beveling speed and labour saving
ISY-351 Inner Swelling cold cutting pipe beveling machine for sales | ||||||||
DRIVE TYPE: ELECTRIC | PIPE DIAMETER(I.D.MM): 150-330(6-13") | |||||||
VOLTAGE: AC 220V | WALL THICKNESS(MM): ≤20 | |||||||
RATED FREQUENCY: 50/60HZ | NET WEIGHT(KG):49 | |||||||
REATED POWER: 0.8-1.5KW | DIMENSION(L*W*H/MM):750*440*350 | |||||||
DETAIL IMAGES
Blades
Different blades could meet with all 0°-37° requirements of butt welding
Expansion block
Different expansion blocks could meet with the big range of pipe diameters.
Product Package & Delivery process
WHY CHOOSE US?

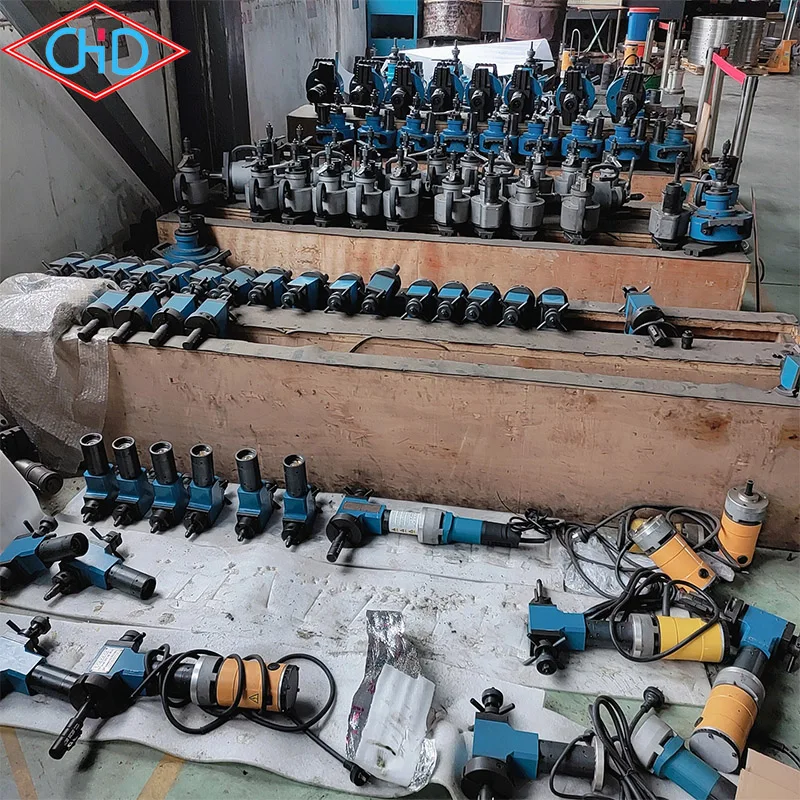

PRODUCTS ON-SITE
1) Are you Manuacturer?
RE:Yes.
2) How to choose a right model?
RE: Please let us know more details about the pipe, such as the I.D, O.D, the materials of the pipe, the environment of the site and the requirement of the end face, etc. These will help us to choose the right model for you immediately.
3) Do you have another choice about the driven?
RE: Of course. We have many choice for you to choose, such as electric, pneumatic, hydraulic, NC, etc.
4) Which type of beveling machine do you have?
RE: Internal expansion type, external installed type, plate beveling machine, desktop precision pipe cutting machine.
5) Do you support the special needs?
RE: Yes, we have many engineers. We could design it according to your need.
6) How about the payment term?
RE: 30% advance payment and balance payment before the shipment by T/T.
Welcome to contact us!
Best Regards
Linda Li (Sales Representative)
Shanghai CHD Welding & Cutting Equipments Co., Ltd.
Add:No.305 South Shengxin Rd, Jiading District-201802, Shanghai, China.Email: znc@chdwelding.com;
Tel: +86-21-69171792 / Fax: +86-21-69179932; Mobil&Whatsapp&Wechat: +86-19512396802
