Широкоугольный микрофон 100 градусов 120 USB2.0 модуль камеры H.264 HD 2MP USB без

Широкоугольный микрофон 100 градусов 120 USB2.0 модуль камеры H.264 HD 2MP USB без

Категория: Electronic Data Systems >>>
Поставщик: Shenzhen,Brilliant,Cmos,Technology,Co.,Ltd.

Цена:34,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	40.92 $*	42.9 $*
Aug-19-2025	40.66 $*	42.30 $*
Jul-19-2025	34.24 $*	36.62 $*
Jun-19-2025	39.53 $*	41.82 $*
May-19-2025	34.25 $*	36.37 $*
Apr-19-2025	39.64 $*	41.20 $*
Mar-19-2025	38.80 $*	40.63 $*
Feb-19-2025	38.72 $*	40.40 $*
Jan-19-2025	38.41 $*	40.15 $*

Характеристики

Product Description

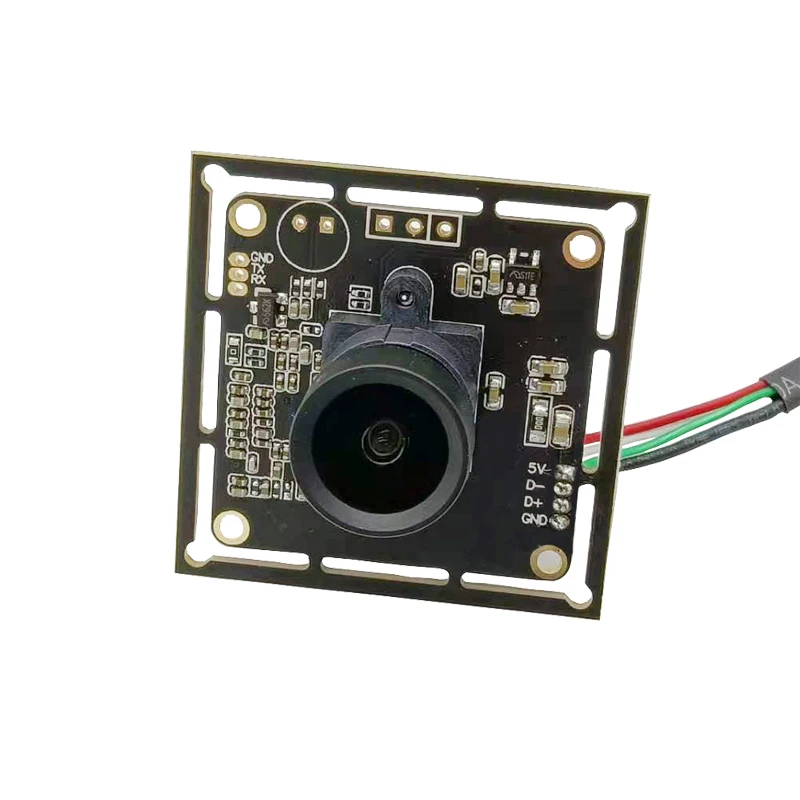

Product Name	OV2735 1080P H.264 USB camera module
Sensor	1/2.7’’ Omnivision OV2735
Resolution	1920(H) x 1080(V)@30FPS
FOV（Diagonal）	100°
Focus type	Fixed focus
Compression format/Video stream form	MJPEG / YUV2 (YUYV)/H.264
Shutter Type	Electronic rolling shutter
Max Dynamic Range	TBD
S/N ratio	TBD
Cable Length	1 Meter
Object distance	5cm to 100m
Dimension	38mm*38mm
UVC compliant	USB Video Class（UVC）
Support OS	WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later;Android 4.0 or above with UVC, raspberry pi
Support SDK	YES

Key Features:

1. OV2735 H.264 USB2.0 Camera Module.
2. Most effective pixels is 1920(H) x 1080(V)@30FPS.
3. Fixed focus,UVC compliant, plug and play interface standard.
4. No Distortion, Wide angle
5. 38*38MM, Support SDK
6. Main application Face recognition, witness comparison,ATM

Pinhole Lens Types

Details Images

8MP usb2.0 UVC camera module is used for Sony IMX317CMOS image sensor , the reslution is 3264×2448 frame rate is 30FPS. It can be applied to face recognition, high shot equipment.

Standard USB Cable length is 1meter. If you want to longer or shorter, kindly tell us.

UVC standard,support WinXP/Vista/Win7/Win8; Linux with UVC（above linux-2.6.26; MAC-OS X 10.4.8 or later);Android 4.0 or above with UVC, raspberry pi

38mm*38mm , Supper SDK

Recommend Products

Product Application

Packing&Shipping

1000pcs per carton

Company Introduction

Shenzhen Brilliant CMOS Technology Co., Ltd. is specialized in manufacturing camera module, mainly providing USB interface cameramodule, MIPI / DVP interface camera module, miniature endoscope module. We can provide SDK for most USB camera modules,support OEM service.

Class 1K Workshop

Our Services & Strength

R&D Department: 5 people, we can support SDK for USB Camera module

Lable: Different styles lable for your choice

FAQ

1. How to buy our product?

You can buy the products from our company directly. Normally the procedure is, sign the contract, make
the payment by T/T, Paypal, Alibaba or Western Union, then ship the goods to your address.

2. What's the warranty?

The free warranty is 2years from the date of commissioning qualified. During the free warranty period, if there's any fault
because of our produce, it's our duty to repair it and change the fault assembly for free.

3. Can we visit your camera module manufacturer?

Of course, we will arrange everything if you can tell me in advance. So please feel free to contact me and I will do my best tomake your trip worthwhile.

4. How to customize camera modules as our requirement?

For customization service, it's warmly welcome.
Our company has been in camera module industry for over 10 years and has a rich experience on customized services.
We'll try our best to meet your requirements.
In order to know well clients' requirements, we should know parameters as below,
a) Form factor
b) Dimensions
c) Pixel
d) Frame rate
e) FOV-horizontal, diagonal, vertical
f) Interface-MIPI, USB, ANALOG etc.
g) Pin description
h) Image Effect, monochrome or colorful
i) Any other function requirement? IR Light, IR Cut? What's the wavelength?
