Портативная машина для резки труб из нержавеющей стали
- Категория: Pipe Cutting Machines >>>
- Поставщик: Shanghai,CHD,Welding,&,Cutting,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4760.91 $* | 4998.35 $* |
| Aug-15-2025 | 4720.77 $* | 4956.20 $* |
| Jul-15-2025 | 3960.82 $* | 4158.79 $* |
| Jun-15-2025 | 4640.81 $* | 4872.29 $* |
| May-15-2025 | 4040.59 $* | 4242.30 $* |
| Apr-15-2025 | 4560.93 $* | 4788.0 $* |
| Mar-15-2025 | 4520.49 $* | 4746.22 $* |
| Feb-15-2025 | 4480.29 $* | 4704.15 $* |
| Jan-15-2025 | 4440.38 $* | 4662.58 $* |
Характеристики
APPLICATION
The portable design can realize indoor and outdoor grooving work as long as there is source.Suitable for pipe beveling before welding materials cover common steel, stainless steel, Nonferrous metal, hard-plastic, etc. Widely used in power plant, shipyard, pertroleum and chemical industry, deal with pipe construction, upkeep and maintenance work. Through constant improvement, the products not only can replace traditional beveling mode by gas cutting and polishing, enhance work efficiency, reduce labor intensity, but also can improve welding quality.
FUNCTION
Simple installation and fast operation. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter. As it adopts mechnical cutting groove method for cold cutting, it can keep the mechinical properties of material quality well. And it also could do flat-end, V, X, U shape beveling to the pipe. Thus, it could meet with all the requirements for butt welding.
FEATURES
1. Split frame design
2. High-performance electric drive
3. Flameproof, lower noise level
4. Strong force and steady rotation
5. Cut and bevel simultaneously
6. Automatic feeding, rapidly finish feeding and retracting knife operation. Easy and quick operation, self-fixed at the pipe center
7. High beveling speed and labour saving
GPD-80 Pneumatic Automatic Cutting and Beveling Machine for pipe and tube | ||||||||
Drive type: Pneumatic | Warranty: 1 year | |||||||
Air pressure: 0.6-1.5MPA | Delivery time: 2 -10days | |||||||
Air flux: 1500-2000L/MIN | Cutting way: cold cut | |||||||
Feeding way: Automatical | The range of degree: 0°-37° | |||||||
Notes:
1. If the pipe wall thickness is less than 1% of the pipe diameter, the strebgthened swelling rib is advised.
2. If the pipe diameter above 600mm, NC servo motor or Hydraulic drive is advised.
3. Standard specification, if any non-standard, please consult with our company.
DETAIL IMAGES

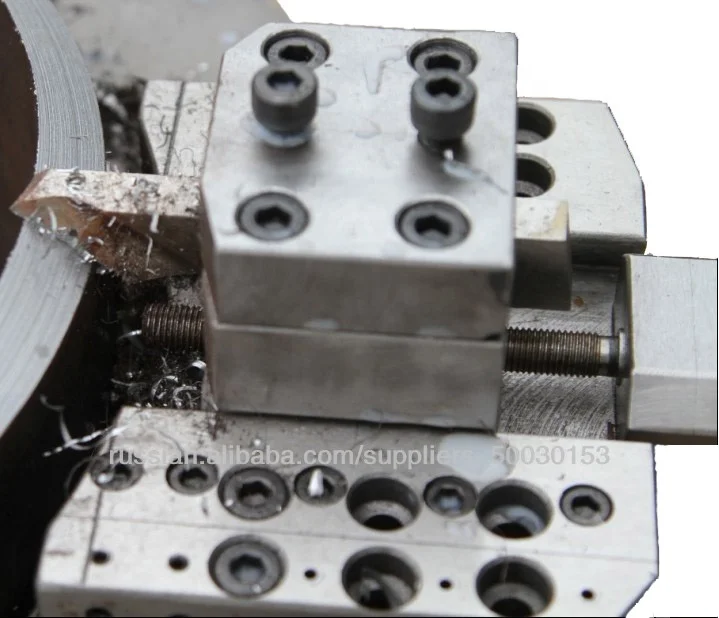

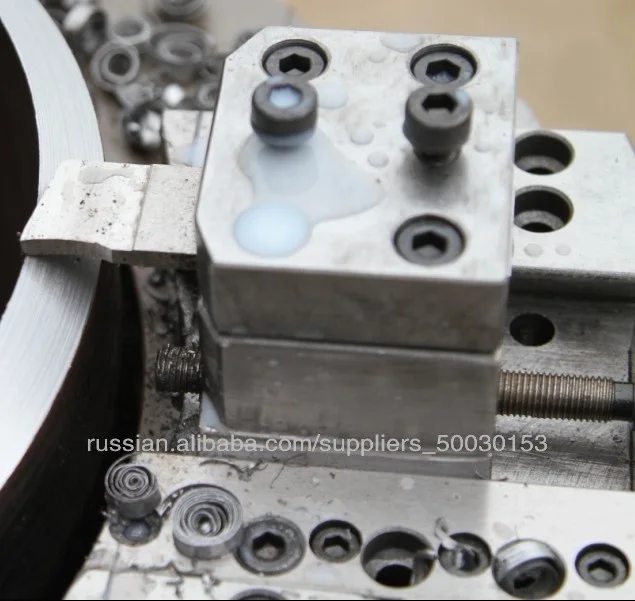

Blades
Different blades could meet with all 0°-37° requirements of butt welding
Product Package & Delivery process
Product Package & Delivery process
Company Profile
WHY CHOOSE US?
Certifications
Exhibition
PRODUCTS ON-SITE
Transportation
FAQ
1) Are you Manuacturer?
RE:Yes.
2) How to choose a right model?
RE: Please let us know more details about the pipe, such as the I.D, O.D, the materials of the pipe, the environment of the site and the requirement of the end face, etc. These will help us to choose the right model for you immediately.
3) Do you have another choice about the driven?
RE: Of course. We have many choice for you to choose, such as electric, pneumatic, hydraulic, NC, etc.
4) Which type of beveling machine do you have?
RE: Internal expansion type, external installed type, plate beveling machine, desktop precision pipe cutting machine.
5) Do you support the special needs?
RE: Yes, we have many engineers. We could design it according to your need.
6) How about the payment term?
RE: 30% advance payment and balance payment before the shipment by T/T.
Welcome to contact us!
