Характеристики
Product Description
PE /PP/PPR/HDPE PIPE | ||
Size | 20-1600mm | |
Output | 460-2100 | |
Power | 90-350 | |
Usage | Water Supply , Gas Supply , Coal Mine ,Solar Energy ,Floor Heating,Cmmunication Area | |
PVC PIPE | ||
Size | 16-800mm | |
Output | 100-1100 | |
Power | 110-355 | |
Usage | Agricultural Water Supply, Pavement of cable | |

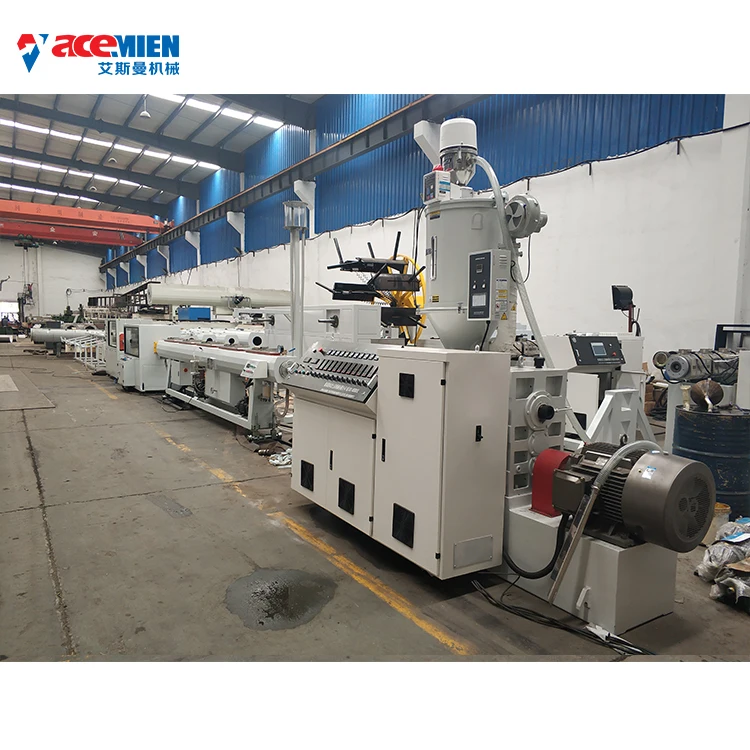

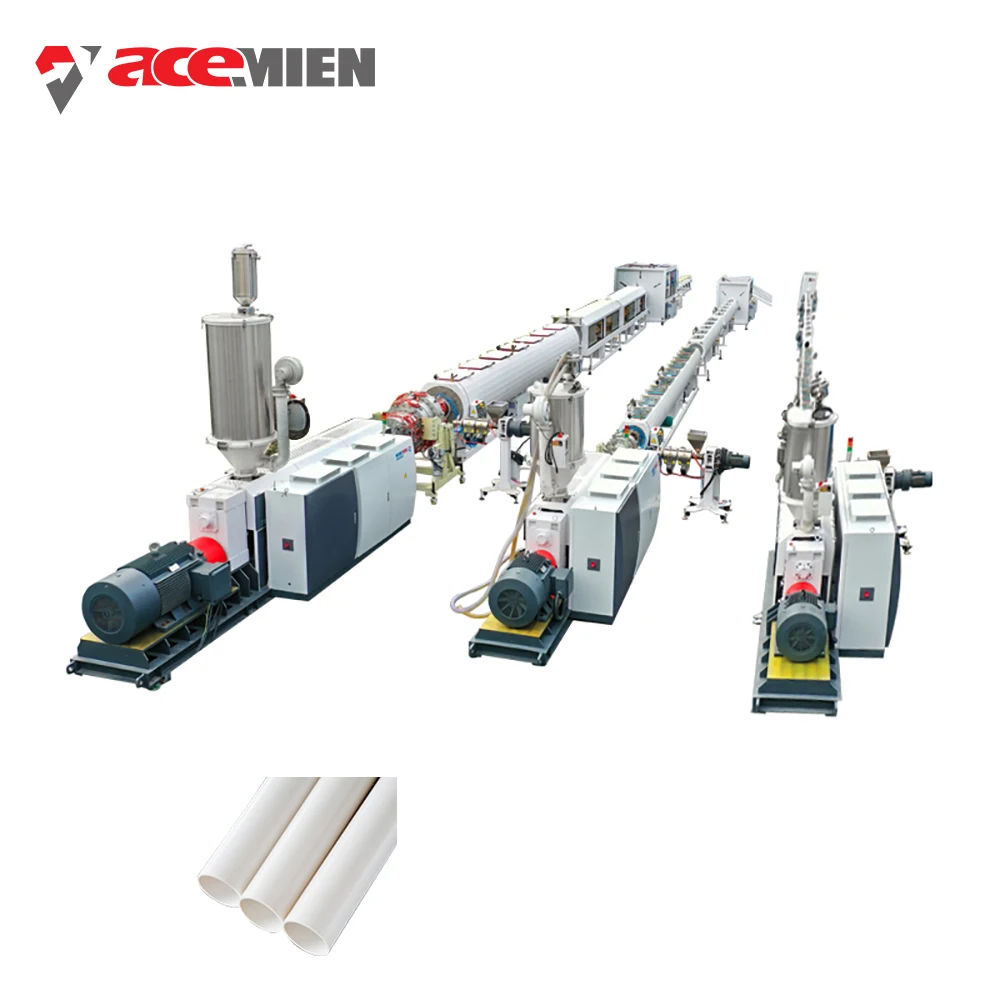

plastic pipe extrusion line used for water supply,gas supply,coal mine,solar energy,floor heating ,communication area and so on. The production line consists of new generation High efficiency single screw extruder(38:1), pipe mould, vacuum calibration tank, spraying cooling tank,haul-off unit, cutter stacker, etc. single screw extruder and haul-off unit adopts imported AC inverter, both electrical components and driving motor use the quality brand.
Detailed Images
Main electric part supplier
Inverter: ABB
Air Switch: LS
Contactor: Schneider
Relay &Temperature controller: Omron
Conical double screw extruder
Technical parameter
Material of screw: 38CrMoAl
Heating zones: 4 Heating power: 35kw
Cooling mode: Air fans
Driving motor: 55KW (siemens)
Dosing feeding motor: 1.5KW
Vacuum pump: 1 set
Dosing feeding motor: 1.5KW
Vacuum pump: 1 set
Cool mode: Air fans: 3 Sets
Mould
Technical parameter
Include calibration sleeve
Material: Made by 40Cr.
Diameter spec: Ф160, 200, 250, 315 mm
Material: Made by 40Cr.
Diameter spec: Ф160, 200, 250, 315 mm
Wall thickness:Providing by customer
QTY. of heating zone:14
Heating power: 32KW
QTY. of heating zone:14
Heating power: 32KW
Vacuum calibration tank
Technical parameter
Vacuum ,Water spray & Moving system
Length: 5600mm
Vacuum pump power: 3 KW x 2
Water pump power: 4 KW x 2+ 3KW
Tank material: 304 Stainless steel
Vacuum gauge:0.03-0.06Mpa
Spraying nozzle: ABS
Vacuum pump power: 3 KW x 2
Water pump power: 4 KW x 2+ 3KW
Tank material: 304 Stainless steel
Vacuum gauge:0.03-0.06Mpa
Spraying nozzle: ABS
Haul off
Technical parameter
Four claws haul-off
Motor: 1.4×4KW
Claw length:: 1800mm
Claw width: 80mm
Maximum traction speed: 3m/min
Max traction force:2000N
Pneumatic clamping: adopt anti-friction rubber block
Claw length:: 1800mm
Claw width: 80mm
Maximum traction speed: 3m/min
Max traction force:2000N
Pneumatic clamping: adopt anti-friction rubber block

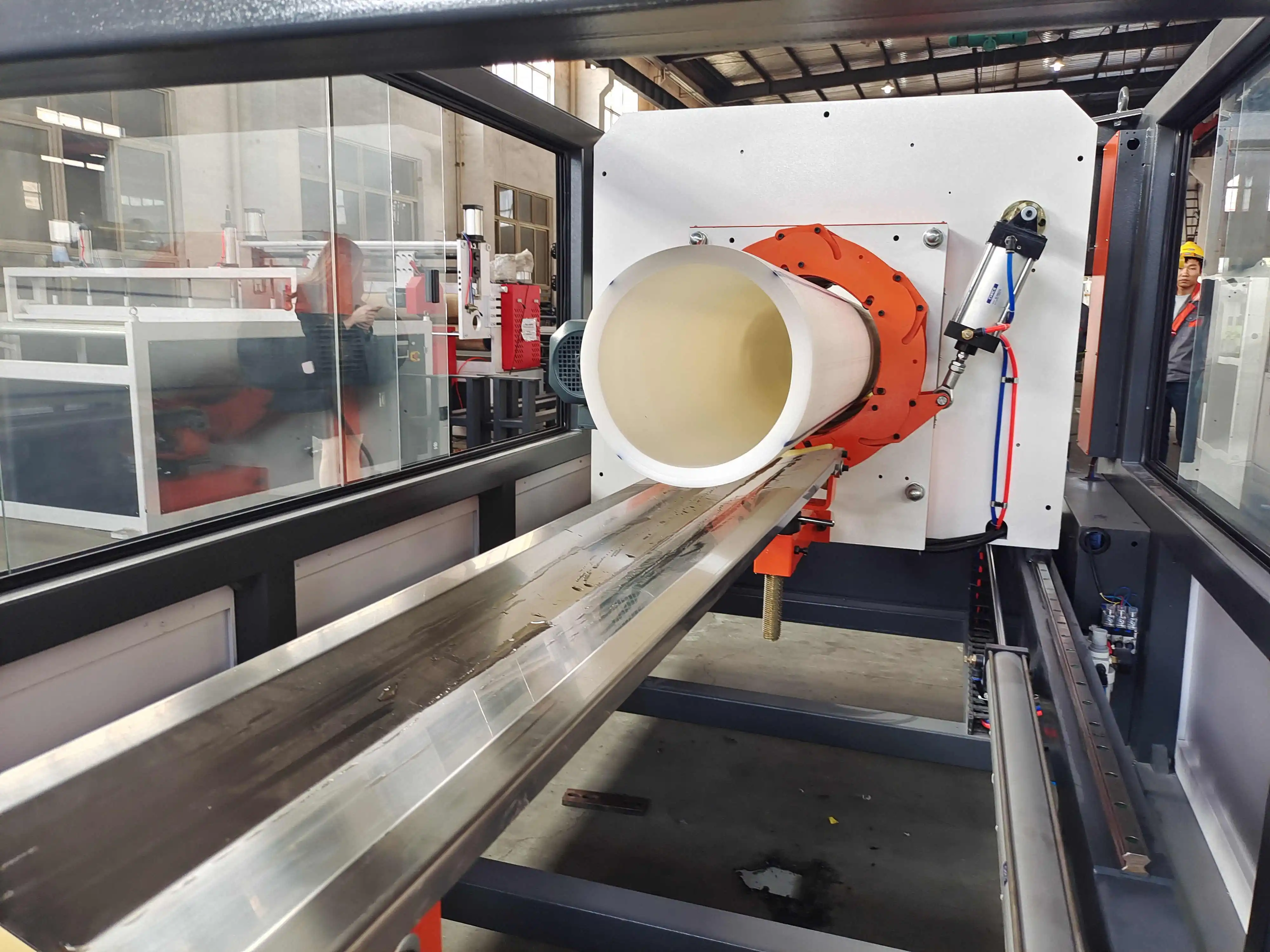

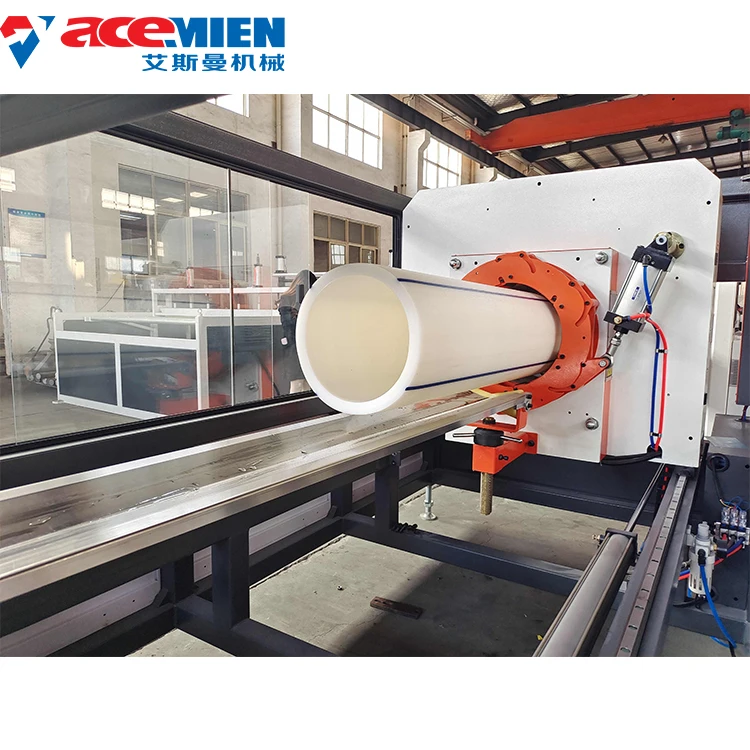

Planetary Cutter
Technical parameter
scrap collecting device;
Independent control system
Independent control system
Cutting method: mechanical enter knife
Diameter of saw: 130mm
Cutting motor: 2.2KW
Revolution motor: 1.5KW
Cutting saw: steel alloy
Duralumin clamping for accurate cutting.
Dust collection motor power 0.75KW
With chamfering function
Diameter of saw: 130mm
Cutting motor: 2.2KW
Revolution motor: 1.5KW
Cutting saw: steel alloy
Duralumin clamping for accurate cutting.
Dust collection motor power 0.75KW
With chamfering function
Machine List
No. | Machine | Qty. | Remark |
1 | ZJF700 feeder | 1set | 2.2kw |
2 | SJZ80/156 conical twin-screw extruder | 1set | 55kw |
3 | Mould | 1set | Ф160, 200, 250, 315mm |
4 | Vacuum Calibration tank | 1set | >=5600mm |
5 | Haul-off unit (four claws) | 1set | Speed: 3m/min |
6 | Planetary Cutter (with dust collecting device) | 1set | 2.2kw |
7 | Tip table | 1set | >=5000mm |

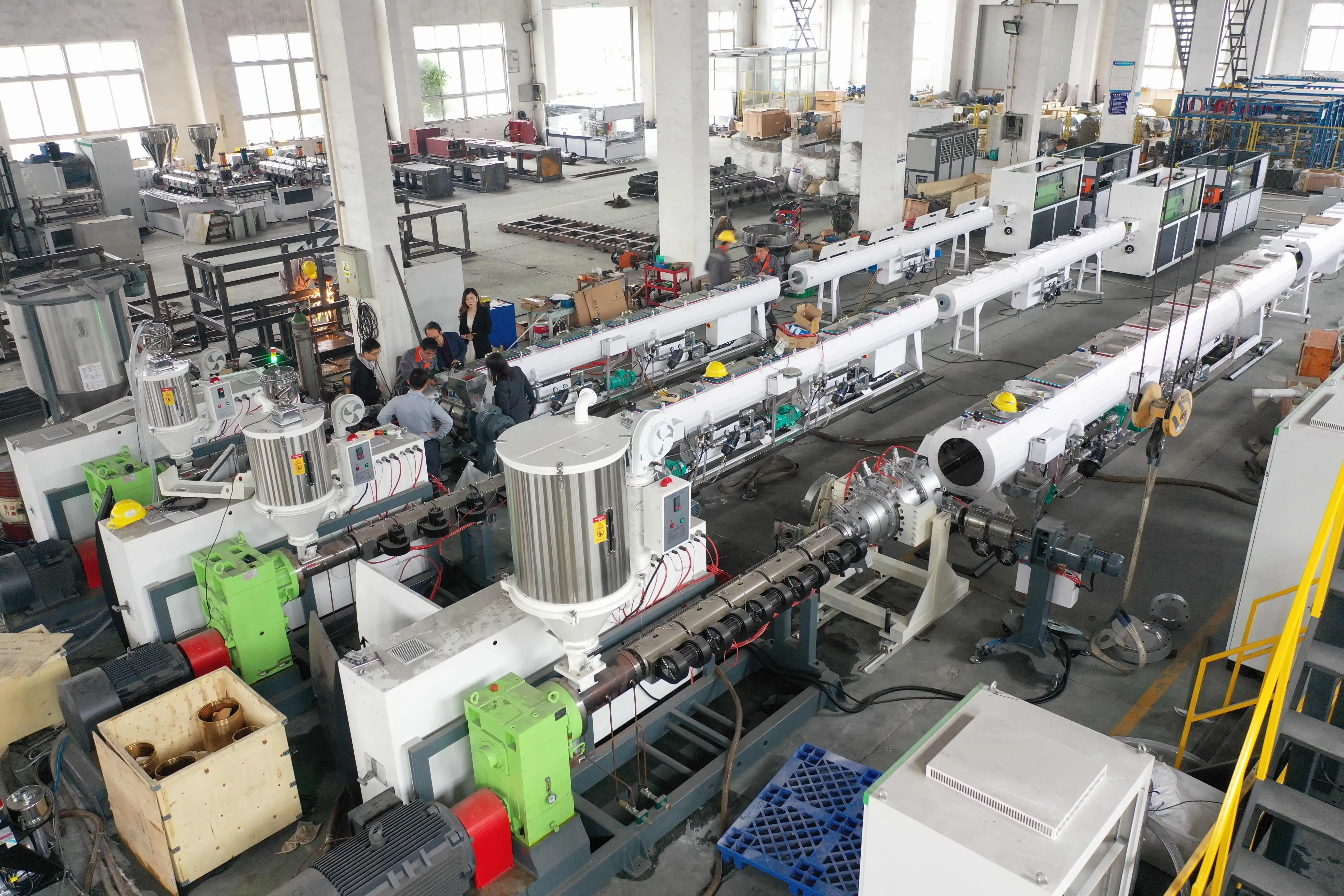

Exhibition
Company Introduction
ZHANGJIAGANG AICHENG MACHINERY CO.,LTD is located in Zhangjiagang city, China which is nearby Shanghai city.Focuses on plastic extrusion and recycling equipment manufacturing field,such as pipe extrusion machine、foam board extrusion line,door panel /win dows board extruder,plastic profile production line, corrugated pipe production machine, ,plastic sheet extruder,plastic pelletizing ma chine,waste plastic washing line and so on.
The factory covers an area of 10,000 square meters, with a construction area of nearly 13,000 square meters. The company has more than 100 employees and an annual output of more than 3, 5 million.Our company has rich experience in the plastic machinery making industry.
Packing&Shipping
Packaging - 1 | ||
Size | 800mm(L) * 600mm (W) * 45mm (D) | |
Weight | 0.8 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moisture proof film for packing or pack it according to customers special request. | |
Packaging - 2 | ||
Size | 25m (L) * 3m (W) * 3m (D) | |
Weight | 10 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too higher,we will use moisture proof film for packing or pack it according to customers special request. | |
After-sales service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction,details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
ACEMIEN will provide long-term technical guide.
1. Test every machine and inspect the machine seriously.
2.Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3.Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
ACEMIEN will provide long-term technical guide.
FAQ
Q1. Are you a factory or a trading company?
A1: Yes, we are manufacturer with more than 10 years' experience.
Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
