DIY электронные наборы Собранный мини DSO150 цифровой осциллограф 2 4 дюймов ЖК-дисплей с
- Категория: Oscilloscopes >>>
- Поставщик: Guilin,Qixing,District,Zhongyinke,Electronic,Equipment,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.55 $* | 0.48 $* |
| Aug-19-2025 | 0.82 $* | 0.86 $* |
| Jul-19-2025 | 0.62 $* | 0.39 $* |
| Jun-19-2025 | 0.38 $* | 0.40 $* |
| May-19-2025 | 0.18 $* | 0.50 $* |
| Apr-19-2025 | 0.12 $* | 0.57 $* |
| Mar-19-2025 | 0.41 $* | 0.40 $* |
| Feb-19-2025 | 0.38 $* | 0.58 $* |
| Jan-19-2025 | 0.27 $* | 0.12 $* |
Характеристики
Product Overview

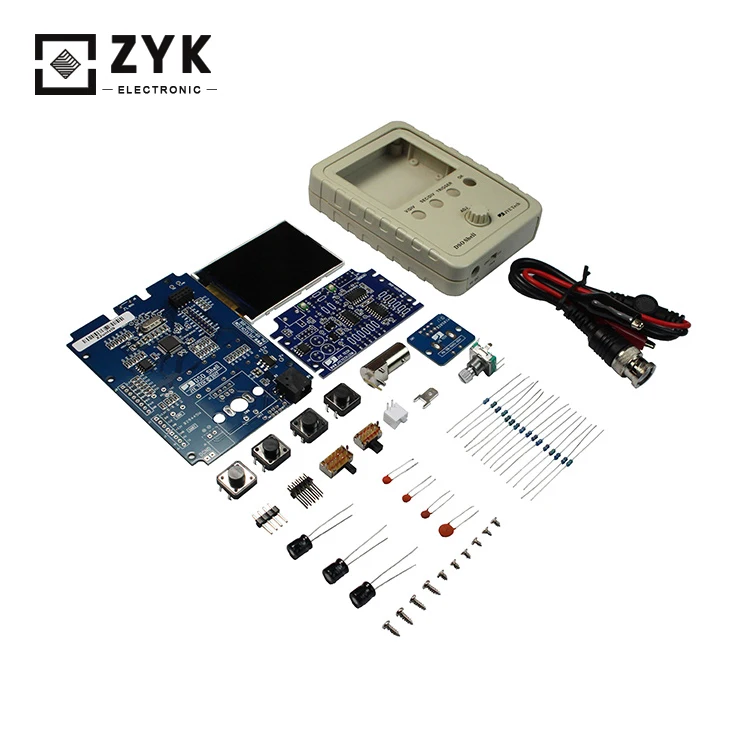

DSO Shell DIY Kit Digital Storage Oscilloscope

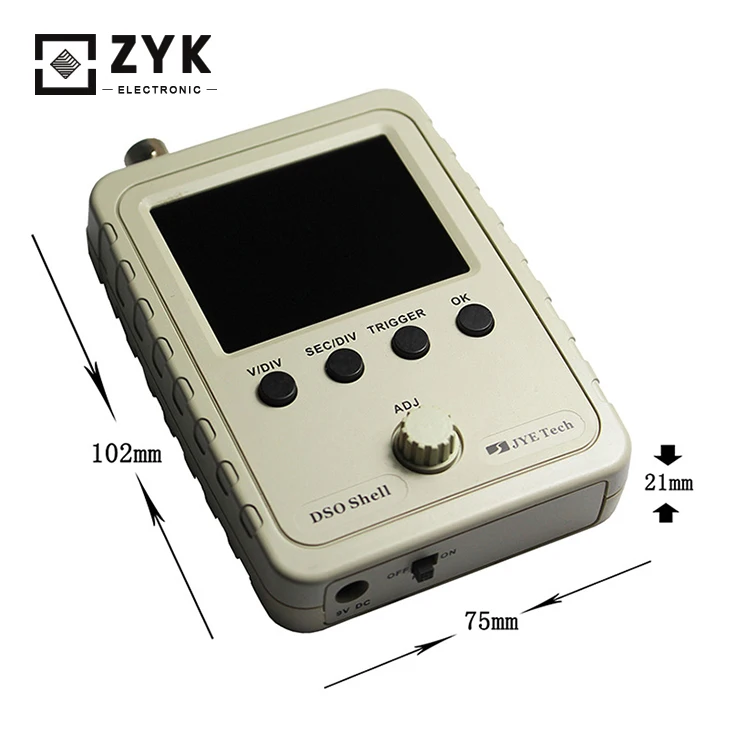

DSO Shell has similar bandwitch as DSO138 though it contains significant improvements in structure, mechanical, and operation. DSO Shell comes with full enclosure. The front panel and top/bottom brackets are flexiable for easy user modification. Rotary encoder has been added. It makes parameter adjustment much quicker and easier.
Important Notes
It is assumed that users have adaquate soldering skills and troubleshooting skills to assemble the DSO Shell kits. Buyers are advised that due to skills of user is involved in assembly it is not guaranteed every kit will end up being a working device. But we will make as much efforts as we can to approach that goal.
After receiving the kits users are urged to check mainboard and LCD by applying proper power supply. Report immediately to your seller or JYE Tech if problem or damage is found.
After receiving the kits users are urged to check mainboard and LCD by applying proper power supply. Report immediately to your seller or JYE Tech if problem or damage is found.
The sensitivity of DSO Shell has been extended in both directions and is higher and wider than DSO138. It reaches 5mV/div --- 20V/div while DSO138 is only 10mV/div --- 5V/div.
DSO Shell runs on 9V (do not use power voltage higher than 10V!) power supply. Users need to prepare their own power supply since it is not included in the kits. The power jack on the mainboard accepts standare 5.5mm/2.1mm DC plug. Alternative 2-pin connector (0.1" pitch) is also provided for convenience to connect to different power sources.
DSO Shell runs on 9V (do not use power voltage higher than 10V!) power supply. Users need to prepare their own power supply since it is not included in the kits. The power jack on the mainboard accepts standare 5.5mm/2.1mm DC plug. Alternative 2-pin connector (0.1" pitch) is also provided for convenience to connect to different power sources.
Specification | ||
No. of Channels | 1 | |
Analog Bandwidth | 0 – 200KHz | |
Sensitivity | 5mV/Div - 20V/Div | |
Sensitivity error | < 5% | |
Resolution | 12-bit | |
Input Impedance | 1M ohm | |
Maximum Input voltage | 50Vpk | |
Coupling | DC, AC, GND | |
Max Real-time Sampling Rate | 1Msps | |
Timebase | 10us/Div - 500s/Div | |
2.4-inch color TFT LCD with 320 x 240 resolution | ||
It comes with everything you need out of the box, with a micro-USB cable and two high-quality BNC probes. Enjoy and start
creating!
creating!
