Промышленные 8 Pport 10 / 100BASE-T (8-портовый PoE +) + 1 порт 100BASE-FX
- Категория: Ethernet & Communication Modules >>>
- Поставщик: Shenzhen,E-Linkchina,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 143.40 $* | 150.45 $* |
| Aug-18-2025 | 142.62 $* | 149.56 $* |
| Jul-18-2025 | 119.38 $* | 125.3 $* |
| Jun-18-2025 | 139.16 $* | 146.60 $* |
| May-18-2025 | 121.33 $* | 127.89 $* |
| Apr-18-2025 | 137.14 $* | 144.2 $* |
| Mar-18-2025 | 136.1 $* | 143.38 $* |
| Feb-18-2025 | 134.88 $* | 141.19 $* |
| Jan-18-2025 | 133.47 $* | 140.26 $* |
Характеристики
Industrial 8-port 10/100BASE-T (8-port PoE+) + 1-port 100BASE-FX Ethernet Switch
Product Description
Model: LNK-GY108P Series
Overview
LNK-GY108GP-SFP is a 8 ports 10/100Base-TX + 1 port 100Base-FX Hardened PoE switch. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
· 8 10/100Base-TX + 1 100Base-FX
· 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
· Supports IEEE 802.3at PoE+ (30W per port)
· SFP, SC, FC, ST Optional
· Supports 802.3x Flow control
· Redundant Power Inputs
· Supports Wall-mount and DIN-Rail installation
· -40°C to 80°C (-40°F to 176°F) operating temperature
Warranty
· 5-Year Warranty
Technical Indexes
Standards: | IEEE802.3 10BASE-T |
IEEE802.3u 100BASE-TX/FX | |
IEEE802.3x Flow Control | |
IEEE802.3af Power over Ethernet | |
IEEE802.3at Power over Ethernet | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
Packet Buffer Memory: | 512K bits |
Processing Type: | Store-and-Forward |
Address Table Size: | 1024 MAC Addresses |
Interface | |
Connector: | 8 x RJ45 |
Optical Port: | 1 x 100Base-FX (SFP, SC, FC, ST Optional) |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
MTBF | > 200,000 hrs |
Electrical and Mechanical | |
Input Power: | 48~57VDC , Redundant Power (6-pin Terminal Block) |
Power Consumption: | 253W Max. (PoE in use) |
5W Max. (PoE not in use) | |
Standard: | IEEE802.3af/at |
PoE: | |
Port: | RJ45 Port 1 ~ Port 8 |
Max. Power per Port: | 30W Max per port (Alternative B Mode) |
Protection: | |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
LED Indicators: | |
Power: | Power1, Power2 Status |
PoE: | Per Port Status |
Ethernet(Per Port): | Link/Activity |
SFP: | FX1 |
Dimensions (WxDxH): | 50 x 108 x 139 mm |
Weight: | 0.6Kg |
Casing: | Metal Case |
Mounting Options: | DIN-Rail / Wall-mount |
Regulatory Approvals | |
ISO9001 | |
EN55022:2010+AC: 2011, Class A | |
EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
EN 61000-3-3: 2013 | |
EN55024:2010 | |
IEC 61000-4-2: 2008 (ESD) | |
IEC 61000-4-3: 2010 (RS) | |
IEC 61000-4-4: 2012 (EFT) | |
IEC 61000-4-5: 2014 (Surge) | |
IEC 61000-4-6: 2013 (CS) | |
IEC 61000-4-8: 2009 (PFMF) | |
Ordering Information
Model | Description |
LNK-GY108P | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
LNK-GY108P-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
LNK-GY108PS-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
LNK-GY108PF-20 | Industrial Ethernet Switch: 8-Port 10/100Base-TX (8-port PoE+) + 1-Port 100Base-FX Fiber,Single Mode, Single Fiber, FC, 20KM |
LNK-GY108P-SFP | Industrial 8-port 10/100BASE-T (8-port PoE+) + 1-port 100BASE SFP Ethernet Switch |

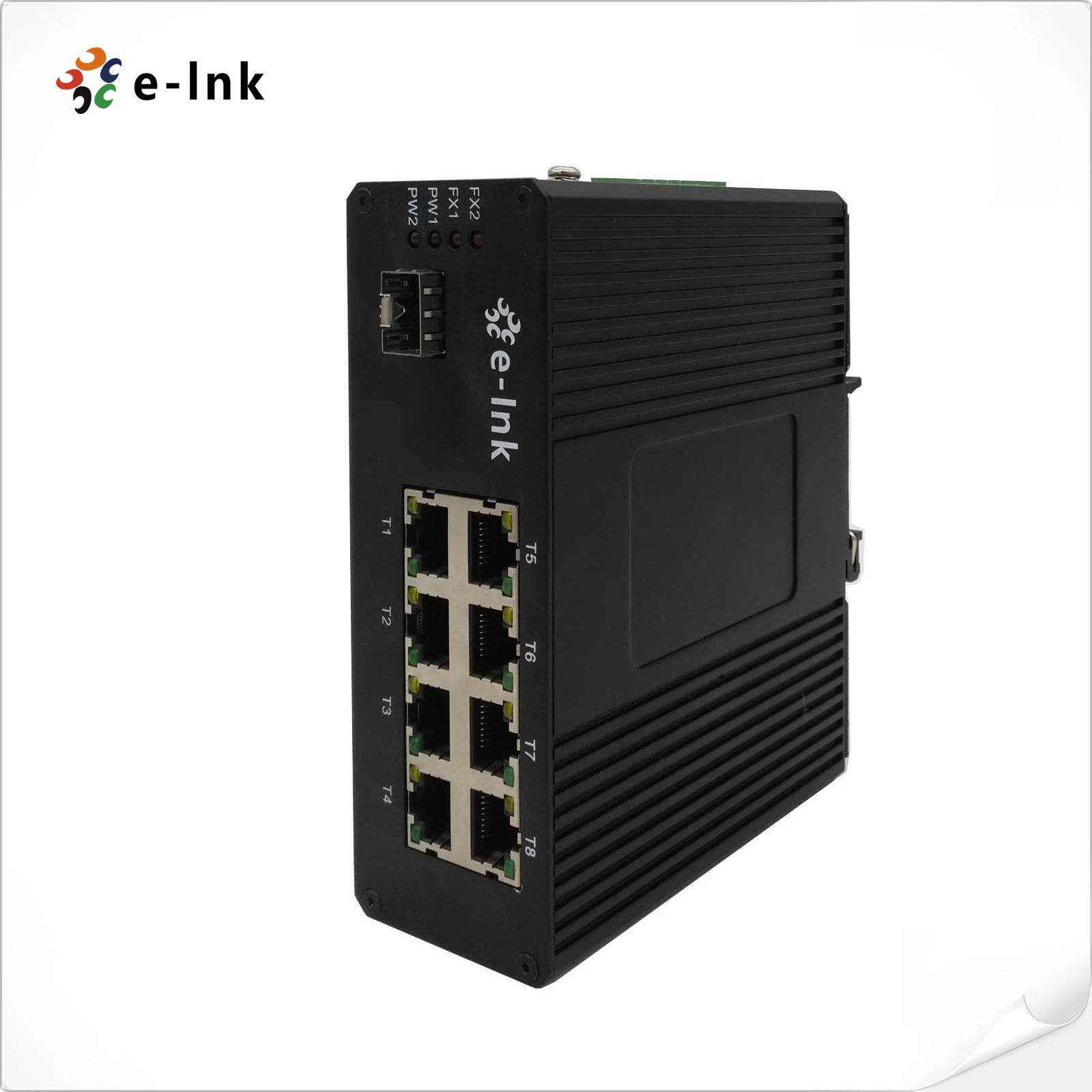

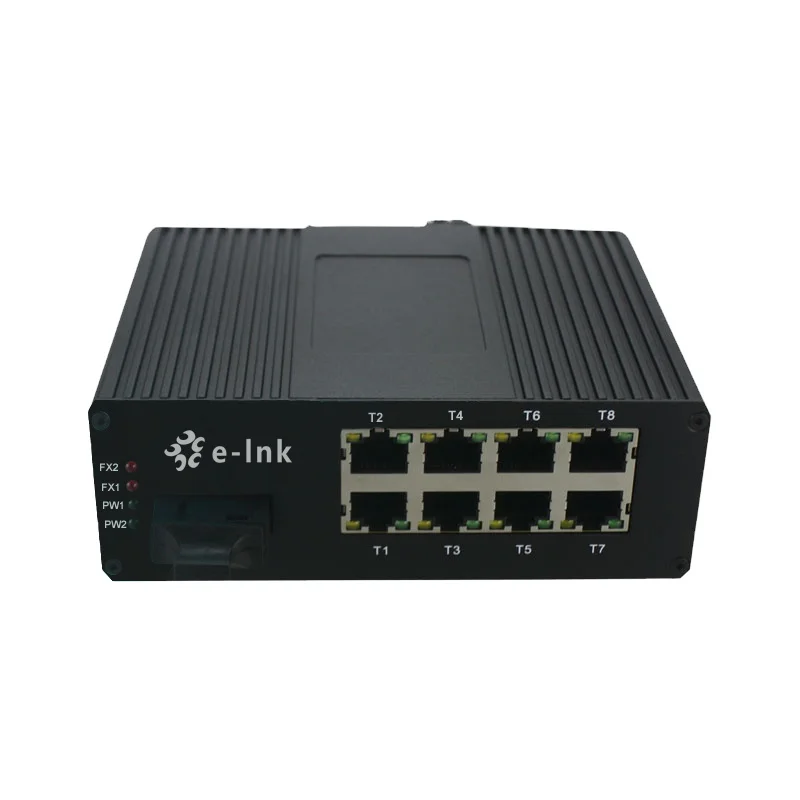

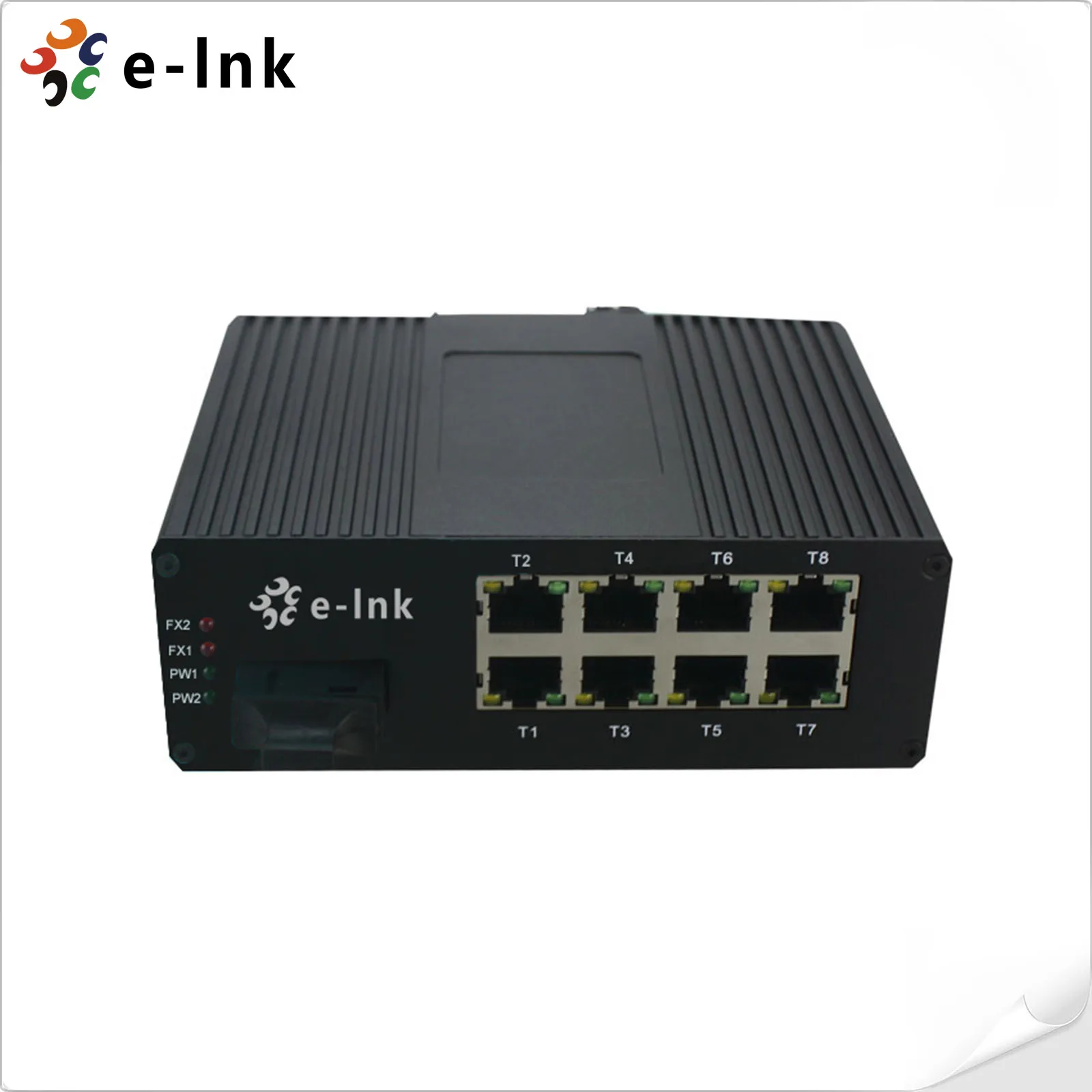

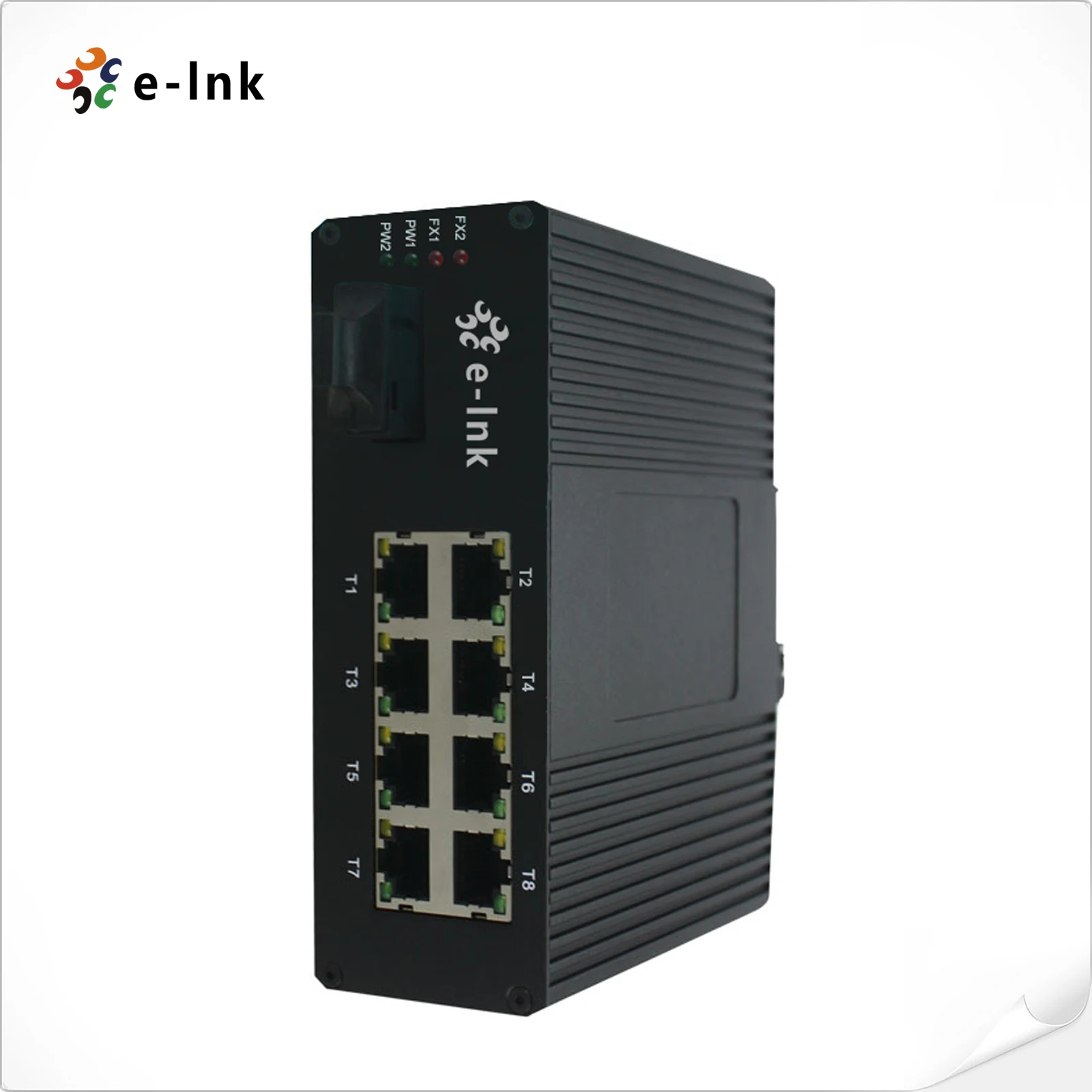

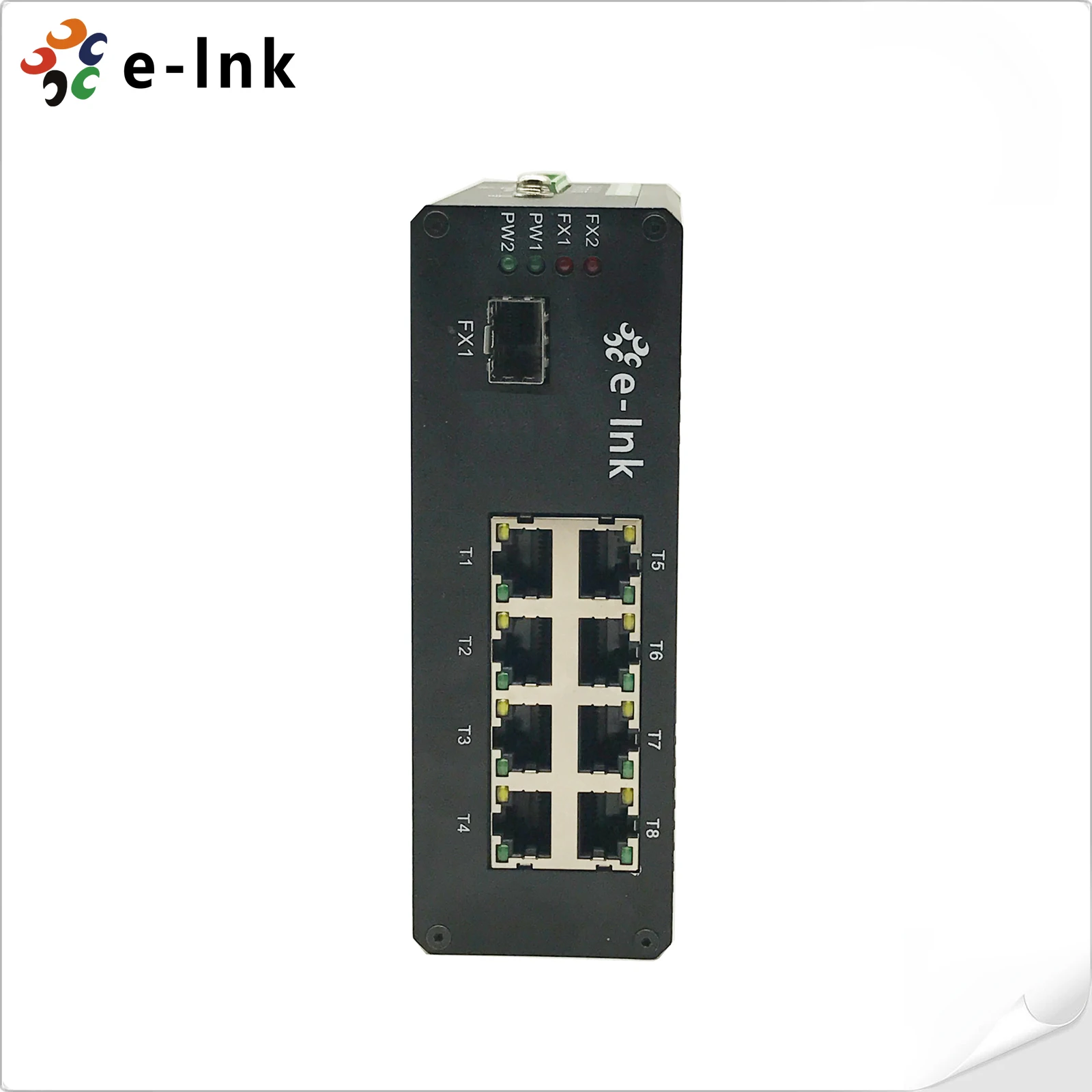

Product Pictures
