Характеристики
Product Description

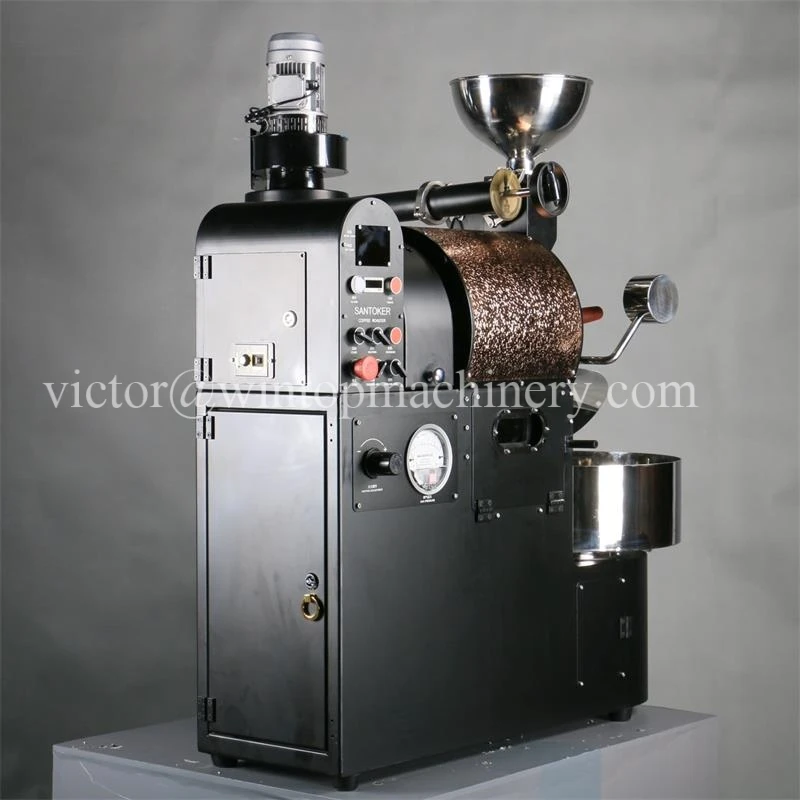

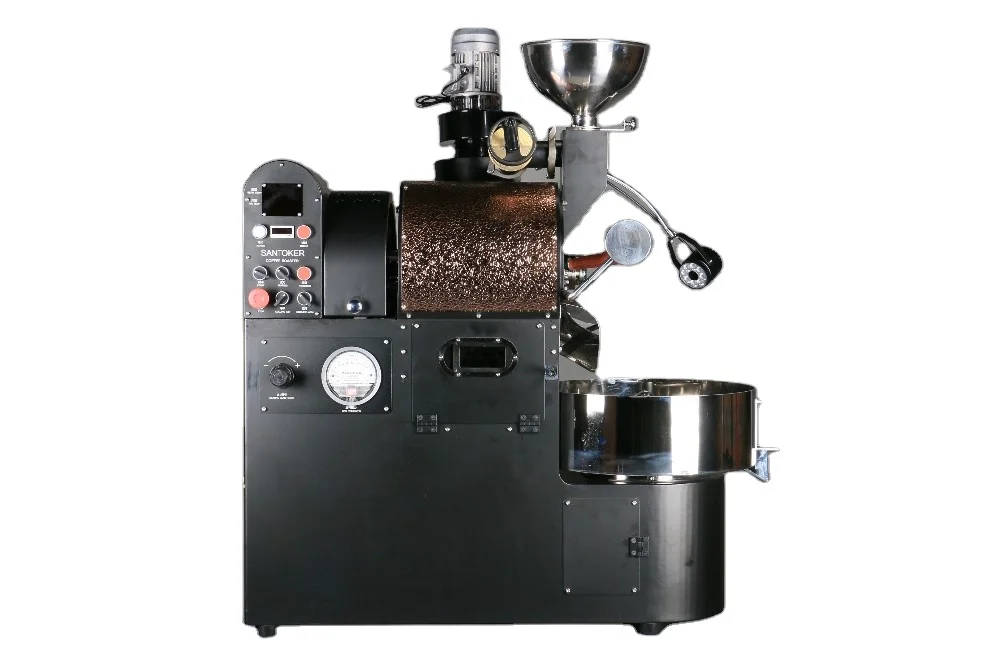

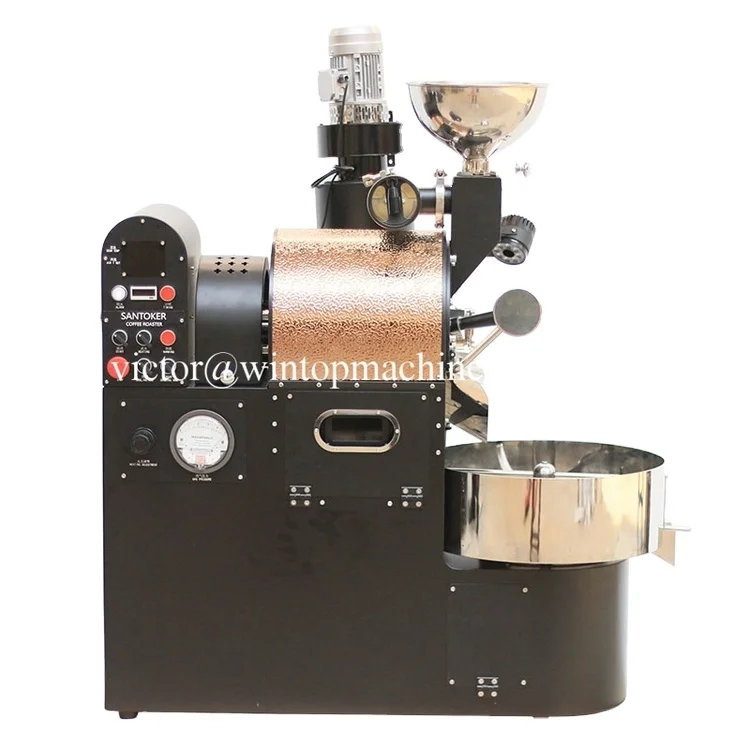

Wintop Santoker commercial 3kg coffee roaster with dual layer drum hot selling
WS-R3 3kg Double - layer inner pot Specialty Coffee Roaster machine.
If you compared coffee roasters (2-3kg) with several suppliers already, but still don't know how to select a coffee roaster in high performance but an affordable price?
WS series 3 kg coffee roaster is your answer, it is built with first-class craftsmanship and best drum carbon steel materials from around the world, also with highest technology. It is the most popular item selected by coffee shop owners. It can evenly roast coffee beans from 500g to 3200g, meet the need of cafes ,coffee shop ,coffee roastery.
Here are the Features for your reference :
1.WS-R3 Pro adopts the double-wall drum totally avoiding inner pot overheat problem.Achieve the perfect roasting results.
2.Fully automatic control from loading beans to outlet.
3.Special blades design inside the pot makes coffee beans better even heating.
4.And the roaster adopts industrial grade temperature control system, zero delay of temperature output.
5.Adjustable pot drum speed function help to master your roasting skills;
6.Carton Iron inner pot materials, not stainless steel.
7.PC-USB data logging and Mobile Phone APP application keep your roasting profiles more easily.
8.It comes with latest technology and 1 year warranty.
9.Color Options: Red, Black, White
WS-R3 Specialty Coffee Roaster Specifications | ||||
Model | WS-R3 | |||
Capacity | Max 3200g | Max 3200g | ||
Heating Source | Electric | LPG-NG-Propane | ||
Heating Mode | Direct Fire & Semi hot air heating | |||
Voltage | Single Phase 220 V, 50/60 Hz | |||
Power | 8000 W | 700 W | ||
Motor | 4 | 4 | ||
Roasting Time/ batch | 10-15 mins | 10-15 mins | ||
Cooling Time / batch | 1-2 mins | 1-2 mins | ||
Gas consumption | 2 KW.h/roast | 0.6 Kg/Hr | ||
Dimensions | 112*73*125cm | |||
Weight | 175 Kgs | |||
Data Logger | Mobile phone Bluetooth & PC-USB connection | |||
Detailed Images
Why Double-walled Drum?
Wintop WS-R3 the outer and inner layer made of carbon steel. When gas is ignited, hot air fills full in gap between the outer and inner layers, the hot air is around the inner drum, avoiding roasting beans direct touching fire, harm beans by over heat, or Inhomogeneous heat.

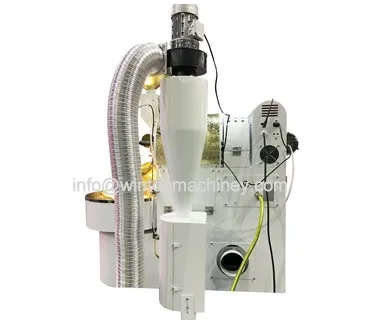

Smoke Exhaust System
Hot air volume adjust in precision by hand operation; The chaff cyclone connects to the coffee roaster unit simply by a hoop, the exhaust smoke pipe is parallel to ground and shortest between the chaff cyclone and main unit, that greatly improve the hot air working efficiency. Easy to clean Mainyain, Install and unistall.
Precise Thermocouples
Germany PT 100 thermocouples with Japan Fuji temperature controller to get the real time temperature of coffee beans and exhaust air inside the drum.
Sampler spoon and sight glass window help to control the roast degree easily
High Performance Burner
Santoker team work hard for developing the high performance heating burner. it is achieved gentle and evenly heating to the drum, plus the durable insulation layer around the drum, you can maximum use the heat only for beans which saves the fuel.
Vacuum Pressure Gauge
Controlling airflow is very important during roast, Normally, we control airflow is only by manual damper.
But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.
But once you forget to clean up the exhaust pipe and exhaust fan motor in time, the dust and chaff may block the pipe or motor, or if you meet the bad weather (like strong wind, heavy rain etc.), you may not get exact pressure value by manual damper.
Double Walled Drum
WS-3 is released by a double-layer drum coffee roaster，the drum is made of two layers carbon steel alloy, drum total thickness is 10 mm. Carbon steel alloy has a better diathermancy than stainless steel. When it starts heating up, the hot air quickly full fill in the gap between two layers, the inner drum is surrounded by hot air, and the hot air can evenly through inner drum to beans for doing roasting to achieve gentle and evenly roast. Thanks to the drum structure design,
Gas Gauge Locking Function
WS-3 Gas gauge is more precise and the gas pressure knob can be locked.
After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone else touching or misoperating it.
After you adjusted gas pressure value, you can push the gas pressure knob into machine to lock the operation and avoid someone else touching or misoperating it.
Mobile Phone Bluetooth data logger,or IPAD also can connect the Artisan,Crosper and Go ROASTER these APP .
Mobile Phone Bluetooth connection for data logger is our latest technology which is very popular in our coffee roaster

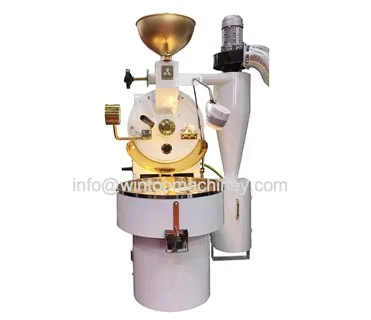

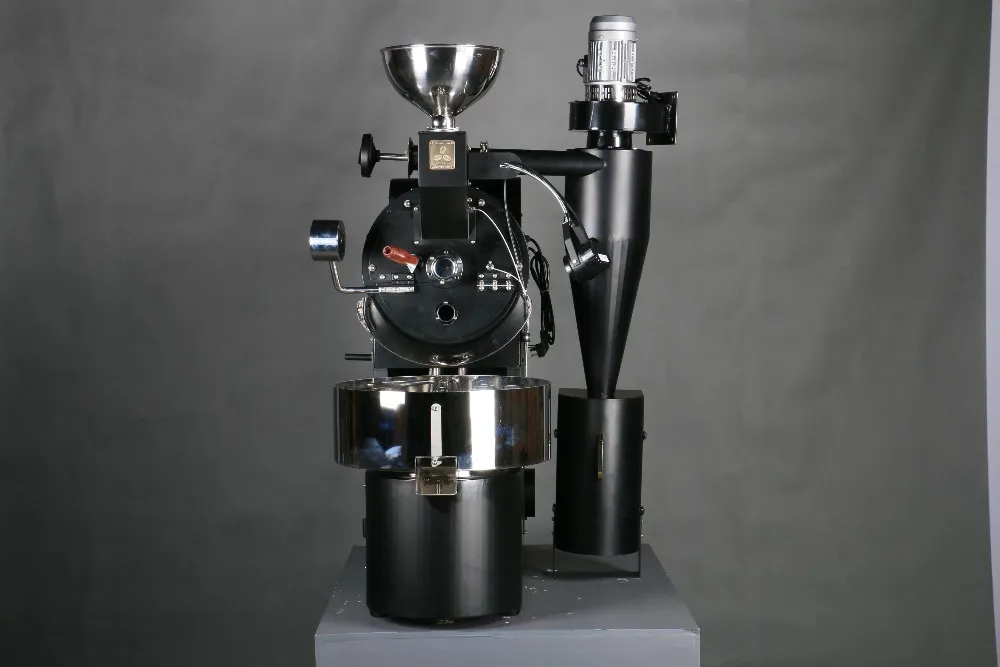

More Photos
