Industrial Managed 8-port 100/1000Base-FX SFP + 2-port 100/1000M SFP Fiber Switch





Model: LNK-IMC802M Series

Overview

LNK-IMC802M is our new generation management type industrial Ethernet switch series of products, it supports 10 SFP ports, the aluminum metal case with IP40 protection equipment, strong anti vibration card base, extreme temperature adaptability and good EMC performance of EMC, to ensure that in the harsh environment the long-term stable and reliable, safe use.

LNK-IMC802M series supports the proprietary M-Ring ring protection protocol, healing time can be less than 20ms, VLAN, QINQ, STP/RSTP, support QOS, ACL multicast, rich two layer exchange function, while providing CLI, Telnet, SSH, Http, Https and other management and network management software based on SNMPv1/v2c/v3. BH600-C628FI has wide range of applications, including campus, rail transport, electricity, petroleum, petrochemical, banking, water, metallurgy, public security, military, civil aviation, etc., by the user's trust and praise.

work devices such as IP cameras and wireless access points between remote locations.



Features



· Support 100/1000M SFP ports;

· Support cable fault detection, a key to restart and restore the factory function;

· Support Ethernet ring network protocol ERPS, support for private M-RING ring protection protocol, the protection of switching time can be less than 20ms;

· Based on port aggregation, linear protection based on G.8031 protocol and the protection of the ring network based on G.8032 protocol;

· Support spanning tree (STP) and fast spanning tree (RSTP) protocol and multi spanning tree (MSTP) protocol;

· Port, port support hybrid redundancy network;

· Support VLAN 802.1Q, basic QinQ and flexible QinQ, support up to VLAN 4K table entry;

· Support for rich OAM, including 802.3ah standards in line with the EFM and 802.1ag, Y.1731 standard CFM;

· Support port based, 802.1P, DSCP, MAC address, ID VLAN, Type QOS and other Ethernet services;

· Supports 256 ACL access control rules;

· Support for speed limits based on port, VLAN, and port +VLAN;

· Support RMON, effectively improve the network monitoring and forecasting ability;

· Supports RADIUS, TACACS+, IEEE802.1X, HTTPS and SSH and other network security functions;

· Support the broken fiber alarm; support Dying Gasp remote equipment fail alarm;

· Support relay output alarm function;

· Support port loop detection;

· Support device online upgrade, support device configuration upload and download;

·  5-Year Warranty



Typical Application



Technical Indexes

Interfaces
Uplink port	2 SFP ports with 100/1000M adaptive
SFP port	8 SFP ports with 100/1000M adaptive
Console port	1 RS-232 port
Alarm port	1 relay output terminal
Reset key	reset device and restore the default configuration
Exchange attribute
Priority queue	8
Flash	16MB
VLAN ID range	1 ~ 4094
MAC address table	8k
Packet buffer	4Mbit
Exchange capacity	53G
Mechanical properties
Case	IP40,aluminium profile
Installation	DIN-Rail type, wall mount type
Size(W x H x D)	54 x 182 x 122mm
Power
Support AC or DC	DC: 36V~72V AC: 100V~240V
Manage	Support CLI, TELNET, SSH, HTTP, HTTPS Support SNMPv1/v2c/v3 Support CVIEW management system
Work environment
Working temperature	-40~+85°C
Storage temperature	-40~+85°C
Working humidity	5 ~ 95%(no coagulation)
Regulatory Approvals
ISO9001, CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IMC802M	Hardened Managed 8-port 100/1000Base-FX SFP + 2-port 100/1000Base-FX/SFP Optical Fiber Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page (Industrial SFP) SFP module is to be purchased separately.

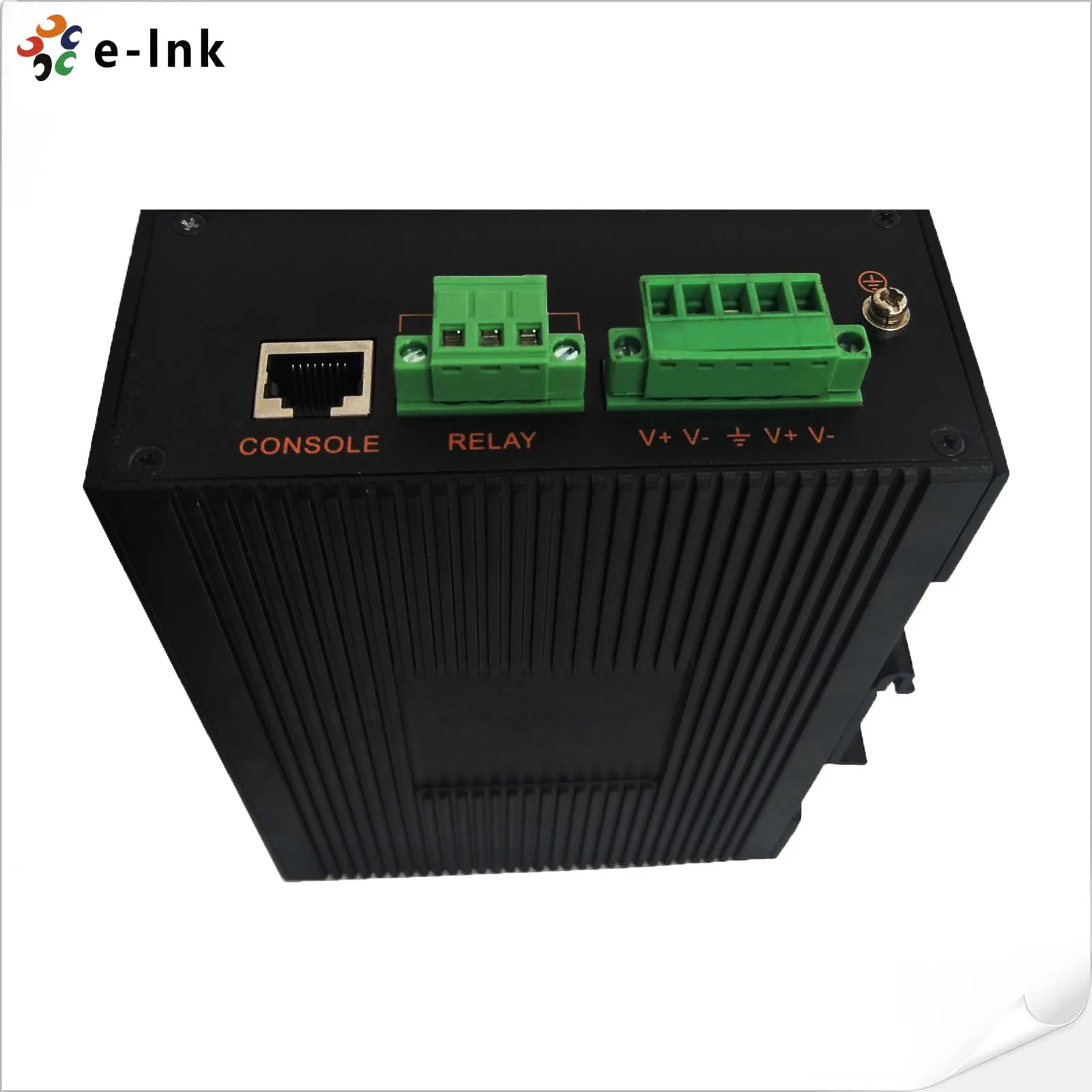

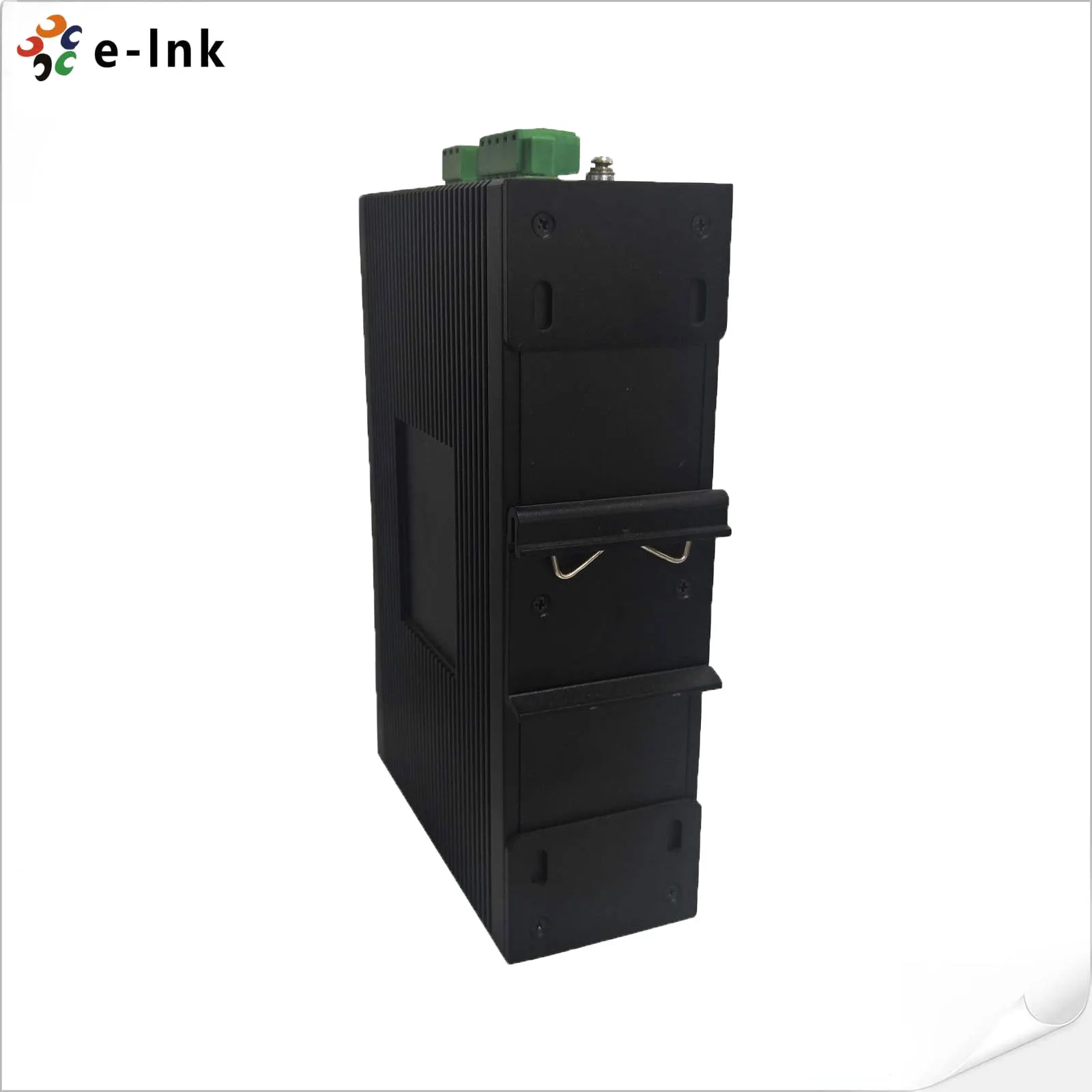

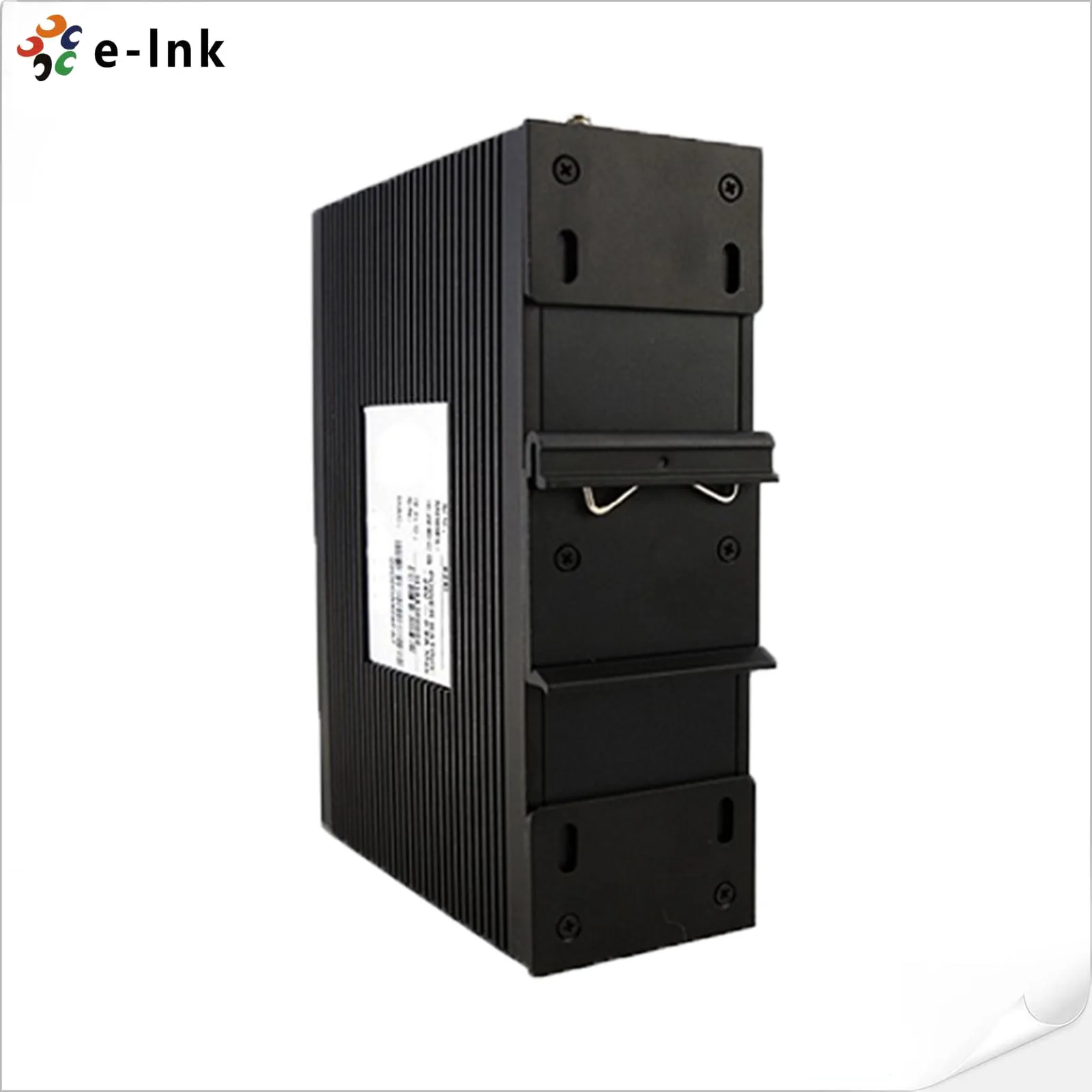

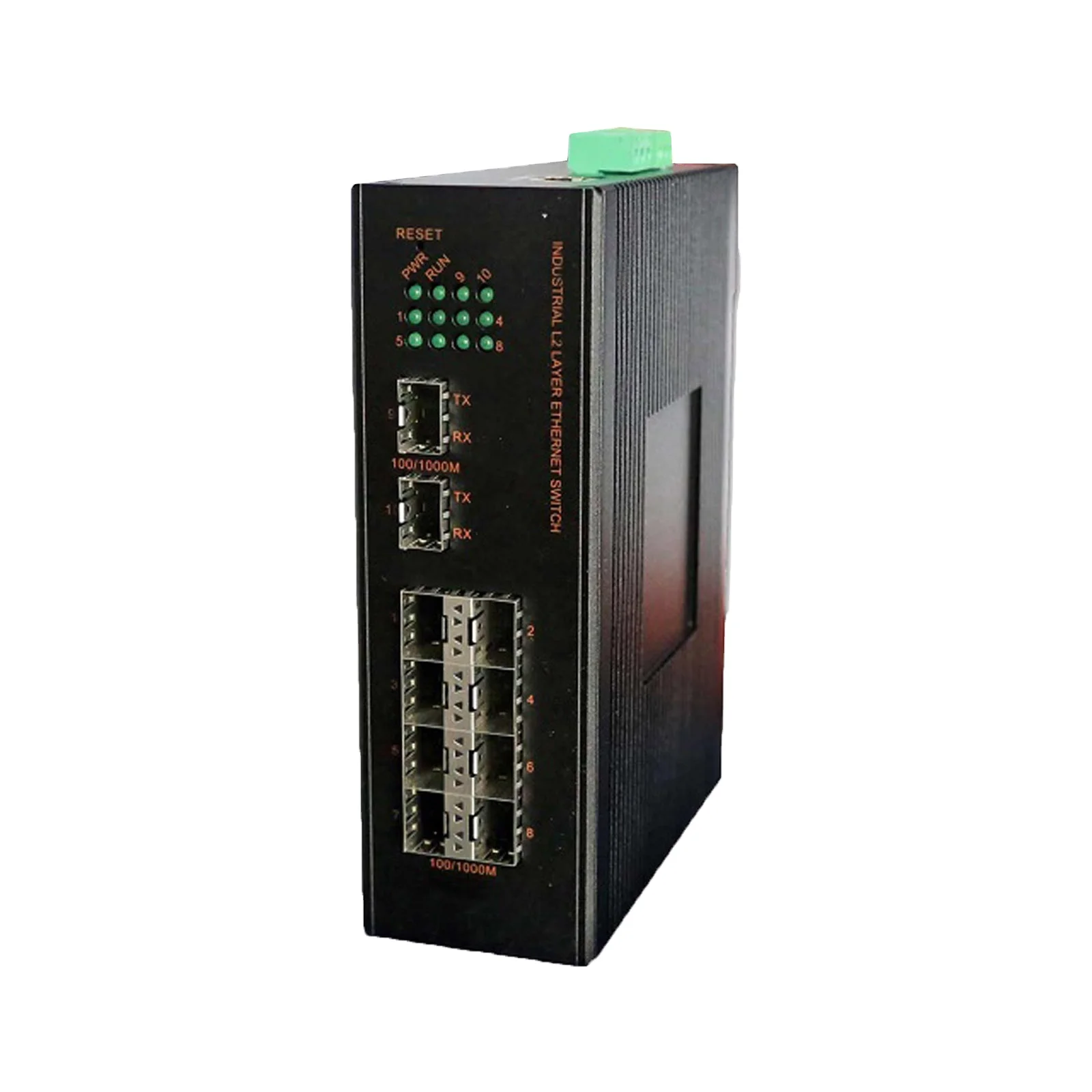

Product Pictures
