Промышленный закаленной 10 / 100 1000Base-T для 1000Base-X программирования в производственных условиях PoE медиа-конвертер с поддержкой Функция сброса

Ethernet

Standards:

IEEE802.3ab 1000Base-T

IEEE802.3az Gigabit Fiber

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3x Flow Control

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

1,488,000pps (1000Mbps)

Cabling:

1000Base-T: Cat5 or above

Maximum Distance:

Cat5 UTP up to 100m

Connector:

1x RJ45

Optical Port:

1 x SFP 1000Base-X

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

Electrical and Mechanical

Input Power:

48VDC (Terminal Block)

Power Consumption:

36W Max. 0.75A@48VDC

Standard:

IEEE802.3af/at

PoE:

Port:

RJ45

Max. Power per Port:

30W Max per port (Alternative B Mode)

PoE Reset Function

Ideal for remotely resetting equipment, this configurable function performs a momentary power reset to the attached Powered Device (PD). When enabled, the media converter will, upon loss of fiber RX, turn off PSE output power supplied to the PD device for 2 seconds then turn the power back on and leave it on until such time that another fiber RX link is lost (after it was re-established). When disabled, a loss of fiber RX has no effect on PSE power to the PD device(s).

LED Indicators:

Power:

Power Status

1000TX:

Link/Activity, Speed

SFP:

Link/Activity

Dimensions (WxDxH):

95 x 70 x 28 mm

Weight:

0.25Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV

Model

Description

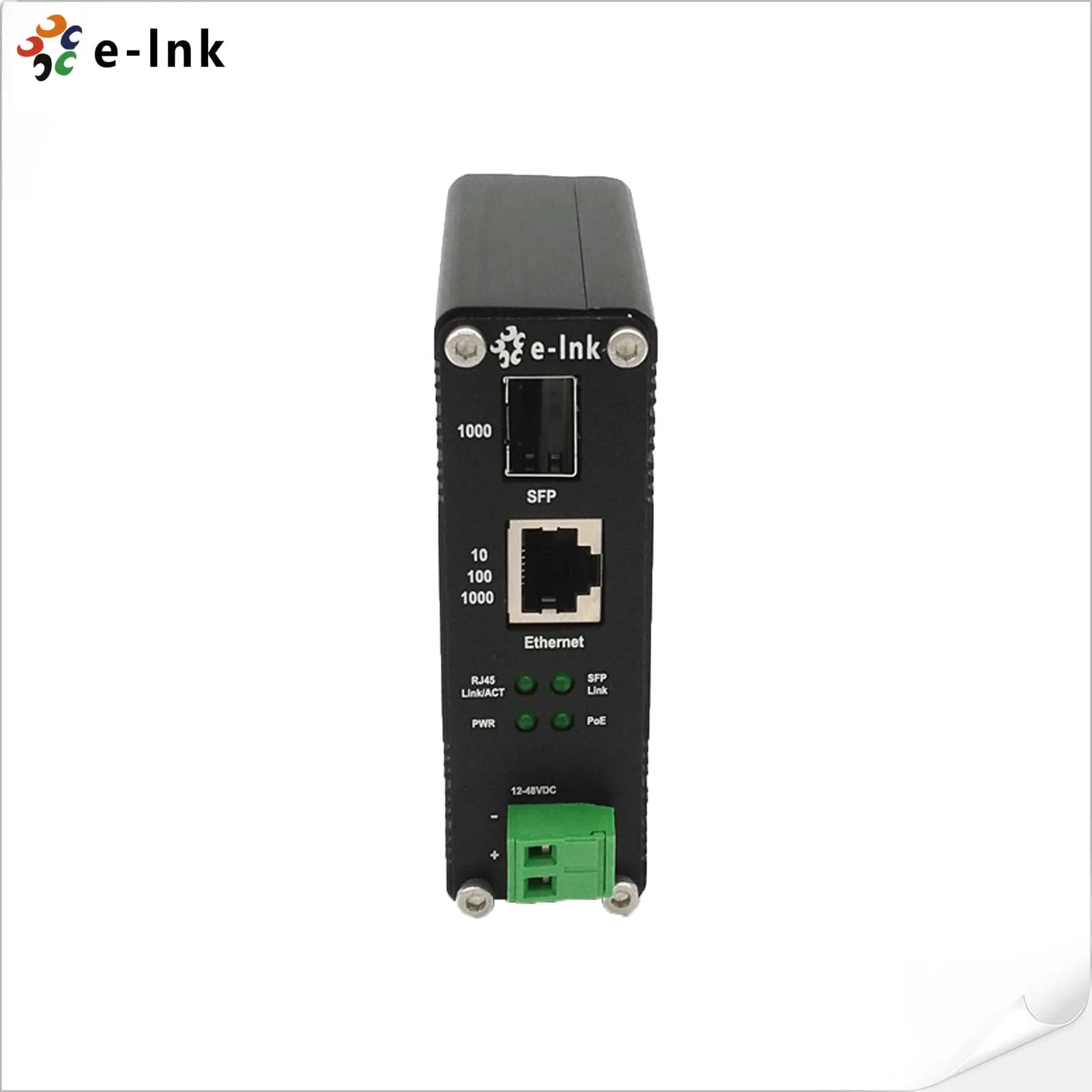

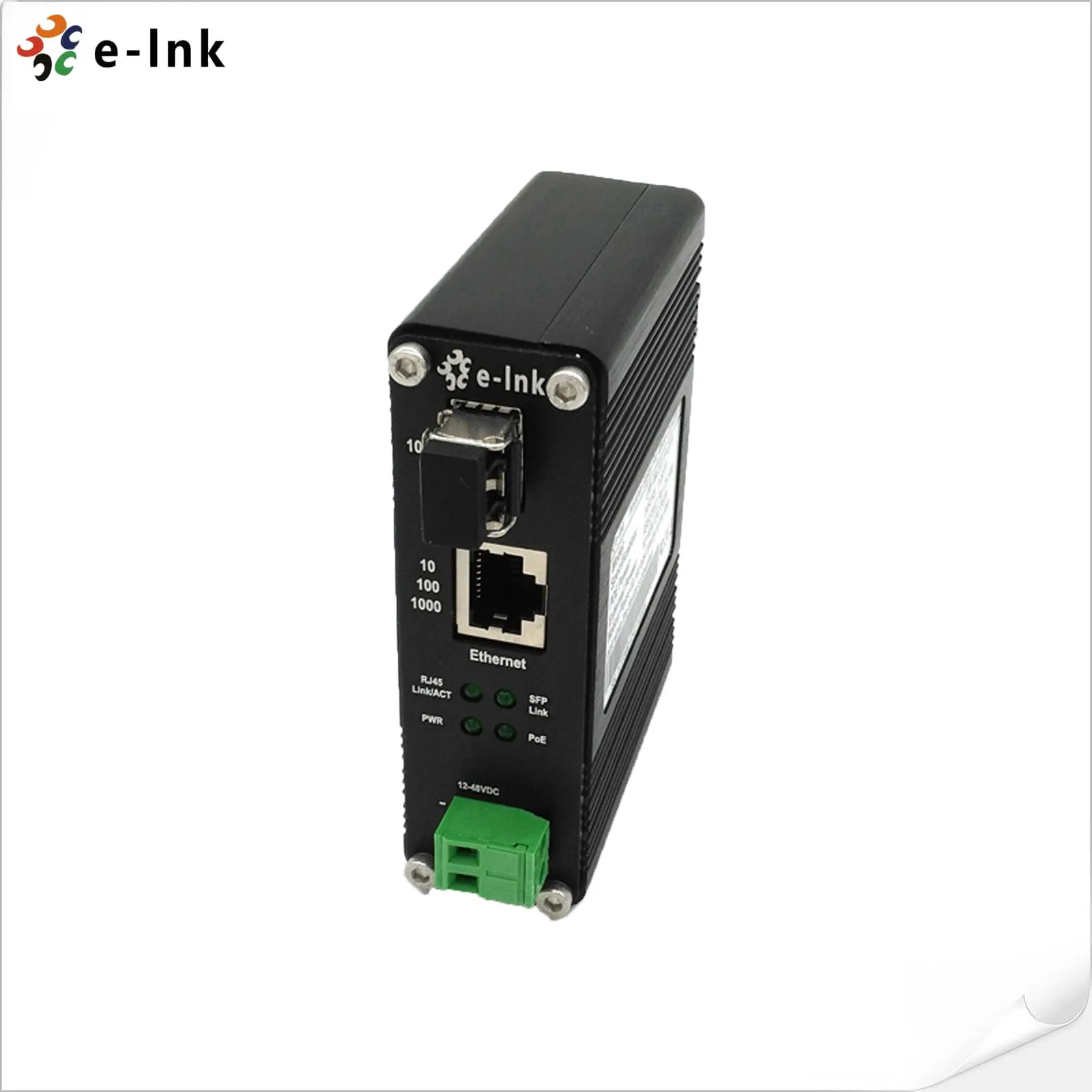

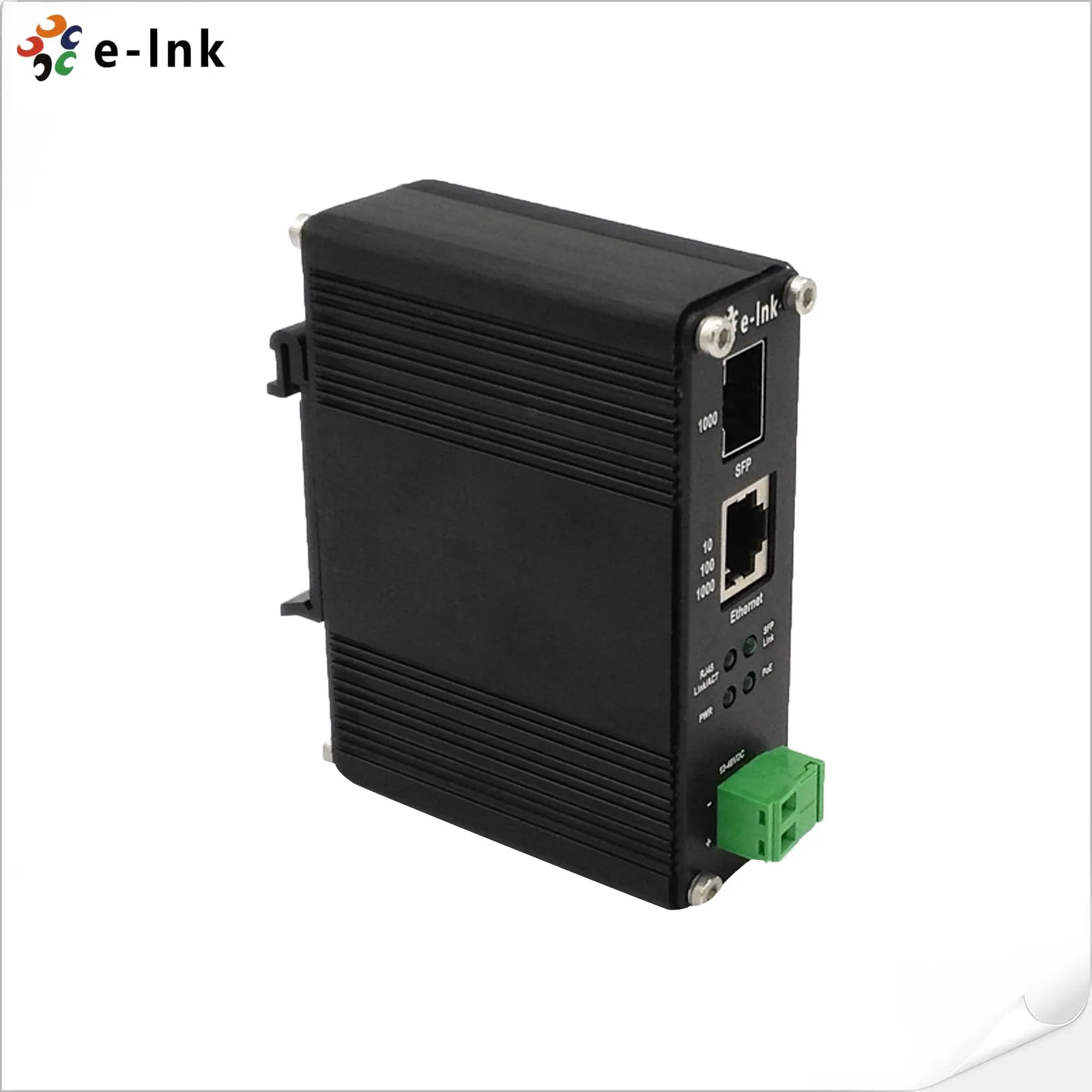

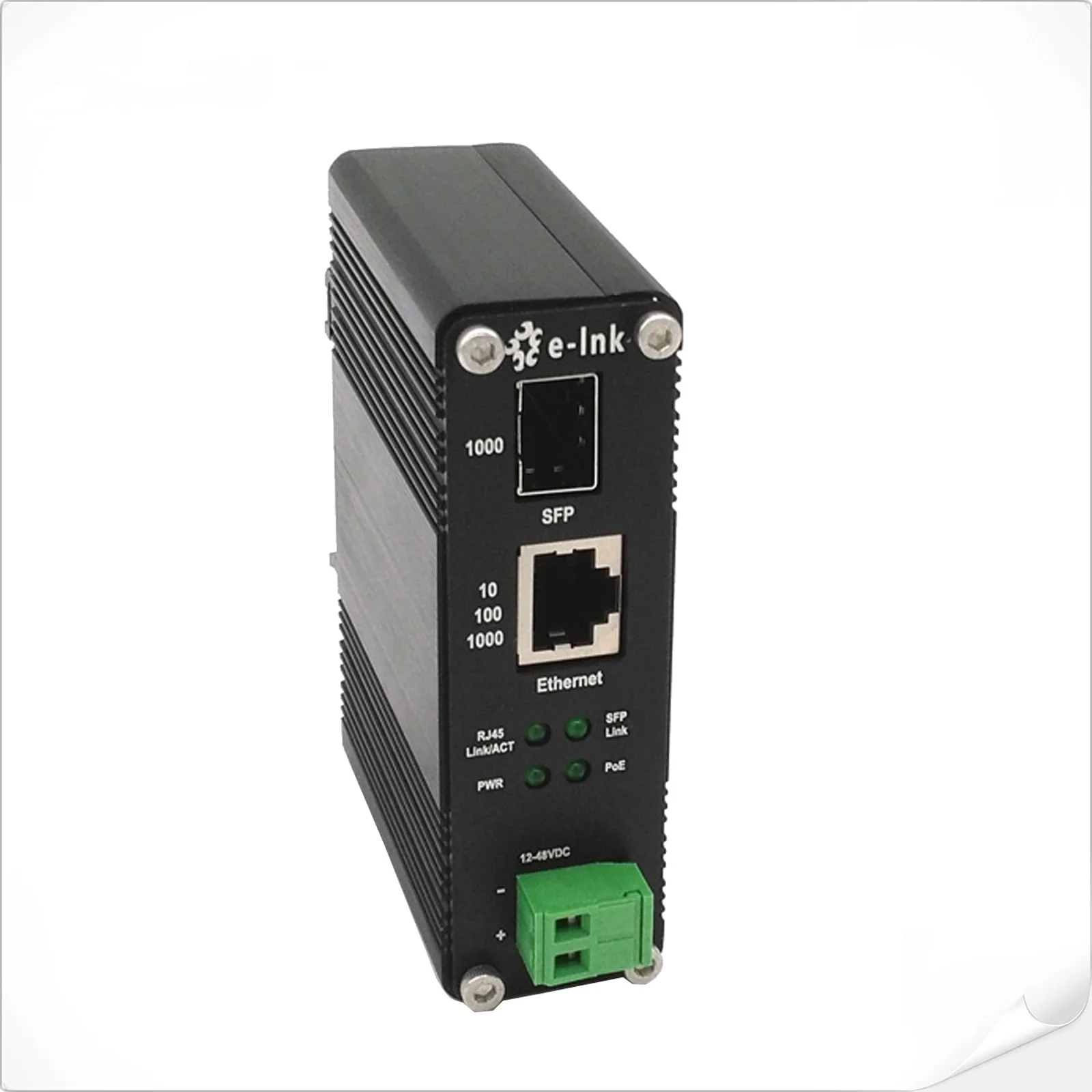

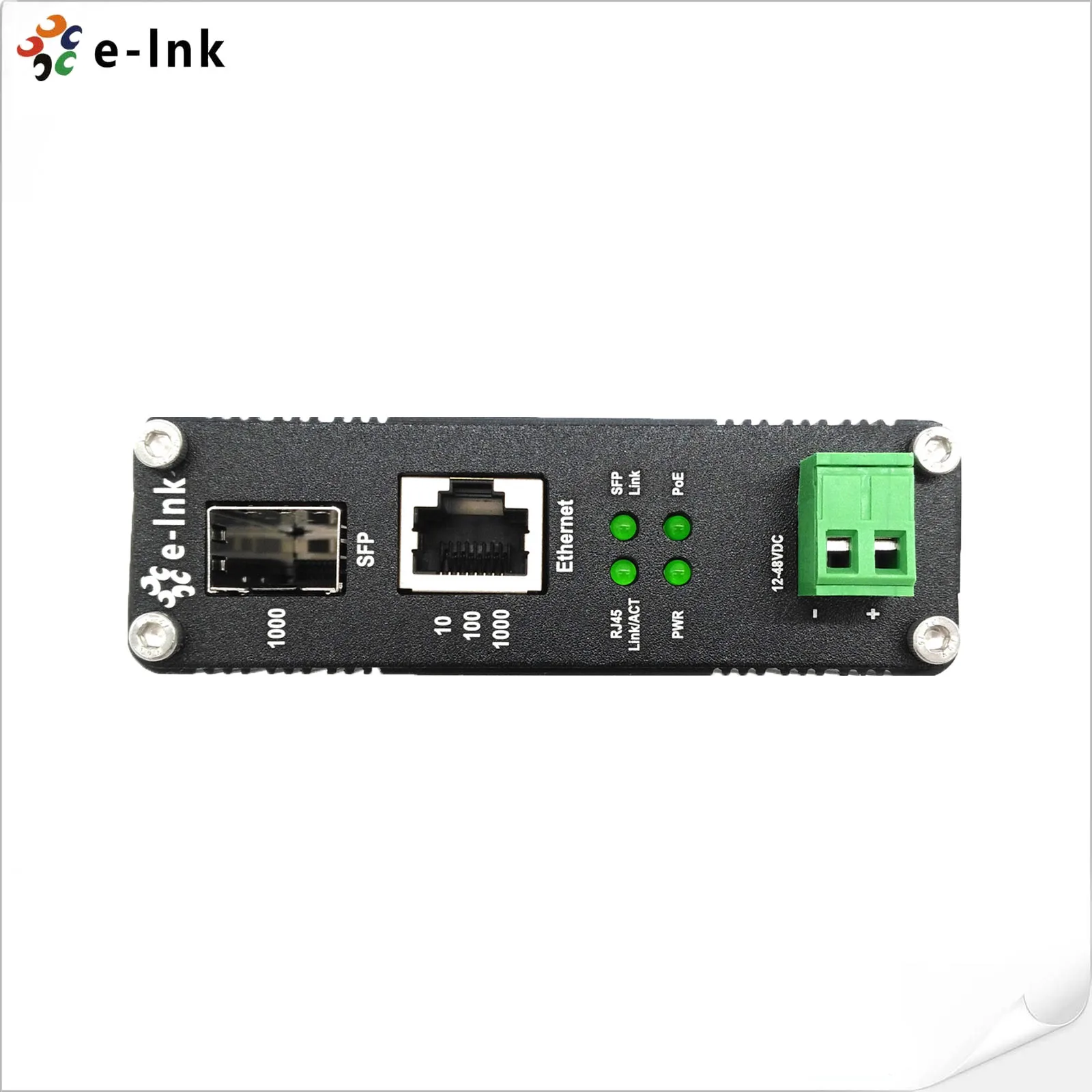

LNK-IMC1000P-SFP

Hardened 10/1001000BASE-TX to 1000BASE SFP Ethernet PoE Media Converter with PoE Reset Function

SFP Options

SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

SFP module is to be purchased separately.

Mounting Options

Default DIN-Rail Bracket installed, Wall Mount Bracket is included.

Power Options

75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

Power Supply is to be purchased separately.
