IQF промышленная морозильная камера индивидуальная Морозильный
- Категория: Морозильное оборудование >>>
- Поставщик: Tianjin,Hitrees,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 23800.63 $* | 24990.95 $* |
| Aug-15-2025 | 23600.48 $* | 24780.51 $* |
| Jul-15-2025 | 19800.30 $* | 20790.42 $* |
| Jun-15-2025 | 23200.43 $* | 24360.5 $* |
| May-15-2025 | 20200.98 $* | 21210.12 $* |
| Apr-15-2025 | 22800.3 $* | 23940.74 $* |
| Mar-15-2025 | 22600.16 $* | 23730.39 $* |
| Feb-15-2025 | 22400.17 $* | 23520.35 $* |
| Jan-15-2025 | 22200.49 $* | 23310.97 $* |
Характеристики
Product Description

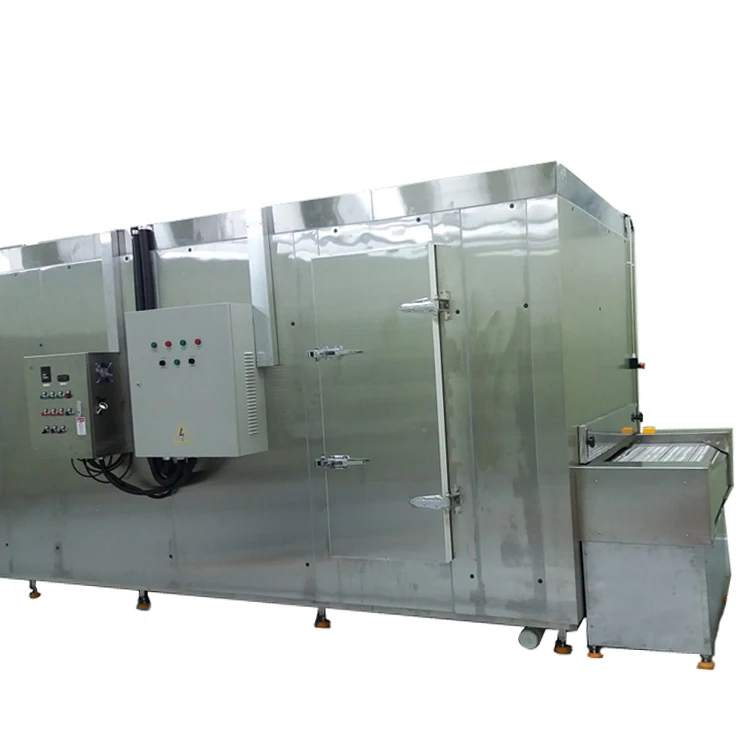

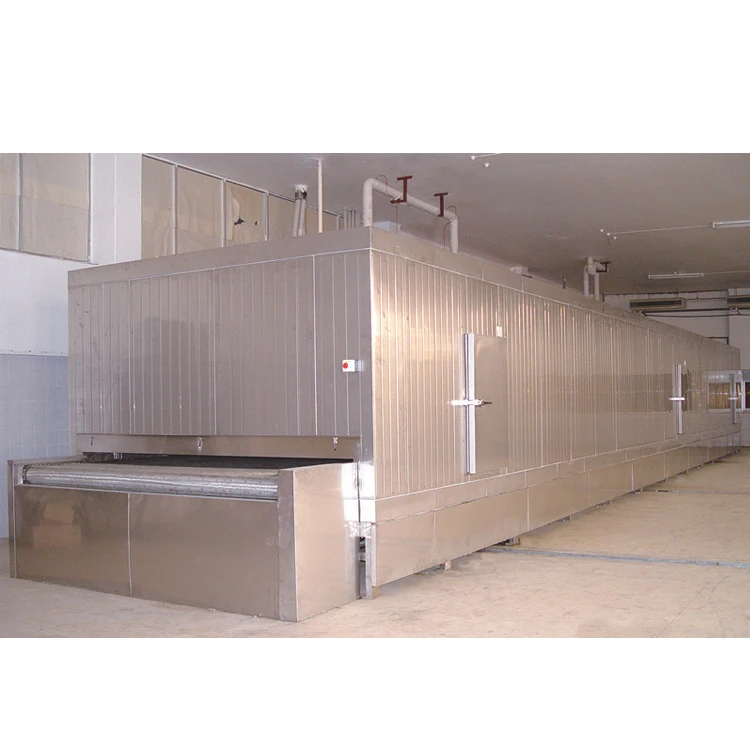

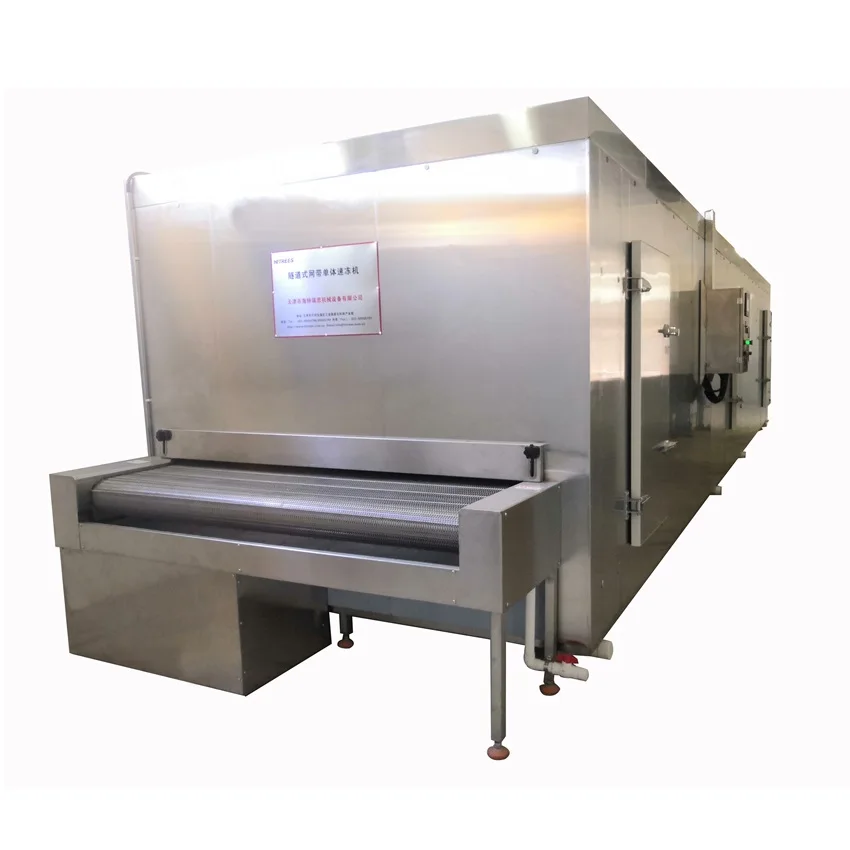

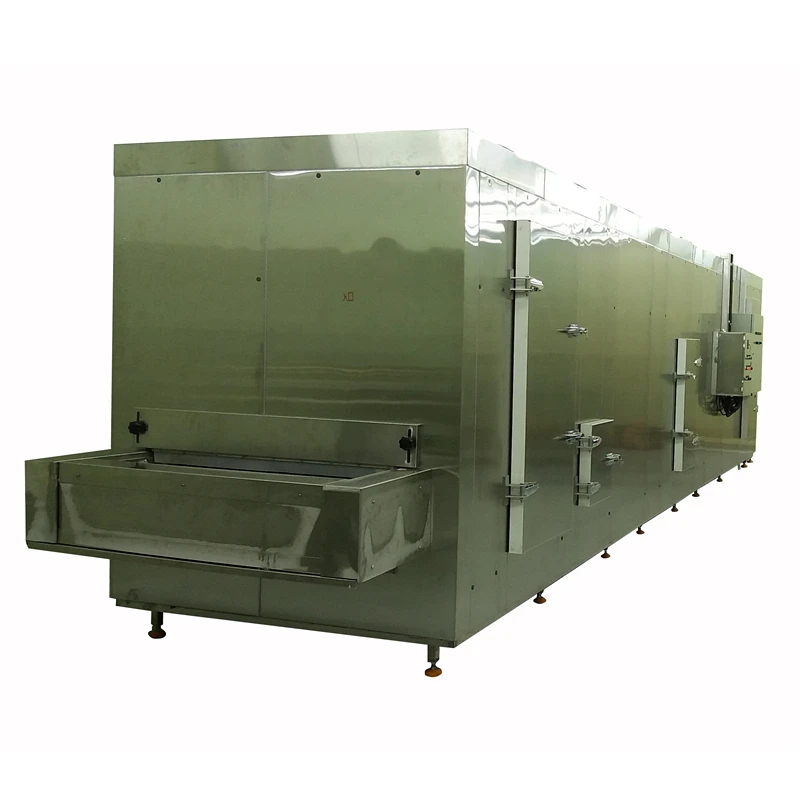

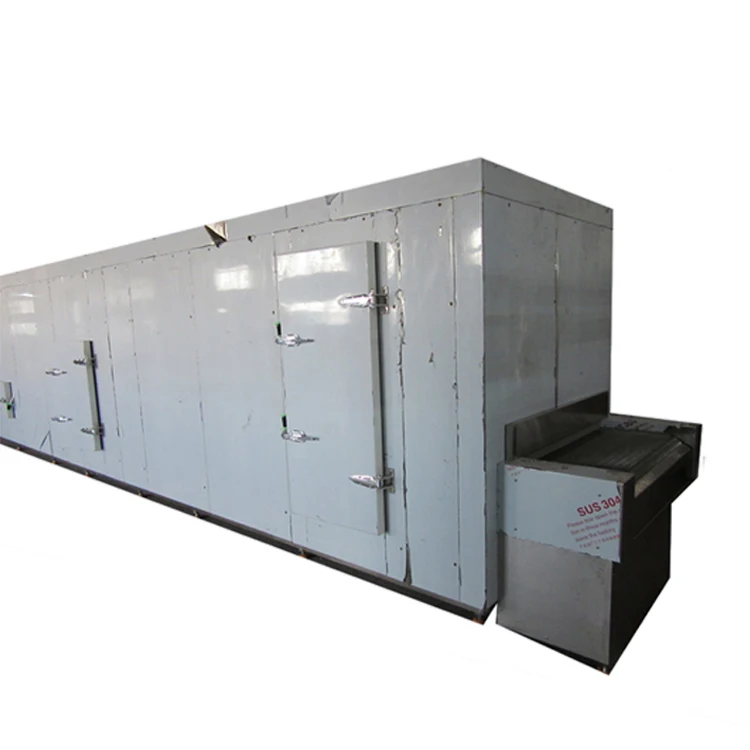

IQF Industrial Freezer Individual Quick Freezer Freezing Tunnel
There are three kinds of freezers:1.Tuneel freezers 2.Spiral Freezers 3.Fluidized IQF Tunnel Freezers
Tunnel freezers: Low cost, suitable for freezing fish and meat, thick and heavy foods. The way of blowing is the from the top
Spiral freezers:Lower energy consumption,small floor occupying,retention time is much flexible,the adjusted range is large.The way of blowing is from the edgeways
Fluidized IQF Tunnel Freezers: Suitable for freezing small and light materials, such as shrimp, strawberries, beans and granular materials. The way of blowing is from the bottom.
model | output | installed power | refrigeration consumption | dimension | belt width |
TF100 | 100kg/h | 2.25kw | 15kw | 7.4*1.5*2.2m | 1000mm |
TF150 | 150kg/h | 2.95kw | 21kw | 8.0*1.8*2.3m | 1300mm |
TF200 | 200kg/h | 4.5kw | 30kw | 10.2*1.8*2.3m | 1300mm |
TF300 | 300kg/h | 6.5kw | 43.5kw | 11.2*2.3*2.3m | 1800mm |
TF500 | 500kg/h | 10.3kw | 75kw | 13.5*3.0*2.5m | 2500mm |
TF1000 | 1000kg/h | 19.8kw | 142kw | 22.9*3.0*2.5m | 2500mm |
TF1500 | 1500kg/h | 28.6kw | 225kw | 26.4*3.5*2.5m | 3000mm |
IQF Industrial Freezer Individual Quick Freezer Freezing Tunnel
IQF Industrial Freezer Individual Quick Freezer Freezing Tunnel
Main Features
1.Single belt for crust hardening applications
2.Fast and efficient cooling with multiple level conveyor belts
3.Belts can operate independently at various speeds or on a cascade principle
4.Low maintenance with a fully accessible stainless steel design
5.Design provides rapid freezing with lowest power consumption
6.Adjustable air speed for controlled processing of light and delicate products
7.Cost effective alternative to running a cryogenic nitrogen tunnel freezer
Benifits
1. Stainless steel conveyor belt;
2. Sandwich PUF panels 150mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;

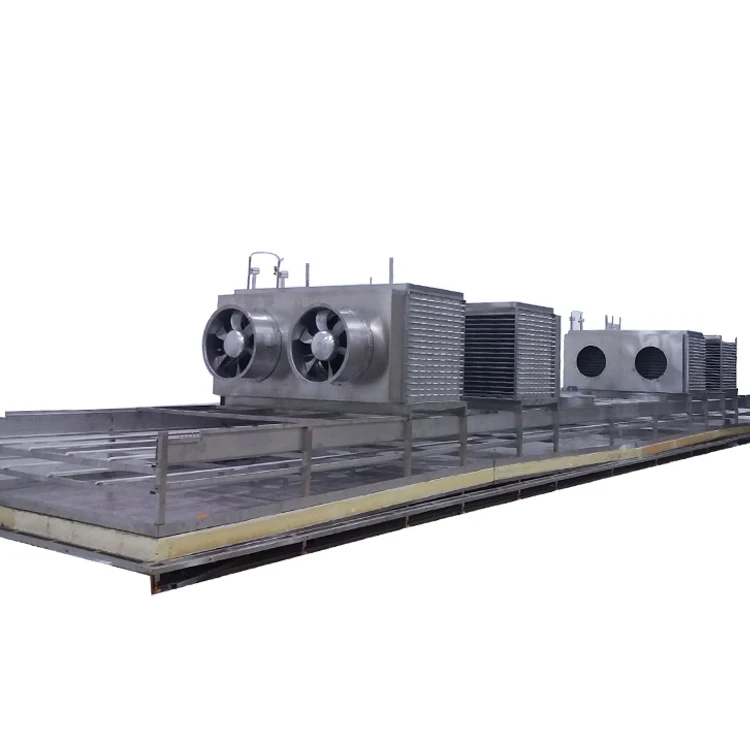

4.Aluminum evaporators, different fin pitches;
5.Axial fans: stainless steel air box, aluminum blades;
6.Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8.Control panel is made of stainless steel;
9. Schneider or Siemens electric components;
10.SEW speed reducer.
Click Here
Certifications
Our Service
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
