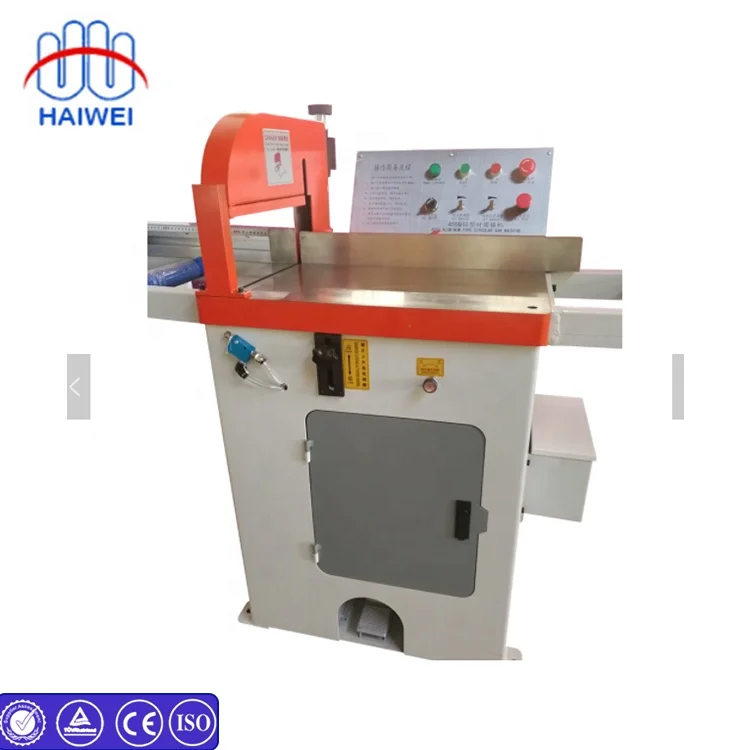

Полуавтоматическая машина для резки профилей с электрическим управлением автоматическая впрыска алюминия 455Q труб аргентинский
- Категория: Pipe Cutting Machines >>>
- Поставщик: Zhangjiagang,Ruifa,Haiwei,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 2142.16 $* | 2249.85 $* |
| Aug-20-2025 | 2124.57 $* | 2230.35 $* |
| Jul-20-2025 | 1782.93 $* | 1871.84 $* |
| Jun-20-2025 | 2088.89 $* | 2192.31 $* |
| May-20-2025 | 1818.76 $* | 1909.22 $* |
| Apr-20-2025 | 2052.67 $* | 2155.91 $* |
| Mar-20-2025 | 2034.67 $* | 2136.79 $* |
| Feb-20-2025 | 2016.18 $* | 2117.58 $* |
| Jan-20-2025 | 1998.69 $* | 2098.9 $* |
Характеристики
It is adapted for sawing aluminum extrusion material, aluminum doors and windows, radiating rib, wooden material, water pipes and
sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic,
honeycomb board, wood and other non-ferrous metals.
sound faceplate.
It is suitable for cutting various materials, such as aluminum, brass, heat sink, PVC, plastic steel, Bakelite, acrylic plastic,
honeycomb board, wood and other non-ferrous metals.
Model | HWJ-S455 | |||
Cutting Angle | 90 ° | |||
Cutting Capacity(HxW) | 120*300mm | |||
Spindle Speed | 2800-3300 R.P.M. | |||
Saw Blade Size | φ355-455mm | |||
Table Area | 645*668mm | |||
Table Height From Floor | 850mm | |||
Motor Power | 4 kw | |||
Air Pressure | 4-6 kg/cm² | |||
Conveyor Length (opt.) | According to customer’s requirements | |||
Voltage | 380V or customized | |||
Feed Mode | Up and down | |||
Weight | 300 kg |
Advantages:
1. When operating the machine, just step on the foot switch, the machine will automatically clamp and cut, easy to operate.
2. Hidden blade up and down can be very safe work.
3. Vertical slide way for advance and retreat blade up and down.
4. The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.
5. Cooling liquid and lubricating liquid spray out automatically during cutting to ensure smooth cutting surface and prolong the
service life of saw blade.
6. The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7. The saw blade Angle is fixed and the cutting precision is improved.
8. The shelves have a positioning panel, which is more convenient to cut the material.
2. Hidden blade up and down can be very safe work.
3. Vertical slide way for advance and retreat blade up and down.
4. The cutting feed is stable, the service life of the cutter is long, and the sawing accuracy is high.
5. Cooling liquid and lubricating liquid spray out automatically during cutting to ensure smooth cutting surface and prolong the
service life of saw blade.
6. The cutting feed is driven by the cylinder so the cutting speed is extremely stable.
7. The saw blade Angle is fixed and the cutting precision is improved.
8. The shelves have a positioning panel, which is more convenient to cut the material.
