FMH 180-200-220-240 косилка с боковым переключением для трактора большой мощности
- Категория: Forestry Machinery >>>
- Поставщик: Jiangsu,AWON,Machinery,And,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.66 $* | 0.8 $* |
| Aug-19-2025 | 0.88 $* | 0.99 $* |
| Jul-19-2025 | 0.43 $* | 0.46 $* |
| Jun-19-2025 | 0.72 $* | 0.78 $* |
| May-19-2025 | 0.18 $* | 0.40 $* |
| Apr-19-2025 | 0.28 $* | 0.72 $* |
| Mar-19-2025 | 0.80 $* | 0.66 $* |
| Feb-19-2025 | 0.54 $* | 0.80 $* |
| Jan-19-2025 | 0.83 $* | 0.7 $* |
Характеристики
Product Description

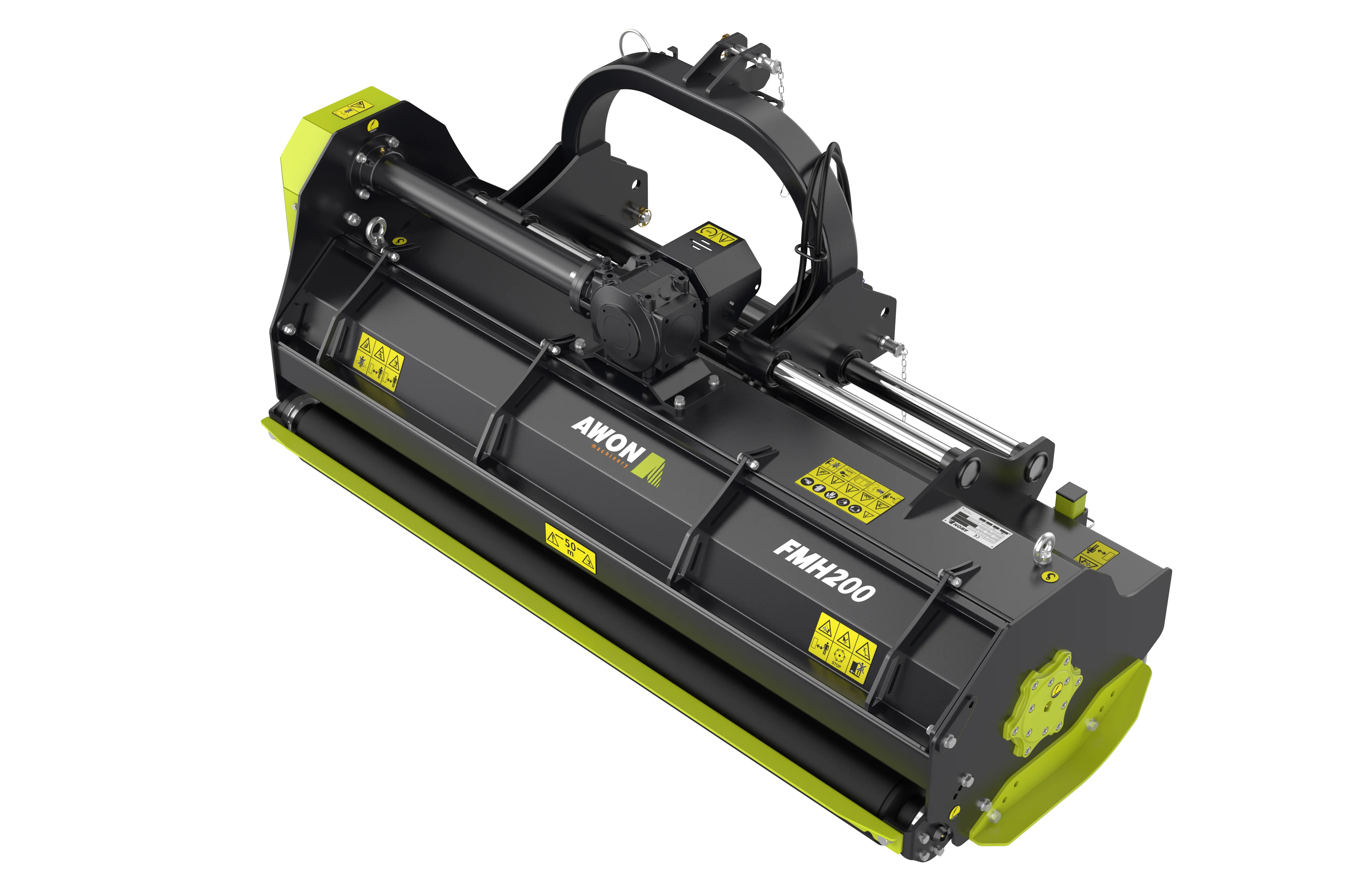

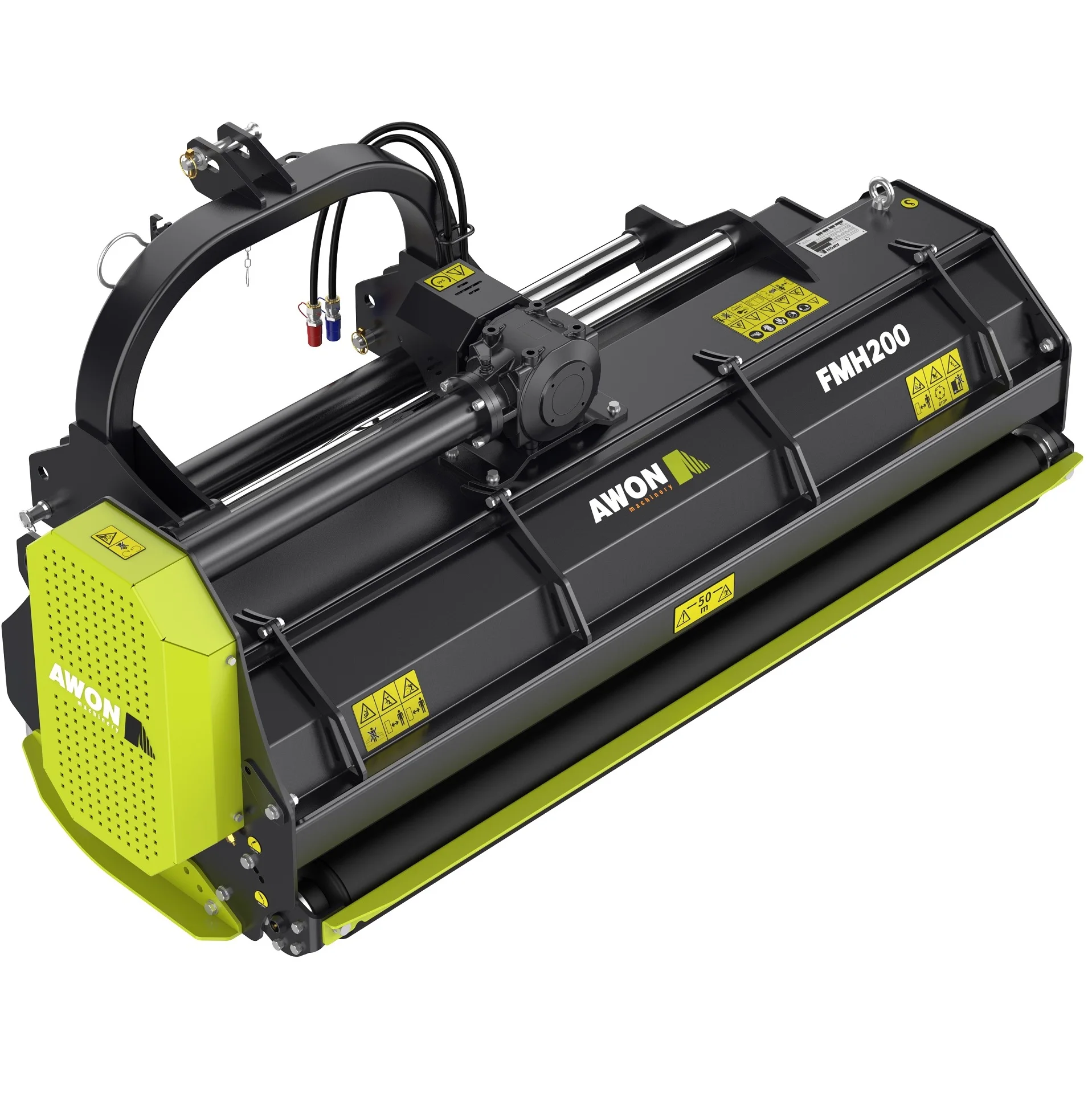

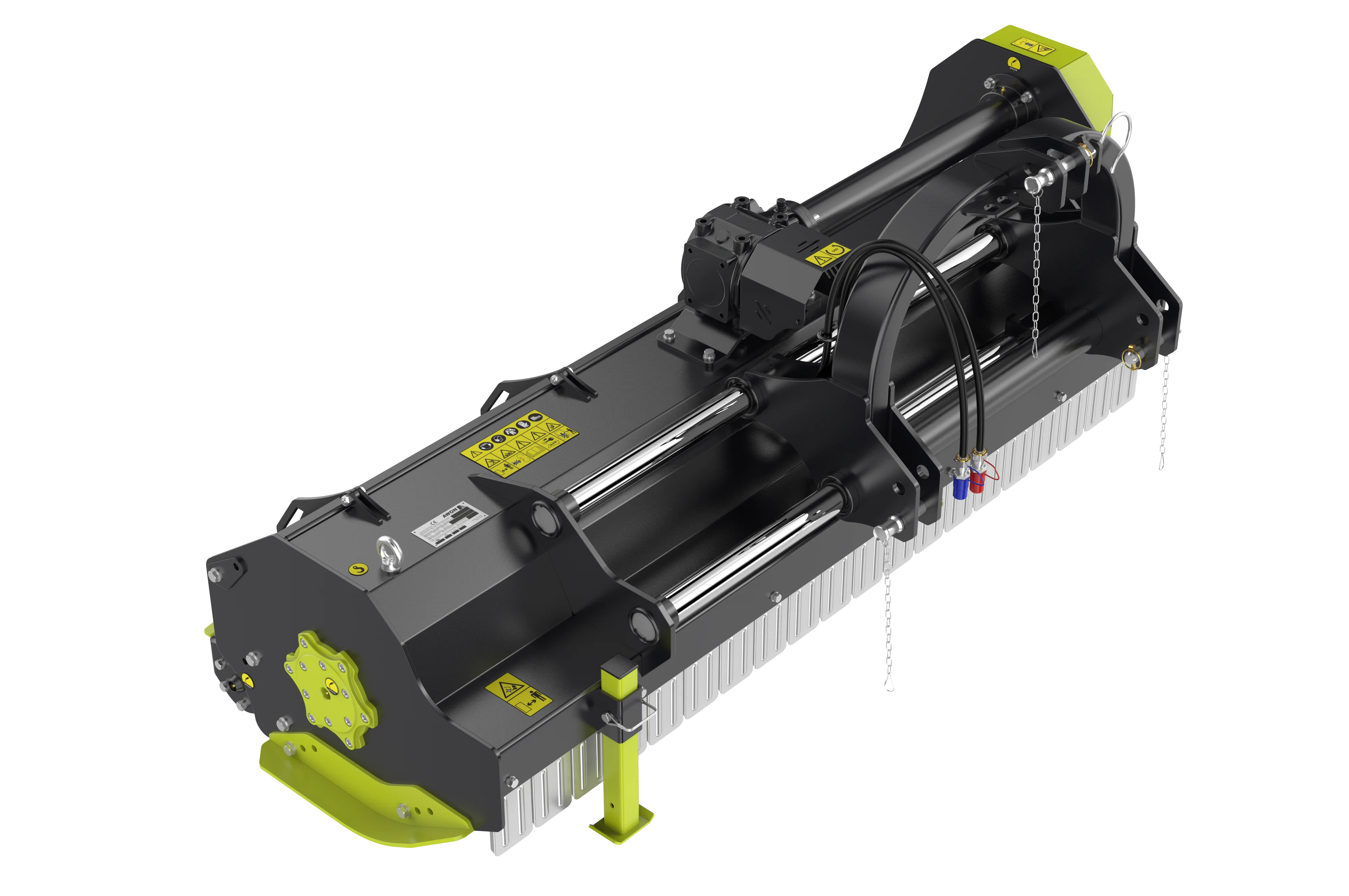

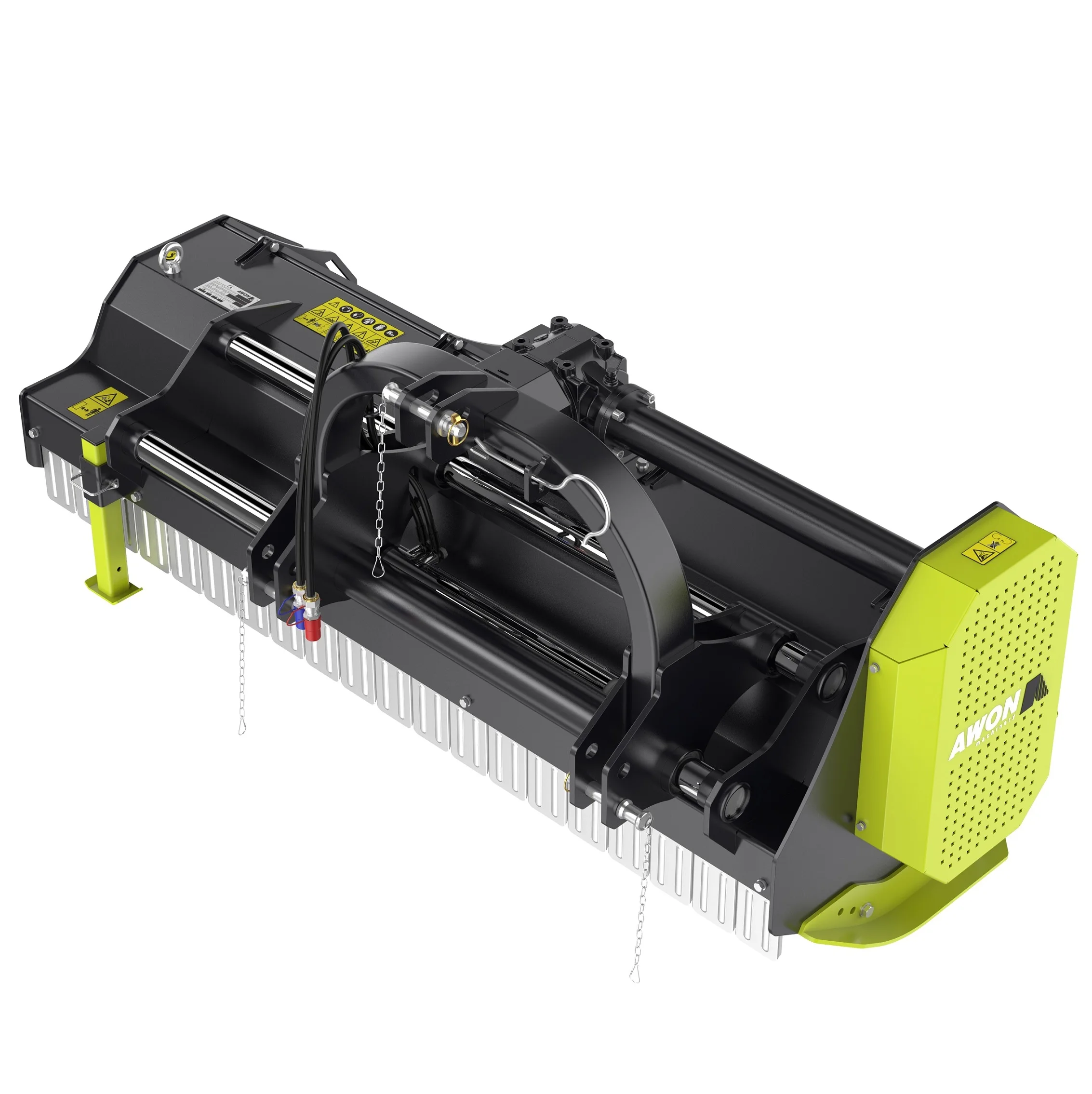

FMH series are rear mounted,PTO driven flail mowers for tractors. 13 models in total,working width varies from 1,000 to 3,000mm,power demand 25-130HP.FMH series can be typically aggregated with tractors with 3-point hitch of Cat.Ⅰor Ⅱ.Flail shaft is driven by PTO shaft,while the side-shift by the tractor’s hydraulics to allow for shifting from one side to another,while therefore allow for obstacle passing and easier overlap adjustment.
PRODUCT FEATURES
Main Features
- For Tractors 70-100 HP
- Comes with Hammer Blades with precise blade overlap
- Standard 3-Pt Category I Hitch Mount
- Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO
- PTO Driveline Included Free of Charge
- Adjustable Finished Cutting Height (both Rear Roller & Skids)
- Balanced Rotor and Shaft
- Powder Coat Paint Finish
- Optional Hydraulic Offset * For Tractors 70-100 HP
Bearings
Bearings are greasable and replaceable. Sizing is standard and can be purchased at any local bearing shop.
Cutting Height
Cutting height can be adjusted by the tractor’s 3-Pt hitch or by the mowers adjustable rear roller.

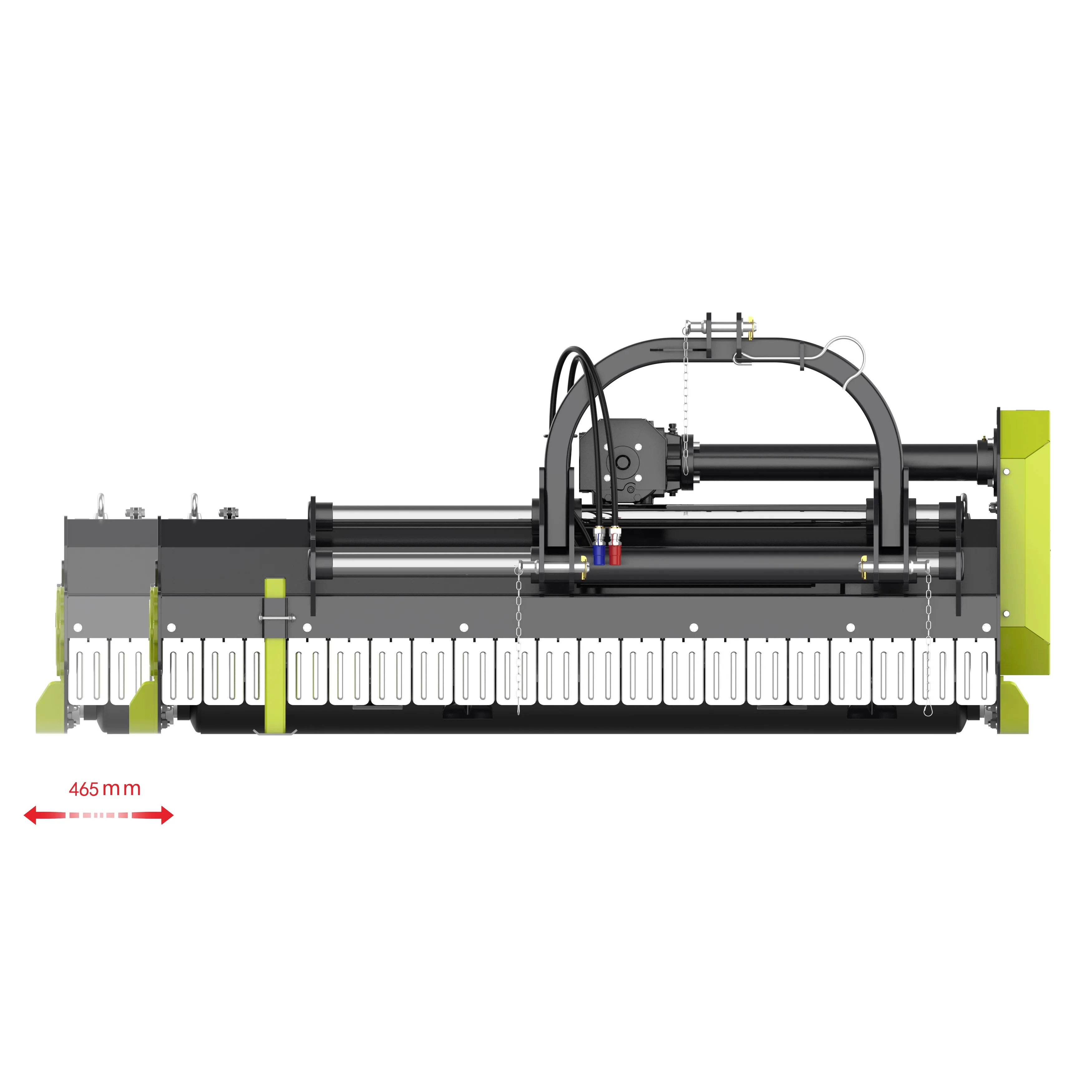

Adjustable Offset
Right Side Offset is very helpful if you are working around fence lines, trees or other items in the field. The distance is the addition that is added to the mowing width from center of the gearbox to the right cutting edge.
Offset Options(Swing arm)
•When the rubber surround of the SD swing arm touches the obstacle, the wheel rotates and deflects the swinging arm and its cutting blade away from it. It automatically returns to its original position once it passes the obstacle.
•HD swing arm could detect obstacles without touching.
- Comes with Hammer Blades with precise blade overlap
- Standard 3-Pt Category I Hitch Mount
- Shear Bolt PTO Shaft for Standard 1-3/8” 6-Spline PTO
- PTO Driveline Included Free of Charge
- Adjustable Finished Cutting Height (both Rear Roller & Skids)
- Balanced Rotor and Shaft
- Powder Coat Paint Finish
- Optional Hydraulic Offset * For Tractors 70-100 HP
Bearings
Bearings are greasable and replaceable. Sizing is standard and can be purchased at any local bearing shop.
Cutting Height
Cutting height can be adjusted by the tractor’s 3-Pt hitch or by the mowers adjustable rear roller.
Adjustable Offset
Right Side Offset is very helpful if you are working around fence lines, trees or other items in the field. The distance is the addition that is added to the mowing width from center of the gearbox to the right cutting edge.
Offset Options(Swing arm)
•When the rubber surround of the SD swing arm touches the obstacle, the wheel rotates and deflects the swinging arm and its cutting blade away from it. It automatically returns to its original position once it passes the obstacle.
•HD swing arm could detect obstacles without touching.
SD Offset(Swing Arm)
HD Offset(Swing Arm)
Product Specifications
Model | L-W-H | Work Width | Offset | HP | RPM | KG | Blade |
FMH180 | 2000-1044-1010 | 1800 | 1130(L)-900(R) | 70-100 | 540 | 579 | 16 |
FMH200 | 2200-1044-1010 | 2000 | 1130(L)-1100(R) | 70-100 | 540 | 612 | 18 |
FMH220 | 2400-1044-1010 | 2200 | 1130(L)-1300(R) | 70-100 | 540 | 646 | 20 |
FMH240 | 2600-1044-1010 | 2400 | 1130(L)-1500(R) | 70-100 | 540 | 680 | 22 |
Production Capacity & Quality Assurance
Certificate
ISO9001-2015
CE
Patents
Patents：9 invention patents,15 utility patents, 4 design patents
Registered trademark ：4 trademarks
Product Certification：CE,ISO9001, High-Tech Enterprise Certification
Registered trademark ：4 trademarks
Product Certification：CE,ISO9001, High-Tech Enterprise Certification
Product packaging
Why Choose Us
Who We Are
Jiangsu AWON Machinery and Equipment Co.,Ltd located in Nantong, China, a wholly-owned subsidiary of ELITE VIEW ENTERPRISES LIMITED, is an integrated solution provider for Agricultural, Orchard and Gardening applications.
