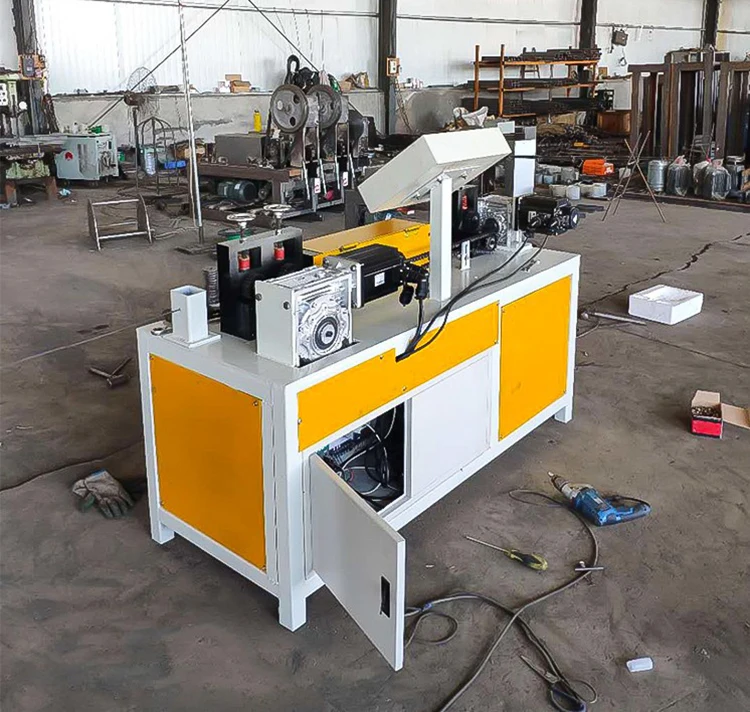

Automatic wire straightening cutting welding jointing bending machine/High speed CNC steel wire straightening machine

This machine mainly consists of tray bar rack, straightening rack,tractor cutting device, base support, and motor rotation facility. This machine is applicable to straighten and cut all types of metal steel wire, stainless steel wire, aluminum wire, and cold-drawing wire.

No	Item	Data
1	Wire diameter	Φ1-2.5mm(plain carbon steel)	Φ2-4mm(ordinary carbon steel)
2	Flying shear servo motor	2.3KW cut off servo motor	2.8KW cut off servo motor
3	Number of aligning blocks	10	9
4	Cut length	Above 80mm, controlled by PLC program
5	Wire feeding traction motor	2.0KW servo motor
6	Straightening motor	3KW / 2880R customized adjustable speed motor
7	Length tolerance	±0.5mm
8	Straightening speed	Adjustable speed of 80-120m/min (the smaller the wire diameter, the faster the speed)
9	Max. breakout force	380 V,50 HZ,3 phases(customizable)
	Control screen	touch screen
10	Material requirements	coiling wire
11	Wire Material	ordinary carbon steel wire stainless steel wire, copper wire, nickel manganese zinc wire, etc
12	Mechanical features	Chinese-English menu, super LCD, easy to operate
13	Set the number of times	Accumulate quantity and memory of specifications
14	Feeding rack	1100*400*200
15	Weight	500kg
16	Size	(length * width * height) : 2670*800*1500 (mm)

Wire straightening and cutting machine features:

1) Simple structure in linear type ,easy in installation and maintain.

2) The length could adjust according to customers demand.

3) This machine has many advantages, such as neat cutting mouth, less error and good functions.
