Автоматическая Бесплатная стиральная маленькое стеклянное защитное покрытие для Botttle ампулы сока жидкостная машина наполнения джема цена крем Моющее средство присадочный
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Guangzhou,ABCDPACK,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.8 $* | 0.49 $* |
| Aug-15-2025 | 0.25 $* | 0.6 $* |
| Jul-15-2025 | 0.82 $* | 0.82 $* |
| Jun-15-2025 | 0.7 $* | 0.8 $* |
| May-15-2025 | 0.85 $* | 0.74 $* |
| Apr-15-2025 | 0.12 $* | 0.44 $* |
| Mar-15-2025 | 0.36 $* | 0.74 $* |
| Feb-15-2025 | 0.37 $* | 0.39 $* |
| Jan-15-2025 | 0.8 $* | 0.84 $* |
Характеристики
Product Overview

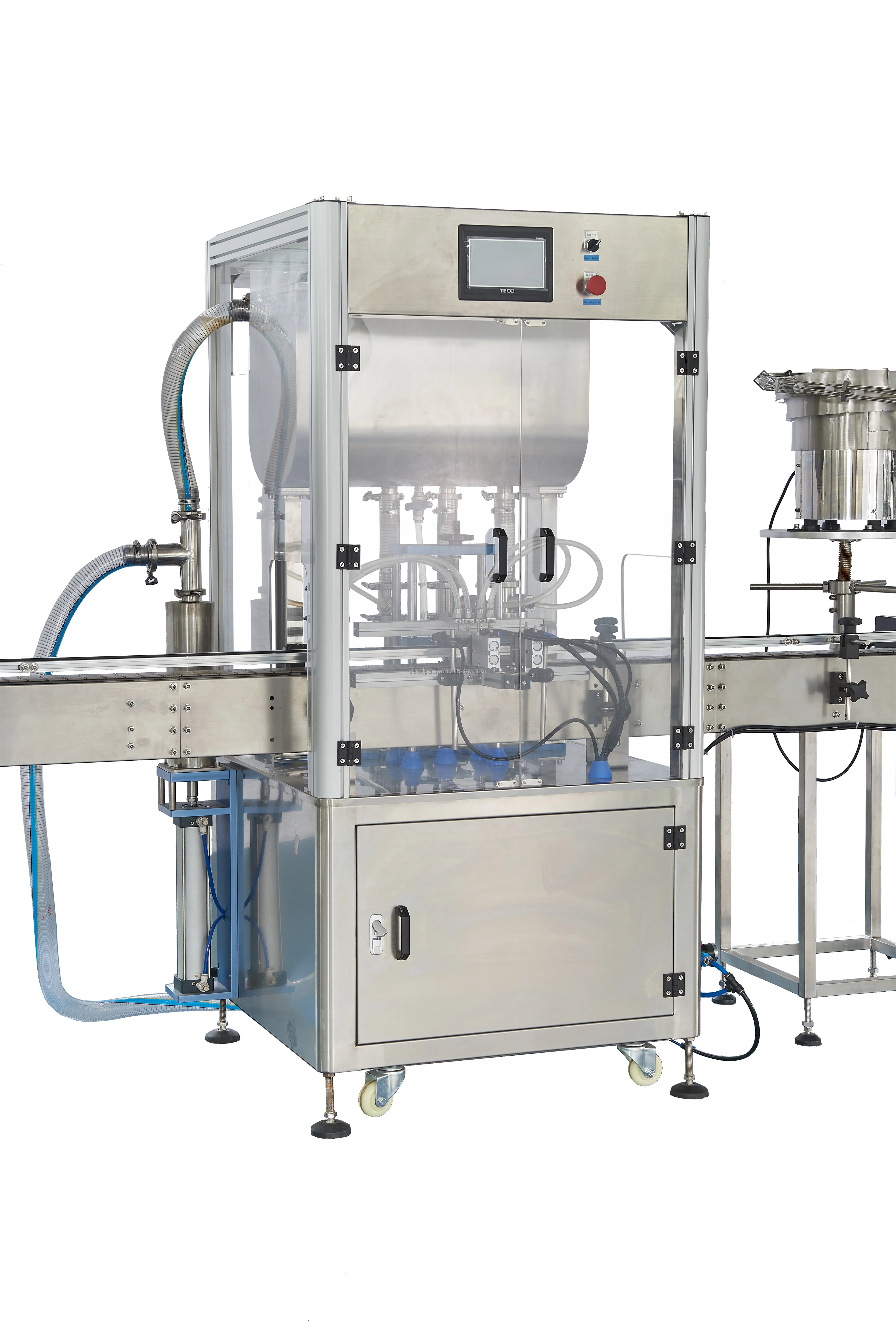

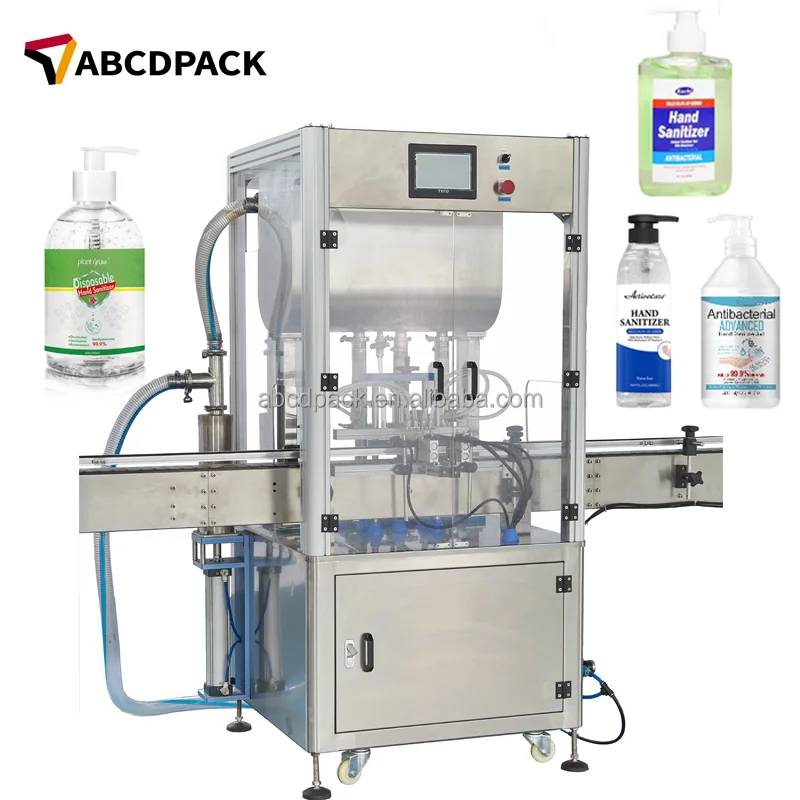

Automatic Free Washing Small Glass Botttle Ampoule Juice Liquid Jam Filling Machine Price Cream Machine Detergent Filler Machine
Application
Automatic filling machine is widely applied for gel, jam, honey, oil, shampoo, skin cream and so on.
Examples: Light oils like olive oil, baby oil, and also shampoo. Heavy sauces, salsas, salad dressings, cosmetic creams, heavy shampoo, gels, and conditioners, paste cleaners and waxes, adhesives, heavy oils and lubricants.
Advantages: For most users, this low-cost traditional technology is easy to understand and operate. Fast fill rates are achievable with fairly thick products.
Advantages: For most users, this low-cost traditional technology is easy to understand and operate. Fast fill rates are achievable with fairly thick products.
Products Specifications
How It Works:

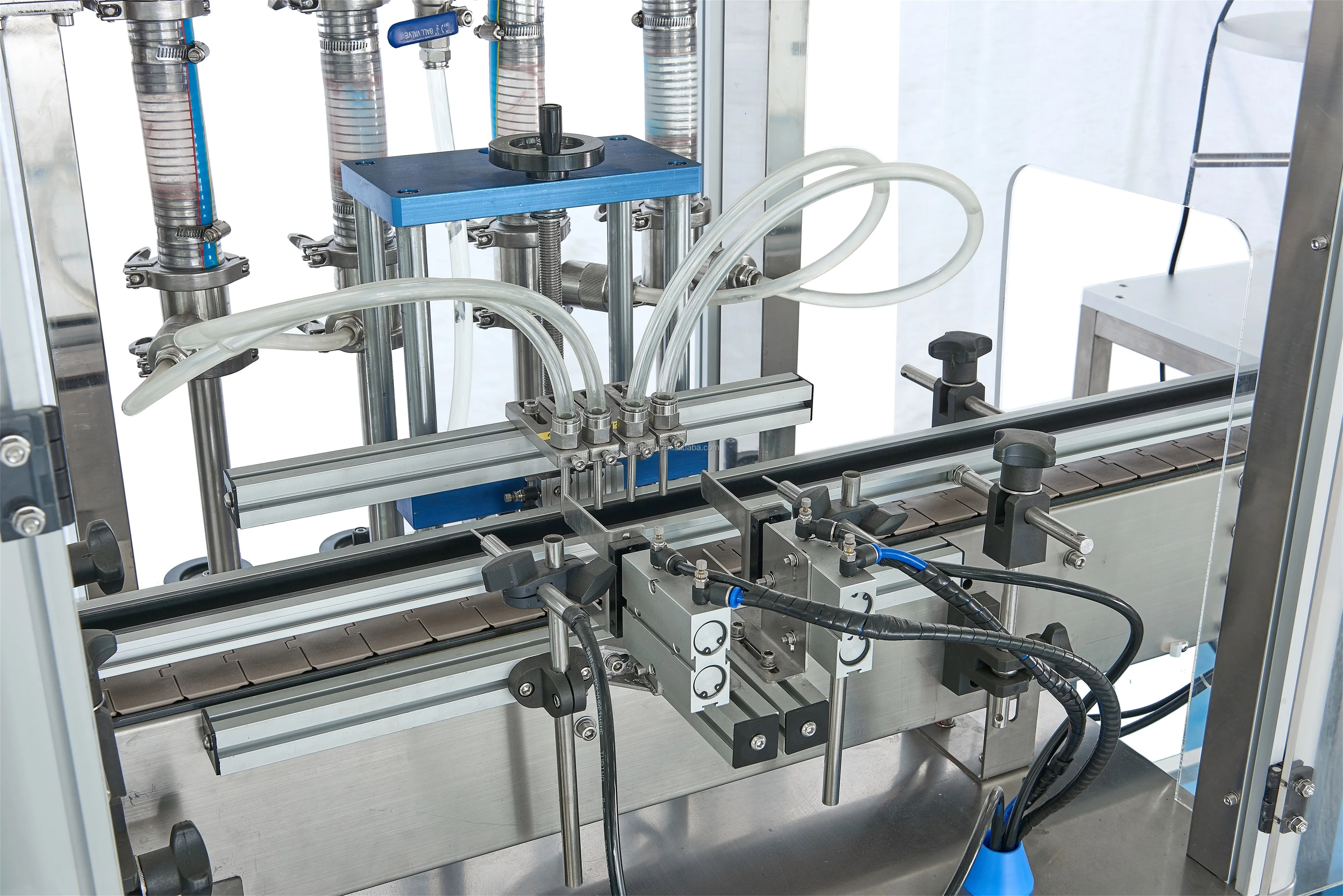

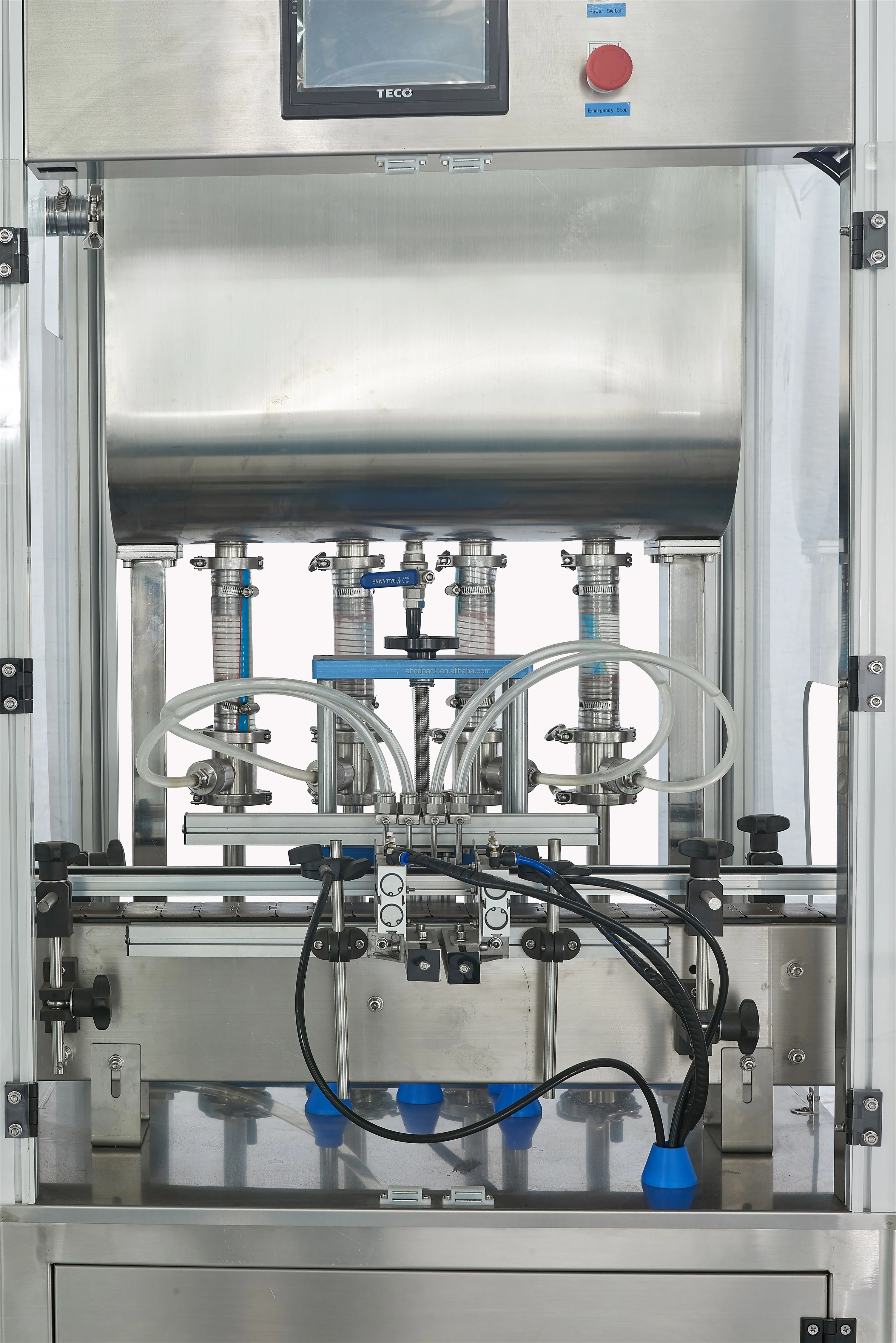

The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
The piston is drawn back in its cylinder so that the product is sucked into the cylinder. A rotary valve then changes position so that the product is then pushed out of the nozzle instead of back into the hopper.
Application:
This type of piston filler is best suited for viscous products that are paste, semi paste, or chunky with large particulates. These piston fillers are built to meet food grade standards and can also handle various chemical applications.
Name and model | AXGZ-SG-4 AXGZ-SG-4B | AXGZ-SG-6 AXGZ-SG-6B | AXGZ-SG-8 AXGZ-SG-8B | ||
Max filling speed | 1500~2200 pcs/hour | 2000~3000 pcs/hour | 3000~3600 pcs/hour | ||
Air consumption | 1200L one hour | 1600L one hour | 2000L one hour | ||
Net weight | 500/700 Kgs | 600/800 Kgs | 700/900 Kgs | ||
Machine size(L*W*H) | 2000*1200*2100mm | 2000*1200*2100mm | 2000*1200*2100mm | ||
Applicable bottle diameter size | Φ20 ≤D≤Φ100mm | ||||
Applicable bottle height size | 30≤H≤300 mm | ||||
Filling dose | 100~ 1000ml | ||||
Filling accuracy | ±1％ | ||||
Voltage | AC220V, 50/60HZ | ||||
Power | 1.0KW | ||||
Working pressure | 0.6MP | ||||
Machine direction | from left to right | ||||
Operation process | put products on conveyer—>Block bottles—> sensor count the empty bottle—> 6 bottle come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles | ||||
Operation process | Put products on conveyer—>Block bottles—> sensor count the empty bottles—> bottles come into the filling station —>lock bottles —>starting filling —> filling finished —> loose Block bottles—> Output bottles | ||||
Overall size(L*W*H) | 900*800*1200mm | ||||

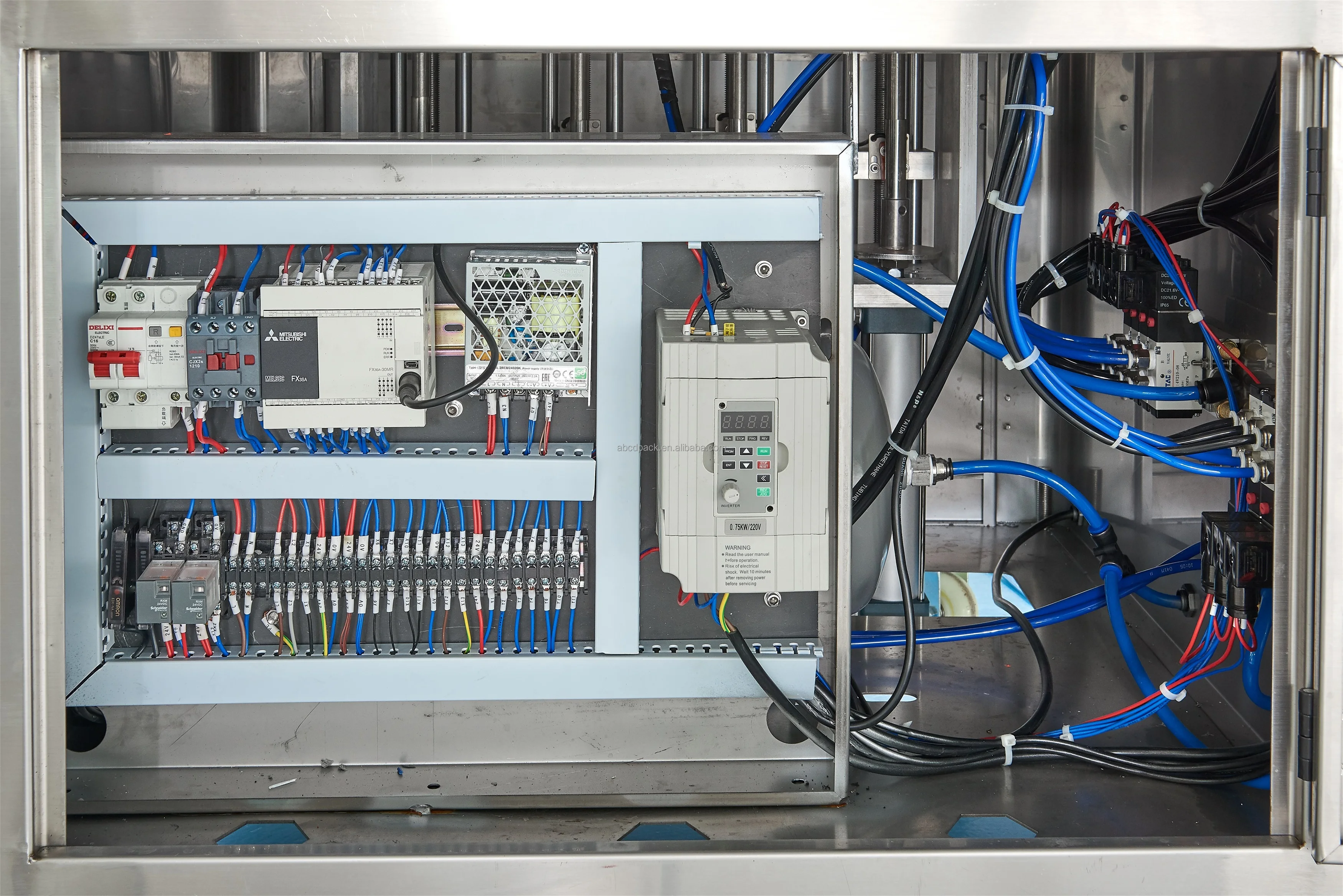

Main construction and electrical products | ||
Object sensor | Keyence or Autonics or similar brand sensor | |
Cylinders | Airtac or similar china brand model | |
PLC | Siemens | |
Display | Siemens or Samkoon | |
Basic construction | SUS304 stainless steel and anodized aluminum alloy, inside support machine frame is painted steel | |
Standard adopt SUS304 stainless steel, or upgrade into SUS316L stainless steel or plastic non-metal parts according order | ||
Production Process
Successful Project&Feedback
Packing & Delivery
Packaging Details:
Filling machine packed by packed with seaworthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we also can pack it according to clients' requirements.Port: Guangzhou
Lead Time : 30 working days after payment.
Lead Time : 30 working days after payment.
Our Advantage
ABCDPACK LIMITED
Company Profile
Guangzhou ABCDPACK Machine Co., Ltd is an industry-leading manufacturer of automatic filling, capping, labeling, induction sealing and packaging machinery. We have an experienced research and development team that specializes in customized solutions.Our professional team provides clients with comprehensive tailored solutions to fit almost any application for all kinds of
beverage, food, cosmetics etc, including liquid, paste, granules and powder type filling and packing machinery with mature
technique and first-class quality.
Our products, which sell well in mainland China, as well as many countries in Europe, America, Southeast Asia, the Middle East, obtains high reputation from customer. Because of our high quality, lower prices, fast speed delivery and satisfying services.
Base on our rich experience, high quality, perfect service, timely delivery, and competitive price, we believe that it must be a
pleasure cooperation once you choose us!
pleasure cooperation once you choose us!
Pre-sales Services:
1.Over 1,000 professional Machine video, give you direct feeling about our machine.
2.Free Machines' solution from our chief engineer.
Medium-sales Services:
ABCDPACK have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ABCDPACK engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. ABCDPACK has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
1.Over 1,000 professional Machine video, give you direct feeling about our machine.
2.Free Machines' solution from our chief engineer.
Medium-sales Services:
ABCDPACK have the trained team to follow your orders methodically to guarantee the products can be finished on time with high quality.
After-sale Services:
1. Manuals / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. ABCDPACK engineers & technicians are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year warrant, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. ABCDPACK has an independent team for after-sale service. Any emergency please call the saleman or our after-sale's manager.
