Резервуар Для Сбора Отработанного Масла используемый в помещении с воздушным компрессором система очистки источника сжатого

This series of products use ultra-fine fiber as the main filter material, adopt cyclone separation, pre-filter and coalescing fine filter three-stage purification, when used with an oil-lubricated compressor. It can obtain a temperament level lower than the oil content of an oil-free compressor. And it has quite high dust removal ability and certain dehumidification and drying ability. It is widely used in pneumatic instrument, automatic control and food, medicine, chemical, textile, petroleum, painting, telecommunications, metallurgy, rubber and other industries.

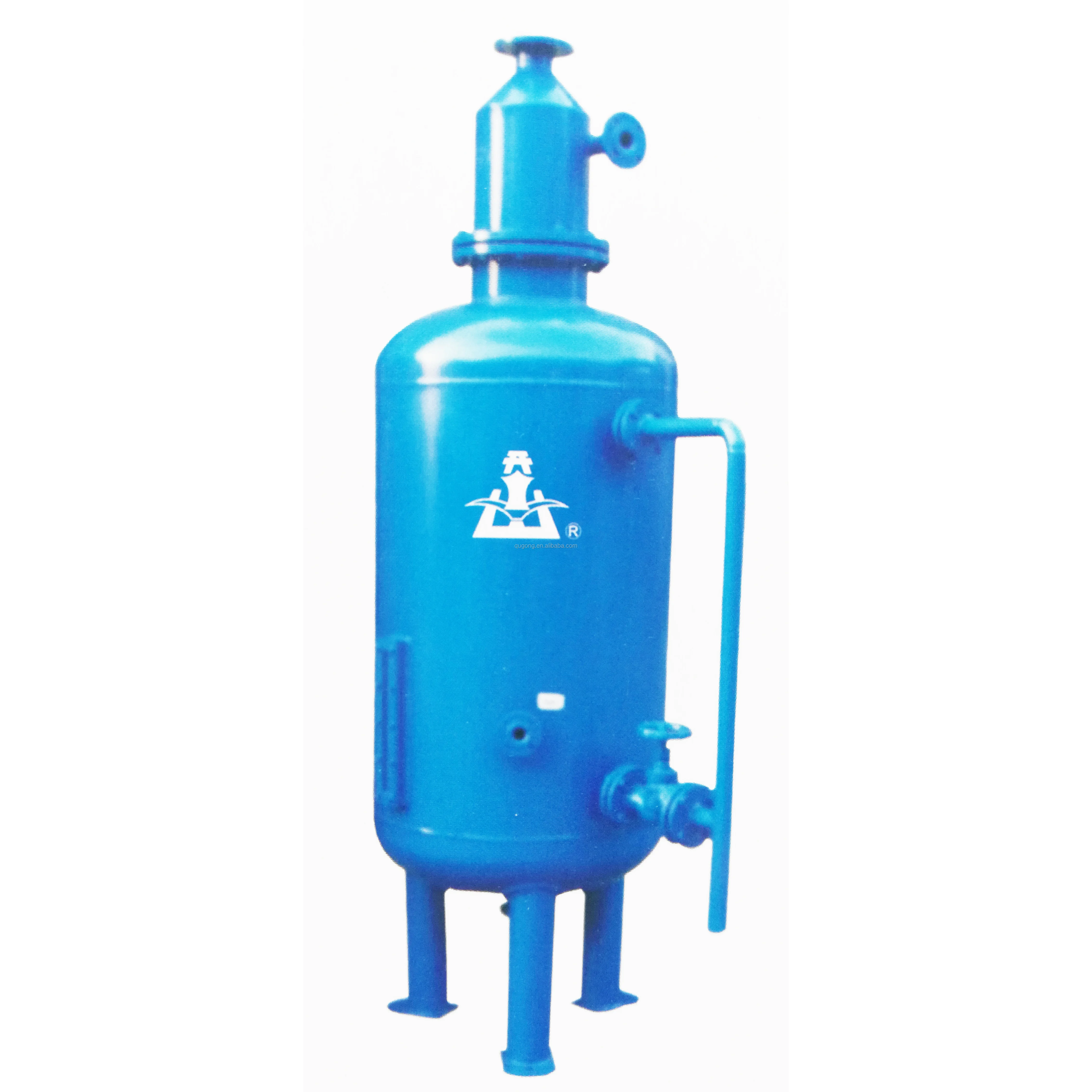

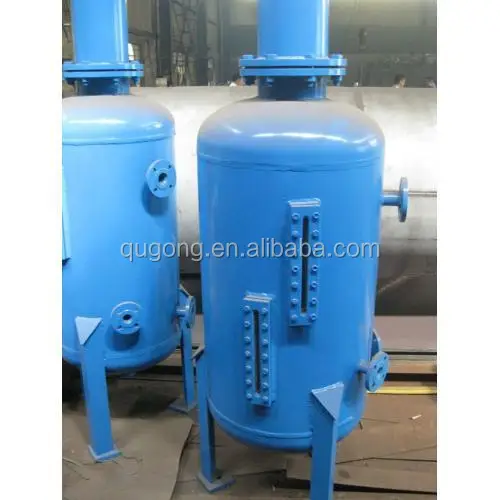

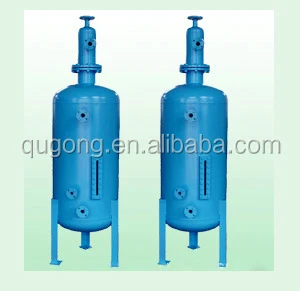

Waste oil collection tank ,This equipment uses the different density of oil and water. Through the principle of centrifugal separation and gravity separation, waste oil and water enter the gas-liquid separator on the upper part of the box in a tangential direction, and rely on centrifugal action to make the oil and water sink into the box and stay for a while Gravity separation is then carried out, and then discharged out of the box regularly. It is widely used in the collection of waste oil and water discharged from all levels of coolers of air compressors and post-processing equipment. The waste oil collection tank is used to collect waste oil and water discharged from the air compressor's various levels of coolers, oil-water separators, and air storage tanks. Using the different proportions of oil and water, the waste oil and water are allowed to stand in the tank for a certain period of time for gravity Separate, and then discharge them out of the box regularly for treatment to prevent oily wastewater from polluting the internal and external environments of the compressed air station. The oily wastewater treatment machine can directly regenerate the waste oil water discharged from the compressed air station, use its effluent water to reach the standard for discharge, and the regenerated oil can be reused.

Widely used in air compressor room, compressed air source purification system (air storage tank, filter, refrigeration dryer, after cooler, high efficiency degreaser) discharged waste oil, water and liquid collection. The discharged waste oil, water and liquid entrain a small amount of gas through swirling and oil-water gravity separation and precipitation. The oil and water are discharged and collected in different channels to protect the surrounding environment from the pollution of waste oil discharge. It has the advantages of small size, light weight, beautiful appearance, convenience and durability.

The waste oil of the waste oil collector generally batches waste oil or waste water with water in the waste oil or a lot of oil in the water. Industrial equipment that separates waste oil by using the different density of water and oil is an environmentally friendly primary oil-water separation device. The KSFS series waste oil collector, as long as it is properly shaped and installed correctly, can reliably remove the slick condensate of the waste oil in the mixed condensate, which is collected by the oil collecting tank

Application
