Машина для плетения веревок 3 LIFEI
US $17.00-$20.00
1600 мм машина для производства нетканого
- Категория: Текстильные машины >>>
- Поставщик: Qingdao,Haiyong,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.36 $* | 0.4 $* |
| Aug-17-2025 | 0.28 $* | 0.6 $* |
| Jul-17-2025 | 0.23 $* | 0.35 $* |
| Jun-17-2025 | 0.67 $* | 0.36 $* |
| May-17-2025 | 0.35 $* | 0.86 $* |
| Apr-17-2025 | 0.32 $* | 0.57 $* |
| Mar-17-2025 | 0.45 $* | 0.57 $* |
| Feb-17-2025 | 0.69 $* | 0.50 $* |
| Jan-17-2025 | 0.10 $* | 0.92 $* |
Характеристики
Product Description

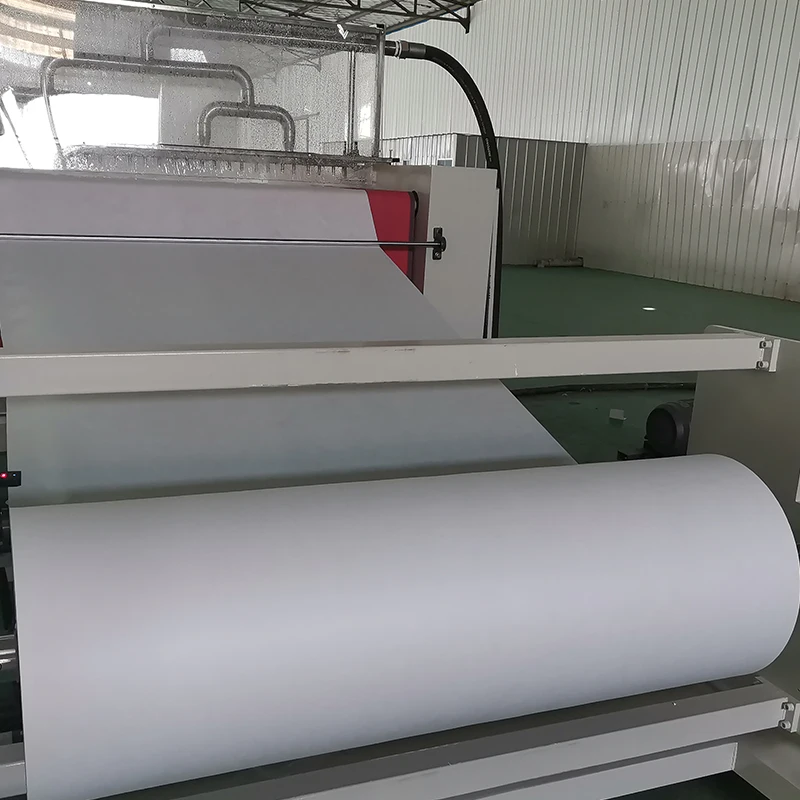

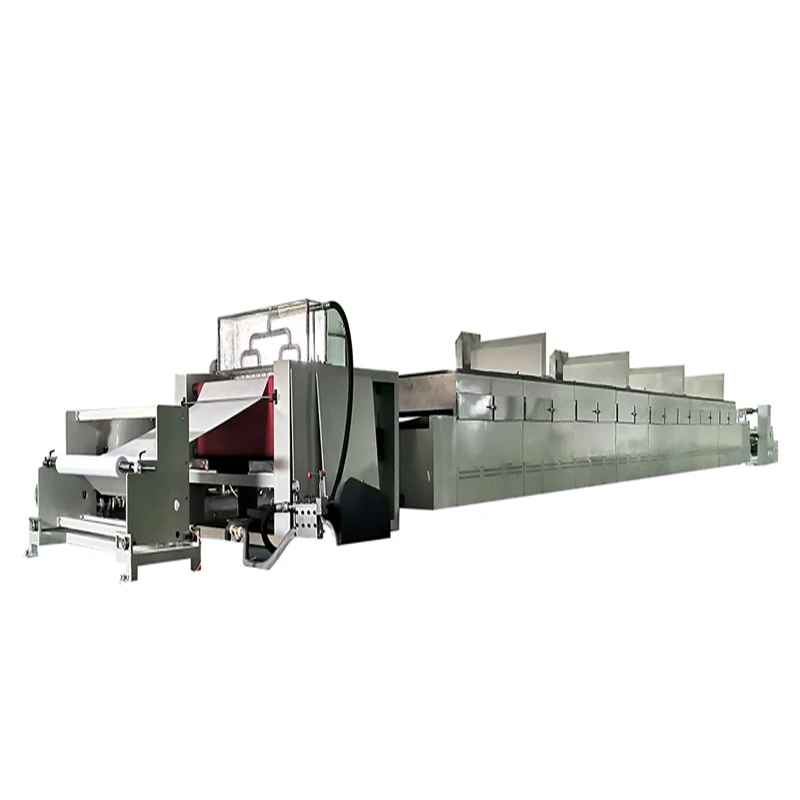

meltblown fabric making line
(1) 90 extruder one set
A feed working table
Vacuume automatic feed system. Feeding funnel: circular cone storage
B drive motor 3 phase motor,(siemens otor)
Drive power:55kw,speed control : interver control
C reducer box 1 set
Plastic machine special using gera box,material is alloy steel
D material bucket
Diameter 90mm,material: alloy steel ,the surface harden by plasma nitriding. plasma nitriding depth :0.5-0.8mm.surface
hardness:HV850-900
Heating method:electric heating ,control method: plc automatic control
E screw(special using screw)
Diameter 90mm,material: alloy steel ,the surface harden by plasma nitriding. plasma nitriding depth :0.5-0.8mm.surface
hardness:HV850-900
4/8
Hydraulic net change system 1 set
Net change type: two cylinder type high speed ne change
Oil pump drive type: 3 phase motor,power 2.2kw
Heating method: stainless steel electric heating
Pressure sensor 1 set
* melt-stoichiometry pump 1 set
drive type, motor drive. control method : inverter control
pressure closed cycle system 1 set
* coat hanger type extrude mould 1 set
the mould use the materialof sus 431, the surface chromeneplated abd polishing
the hot air pioe has 4 air intake in the two side of the mould. The hot air pressure at 1-2mpa
runner type: meltblown special using coat hanger type runner
heating method: stainless steel heater , partition heating ,plc control.
Fastener(screw):12.9 high strength
Working width :1600mm
Moulder front pressure sensor 1 set
5/8
* spinneret plate 1 set
the spinneret plate make the fluid become small fluid,by the hot air high speed blow, becoming superfine fiber
material: import SUS630or SUS 431 steel . steel do the heat trement: HB380-HB420
* Air heating system
Heating tank material :stainless steel. Tank structure: add baffle plate inside of the tank.add insulating layer at the outside of
the tank. air intake and air outlet diameter:200mm
Flange material:stainless steel. Heating material: air
Heating power :230kw. Design max tempareature :400℃
Working temperature:200-350℃（adjustable）
Control method:plc automatic control
* Fan
Power :90kw. Control method AC interter control
supply air duct 1 set
* Net system
exhaust inlet can adjust.it can sove the air blow influence the meltblown fabric
6/8
feeding conveyor use servo control, power 4.5kw
two net(one as spare part )
negative pressure fan power :55kw
* static eletret 1 set
output voltage 60kv
* Roller machine 1 set
friction roller 1 pcs, length 2800mm, steel roller surface rubber coating. Power :5.5kw. control method: inverter
roller spindle 2 pcs
* Electric control system 1 set
* Siemnes plc and touch panel
* temperature control system Austria B&R
* drive system:main motor ABB inverter contro. measuring pump,conveyor roller,r()oller use inverter control
* pressure sensor :Italy ：GEFRAN,GE
* mian motor :siemens
* Other low-voltage apparatus: Schneider omron
7/8
Assistant equipment(these machine clients also can prepare by themself)
* Calcinatory 1 awt
* ultrasonic wave cleaning machine 1 set
* mix machine 1 set
* hot air dryer machine 1 set
* cold air system 1 set
* air compressor
* slicer machine 1 set
notice: during the machine design and producing ,in order to impove the product quality and capacity,can adjust the specification
due to actuall needing
A feed working table
Vacuume automatic feed system. Feeding funnel: circular cone storage
B drive motor 3 phase motor,(siemens otor)
Drive power:55kw,speed control : interver control
C reducer box 1 set
Plastic machine special using gera box,material is alloy steel
D material bucket
Diameter 90mm,material: alloy steel ,the surface harden by plasma nitriding. plasma nitriding depth :0.5-0.8mm.surface
hardness:HV850-900
Heating method:electric heating ,control method: plc automatic control
E screw(special using screw)
Diameter 90mm,material: alloy steel ,the surface harden by plasma nitriding. plasma nitriding depth :0.5-0.8mm.surface
hardness:HV850-900
4/8
Hydraulic net change system 1 set
Net change type: two cylinder type high speed ne change
Oil pump drive type: 3 phase motor,power 2.2kw
Heating method: stainless steel electric heating
Pressure sensor 1 set
* melt-stoichiometry pump 1 set
drive type, motor drive. control method : inverter control
pressure closed cycle system 1 set
* coat hanger type extrude mould 1 set
the mould use the materialof sus 431, the surface chromeneplated abd polishing
the hot air pioe has 4 air intake in the two side of the mould. The hot air pressure at 1-2mpa
runner type: meltblown special using coat hanger type runner
heating method: stainless steel heater , partition heating ,plc control.
Fastener(screw):12.9 high strength
Working width :1600mm
Moulder front pressure sensor 1 set
5/8
* spinneret plate 1 set
the spinneret plate make the fluid become small fluid,by the hot air high speed blow, becoming superfine fiber
material: import SUS630or SUS 431 steel . steel do the heat trement: HB380-HB420
* Air heating system
Heating tank material :stainless steel. Tank structure: add baffle plate inside of the tank.add insulating layer at the outside of
the tank. air intake and air outlet diameter:200mm
Flange material:stainless steel. Heating material: air
Heating power :230kw. Design max tempareature :400℃
Working temperature:200-350℃（adjustable）
Control method:plc automatic control
* Fan
Power :90kw. Control method AC interter control
supply air duct 1 set
* Net system
exhaust inlet can adjust.it can sove the air blow influence the meltblown fabric
6/8
feeding conveyor use servo control, power 4.5kw
two net(one as spare part )
negative pressure fan power :55kw
* static eletret 1 set
output voltage 60kv
* Roller machine 1 set
friction roller 1 pcs, length 2800mm, steel roller surface rubber coating. Power :5.5kw. control method: inverter
roller spindle 2 pcs
* Electric control system 1 set
* Siemnes plc and touch panel
* temperature control system Austria B&R
* drive system:main motor ABB inverter contro. measuring pump,conveyor roller,r()oller use inverter control
* pressure sensor :Italy ：GEFRAN,GE
* mian motor :siemens
* Other low-voltage apparatus: Schneider omron
7/8
Assistant equipment(these machine clients also can prepare by themself)
* Calcinatory 1 awt
* ultrasonic wave cleaning machine 1 set
* mix machine 1 set
* hot air dryer machine 1 set
* cold air system 1 set
* air compressor
* slicer machine 1 set
notice: during the machine design and producing ,in order to impove the product quality and capacity,can adjust the specification
due to actuall needing
