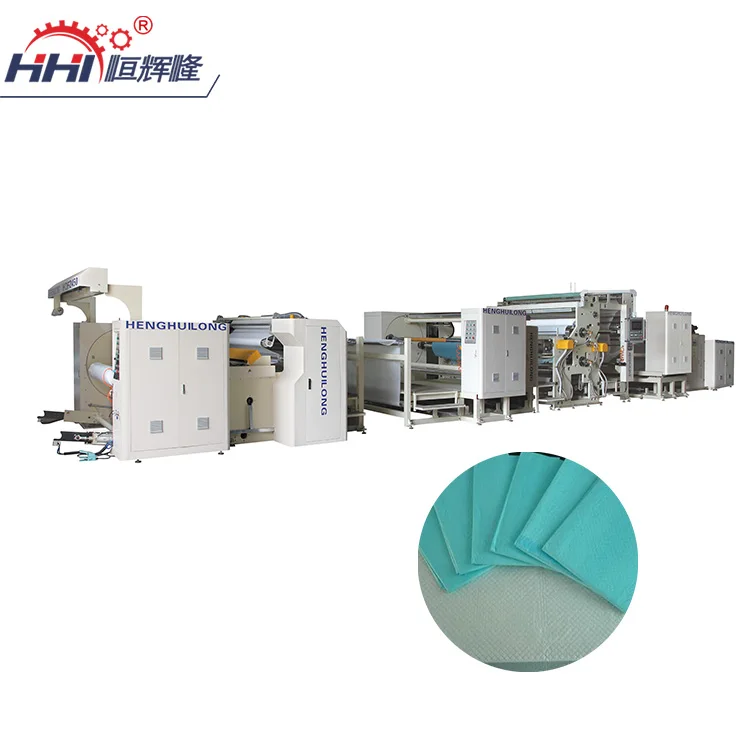

Машина для ламинирования термоплавких тканей из термопластичного полиуретана полностью производственная

Material

TPU film，/PE film /Nonwoven laminating

Width of Materials

2550mm (Min width 600mm)

Roller Width

2600mm

Total machine power

~165kw

Coating Speed

PUR three-layer composite:60m/min; Hot melt adhesive two-layer composite speed: 160 m/min

Machine Speed

180/min

Max Unwinding Diameter

Φ1200mm

Max Winding Diameter

Φ1200mm

Max Legth of Paper Code

2550mm

Specification of Unwinding and winding shaft

3 inches（Φ74mm）

Max Coating Width

2550mm

Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be
replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is
troublesome to disassemble.

Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The
pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so
the life of the squeegee is relatively long.

Frequently change the width of the glue coating, the baffle is easy to damage

The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled.

Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g
non-woven fabric, etc.)

Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated
