Гидравлическая машина для выпрямления и резки стержней/автоматическая с
- Категория: Metal Straightening Machinery >>>
- Поставщик: Xuchang,Zhenda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5712.76 $* | 5998.10 $* |
| Aug-17-2025 | 5664.85 $* | 5947.17 $* |
| Jul-17-2025 | 4752.49 $* | 4990.47 $* |
| Jun-17-2025 | 5568.28 $* | 5846.65 $* |
| May-17-2025 | 4848.11 $* | 5090.70 $* |
| Apr-17-2025 | 5472.21 $* | 5746.99 $* |
| Mar-17-2025 | 5424.91 $* | 5695.19 $* |
| Feb-17-2025 | 5376.66 $* | 5645.3 $* |
| Jan-17-2025 | 5328.64 $* | 5594.56 $* |
Характеристики

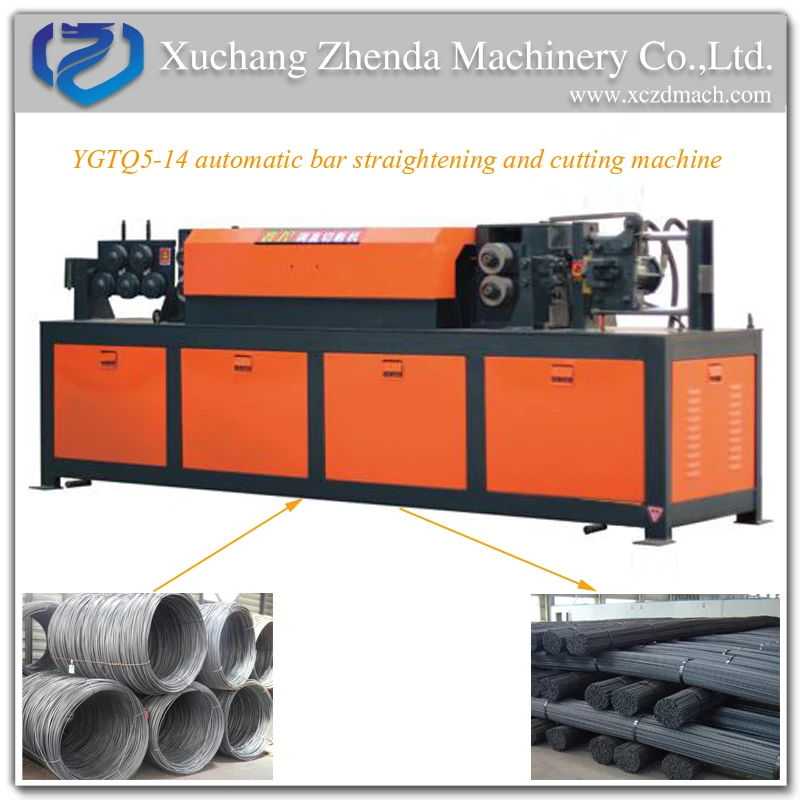

High Quality low price wire rod straightening cutting machine/Straightening Machine for Sale{YGTQ5-14 }
1. YGTQ Series automatic rebar straightening and cutting machine is a kind of highly effective equipment, it has the following features:
1) Speed can be adjusted straightening cutting machine
2) Straightening fast without distortion
3) High yield and low consumption straightening cutting machine
4) No hurt to the ribs, stably running, small cutting errors,
5) Low failure rate: work with high performance for a lone time under normal condition debugging.
Hydraulic Bar Straightening Cutting Machine/CNC Automatic Straightening Cutting Machine/straightening cutting machine
This automatic bar straightening and cutting machine is efficient for cutting steel bars on project. It can cut different kinds of round steel bar and deformed steel bar. It’s made of high steel knife seat and connecting shaft, international standard high speed motor and firm reinforcing covering. The machine is very small, solid, self-lubrication, little power loss; easy operation and easy moving with four wheels and the knife can be manually controlled.
2. Technical parameter of automatic rebar straightening and cutting machine

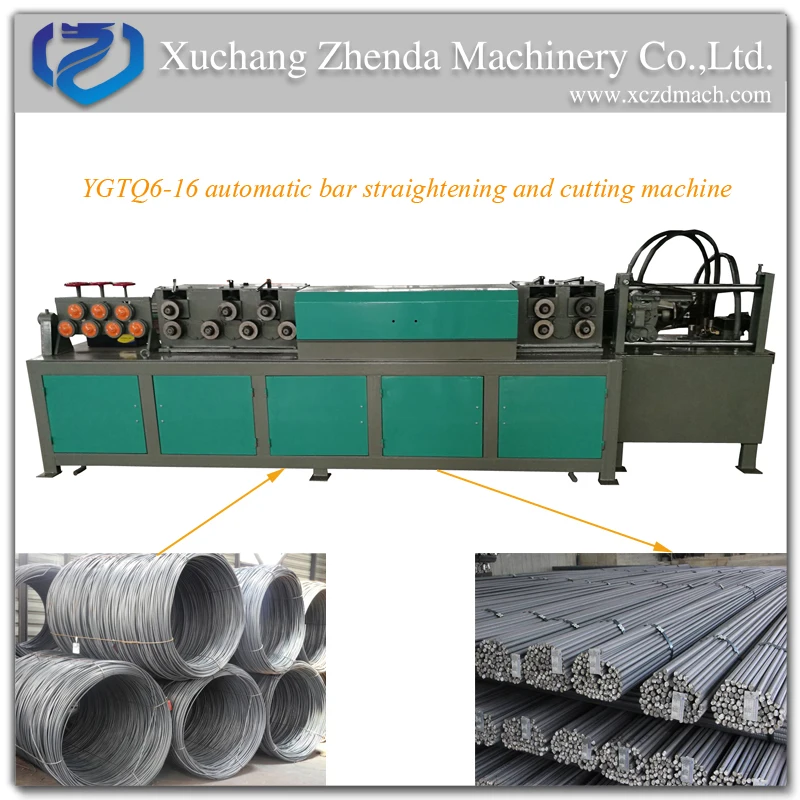

Model Number | YGTQ4-10 | YGTQ4-12(1) | YGTQ4-12(2) | YGTQ5-14 | YGTQ6-16 |
Round steel bar(mm) | φ 4-φ 10 | φ 4-φ 12 | φ 4-φ 12 | φ 5-φ 14 | φ 6-φ 18 |
Deformed steel bar(mm) | φ 4-φ 8 | φ 4-φ 10 | φ 4-φ 10 | φ 5-φ 12 | φ 6-φ 16 |
Cutting length(mm) | 200-8000 | 300-8400 | 300-8400 | 300-8400 | 300-9500 |
Cutting error(mm) | ±10 | ±10 | ±10 | ±10 | ±10 |
Straighten speed(m/min) | 35-45 | 40-45 | 40-45 | 50-55 | 60-80 |
Straighten motor(kw) | / | / | / | / | / |
Pulling motor(kw) | 7.5 | 7.5 | 7.5 | 11 | 15 |
Cutting motor(kw) | / | 5.5 | / | 5.5 | 5.5 |
L*W*H(m) | 1.4*0.65*0.75 | 2.0×0.64×1.3 | 1.9×0.84×0.9 | 2.9×0.64×1.3 | 4.0×6.5×1.2 |
Machine weight(kg) | 360 | 900 | 650 | 1200 | 1500 |
Workshow Show

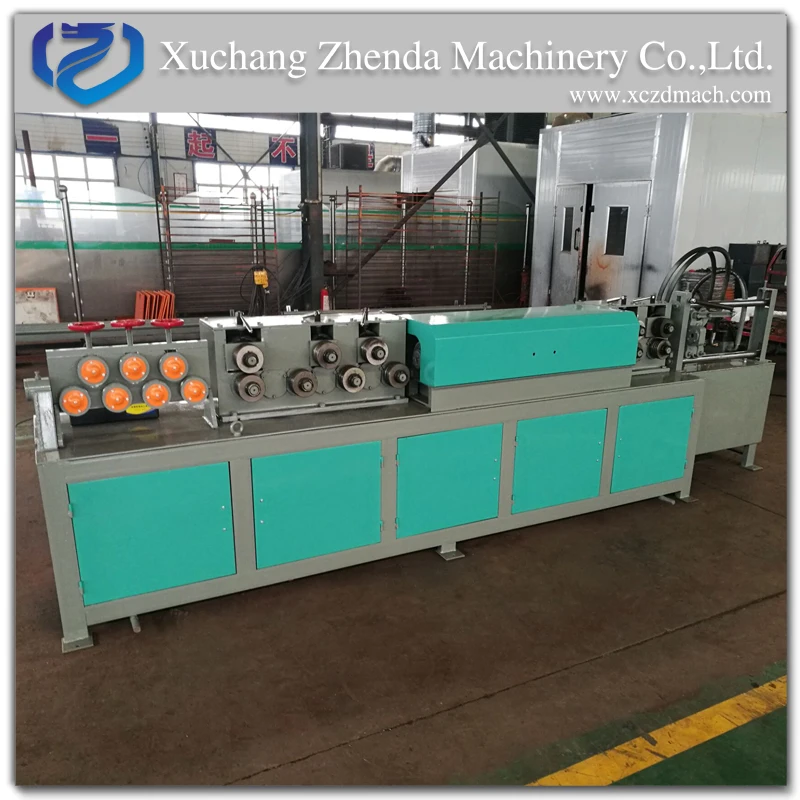

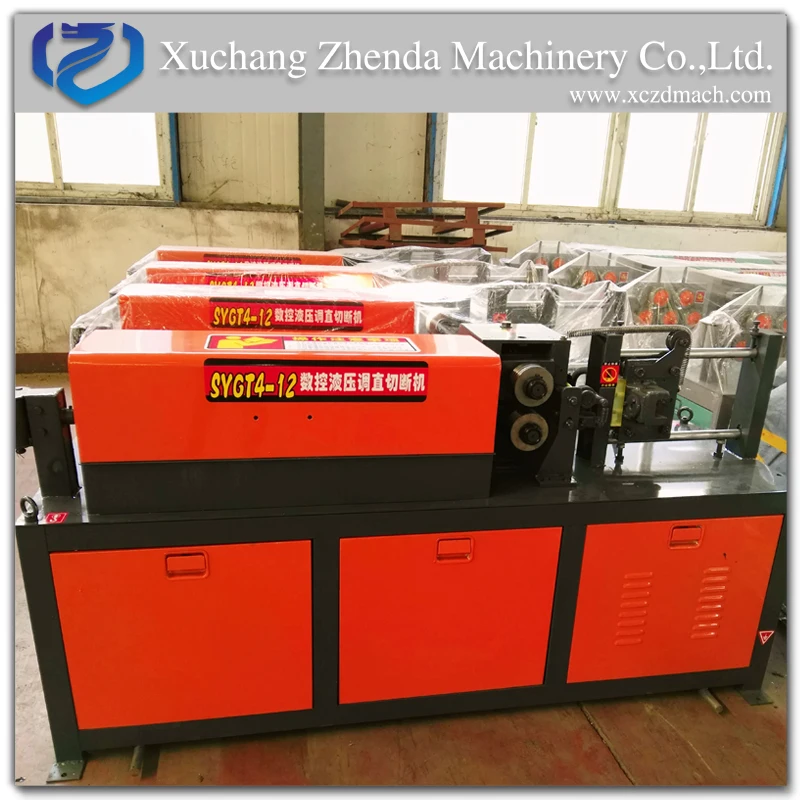

Detailed Images
Finished Products
Customer praise
Our Service
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the most suitable machine.
3.Making the machine according to your requirement.
On-Sale Service
1.Acceptance equipment together with you .
2.Help you to make the method statement and the details of the process.
After Service
1.Guarantee for two years
2.Quality problem, we will sent you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Hydraulic Bar Straightening Cutting Machine/CNC Automatic Straightening Cutting Machine/straightening cutting machine
Packing & Delivery
Contact us
