Products Description
Hose pump is a positive displacement pump. The suction action is realized through pressing shoe alternately pressing and releasing the special hose. When it pressing the hose, extrude the fluid out. At the same time, when it leaves, the hose rebounds to form negative pressure, which will absorb more fluid from the inlet end. The pressing shoe will 100% closed extrusion of the hose, thus providing accurate metering accuracy and pressure performance. The fluid only contacts with hose, no need any sealing.
Feature
* Flow and power can adjust, low energy consumption.
* Can dry running, suction ability up to 9.5 m.
* Can dry running, suction ability up to 9.5 m.
* Stable flow rate, accurate and repeatable measurement capability.
* Easy to convey high viscosity, high solid content medium.
* Fit for shear sensitive medium.
* No seals, valves, diaphragm, immersed rotor, stator or piston.
Performance data
Pump model | Inlet/outlet size(Inch) | Connection type | Flow rate (L/R) | Max outlet pressure (bar) | Standard Motor (KW) |
FK10 | 3/8" | Pagoda | 0.02 | 12 | 0.37 |
FK15 | 1/2" | Pagoda | 0.08 | 12 | 0.55 |
FK20 | 3/4" | Pagoda | 0.15 | 12 | 0.55 |
FK25 | 1" | Flange | 0.3 | 16 | 1.1 |
FK32 | 1-1/4" | Flange | 0.6 | 16 | 1.5 |
FK40 | 1-1/2" | Flange | 1.3 | 16 | 2.2 |
FK50 | 2" | Flange | 2.9 | 16 | 4 |
FK65 | 2-1/2" | Flange | 6.7 | 16 | 5.5 |
FK80 | 3" | Flange | 11.7 | 16 | 11 |
FK100 | 4" | Flange | 20 | 16 | 15 |
Details Images

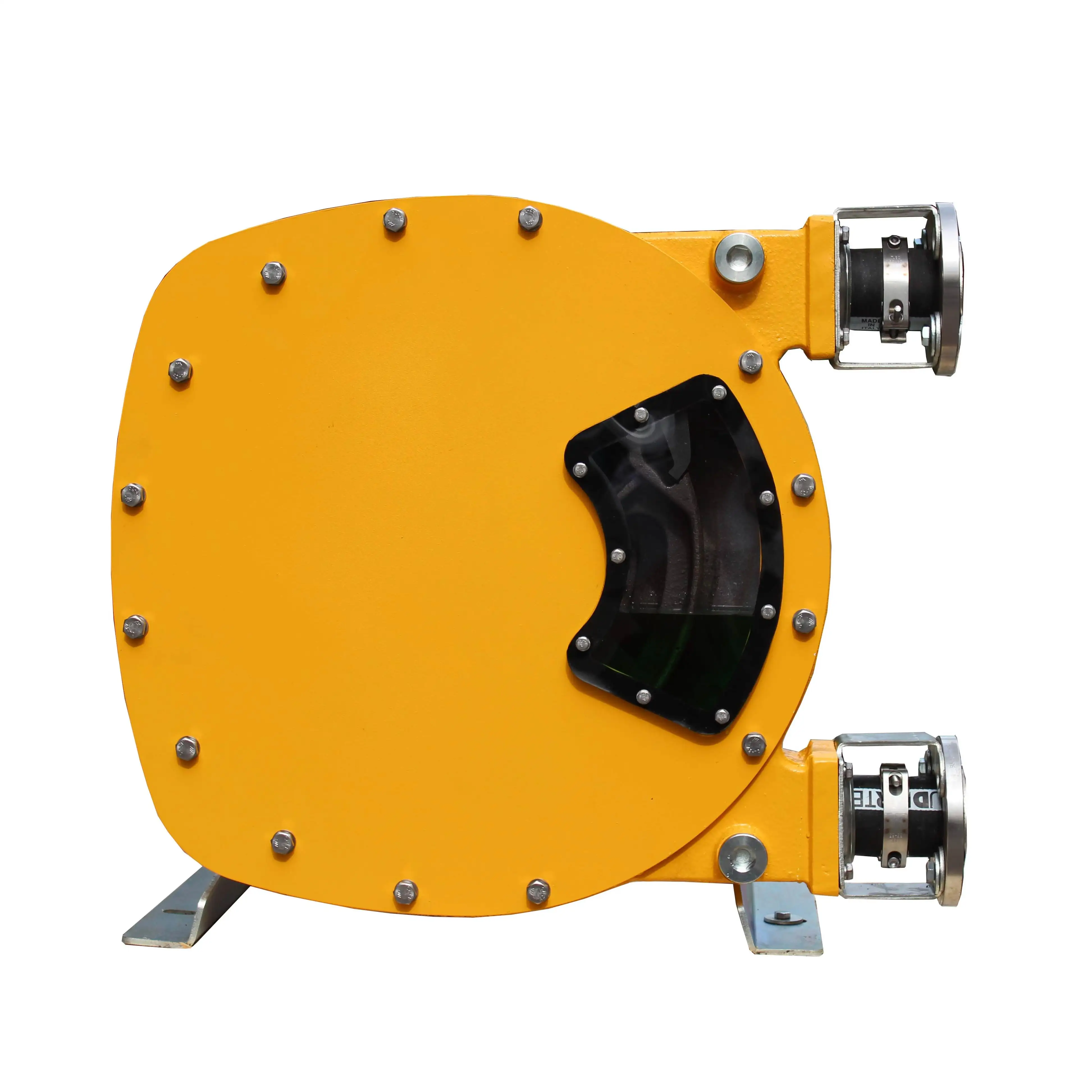

Durable hose, longer life time. Cast iron body, strong and durable. With lubricating oil, smooth working.
Company Profile
Shanghai Flolink Pump Co., LTD. Is a professional hose pump supplier, with advanced design technology and many years of research and development experience.
FLOLINK hose pump, with aluminum alloy and cast iron housing, high structural strength, strong and durable. The hose from Italy, which is reliable, durable and has long service life. It performs well in various harsh working conditions. Hose pump widely used in water treatment, electronic industry, beverage industry, chemical industry, pharmaceutical industry, environmental protectionand other industrial fields.
