Product Description

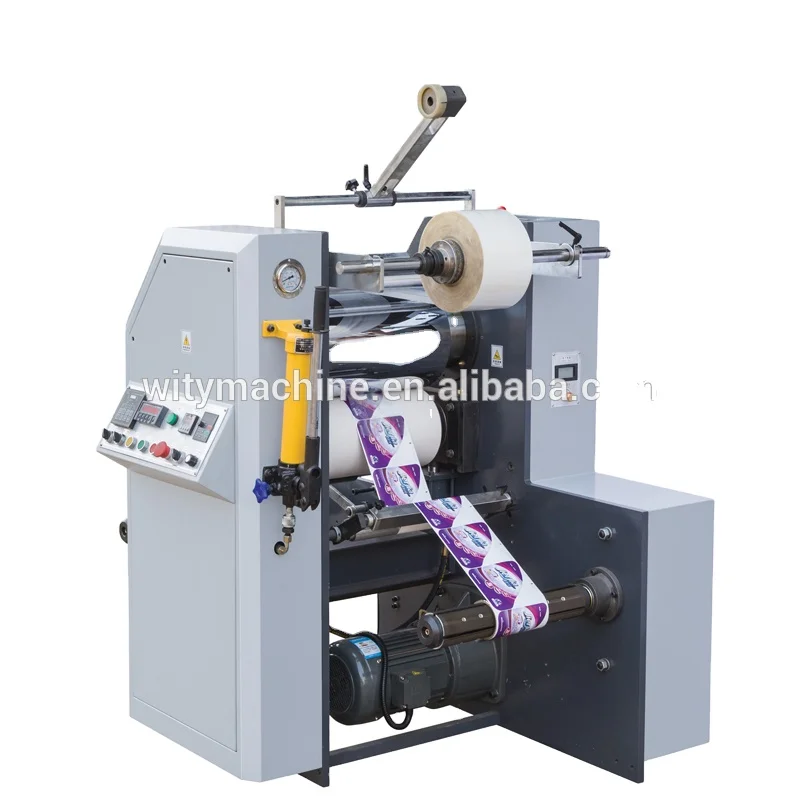

Narrow Type Thermal Laminating Machine
This narrow type thermal laminating machine is used to laminate thermal lamination film or glueless film with roll type self-adhesive label paper.


Specification


Model
JTFM550
Max feeding width
520mm
Max mechanical speed
70m/min
Heating roller diameter
¢268mm,570mm width
Rubber roller diameter
¢206mm,570mm width
Heating temperature
0~130℃
Max unwinding diameter
¢550mm
Max rewinding diameter
¢550mm
Heating power
8kw
Total power
11kw
Max work pressure
8Mpa
Overall dimension
1550×1330×1500
Machine weight
About 600kg


Features


1.\t3" Air shaft for unwinding and rewinding
2.\tWith photocells for web-guiding
3.\tUnwinding magnetic brake for tension control
4.\tMeter counting function
5.\tMain motor Frequency converter for speed regulation
6.\tBig diameter heating cylinder assure the perfect contact area of film with paper
7.\tDisc blade for OPP film slitting

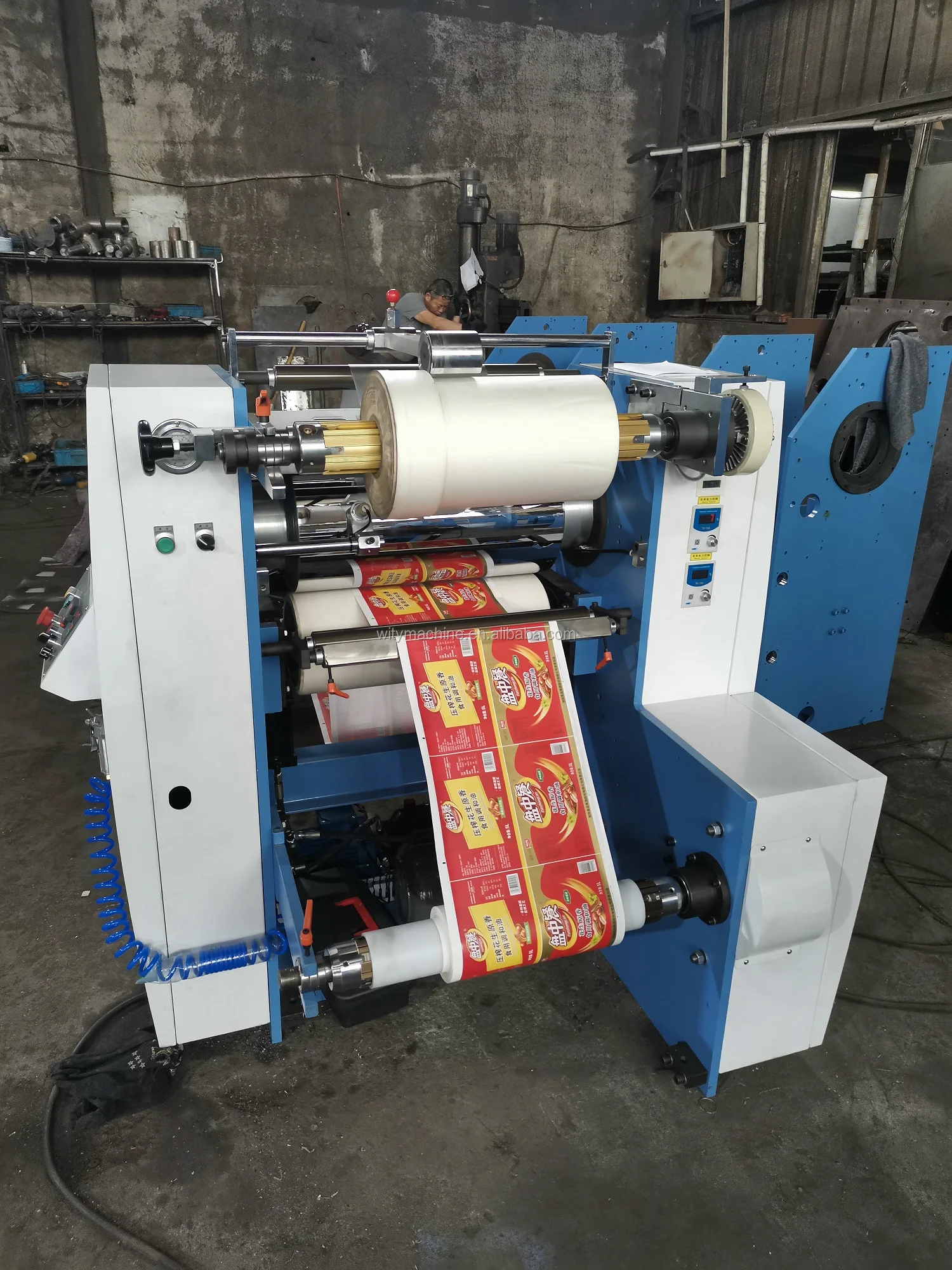

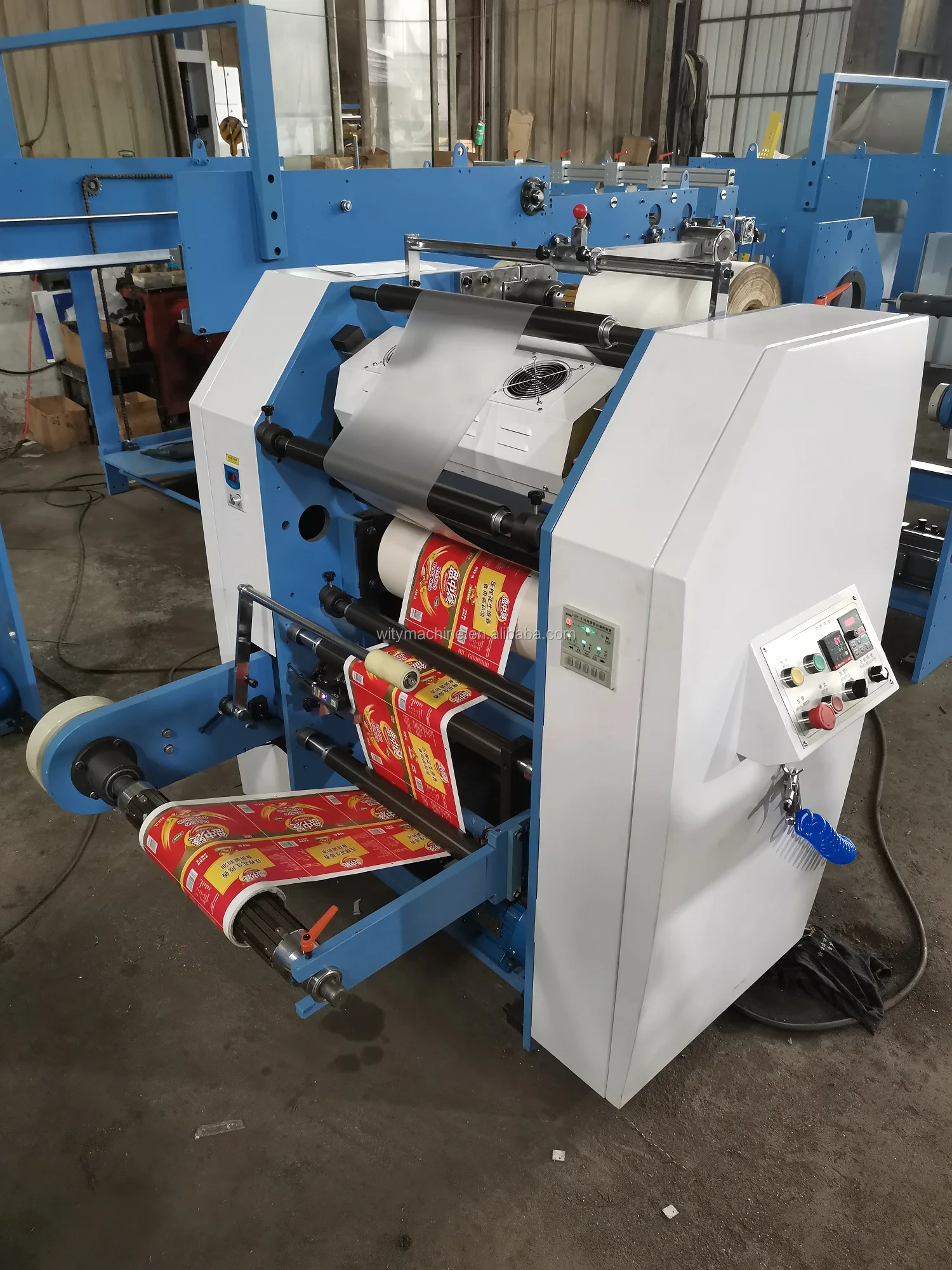

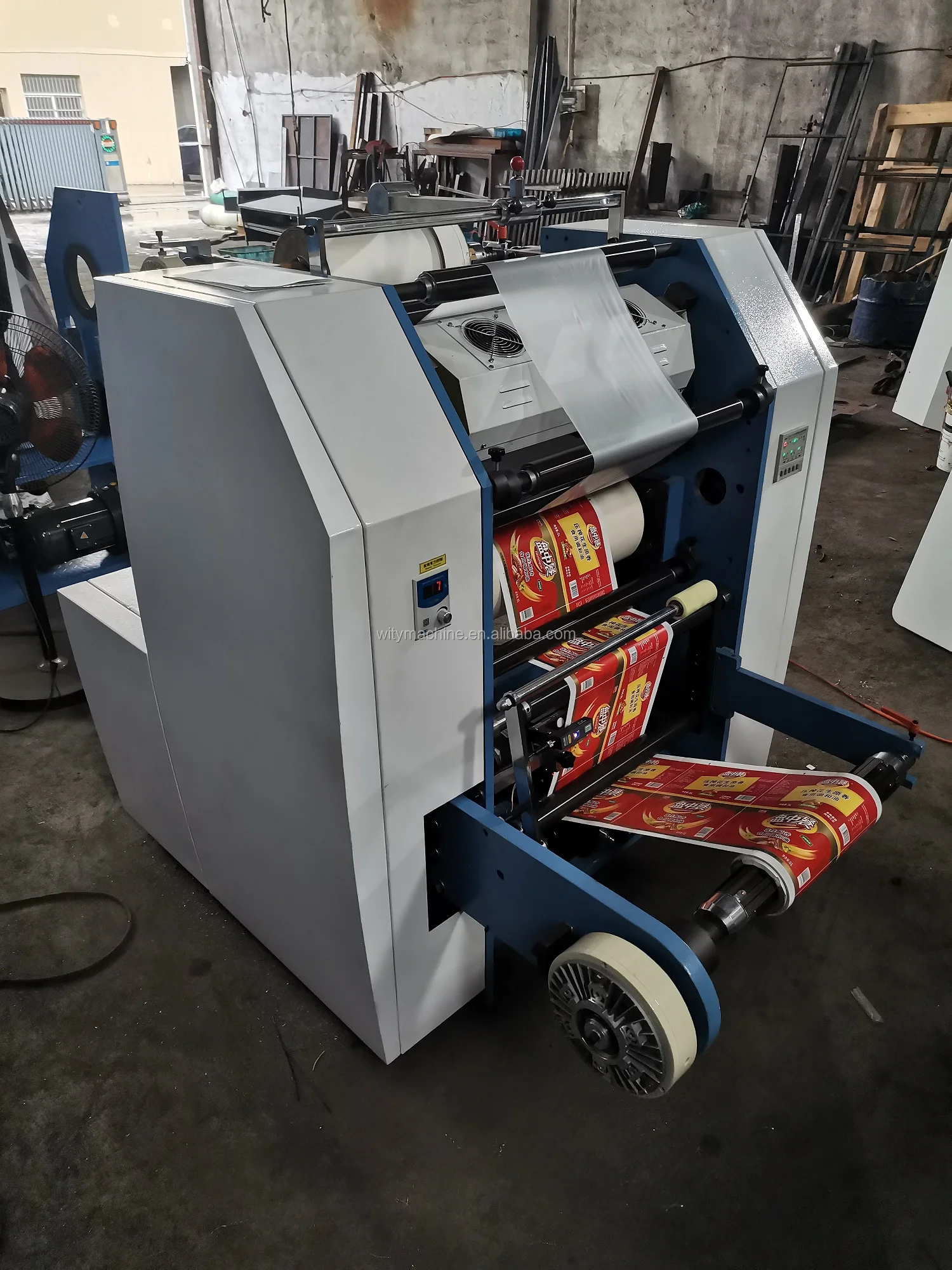

Details Images






Web-guiding device
Unwinder

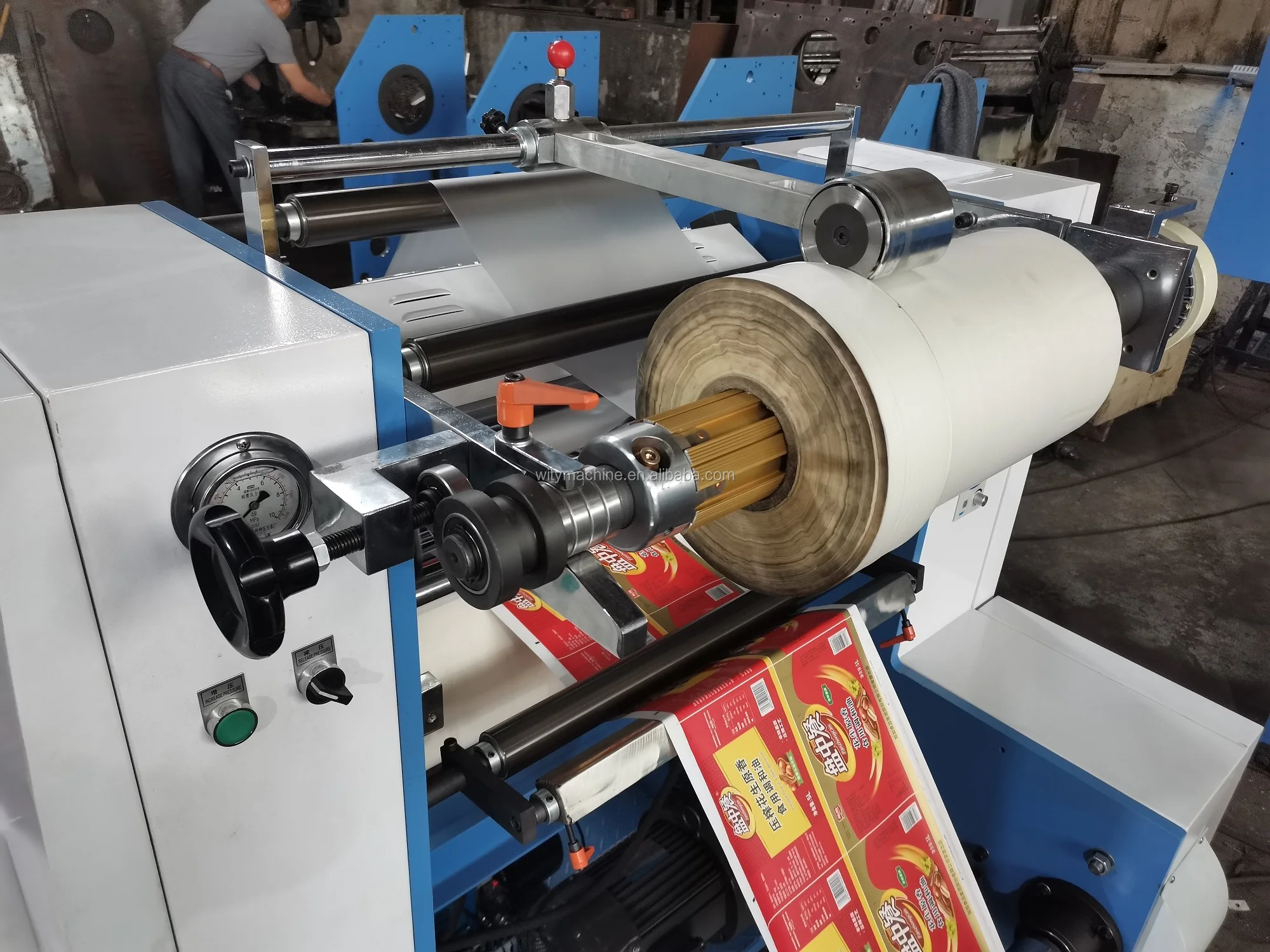

Film unwinder


Laminating part


Details
