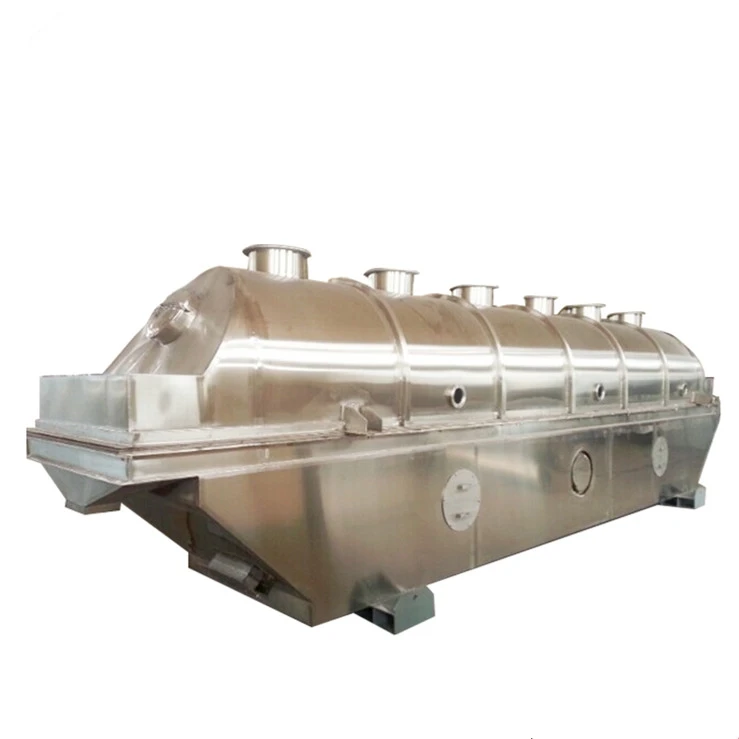

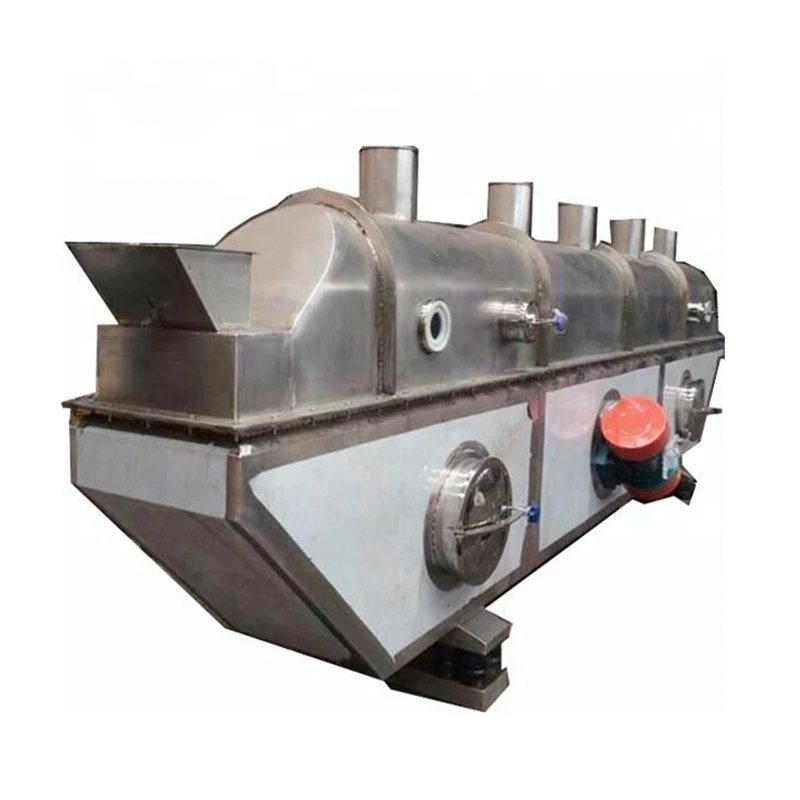

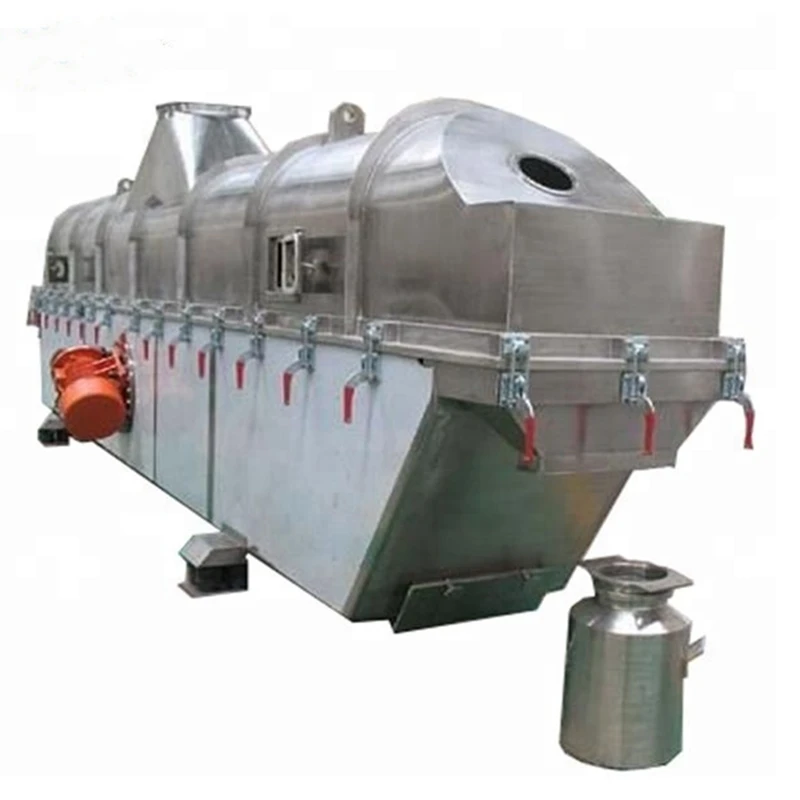

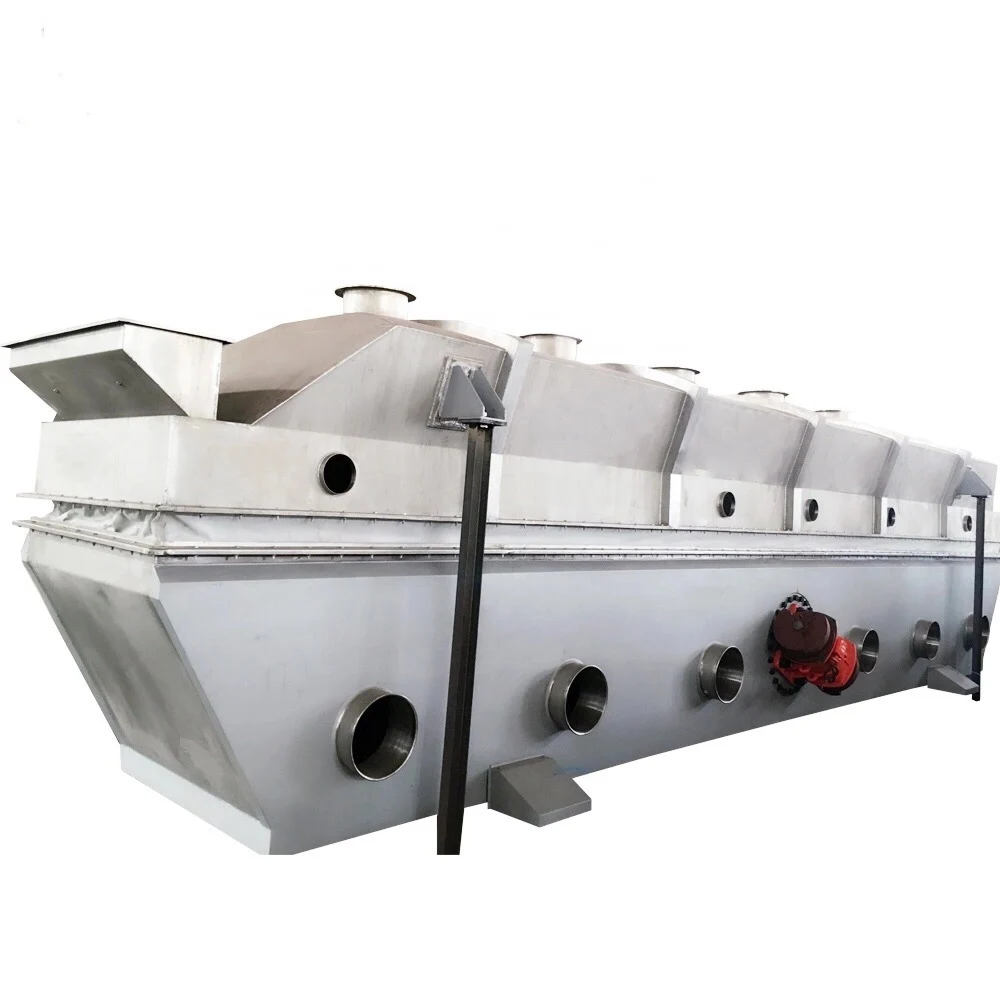

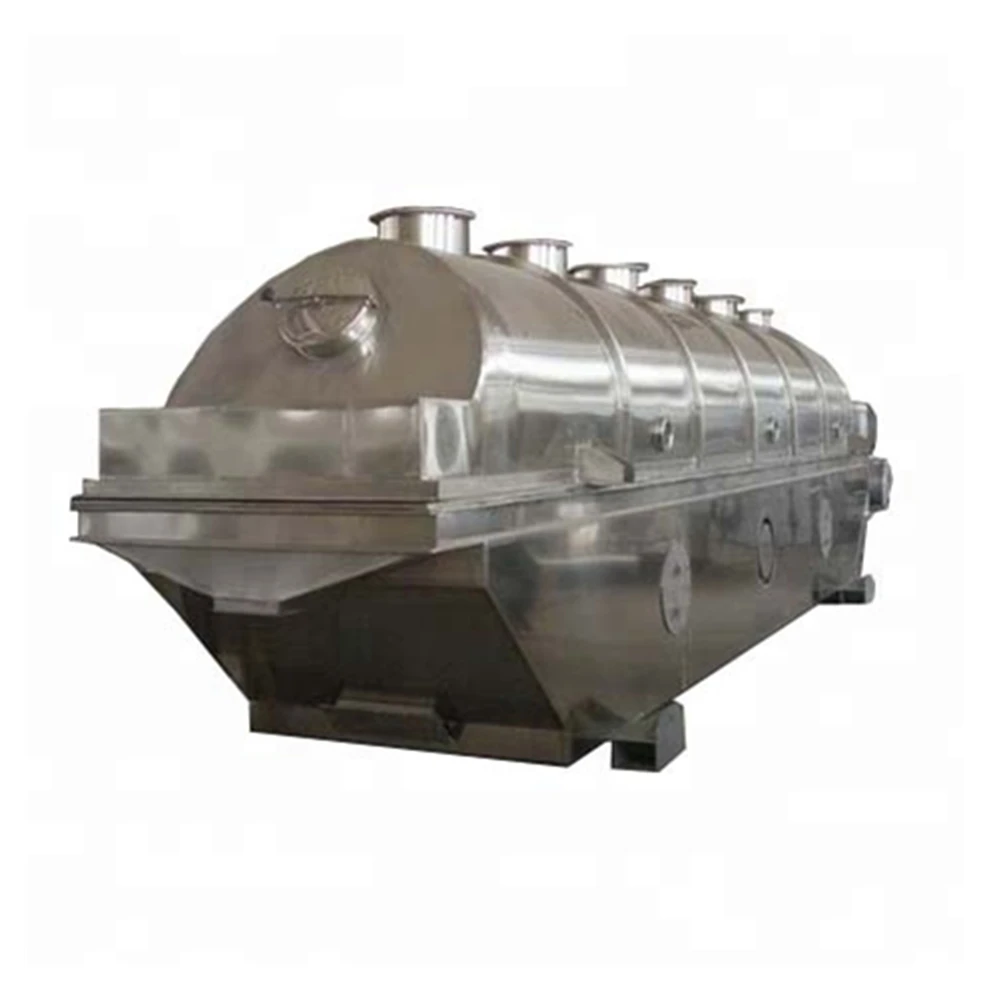

WKS series of vibration fluid bed dryer is a continuous drying equipment for non-sticky particles. Its working principle is: cold air is filtered through the filter, and then goes into the heater, and is heated to a certain temperature, then hot air is distributed into the lower bed via multiple inlets and flows up through perforated plate of the bed. Material goes evenly into the bed through screw feeder, under the action of the vibration force, the material moves up forward continuously along the horizontal direction, while undergoes heat exchange with the hot air coming up from bottom, the moisture of material is evaporated rapidly, and the wet air is discharged from the exhaust fan, and the material is fully dried and discharged from the discharge port.
Manufacturing process
Client checking manufacturing
Client checking & acceptance test
Raw material hopper and feeding conveyor
Feeding mouth
Discharging mouth

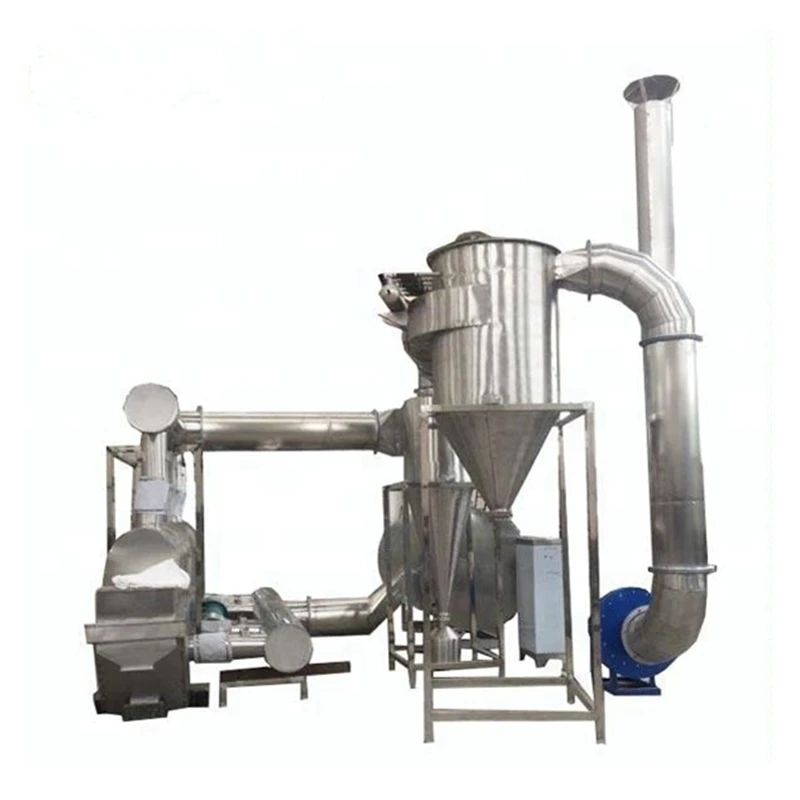

Dust collecting system:Cyclone and bag filter
Gas furnace and burn
Control cabinet
Round vibration screen
Square vibration screen
Technical parameters
Model
Area of fluidi bed(㎡)
Temperature of inlet air(℃)
Temperature of
outlet air(℃)
Water evaporation capacity (kg/h)
Motor Power(kW)
Weight (kg)
WKS-FBD-3*0.3
0.9
70-140
40-70
20-35
0.8*2
1250
WKS-FBD-4.5*0.3
1.35
70-140
40-70
35-50
0.8*2
1250
WKS-FBD-4.5*0.45
2.025
70-140
40-70
50-70
1.1*2
1670
WKS-FBD-4.5*0.6
2.7
70-140
40-70
70-90
1.1*2
1670
WKS-FBD-6*0.45
2.7
70-140
40-70
80-100
1.5*2
2100
WKS-FBD-6*0.6
3.6
70-140
40-70
100-130
1.5*2
2400
WKS-FBD-6*0.75
4.5
70-140
40-70
120-140
2.2*2
2840
WKS-FBD-6*0.9
5.4
70-140
40-70
140-170
2.2*2
3160
WKS-FBD-7.5*0.75
5.625
70-140
40-70
150-180
2.2*2
3200
WKS-FBD-7.5*0.9
6.75
70-140
40-70
160-210
3*2
3600
Company Profile
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.
We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. All of our products are made of high-quality stainless steel with mature product design and sophisticated production technology.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria, and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices, and wholehearted services.
Welcome to visit us to start the cooperation!
Specification
Name
Vibration Fluid Bed Dryer
Type
Fluid Bed Drying Equipment
Application
Medicine Processing, Chemicals Processing, Food Processing
Condition
New
Place of Origin
China
Henan
Brand Name
WKS
Voltage
380V or customized
Power
10kW
Dimension(L*W*H)
6000*600*2000mm
Certification
CE
Key Selling Points
Energy saving
Warranty
1 Year
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service
Video technical support, Online support, Spare parts, Field maintenance and repair service
1. who are we? We are based in Henan, China, start from 2017,sell to Western Europe(20.00%),North America(20.00%),Domestic Market(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us? Dehydrator/dryer,Pulverizer/Grinder/Mill,Mixer/Blender,Pelletizing machine/Granulator,Packaging machine
4. why should you buy from us not from other suppliers? Over ten years extensive experience in design and production;
Innovative engineers, well trained technicians;
A full-time after-sales service team;
Guaranteed quality with competitive prices.
5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES； Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
