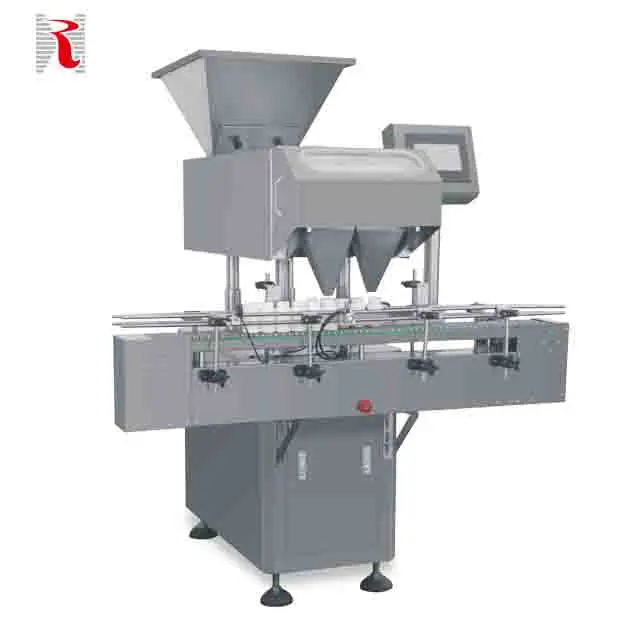

16 каналов автоматические капсулы таблетки подсчета сверлильный станок для
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Herun,Machinery,(Shanghai),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 16065.20 $* | 16868.81 $* |
| Aug-18-2025 | 15930.8 $* | 16727.87 $* |
| Jul-18-2025 | 13365.15 $* | 14033.15 $* |
| Jun-18-2025 | 15660.73 $* | 16443.34 $* |
| May-18-2025 | 13635.23 $* | 14317.68 $* |
| Apr-18-2025 | 15390.29 $* | 16160.7 $* |
| Mar-18-2025 | 15255.68 $* | 16018.19 $* |
| Feb-18-2025 | 15120.72 $* | 15876.14 $* |
| Jan-18-2025 | 14985.12 $* | 15734.37 $* |
Характеристики
Certifications
Product Paramenters
Model | DJL-8 | DJL-12 | DJL-16 | DJL-24 | DJL-32 | ||||
Applicable bottle shape | Round and square bottle (10~500ml） | Round and square bottle (10~500ml) | |||||||
Filling material | Φ0~5# capsule, softgel, Φ5.5～12 compressed tablet & special-shaped tablet, sugar coated tablet，Φ3～12 pill | Φ0~5# capsule, softgel, Φ5.5～12 compressed tablet & special-shaped tablet, sugar coated tablet，Φ3～12 pill | |||||||
Production capacity（bottles /min） | 10-30 | 20-40 | 20-80 | 20-90 | 40-120 | ||||
Bottling volume range(pc) | 2-9999（Customizable） | ||||||||
Power supply（V/HZ/KW） | 220/50/0.6 | 220/50/0.8 | 220/50/1.2 | 220/50/1.5 | 220/50/2.2 | ||||
Accuracy rate | 99.8% | ||||||||
Air pressure（Mpa） | 0.6 | ||||||||
Overall Dimension（mm） | 1360*1350*1650 | 1360*1350*1650 | 1360*1350*1650 | 1760*1350*1650 | 2160*1450*1650 | ||||
Weight（KG） | 300 | 420 | 520 | 620 | 680 | ||||
Configuration List
NO. | Description | Manufacturer |
1 | Motor | TQG(Taiwan,China) |
2 | Photoelectric Sensor for Bottle | ORMON |
3 | Photoelectric Head for Counting | Everlight Electronics., Ltd of Taiwan |
4 | Pneumatic Components | ShangHai Xingchen |
5 | Switch Button | French Schneider |
6 | Human Computer Interface | Siemens |
7 | Main Control Chip | Imported from STMicroelectronics Co., Ltd. |
8 | The Leakage Switch | French Schneider |
9 | Switching Power Supply | French Schneider |
Details Images
Germany Brand Reliable Quality

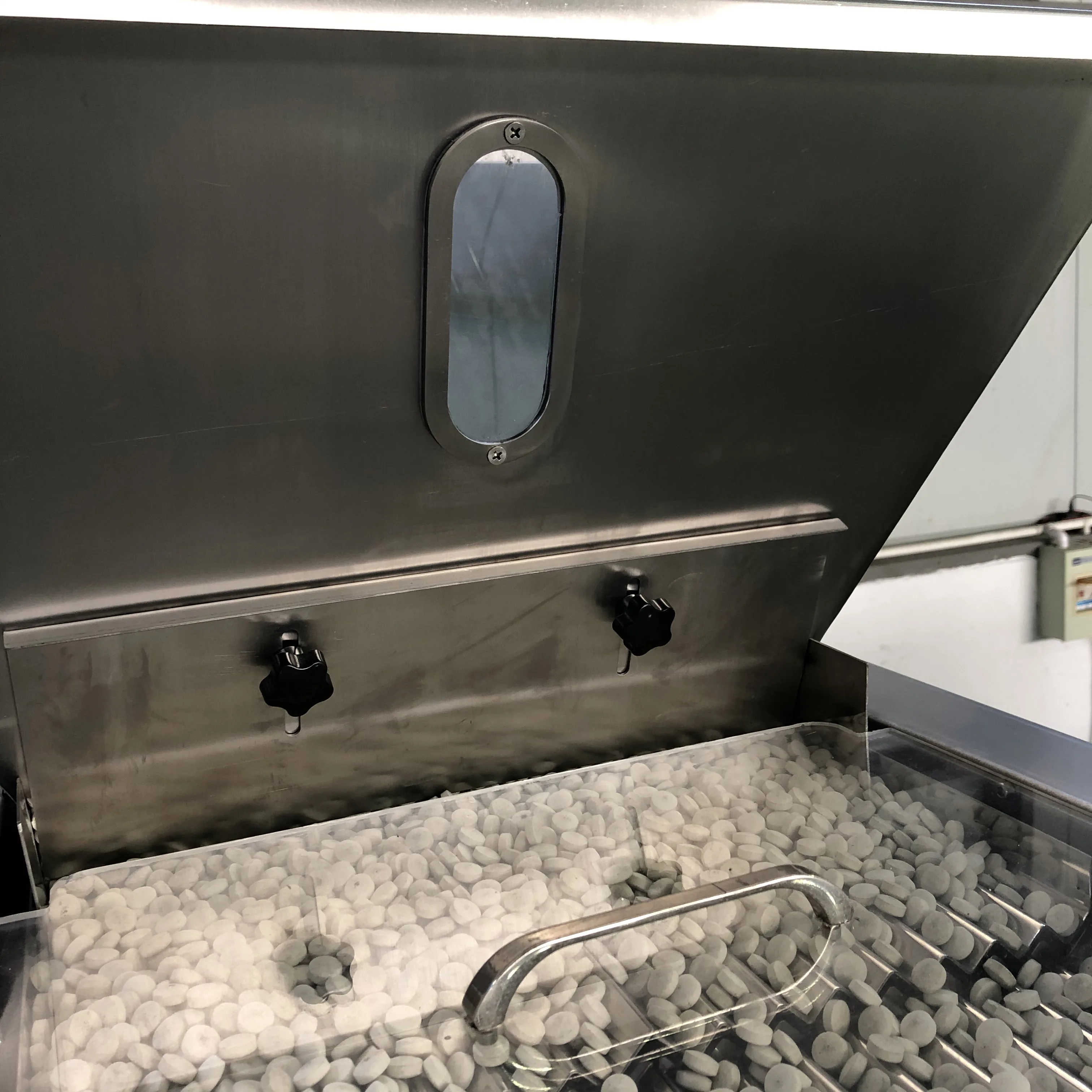

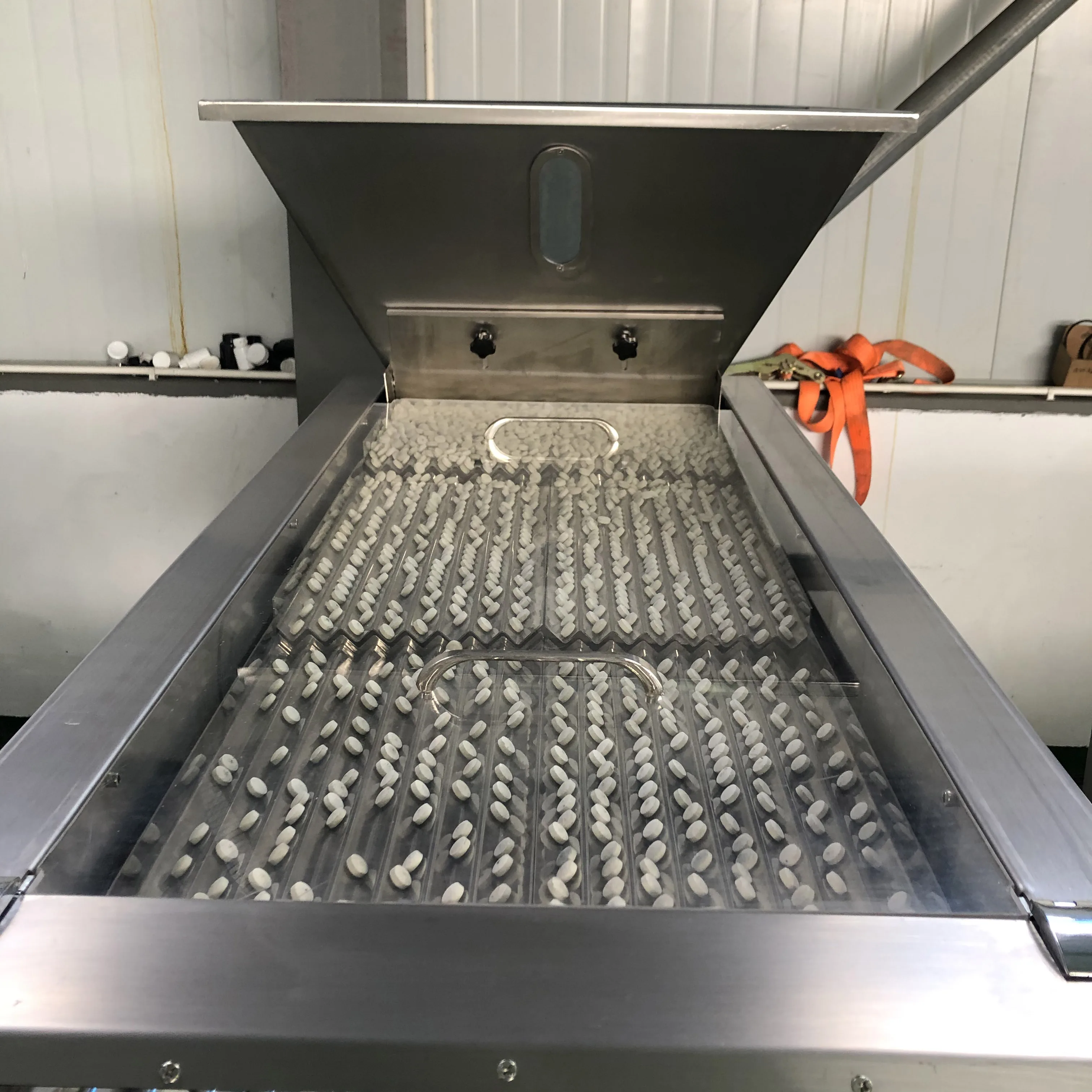

Multi-Size Vibration Channels

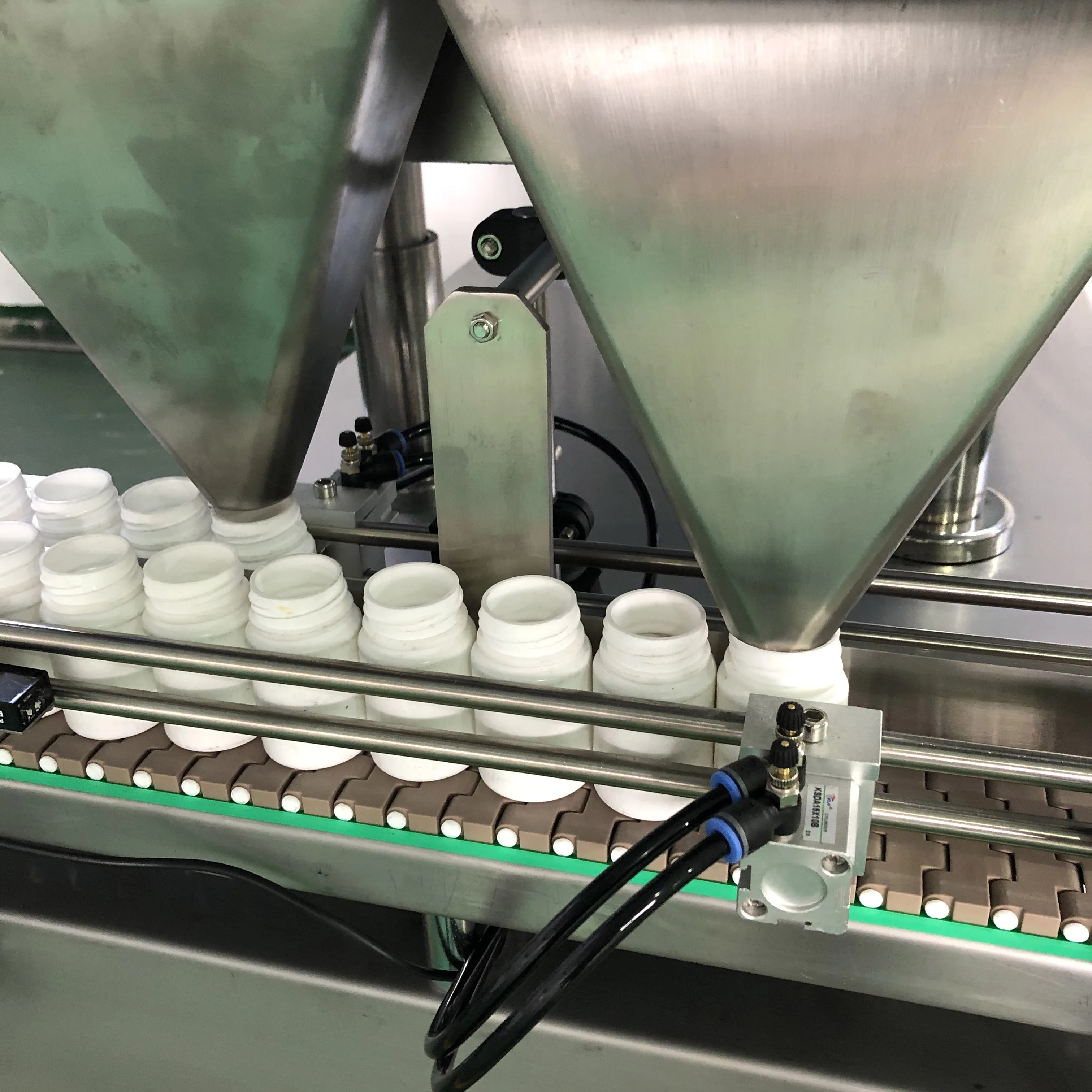

The Filling Nozzles
(Can be customized at different requirments)
(Can be customized at different requirments)
Microprocessor Control Panel
(Counting and Filling accuracy rate over 99.8%)
(Counting and Filling accuracy rate over 99.8%)
The height of nozzle can be adjusted
Stainless Steel Frame with 2 Windows
(Latest Design)
(Latest Design)
Gross Weight：691KG
Net Weight: 521KG
Packing Dimension: 1810*1570*1600mm
Recommend Products
Product packaging
Plastic film wrap to avoid machine scratches
The machine will be wrapped in 360 degrees
The machine will be packed with export standard wooden case
Company Profile
Herun Machinery (Shanghai) Co. Limited, located in Shanghai, is a professional manufacturing and trading company for pharmaceutical machinery, with CE certificates covering all the equipments we produced. Herun Machinery is member of China Association for Pharmaceutical Equipments, supplying generally 6 categories of products, such as mixer, tablet press machine, coating machine, automatic capsule filling machine, blister packing machine, counting and packing machine, to pharmaceutical and
food industry.
food industry.
