Тонннельная замороженная машина iqf промышленные морозильные камеры для быстрого


Поделиться:


Цена:116 300,00 $ - 119 900,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 138397.29 $* 145317.68 $*
Aug-15-2025 137234.80 $* 144096.43 $*
Jul-15-2025 115137.25 $* 120894.48 $*
Jun-15-2025 134908.15 $* 141653.86 $*
May-15-2025 117463.79 $* 123336.60 $*
Apr-15-2025 132582.34 $* 139211.45 $*
Mar-15-2025 131419.84 $* 137990.15 $*
Feb-15-2025 130256.76 $* 136769.17 $*
Jan-15-2025 129093.70 $* 135548.63 $*

Характеристики





Products Description


Commercial 304 stainless steel mesh belt frozen iqf tunnel machine has the following features:
1、The entire belt, mesh belt vibration to ensure that the frozen goods and frozen goods, frozen goods and no adhesion between mesh belt, so as to truly achieve monomer freeze.
2、Library board adopts double stainless steel sandwich polyurethane insulation board,insulation performance is good,
3、Frozen zone within the frame structure, support, air duct plate, mesh belt, big water pans,guide rail and other parts adopt food-grade wire drawing of stainless steel 304 (except for motor and reducer) easy to clean,achieve the HACCP requirements.
4、Mesh belt running speed controlled by Germany's Siemens inverter, frozen goods frozen time can be adjusted.
5、Driving device adopts Siemens dual high-quality reducer, good quality and stable operation


Reservoir size
15000mm×3200mm×2400mm
Dimensions
16500mm×3600mm×2400mm
Cooling capacity
150KW
Defrosting mode and cycle
Water defrosting once / 12h




















01


QUALITY
MATERIAL

The fuselage is made of high- quality stainless steel with anti-rust paint, durable








02

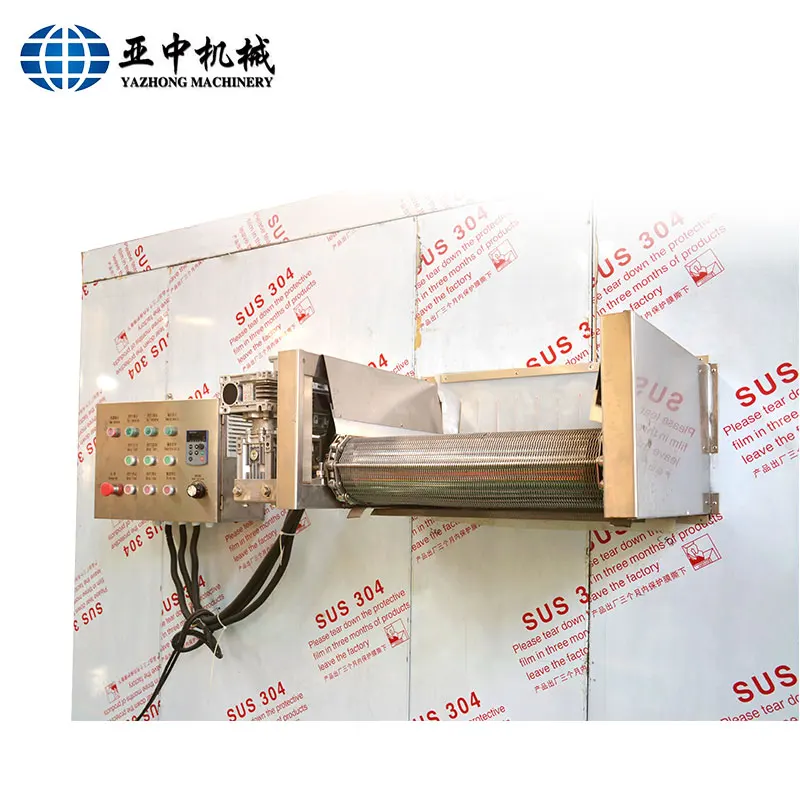

Control BOX

High torque control accuracy, wide speed range, overload, overpressure and other multiple guarantees.





03

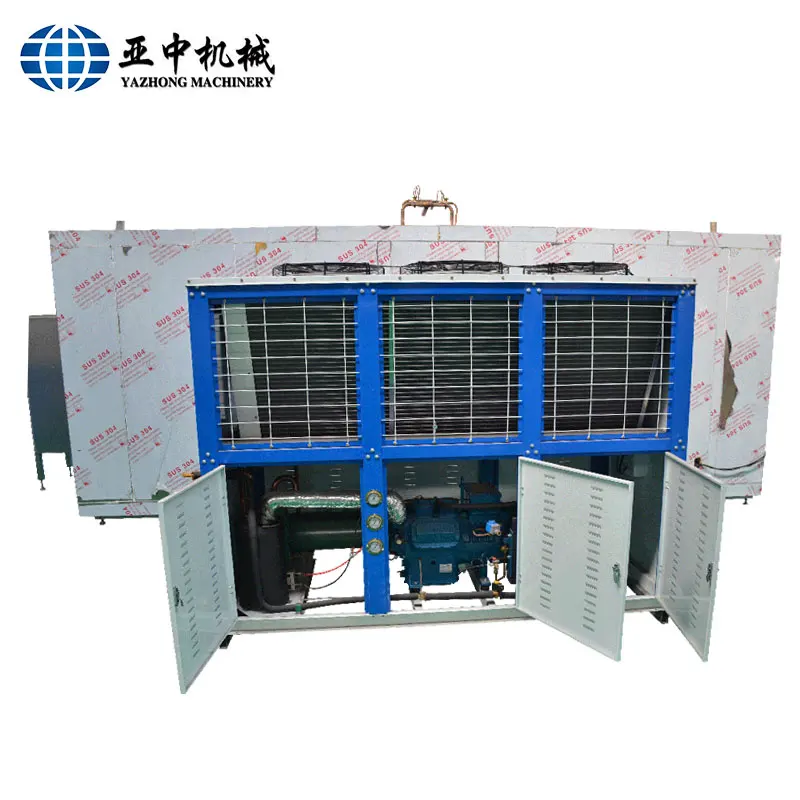

Two-stage screw compressor

High power motor to ensure production efficiency, power saving and durable to ensure production quality.




Design conditions and main technical parameters of quick-freezing machine table:

Frozen products and design Conditions:


Material
Stainless steel 304
Freeze the amount
500 kg/h
Input temperature
<20 degree celsius
Output temperature
<-18 degree celsius
freezing time
Adjustable
evaporating temperature
-42℃
 Dimension
15000mm×3200mm×2400mm
Frozen products
French fries, Vegetable, Fruits








advantage in             production



The company has a strong food processing capacity, has a sound production management and quality control system.






product superiority


The conveyor belt is made of food grade 304 stainless steel, the surface of the net is flat, the mesh is fine, avoid the product falling from the mesh, ensure the hygiene requirements.The total width of 2000mm, placed area for 30m2, fully meet the 500㎏/h yield requirements.






3 advantage of service


We have a professional technical team, for your professional design of the best process and program.

After the purchase of the factory free guidance until you learn.












Why Choose Us






FAQ


Date of delivery:
7-10 working days.
Voltage:
Customize according to the needs of different countries.
Payment Tems:
T/T、Alibaba Trade assurance、L/C、WU、PayPal、Alipay、WeChatPay.
Packing:
Exporting standard fumigation wooden box.
Transportation:
Shipping by express, air, railway and sea.
Warranty:
1 years
OEM:
Customization of nameplate, material, motor brand, packaging, etc.
