Автоматическая машина для резки клейких

Категория: Станки для обработки бумаги >>>
Поставщик: Suzhou,Flying,Man,Assembly,Automation,Co.,Ltd.

Цена:84 500,00 $ - 86 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	100555.92 $*	105583.27 $*
Aug-19-2025	99710.82 $*	104696.13 $*
Jul-19-2025	83655.96 $*	87838.65 $*
Jun-19-2025	98020.71 $*	102921.35 $*
May-19-2025	85345.58 $*	89612.77 $*
Apr-19-2025	96330.56 $*	101147.23 $*
Mar-19-2025	95485.6 $*	100259.68 $*
Feb-19-2025	94640.94 $*	99372.0 $*
Jan-19-2025	93795.87 $*	98485.98 $*

Характеристики

Video Description

Products Description

Industry Highest Performance Characteristics

- Perfect flatness, it can kiss cut to 0.025 mm base material.
- Any acceleration and deceleration in the interval of 30-100 times/minute does not affect the cutting depth.

- With automatic mold clamping function, it eliminates the danger of clamping and punching, and it is easy to operate the equipment.

- A low-point acceleration patent function to solve the problem of low punching pressure of the host at low speed.

- With process saving function, the speed adjustment time is shortened.

- Precise blanking force is twice that of the same type of equipment in the industry, and the blanking force is still very stable.

- All the same mold are common and can be interchangeable conveniently with the same type of equipment.

- The operation interface is extremely simple and easy to use.

Product Paramenters

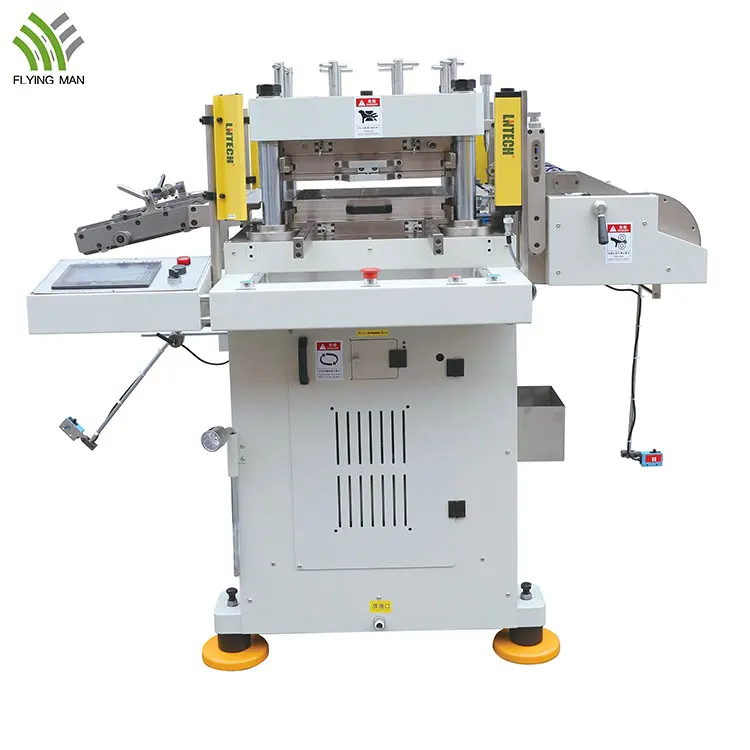

SPECIFICATIONS FOR HIGH SPEED PRECISION FLATBED DIE CUTTING MACHINE
Model	ENZO-350	Maximum Feeding Speed	30 mm/min
Press Force	10T	Feeding Accuracy	< 0.1 mm
Cutting stroke	28 mm	Feeding Roller	PU/NBR
Maximum Running Speed	220 times/min	Feeding Driven	Servo Motors
Stroke Adjustment	±5 mm	Lubricate method	Fully Automatic Central Lubrication System
Shut Height of Stell Mould	115 mm	Protection	3 Optical Safety light curtain
Maximum die cutting size of Steel Mould(L*W)	300 x 290 mm	Power Supply	380v 5kw
Turning Way	Electrically Adjust	Machine Weight	2000 kgs
Press Style	Jog/Single/Continuous	Air Source Specification	0.5-0.6 mpa
Type of Mould	Plastic board mould, Chemical sculpture mould, Metal mould	Maximum size of mode(L*W)	350 x 350 mm
Maximum Feeding width	350mm	Machine Size (LWH)	1700 x 1150 x 1500 mm

Product Application

Our machines are widely applied in laminating, slitting and die-cutting for all kind of spare parts in Mobile phone, Laptop, LCD, TV, Medical, Camera, Wearable, E-label, Car and printing etc.

Whole Service

Technical Service

- Free sample testing and video for your reference.

- Technical support: Professional engineers’ team to help you design a whole-set product line to get highest profit with lowest cost and offer you technical support any time.

Training service

Free training in our factory available before delivering machines.
Engineers available to service machinery overseas. Overseas service center in Vietnam available.

After Sales Service

- Every customer can get one piece of English operation manual , a total working video for machines ,details on every button function ,normal notice when operation.
- One-year warranty, whole life technical support.

- 24 hours technical support, we will do our best to help our customers solve problems.

- We offer not only the products, but also the solutions. Plenty of cooperated professional supplier for mold or other necessary equipment make it possible for us to offer our customers big convenience to complete their production line in high quality with low cost in a short time.

process control

PACKAGE

We use exporting standard packing. First to wrap PE film around the machine, then packed by plywood case to ensure the package enough safe and strong. It’s easy for forklift to upload and download and safety transportation. We also can pack the machine according to customers special requirement.

SHIPPING

Usually we suggest customers choose ocean shipping to ship machinery, or air transport for small machine or urgent order. We also supply shipping service with our cooperation shipping forwarder to help customers to deliver the machinery in first time.

company profile

FAQ

Q: Are you a factory or trading company?

A: We are a factory and manufacturer.

Q: Where is your factory located in? How can I visit there?

A: Our factory is located in Kunshan city, Jiangsu province, and our detailed address is: No.1008, Xiangshi Road, Bacheng Town, Kunshan City, JiangSu Province, China. It’s only 40 minutes' away from Shanghai Hongqiao airport by car, and 18 minutes' away from Shanghai railway station by high-speed rail. The traffic is very convenient.

Q: what are your main products?

A: Our main products are high speed precision die cutting machines, cutting machines, slitting machines, laminating machines and printing machines.

Q: Which industries can use your machines?

A: All industries need to cut (include full cutting and kiss-cutting), slit, laminate, die cut raw materials can use our machines. Mainly used for material before and after cutting and/or printing.

Q: If there are no machines available from your list, could we customize non-standard machines from you?

A: Yes, we have our own professional design engineers, and can customize products according to your requirement. 30% of our current customer need customization on their machines.

Q: What's the trade term?

A: EXW, FOB, CFR, CIF or DDU are all workable based on customer’s requirement.

Your question will be highly appreciated.
