Характеристики
Product Description

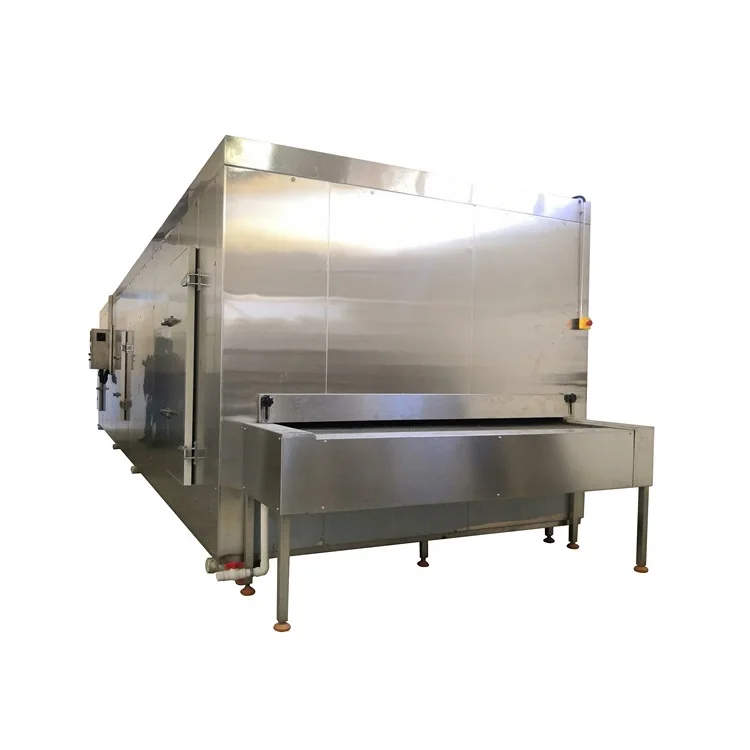

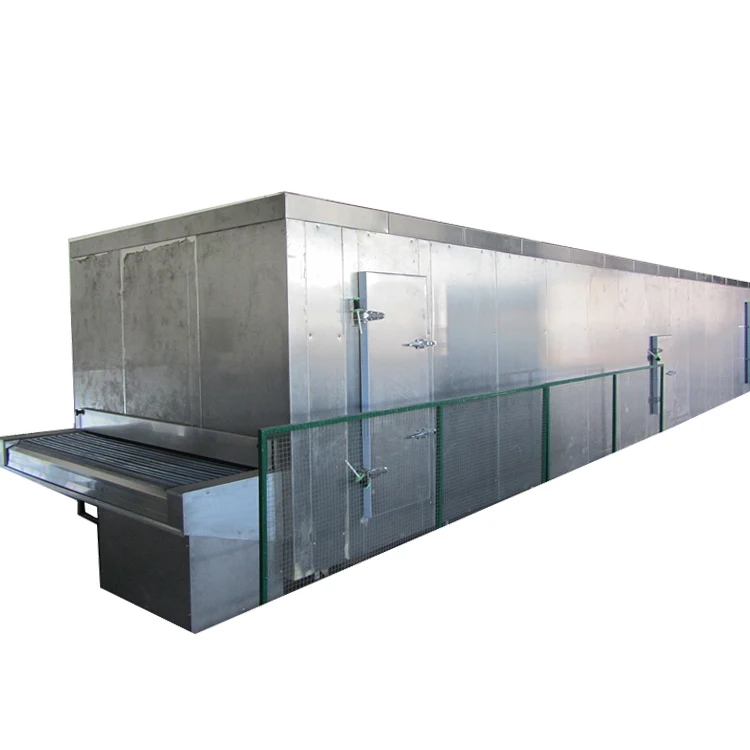

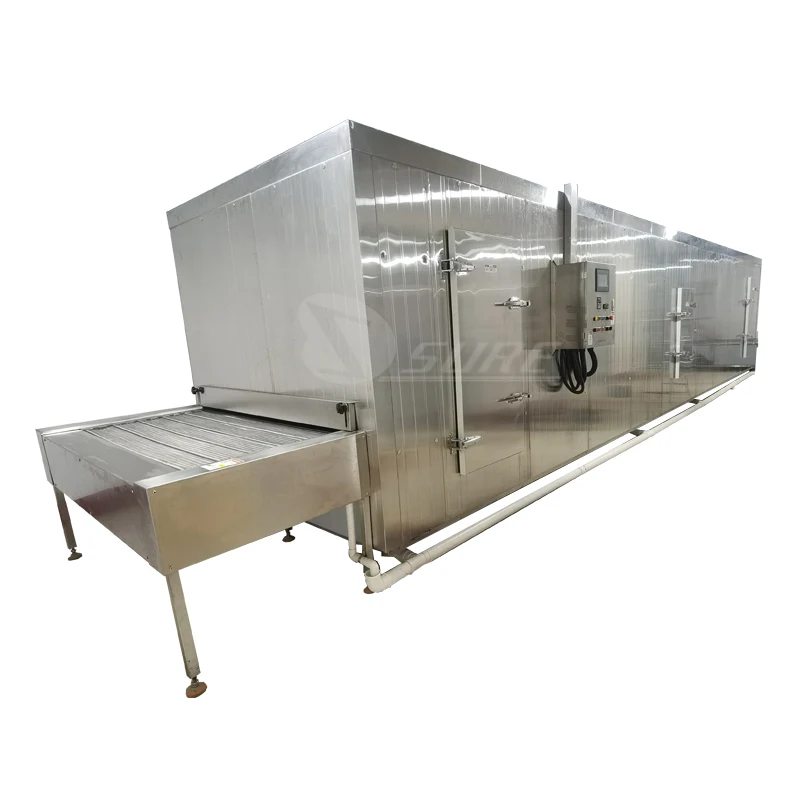

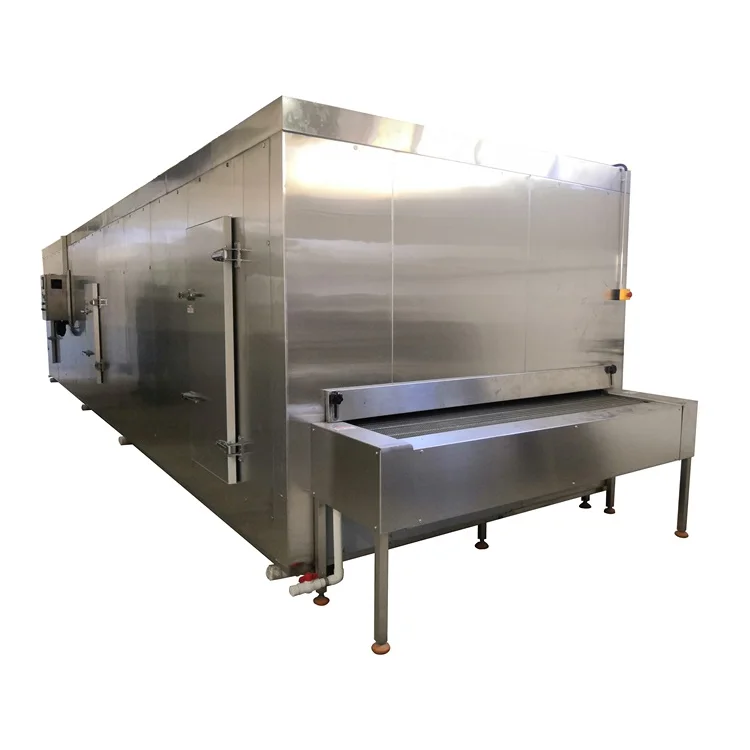

The tunnel freezer is a high-efficiency quick freezing machine with relatively simple structure. It is mainly used for
quick-freezing processing of pasta, seafood, poultry, vegetables, fruits, dairy products and other foods. Freezing capacity can be 100kg/h-2000kg/h.
Performance Characteristics
* The rapid freezing does not produce large ice crystals. The quality and freshness of the food remain maximized as original.
* The surface of the food quickly hardens and crusts, which can lock the internal moisture and minimize the drying loss of frozen products.
* The freezing time is extremely short and the energy consumption is low.
* Under the premise of same capacity, it has less space requirement than the traditional quick freezer
Advantages：
*Smiple structure, convenient operation and long service time
* Adopting thermal fluctuation blowing method which makes high freezing efficiency
* The evaporator adopts variable fin-pitch desigh to effectively prevent frost blockage and improve heat exchange efficiency
* The thermal insulation board is made of double-side SUS304 stainless steel and polyurethane integral foaming which has strong heat insulation effect
* The conveyor belt is made of high-strength sus304 stainless steel to improve service life and stability of the equipment
* The equipment is equipped with a frequency converter which can achieve stepless speed regulation .Frezing time can be continuously adjusted according to needs which adapts to processing of a variety of products
*Unique cold air circulation system.The cold air evenly faces the forzen products and no cold air runs away form inlet or outlet of freezer
FROZEN PRODUCT AND WORKING CONDITION | ||||||
Product: | Dumpling | Capacity: | 2000 kg/h | |||
Product Size | － | Product Weight | － | |||
Refrigerant: | R507a/R404a | Inner Air Humidity: | -38±3℃ | |||
Inlet Temperature: | +15℃ | Evaporating Temperature: | -42℃ | |||
Outlet Temperature: | -18℃ | Freezing Time: | Adjustable | |||
MAIN TECHNICAL PARAMETERS OF TF2000 TUNNEL FREEZER | ||||
NO. | ITEM | CONTENT | ||
1 | Equipment Type | Tunnel Freezer TF2000 | ||
2 | Belt Type | Stainless steel material | ||
3 | Overall Dimension | 24400mm*3500mm*2460mm L*W*H | ||
4 | Belt Width | 3000mm | ||
5 | Tunnel Passable Height | 100mm | ||
6 | Inlet Device Length | 700mm | ||
7 | Outlet Device Length | 700mm | ||
8 | Inlet & Outlet Device Height | 850mm | ||
9 | Defrosting Method & Interval | By Water every 12 hours | ||
10 | Refrigeration Consumption | 230KW (+40 degree C/-40 degree C) | ||
11 | Evaporating Area | 2500 square meters | ||
12 | Compressor Model | ITALY FRASCOLD NRL6-160-538Y*2 | ||
13 | Refrigeration Capacity | 235.2 KW (+40 degree C/-40 degree C) | ||
14 | Refrigerant | R507a/R404a/R22 | ||
15 | Condensing Type | Evaporative cooled | ||
16 | Installed Power for tunnel freezer | 28.6KW | ||
17 | Installed Power for Compressor System | 230KW | ||
DETAILED INTRODUCTION OF TF1500 TUNNEL FREEZER
A. Product Feature
* Ensure that the structural design is safe and reliable,
* The operation is stable, and there is no abnormal noise in accordance with the relevant national standards and specifications.
* Meet the requirements of HACCP and food export certification standards.Ensure safety and hygiene of the food produced.
* The air supply method adopts the longitudinal air blowing circulation method, which makes the cold air circulation more reasonable and completely avoids the uneven freezing temperature of the frozen products on both sides of the quick freezer.This cold air circulation method has excellent cooling effect as indicated in the application practice of the majority of users.
* The operation is stable, and there is no abnormal noise in accordance with the relevant national standards and specifications.
* Meet the requirements of HACCP and food export certification standards.Ensure safety and hygiene of the food produced.
* The air supply method adopts the longitudinal air blowing circulation method, which makes the cold air circulation more reasonable and completely avoids the uneven freezing temperature of the frozen products on both sides of the quick freezer.This cold air circulation method has excellent cooling effect as indicated in the application practice of the majority of users.
B. Main Structure and Features of Equipment
Stainless Steel Mesh Belt
The conveyor belt is made of food-grade 304 stainless steel, which has flat mesh surface and ensures hygienic requirements. The total width is 1800mm and the available area is 95.9㎡, which fully meets the capacity requirement of 2000kg/h
Insulation Panel
The panel adopts self-extinguishing flame retardant polyurethane sandwich double-sided stainless steel board. The outer layer adopts 0.6mm thick food grade stainless steel board, the inner layer adopts 0.5mm thick food grade
stainless steel board. The thickness of panel is 120mm and the polyurethane density is 42㎏/ m3. The panels are connected by eccentric hooks, anti-leakage cooling measures are adopted before connection and the bottom panel is provided with load-bearing embedded parts
stainless steel board. The thickness of panel is 120mm and the polyurethane density is 42㎏/ m3. The panels are connected by eccentric hooks, anti-leakage cooling measures are adopted before connection and the bottom panel is provided with load-bearing embedded parts
Professional Cold Storage Door
The door adopts the professional cold storage door, which is sealed with low temperature resistance, aging resistance and oil resistance sealing strips. The seal is tight. The door has a low-voltage (36V safe voltage) electric
heating device to prevent freezing. Safe and reliable
heating device to prevent freezing. Safe and reliable
Inner Library:
The drum is designed in squirrel cage structure, and the components on which touching with conveyor belt are in arc shape. We inlaid the column bar of drum with UHMW-PE (ultra high molecular weight polyethylene) materials which have a good wear-resistance
performance.
The drum is designed in squirrel cage structure, and the components on which touching with conveyor belt are in arc shape. We inlaid the column bar of drum with UHMW-PE (ultra high molecular weight polyethylene) materials which have a good wear-resistance
performance.
Driving Device
High-quality reducer, excellent quality and stable operation.
Evaporator and Fans
* The evaporator made of all-aluminum (rust-proof aluminum alloy) has large fins, variable blade pitch, and high flanging, which greatly improves the heat exchange efficiency of the evaporator, extends the defrosting interval time and is highly efficient and energy-saving. Bracket wind plate shell and defrosting water pipeare made of stainless steel.
* Equipped with axial fan. Stainless steel cylinder, anti-rust aluminum alloy blades. The motor shell is
hot-coated zinc. Low temperature and moisture proof waterproof motor is high efficiency, energy saving, low noise and operates stably.
* Inlet and Outlet：
The board of inlet and outlet are made of food grade 304 brushed stainless steel, which has a beautiful shape and ensures thesafety and hygiene of the food produced.
The board of inlet and outlet are made of food grade 304 brushed stainless steel, which has a beautiful shape and ensures thesafety and hygiene of the food produced.

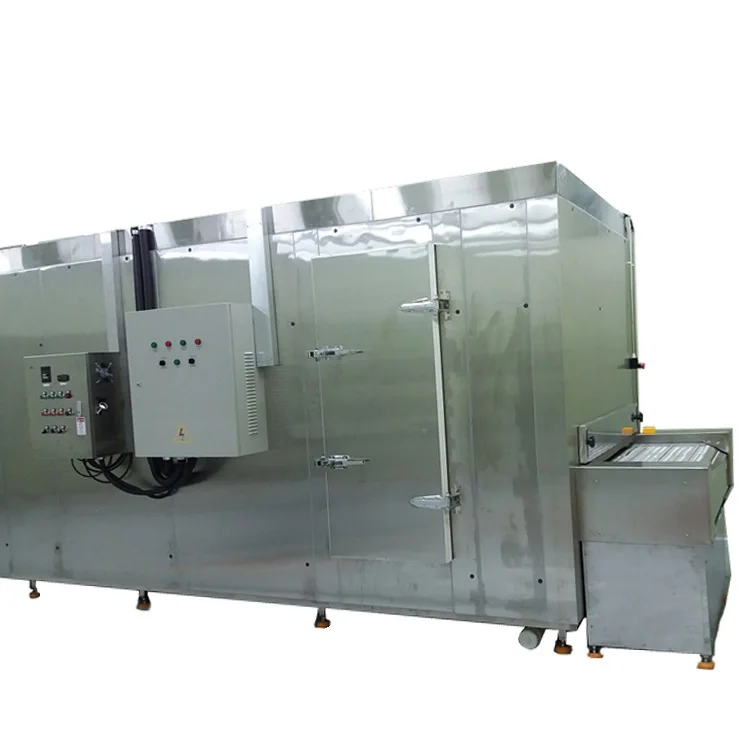

Electric Control Panel
*Stainless steel 304 electric control box. Waterproof and Dust proof. Electrical components are Sino-foreign joint venture brands.
Stable quality and reliable performance. Digital display temperature inside the library. Easy to operate and control.
*The running speed regulation of the mesh belt is controlled by an inverter. The freezing time of frozen products can be adjusted
at will.
Stable quality and reliable performance. Digital display temperature inside the library. Easy to operate and control.
*The running speed regulation of the mesh belt is controlled by an inverter. The freezing time of frozen products can be adjusted
at will.
* An integral stainless steel large water tray is used on the bottom panel inner the library to preventdefrosting water from seeping into the bottom panel and prolong the service life of the quick freezer.
* There are multiple drainage holes at the bottom of the library. And baffle plate at the outlet of the drainage hole can
automatically open and close, in line with HACCP standard
* There are multiple drainage holes at the bottom of the library. And baffle plate at the outlet of the drainage hole can
automatically open and close, in line with HACCP standard
C. Detailed configuration list of each part of tunnel freezer | ||||||||
Item | No. | Name | Configuration and Feature | Remark | ||||
Belt | 1 | Belt Material | Food grade 304 stainless steel | Made of high-strength stainless steel. Durable and the strength fully meets the HACCP standard | ||||
2 | Belt Width | 3000mm, 2970mm effective | ||||||
3 | Wire Diameter | 1.6mm | ||||||
4 | Spiral Pitch | 10mm | ||||||
5 | Support Rod Diameter | φ8mm | ||||||
Melt Driving | 1 | Quantity | 1 set | European transmission technology is more stable and reliable than general transmission | ||||
2 | Invertor Brand | Shihlin/Panasonic/Schneider | ||||||
3 | Gear Box | Changzhou Mingzhou /Wenzhou Sanlian | ||||||
Insulation Library | 1 | Panel Material | Double side 304 stainless steel. Outer 0.6mm and inner 0.5mm stainless steel surface. the inner polyurethane foam, the bottom panel is covered with a stainless steel welded overall sink | Domestic advanced panel production line. High-quality foam raw material.s Hook-type design, more precise seams and more beautiful appearance. The splicing method of the panel is the plug-in splicing of the male and female on both sides | ||||
2 | Bottom Sink Board | 304 stainless steel material overall welding sink 1mm | ||||||
3 | Drain Points | There are multiple drain points inside, which are distributed according to the actual site conditions | ||||||
4 | Door | Import structure. Thickness 120mm.Equipped with safe voltage electrical heating | ||||||
5 | Lamp | Equipped with water proof lamp inside | ||||||
6 | Internal Bracket, Frame and Air Guide Structure | 304 stainless steel material | ||||||
7 | Filling Density | Greater than or equal to 42kg/m3 | ||||||
Evaporator | 1 | Evaporating Pipe | Aluminum alloy with high heat transfer coefficient, diameter 19mm | Higher heat exchange efficiency, faster cooling speed and faster defrosting. Pressure maintains for more than 48 hours on pressure test of 25kg/cm2 | ||||
2 | Wall Thickness of Evaporating Pipe | 1.8mm | ||||||
3 | Fins Material | LF21 material immersed aluminum foil. Thickness 0.25mm. Maximum flange height 11mm | ||||||
4 | Frame | Made of 304 stainless steel | ||||||
5 | Liquid Separation Method | Venturi type liquid separator is used and equal amount of refrigerant enters the coil. No turbulence occurs during the flow process. Small pressure loss and uniform liquid separation | ||||||
6 | Defrosting | Water defrosting | ||||||
7 | Diameter of Connector of Defrosting Pipe | 57mm | ||||||
8 | Refrigerate | R22/R507A/R404A | ||||||
Axial Fans | 1 | Model | 2.2 kw, 12 sets, | High-efficiency, energy-saving and low noise. Low temperature special moisture-proof and waterproof motor. Stable operation | ||||
2 | Blades | Aluminum alloy | ||||||
3 | Cylinder | Stainless steel | ||||||
4 | Speed, Pressure and Volume | 1420rpm, 245Pa, 18000m3/h | ||||||
Electrical control system | 1 | Control Panel | 304 stainless steel | Stainless steel control panel. Good sealing performance. Protection grade IP55 | ||||
2 | Brand of Main Electrical Parts | Schneider | ||||||
3 | Protection Device | With emergency stop button | ||||||
