Inorganic chemistry: Ferrites, ceramics, photocopy toners, magnetic tape materials, photosensitive materials, various industrial chemicals, waste fluid of samples, etc.
Feature:

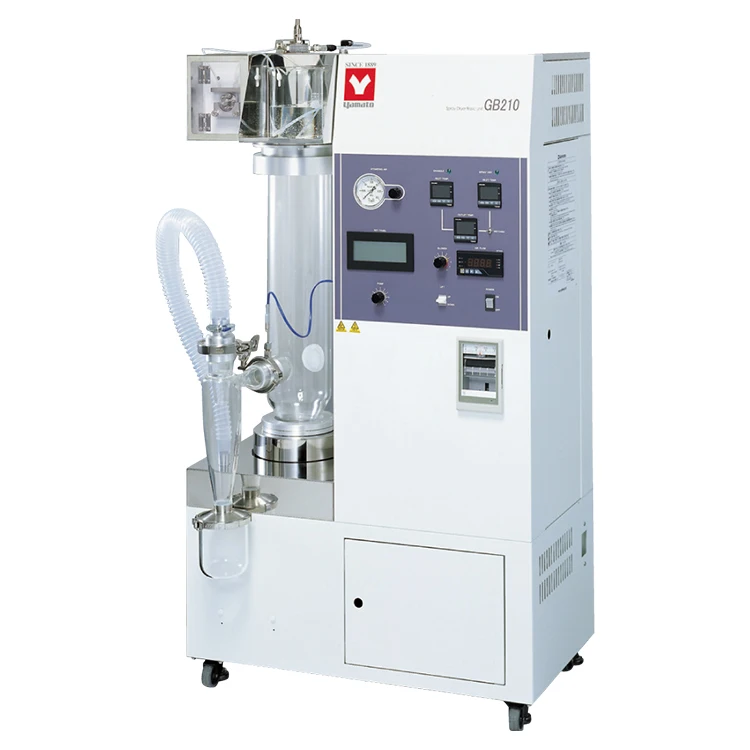

Compact spray dryer that can producepowder easily on a laboratory scale. It is capable of variety of applications frompreliminary experiments in a pilot plant to drying work in general laboratories.
Samples unstable at high temperatures can bereliably processed into fine powder. The heat isapplied instantly and indirectly to the powder itself
Prepared fine powder will not be oxidized, containsminimal moisture and is contaminant-free
Direct drying from solution/suspension liquid tofine powder with a reduced risk of contamination.No pre or post processes such as filtration, separation,or pulverization are required
Processing of samples containing organicsolvents is made possible by connecting the Solvent Recovery Unit GAS410
This unit can also be used as a fluid bed dryinggranulator by installing a separate mini bedattachment GF200 instead of GF300 spray dryingattachment

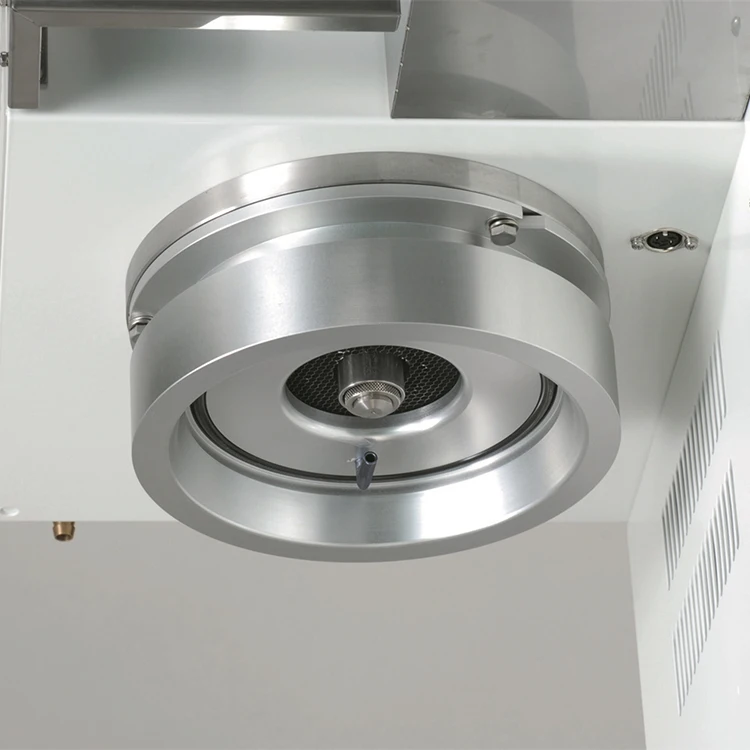

An automatic lift is equipped as standard toenable easy installation or removal of glass dryingchamber attachment
A service outlet (max. 2A) and a sample stand areequipped as standard for connecting a magnetic mixer for stirring suspended liquid sample
Stable spray drying using a unique peristaltic pump,nozzle cooling mechanism, pulse jet echanismand a nozzle knocker enable stable spray drying

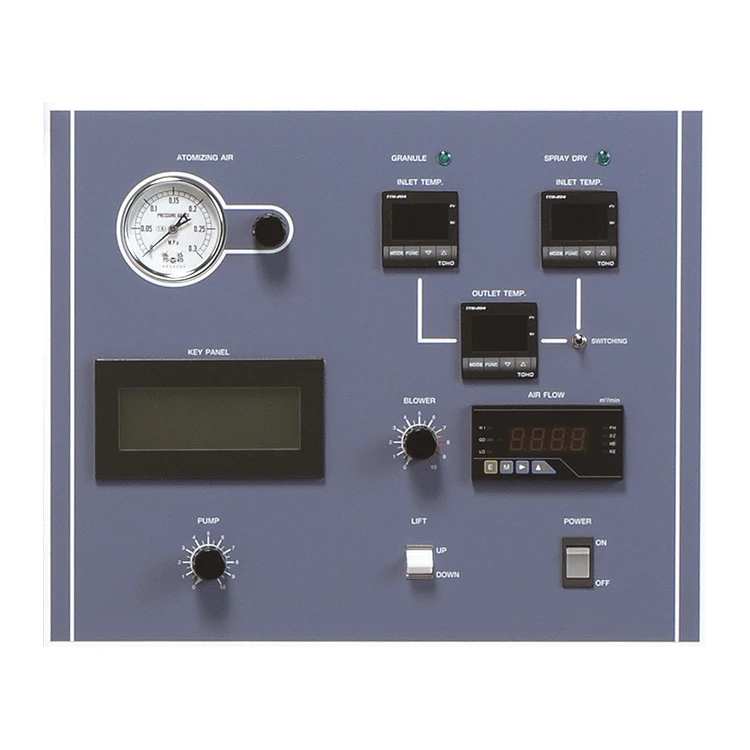

Inlet temperature, outlettemperature, and dryingair amount are digitallydisplayed. Setting is madeon the touch panel thatallows operation settings,operation status display as well as error display, and settings of variousoperation conditions.
3 languages are available: English/Japanese/Chinese
Specifications
Model
GB210-A
Sample type
For aqueous soluble samples and Organic solvent (combination with GAS410 is necessary)
Temp. adjusting range
40 to 220°C (inlet temperature), 0 to 60°C (Outlet temperature)
Temperature adjusting accuracy
Inlet temperature±1°C
Spraying system
Two-way nozzle, Nozzle No. 1A as standard
Drying air amount adjusting range
0 to 0.7 m3/min
Spray air pressure adjusting range
0 to 0.6 MPa
Liquid sending pump flow rate range
0 to 26mL/min
Liquid evaporation range
0-1300 ml/h
External output
Inlet temperature, Outlet temperature, Temperature outlet (4-20 mA)
