DSO203 обновления DS213 4 канала 100 мс/с MINI Nano DSO213 профессиональный портативный цифровой осциллограф DSO

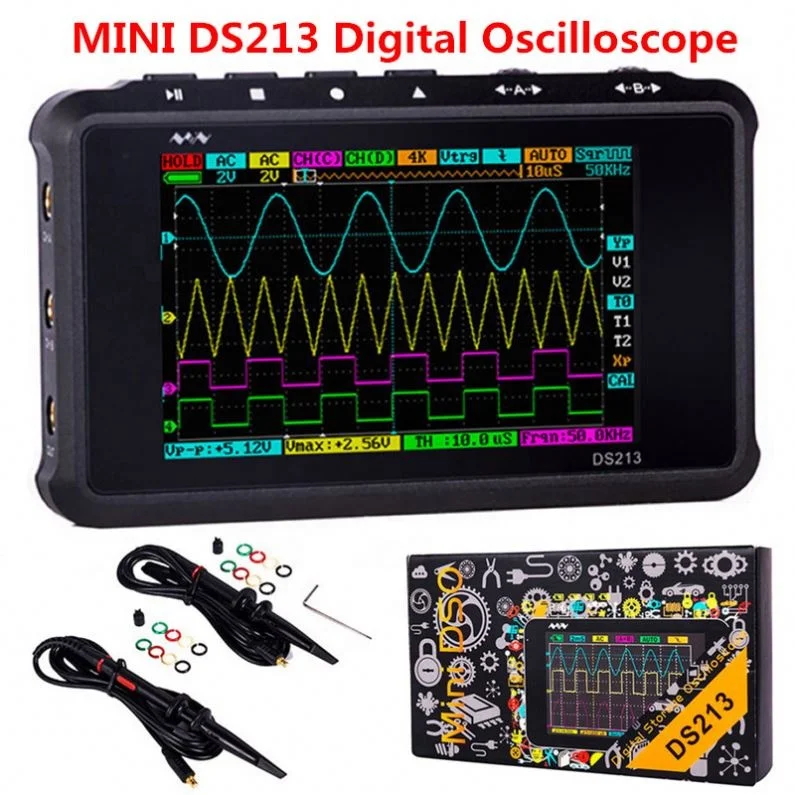

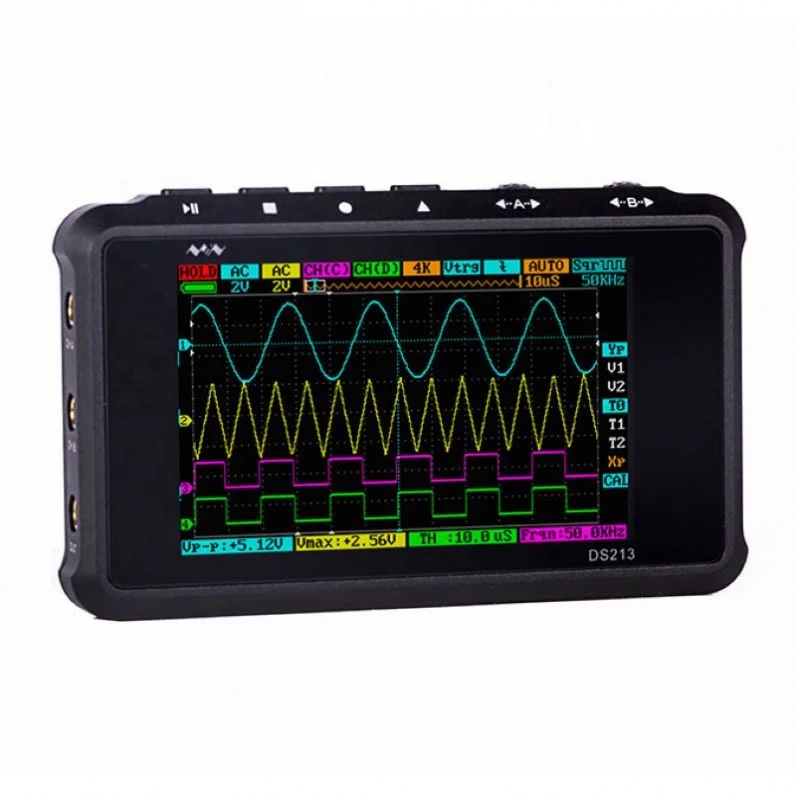

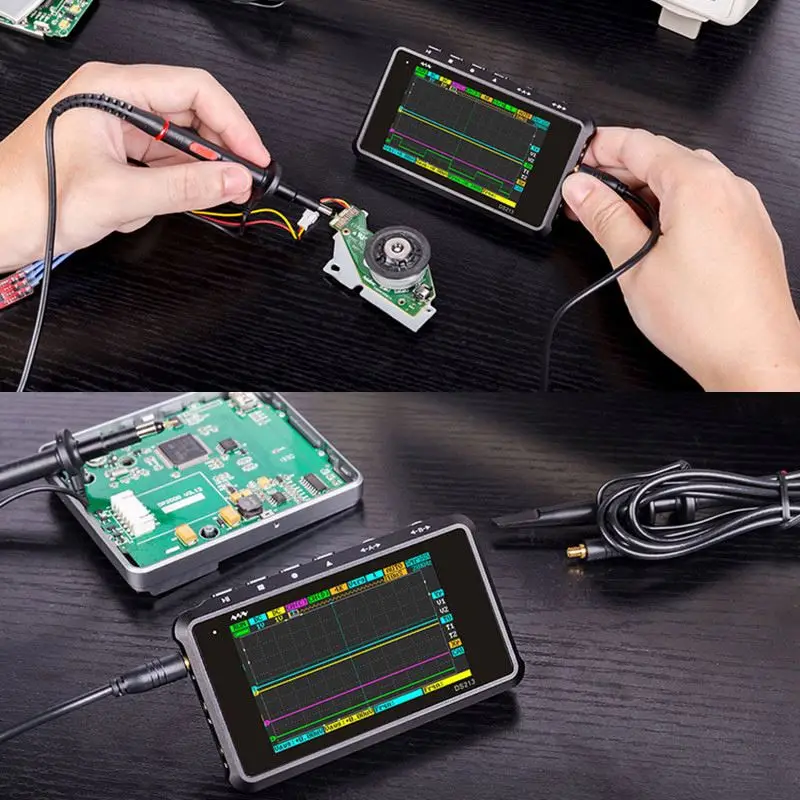

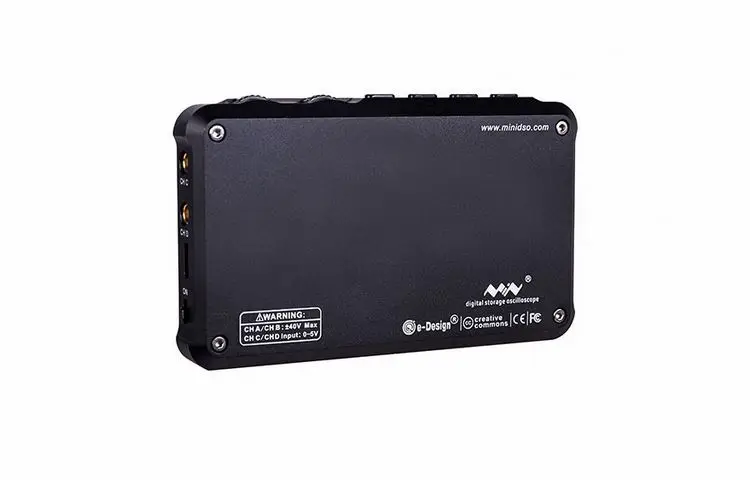

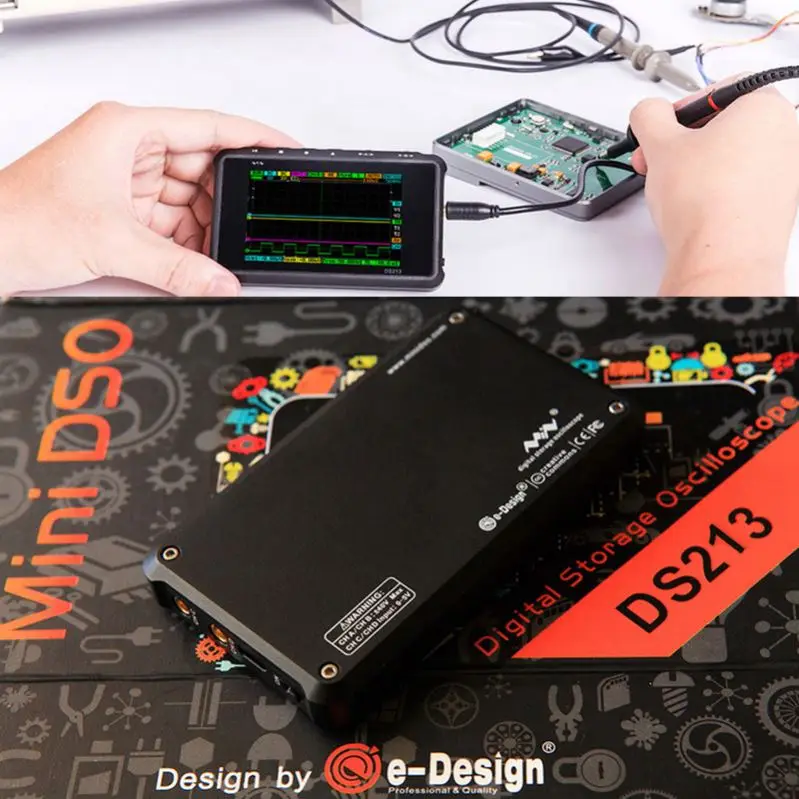

4 Channel 100MS/s MINI Nano DSO213 DS213 Professional Portable Digital Oscilloscope with X1 & X10 Probe

Description :

DS213 is a “5-track, 4-wave line” digital storage oscilloscope for general-purpose electronic engineering task and it is based on ARM Cortex M3 core. DS213 uses FPGA to manage external ADC’s control and data cache mode. It provides 4 application partitions for loading and upgrading up to 4 different application firmware. It also has built-in 8MB USB flash drive for storing waveforms and upgrading system firmware. The oscilloscope code application layer is open source, and users can develop oscilloscope firmware according to their needs

Feature :
Mini size, light weight, portable and handheld;

It can store waveforms, making waveform analysis clearer and more effective;

Multiple trigger modes, support Ascend/Descend Edge Trigger, Positive/Negative Pulse Trigger, and Logic Trigger;

Powerful ability to process waveforms, it can automatically measure parameters such us voltage, frequency and pulse width.

Specification :

CPU: ARM Cortex M3

FIFO & Control: FPGA

ADC: HWD9288-100

Analog Channels: 2([CH_A] [CH_B])

Digital Channels: 2([CH_C] [CH_D])

Operation Channel: INV [CH_A], INV [CH_B], [CH_A]+[CH_B], [CH_A]-[CH_B],[CH_C]&[CH_D],[CH_C] | [CH_D]

Vertical Sensitivity: 10mV-10V/div (1-2-5 STEP) (using X1 probe)

                100mV-100V/div (1-2-5 STEP) (using X10 probe)

Vertical Resolution: 8 bits

Sample Memory Depth: 4 channels, 4*4K

Coupling: DC, AC

Max Input Voltage: ±40Vpp (using X1 probe)

                 ±400Vpp (using X10 probe)

Trigger Types: Ascend/Descend Edge Trigger Mode, Positive/Negative Pulse Trigger, Logic Trigger

Trigger Mode: Auto, Normal, Single, Slow

Trigger Source: [CH_A] [CH_B] [CH_C] [CH_D]

Signal Source: Square Wave: 10Hz to 8MHz, in total 20 shifts and 3 Vpp Signal Sources;

Sine/Triangle/Sawtooth Wave: 10Hz to 20MHz, in total 11 shifts and 3 Vpp Signal Sources

Storage: built in 8M USB disk

File Types: BMP,BUF,CSV

Auto Measurement Types: Signal sequence/cycle/duty ratio, peak voltage/virtual value/max value/min value/average

Cursor Measurement: Time value, Amplitude value

Display Modes: 4 wave lines: Line 1: [CH_A], HIDE

Line 2: [CH_B], HIDE

Line 3: [CH_C], REC_1, REC _2, REC _3, REC _4, HIDE

Line 4: [CH_D], [CH_A]+[CH_B], [CH_A]-[CH_B], [CH_C]&[CH_D], [CH_C] | [CH_D], HIDE

Sampling Mode: Real-time Sampling

Sampling Rate: 100M Sa/s

Battery: 1000mAh

Size: 99.5mmx58.5mmx13.5mm

Weight: 129g (with battery)

Certificate: CE, FCC

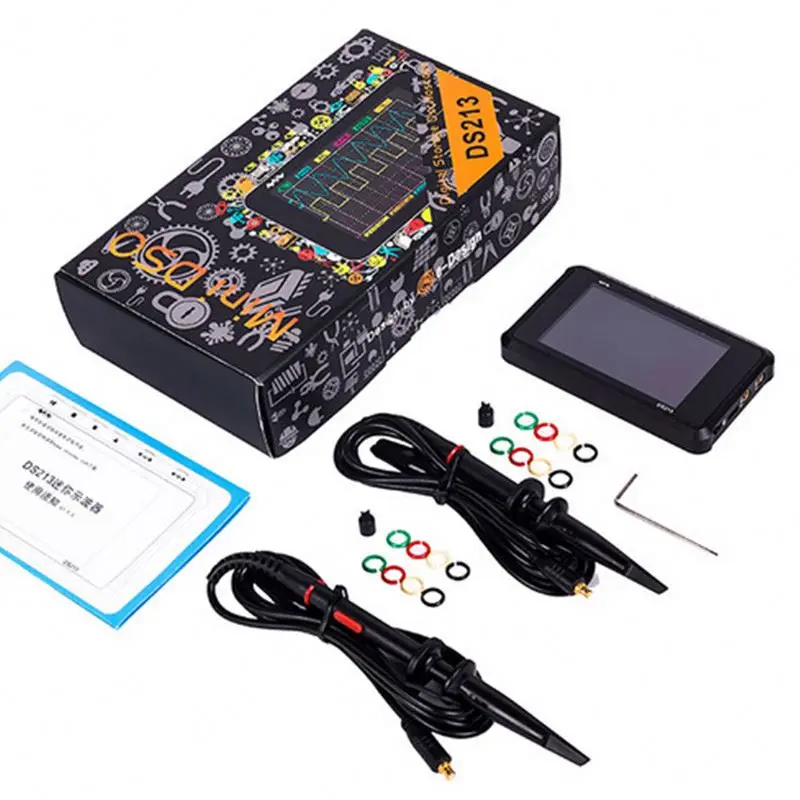

Package included :

1 x DS213 Digital Oscilloscope
1 x X10 Probe
1 x X1 Probe
1 x USB Cable
1 x Screw driver
1 x Cover Bag
1 x User Manual
