Products Description

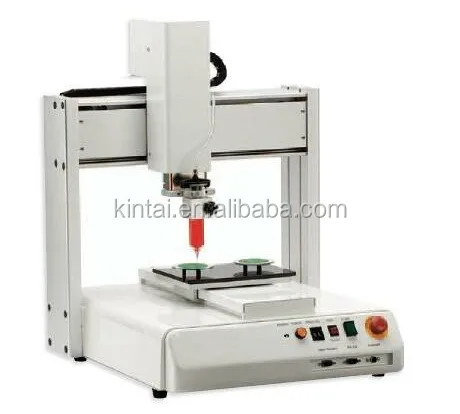

KTS-400 Bench Top Fluid Dispensing Robot
Features:
1. Can dispense on inner/outer/vertical/curved/small gap surface;
2. Its fourth axis allows for dispensing at any angle along the 360°rotation plane. With custom dispensing software, it’s easy to set up and program the system for dispensing applications in less time; 3. True 3D motion control simplifies programming of dots, lines, circles, arcs, compound arcs, and patterns on different planes. Simultaneous X and Y movement during R rotation with interpolation functions;
4. Built-in tip recalibration sequence for easy dispense tip change alignment. L shape dispense vertically;
5. Material volume, speed, time, pulse time adjustable;
6. Automatic anti-curing function avoid needle clogging and dripping;
Products Parameters
MODEL | T5D Glue Dispensing Machine | ||||||
Repeatability Accuracy | ±0.02mm/Axis | ||||||
X/Y/Z Working Range | X300mm * Y300mm * Z100mm or X500mm * Y1 300mm Y2 300mm* Z100mm | ||||||
XY/Z Speed | 1~500/350(mm/sec) | ||||||
Drive system | Precision stepping motor | ||||||
Transmission | Timing belt/precision linear guides | ||||||
Storage of Teaching files | at least 100 group, each group 4000 points | ||||||
Material Supply(customized) | Glue Tank(2600ml optional) 5cc/10cc/30cc/50cc Cartridge(optional) 30cc syringe | ||||||
Laser Height Measurement | Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional | ||||||
Power Supply | AC 110/220V, 50/60Hz, 1Kw | ||||||
Air Pressure | 0.5-0.7Mpa, 0.2m²/h | ||||||
CAD Impot | DXF Format | ||||||
Low Fluid Sensor/Warning | Optional | ||||||
Memory Capacity | 1000 Programs - Unlimited (Data Storage via USB) | ||||||
