Jntech Оптовая эффективность IP65 0-50/60 Гц MPPT 0 55 кВт трехфазный гибридный солнечный насос


Поделиться:


Цена:187,00 $ - 208,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 237.58 $* 242.21 $*
Jul-19-2025 193.68 $* 197.35 $*
Jun-19-2025 234.24 $* 239.10 $*
May-19-2025 232.30 $* 237.26 $*
Apr-19-2025 185.5 $* 189.91 $*
Mar-19-2025 228.18 $* 233.87 $*
Feb-19-2025 226.46 $* 231.21 $*
Jan-19-2025 224.71 $* 228.76 $*

Характеристики





Product Description

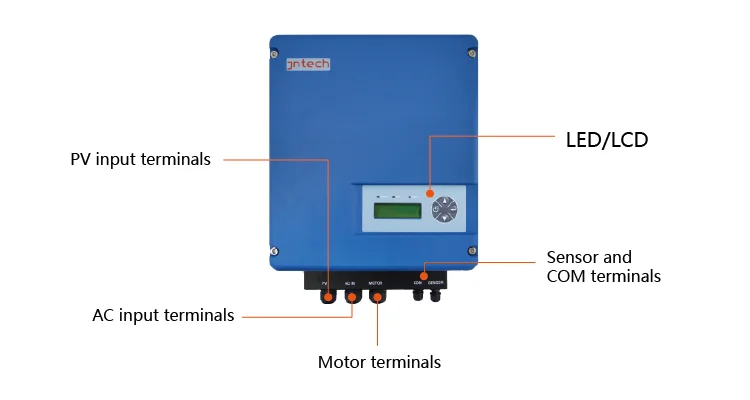

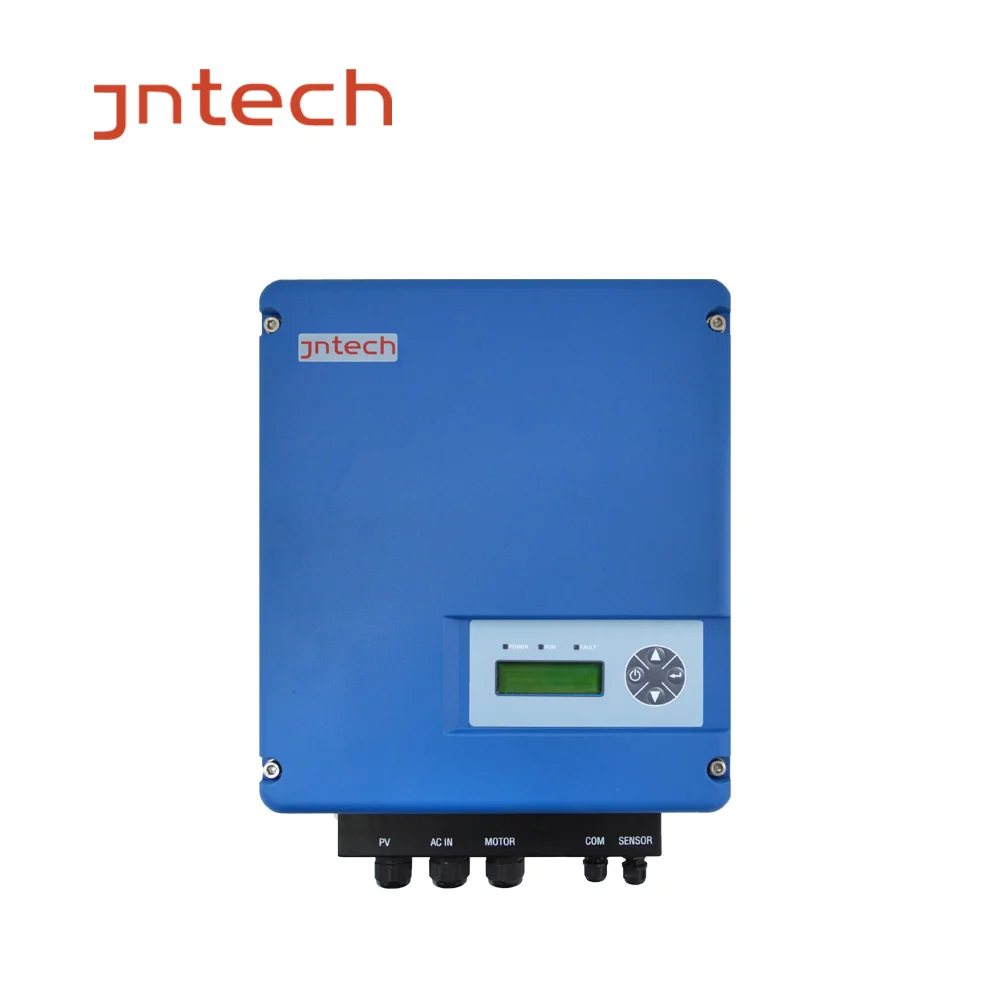

JNTECH Hybrid solar pump inverter with mppt function for three phase motor 2.2kw-7.5kw




Features of Solar pump Inverter
1.Automatic start and shut off according to solar intensity. No need manual operation once started.
2.Soft start controlling in rush current, to avoid motor burning.
3.IP65 design for outdoor application. Against raining, dust.
4.No need derate the power capacity for pump matching. The matching power with pump is 1:1.
Protection:
Dry protection to protect motor overflow protection short circuit protection reverse polarity protection under-voltage, weak
sunshine, over-current, over-load, shortage-phase output Protection. Password can be set before going into parameters setting interface, in case non-professional wrong operation; Any 3phase 380V AC pump with good quality can be replaced in future maintenance.


Model
JNP2K2H
JNP3KH
JNP4KH
JNP5K5H
JNP7K5H
Max, PV Input
880V
MPPT Voltage
460-850Vdc
Max. MPPT Efficiency
99%
AC Input
360-460Vac , 3phase ,  50/60Hz
Output
2.2kw
3kw
4kw
5.5kw
7.5KW
Output Voltage
380-460Vac, 3 phase, 50/60Hz
Output Current
6A
7A
9A
13A
18A
Protection
IP65

Operating Temperature
-25 ~ +60 ℃, above 60 ℃ need derate operating

Cooling Way
Natural Cooling
Natural Cooling
Display
LCD
LCD
Communication
RS485/GPRS
RS485/GPRS
Size
265*330*150mm
265*330*150mm
Weight
6.5kg
6.5kg












Projects






Related Accessory




GPRS Remote Monitoring and Control
Using local data card, Download APP for Android cell phone, then you can see all the working parameters in smart phone, current power capacity, voltage, current, output frequency and so on, we also can control on and off remotely. once there is fault, it will show the error code , it is easy for maintenance.


PV Cable
Item:PV1-F 1×4mm2Nominal cross-sectional area of conductor: 4mm2
Conductor size: 56/0.3
Conductor DC resistance: 5.09Ω/km
Max. Permit Voltage: 1000VDC
Max. operating current: 8AEnvironment: -40℃~+120℃


AC Cable
Model: JHS Waterproof
No. of cores: 4 cores
Rated power-frequency voltage: 300/500V
No. of cores*sectionalarea:3*4mm+1*2.5mm
Insulation thickness(mm) 1.0+1.0
Sheath thickness(mm) 2.0
admissible operating temperature of the conductor:-20~+65℃


Packing & Delivery




We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount


By sea
Delivery from Shanghai or Ningbo seaport
By air
Departure from Shanghai Pudong Airport
By express
By TNT/DHL




Jntech Service


Technical and Requirement Communication Before Sales
Engineers Training in Customer's Office or Jntech Factory
Chinese Engineer or Local Agent Engineer Technical Support At Site




Company Introduction


JNTECH set up in 2006 China, focus on manufacture of solar pump inverter, solar off-grid inverter relative solar products. All our products have passed CE and TUV certifications. Jntech solar pump system and off grid system are used in more than 60 countries in the world, especially in UNDP, UNHCR, UNICEF,OCHA, ICRC, NGO projects in Asia, Middle East, and African countires.




                    SMT
                   PCB




JNTECH Certifications




China only acquire German TUV certification of solar pump inverter business
ISO9001, IS014001, OHSAS18001,TUV,CE,AAA credit management system,Third level qualification of power project construction, National high-tech enterprises


JNTECH in the world
