Китайская пожарная лестница высшего качества 53 м в высоком стиле для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.27 $* 0.33 $*
Aug-17-2025 0.70 $* 0.38 $*
Jul-17-2025 0.13 $* 0.59 $*
Jun-17-2025 0.82 $* 0.92 $*
May-17-2025 0.21 $* 0.6 $*
Apr-17-2025 0.31 $* 0.89 $*
Mar-17-2025 0.49 $* 0.46 $*
Feb-17-2025 0.88 $* 0.45 $*
Jan-17-2025 0.62 $* 0.94 $*

Характеристики

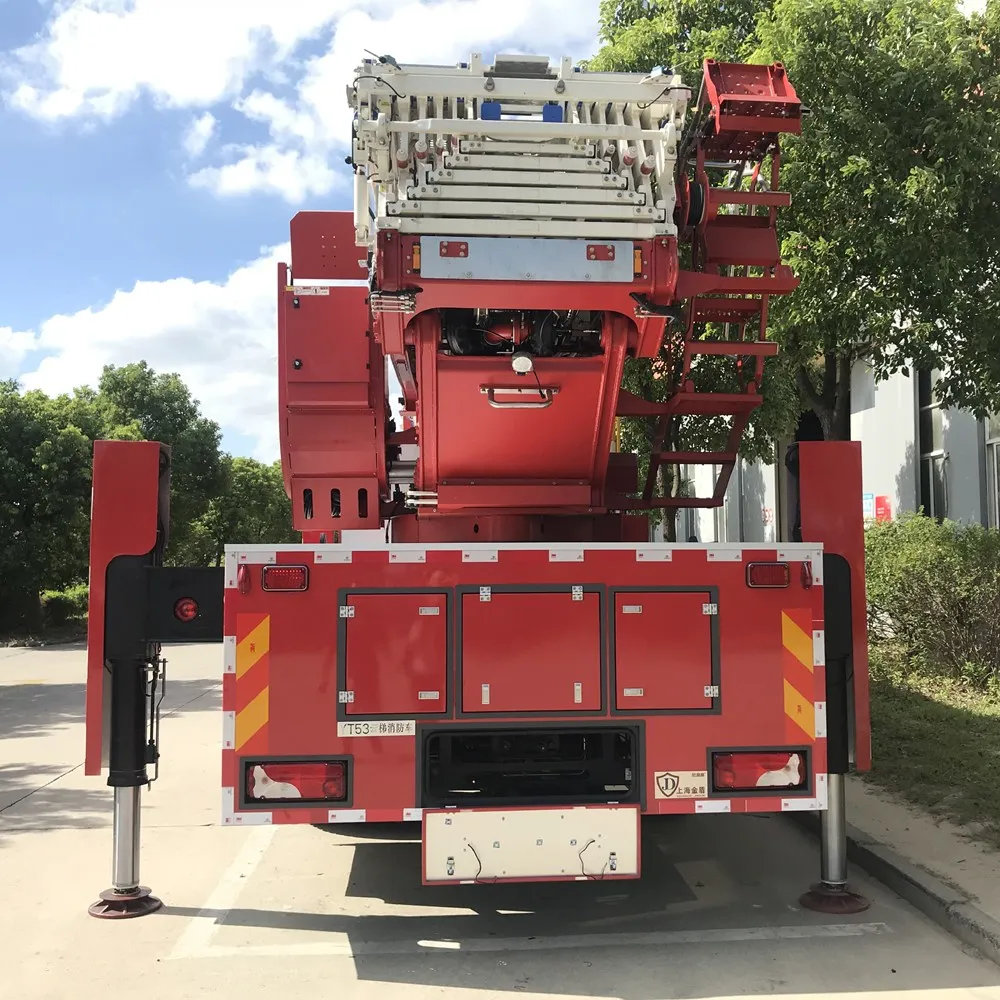

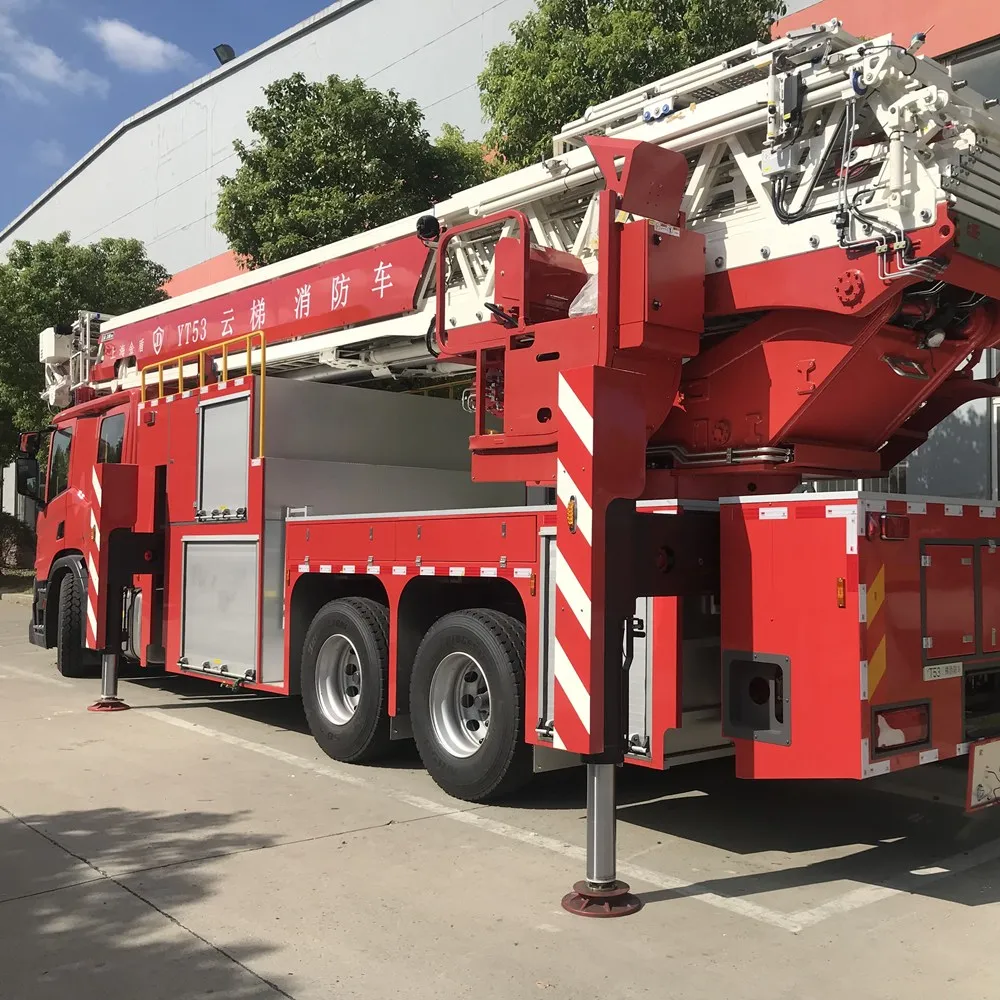

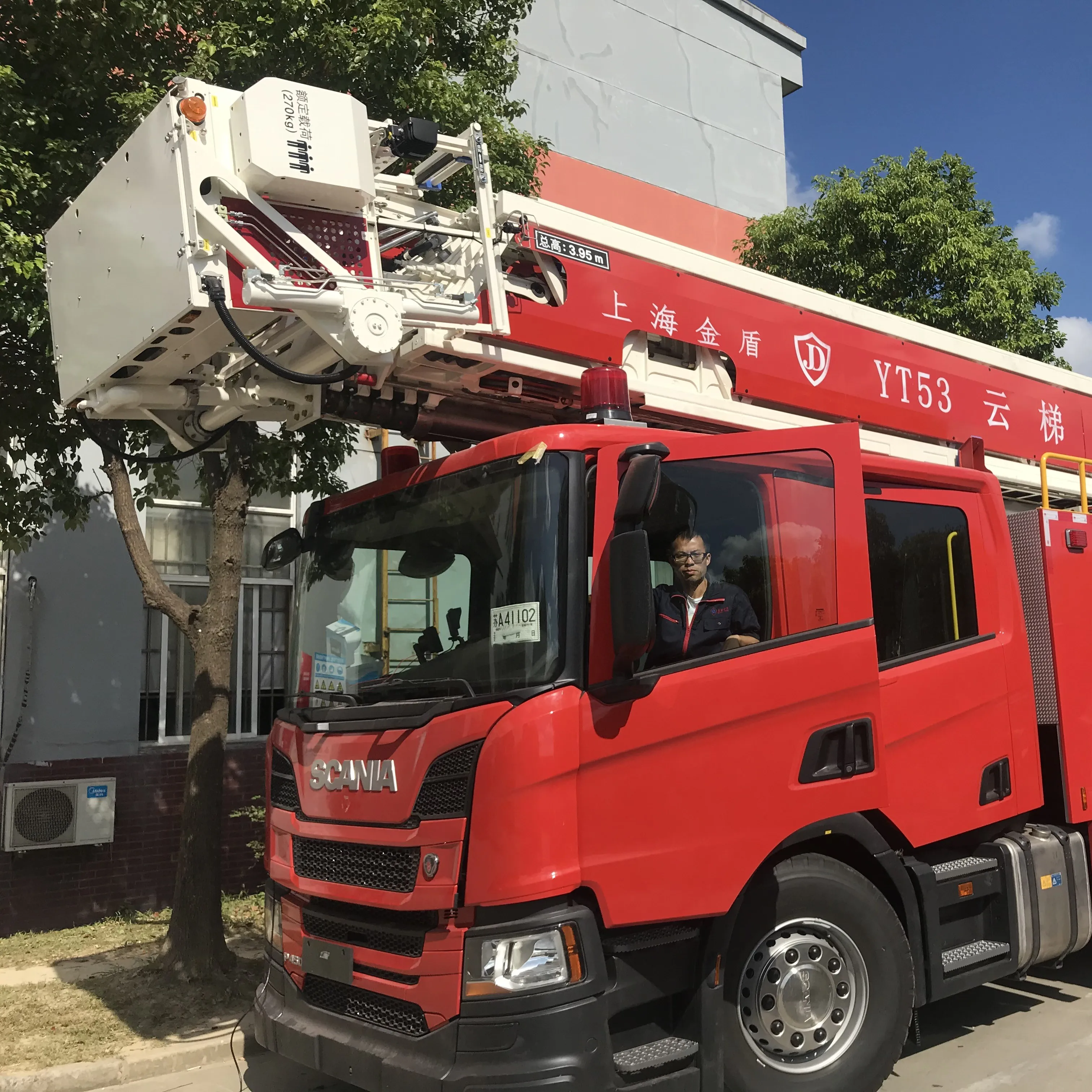

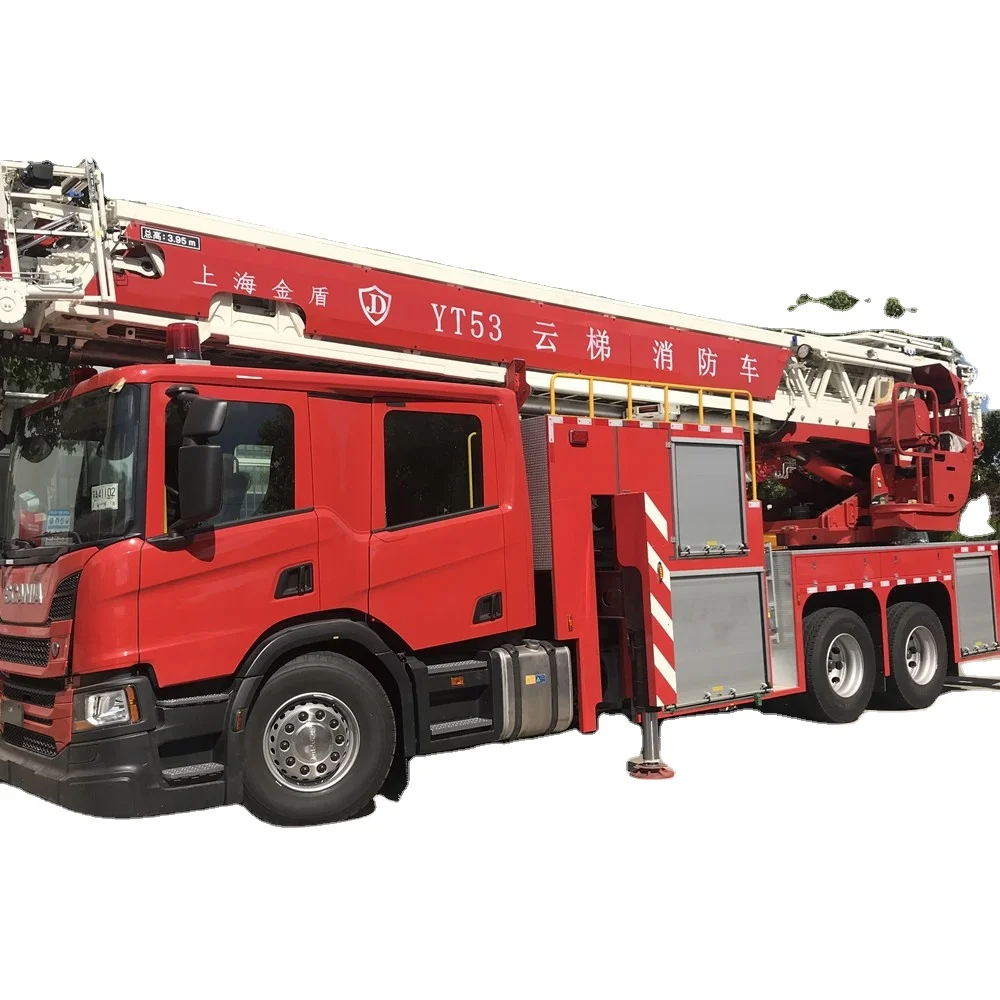

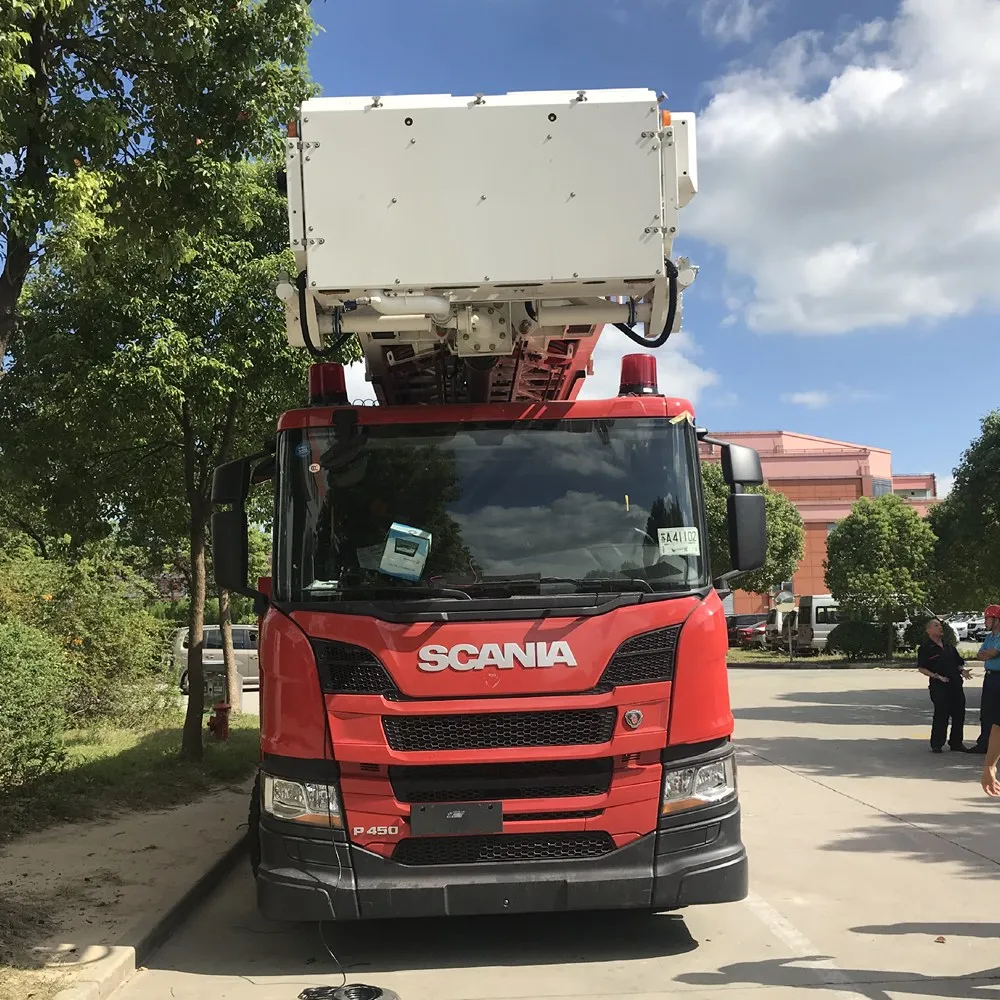

Chinese supreme quality 53m high Style Aerial Ladder Fire Truck for Sale




Product Description


Key Data




































































































Vehicle






Dimension (L×W×H)



13450×2500×3980 (mm)



Gross weight



32100 (kg)



Complete vehicle shipping mass



31950(kg)



Seat (inc. driver)



2



Engine Power



320/435(kw/hp)



Chassis









Manufacturer



Mercedes Benz



Model



Actros3344



Driving



6×4



Cabin



Single cab



Wheel base



4500+1350 (mm)



 Net weight



9230Kg



Max. loading



23700Kg



Max. running speed



90Km/h



Min. turning diameter



<22.3m



Engine type



V type, 6 cylinder in line turbo, middle cool engine



Model



Mercedes OM501 LA



Max. engine power



320Kw/ 1800r/min



Maximum torque



2100N.M/1080rpm



Emission standard



Euro IV



Clutch



Monolithic, Dry



Transmission



Mercedes G240-16


fully synchronized



Full power PTO






NMV200(N56)i=1.48(speedup), Full power



PTO of transmission






MB-NA121-1b(N04)i=1.03/1.24 (speed up)



Equipments, Tools and Documents


1.   Repair Part






























































































Item & Model



No.



Remark



1



O-ring14×2.65G



6



GB/T3452.1-1992



2



O-ring 11.2×2.65G



4



GB/T3452.1



3



O-ring 22.4×2.65G



4



GB/T3452.1



4



O-ring 71×3.55G



1



GB/T3452.1



5



O-ring 118×5.3G



1



GB/T3452.1



6



O-ring 150×3.55G



1



GB/T3452.1



7



O-ring 140×5.3G



3



GB/T3452.1



8



O-ring 128×5.3G



1



GB/T3452.1



9



Sense switch SZL-WL-A



1







10



Travel switch SZL-WL-B



1







11



Travel switch SZL-WL-E



1







12



Fuse Tube 5×20



10



10A



13



Fuse Tube 5×20



20



20A









1) With functions of fire water supply and flood relief;


FAQ



















































































1, Q: Why should we choose you ?

    A: We are professional manufacture located in Shanghai city for firefighting trucks


        products which nearby Pudong International Airport, is easily for customer coming


        and visiting.



    B: We can export directly to overseas customer, no need to deal with trading company


         and the second price increase will not occur



    C: We have our own R&D team, production workshop, QC management team,


        international marketing team and after service team.



    D: We will provide the most professional and the best service on every business


        discussion and operation procedure.



    E: We can provide special design for different specification requirement according to


          different orders or tender documents.



    G: We have jointed ventures with Morita for 4 years, so the technology, design and


         quality are same with Morita.



    H: We have collaboration with various top enterprises of fire protection sector, Such as


         Darley, Rosenbauer, HALE, AKRON, Ekhart, etc.


    I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC.
2, Q: What's your Payment method?
    A: T/T 30% deposit, balance will be paid by T/T before delivery
    B: 100% L/C before start production
3, Q: What logistics ways we can work for shipment?
    A:We can ship fire trucks by various transportation tools

    B:We will go by sea to all main continents such as South America, Middle East, Africa,


       Oceania and Europe etc.



   C:Also we can ship trucks by road or railway to the neighborhood countries of China such


      as Russia, Mongolia, Kazakhstan, Uzbekistan etc.


4, Q: What's the delivery time?

     A: 20 days delivery upon receipt of advance deposit if we have ready in stock for


         normal standard model.


     B: ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
     C: European brand chassis 9 months upon receipt of advance deposit.
5, Q: Can you provide the ISO9001 certificate or some others related?

     A: Yes. We have been exporting fire trucks for years. Rich experience for exporting to different


          countries like African market, Russia and South America. This helps us to know the importance


          of handling with various certificates.


6, Q: How about warranty item?

    A: We could support you original spare parts. And also email or telephone assist in the


        following days. If necessary, our outwork engineer could go for technical assist.


    B: 12 month whole vehicle warranty





























Product Process




Product Application


6X4 Fire Truck.jpg





Certifications


 6X4 Fire Truck.jpg





Packaging & Shipping


 6X4 Fire Truck.jpg


6X4 Fire Truck.jpg








Company Information


Shanghai Jindun is a professional fire protection enterprise,one of the largest fire protection equipment and fire fighting vehicle manufacturer.Our company owns a first-rate ultra-large modern factory, internationally advanced processing equipment, domestic and foreign sales networks and a powerful service system, gathers many top technicians and industrial experts, and has 112 types of products, including CAFS fire trucks, water tank foam trucks, rescue vehicles, gas supply vehicles and other general fire trucks.Our Company will give you best products and best service.
