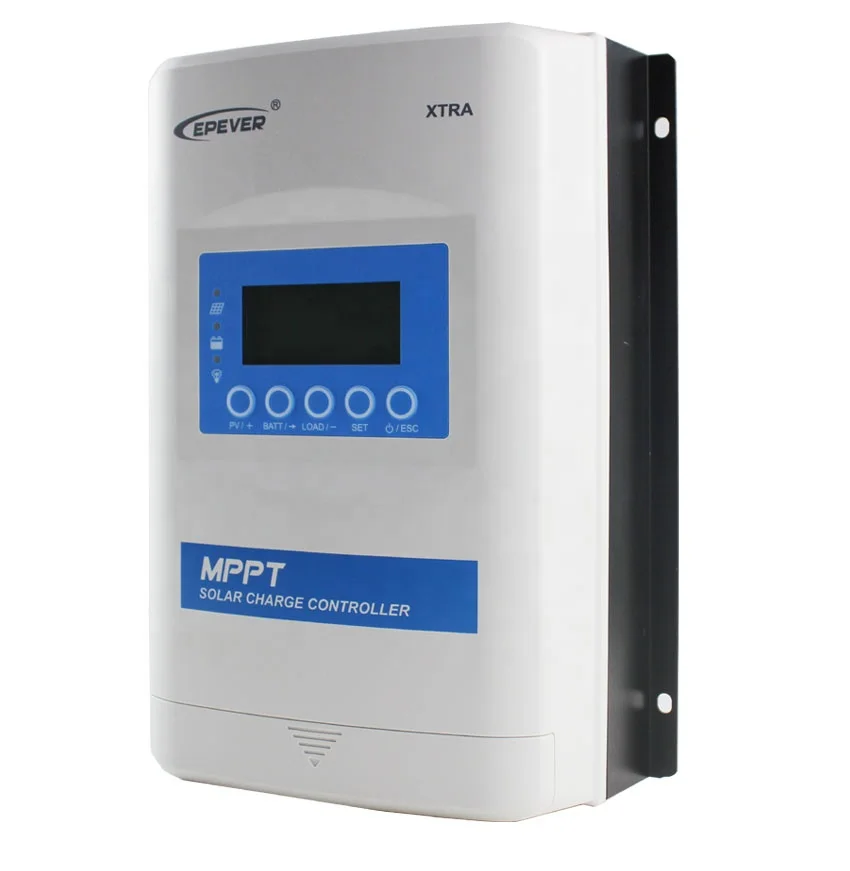

EPever Solar MPPT Charger Controller LCD 10A 20A 30A 40A Solar Regulator 12V 24V for Lead Acid Gel Seal Flood Lithium Batteries



XTRA N series controller which can carry different display units(XDB1/XDS1/XDS2) adopt the advanced MPPT control algorithm, it can minimize the maximum power point loss rate and loss time, quickly track the maximum power point(MPP) of the PV array and obtain the maximum energy from solar array under any conditions; and it can increase the ratio of energy utilization in the solar system by 20%-30% compared with PWM charging method.

Limiting the charging power & current and reducing charging power functions ensure the system stable with over PV modules in high temperature environment. IP33 Ingress protection and isolated RS485 design further improve the controller’s reliability and meet the different application requirements.

XTRA N series controller owns self-adaptive three-stage charging mode based on digital control circuit, which can effectively prolong the lifespan of battery and significantly improve the system performance. It also has comprehensive electronic protection for overcharge, overdischarge, PV & battery reverse polarity etc, to ensure the solar system more reliable and more durable. This controller can be widely used for RV, household system, field monitoring and many other applications.

Features:

• CE certification(LVD EN/IEC62109,EMC EN61000-6-1/3)


• 100% charging and discharging in working environment temperature range


• Optional LCD display units (XDB1/XDS1/XDS2)


• High quality and low failure rate components of ST or IR to ensure service life


• Advanced MPPT technology & ultra-fast tracking speed guarantee tracking efficiency up to 99.5%


• Maximum DC/DC transfer efficiency is as high as 98.3%, full load efficiency is up to 97.3%


• Advanced MPPT control algorithm to minimize the MPP lost rate and lost time


• Accurate recognizing and tracking of multi-peaks maximum power point


• Wide MPP operating voltage range

• Support the lead-acid and lithium batteries, programmable temperature compensation


• Limit charging power & current over rated value


• Real-time energy statistics function


• Power reduction automatically over temperature value


• Multiple load work modes

• Comprehensive electronic protection

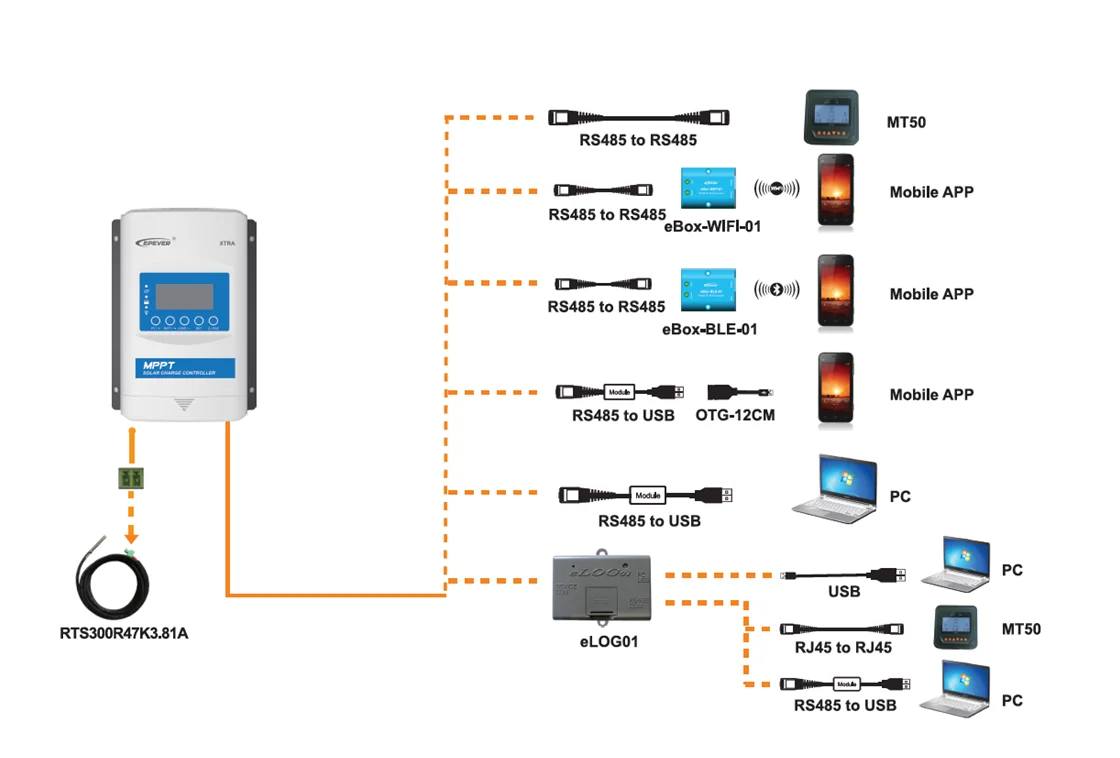

• Isolated RS485 with 5V/200mA protected output for no power devices, with Modbus protocol


• Support monitoring and setting the parameters via APP or PC software


• IP33 Ingress protection



XTRA3415N@48V system

3-protection against solid objects: protected against solids objects over 2.5mm.

3-protected against sprays to 60°from the vertical.
