Промышленный гигабитный POE коммутатор 90 Вт с защитой от электростатического разряда Инжектор для камеры

General parameter

Product name

90W gigabit POE injector

Model

HR-BTG-N901

Connector Type

1* gigabit POE port + 1* gigabit Ethernet port

POE Parameters

POE Standard:IEEE802.3af /IEEE802.3at/IEEE802.3bt

Each port Max:15.4 W (IEEE 802.3af)

Each port Max:30 W (IEEE 802.3at)

Each port Max:90 W (IEEE 802.3bt)

POE port output : DC 52V

POE power supply core :1/2-  3/6+ ;4/5+  7/8-

Network Media

10BASE-T: Cat5 UTP(≤250 m)

100BASE-TX: Cat5 or more UTP(≤100 m)

1000BASE-TX: Cat5 or more UTP(≤100 m)

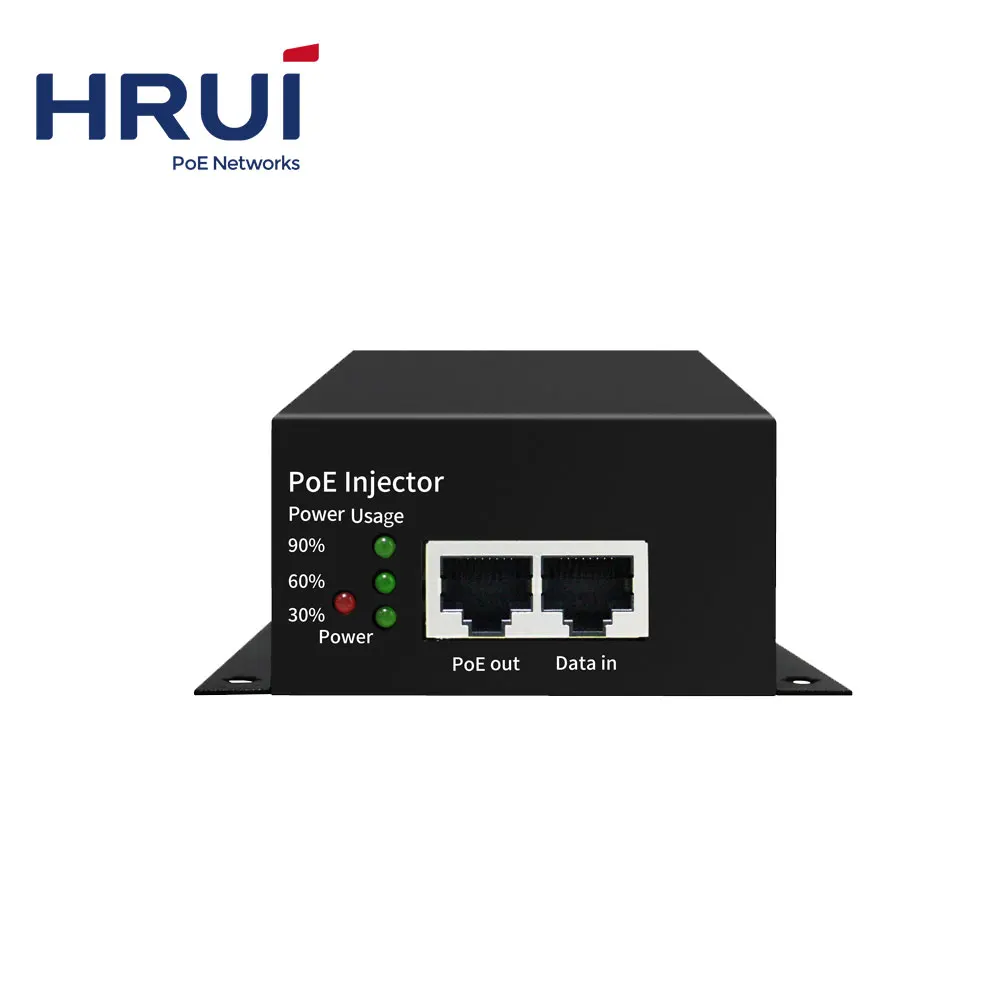

LED indicator

PWR

Lighting:Powered

Un-Light:No Power

POE power

30%/60%90%

Lighting:Current power state
Un-Light:Power usage is below scale

Power Supply

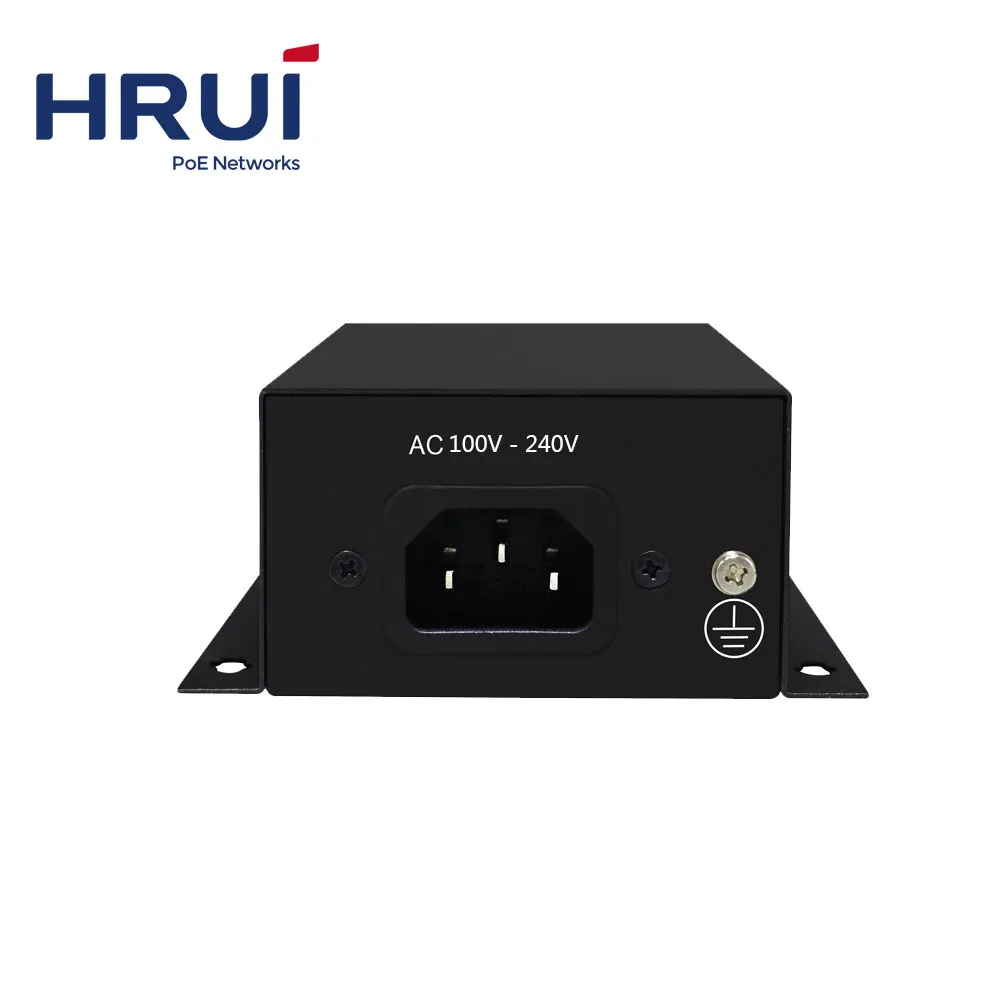

Power input: AC 100-240 V    working frequency: 50/60 Hz

Working power:52V/1.85A

Working Environment

Operating Temperature: -20~50℃

Storage Temperature: -40~85℃

Humidity: 5%~95 % ( non-condensing)

Testing standard

EN61000-4-2 (ESD)
IEN61000-4-5 (Surge)
EN61000-4-3 (RS)
EN61000-4-6 (CS)

EN61000-4-4 (EFT)

FCC Part 15/ CISPR32 /EN55032: CLASS A

IEC 60068-2-27 Shock

IEC 60068-2-32 Free fall

IEC 60068-2-6  Vibration

Mechanical Structure

Shell protect grade: IP20

Installation: Wall mount

Product Dimension (L×W×H):187 mm× 95mm×40 mm

Package Dimension (L×W×H):245 mm× 190mm× 60mm

Package Contents

1.      90W gigabit POE injector:1pcs

2.      User Guide:1pcs

3.      Certificate .warranty card:1pcs

Certification

CE,FCC,CCC,RoHS

MTBF

100,000 hours

Warranty

3 years
