Гидравлический пресс для обжима кнопочных ячеек машина разборки и герметизации устройство запечатывания монет литий-ионных
- Категория: Other Machinery & Industry Equipment >>>
- Поставщик: Dongguan,Zhik,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1023.61 $* | 1074.1 $* |
| Aug-16-2025 | 1015.31 $* | 1066.60 $* |
| Jul-16-2025 | 851.87 $* | 894.2 $* |
| Jun-16-2025 | 998.95 $* | 1048.87 $* |
| May-16-2025 | 869.12 $* | 912.95 $* |
| Apr-16-2025 | 980.9 $* | 1029.97 $* |
| Mar-16-2025 | 972.3 $* | 1021.13 $* |
| Feb-16-2025 | 963.62 $* | 1011.75 $* |
| Jan-16-2025 | 955.91 $* | 1003.85 $* |
Характеристики
Product Description

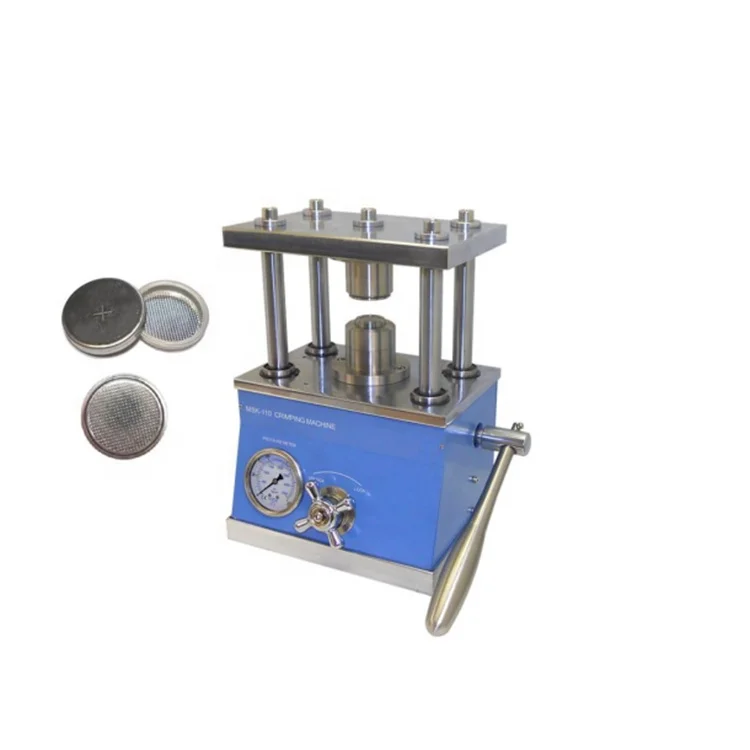

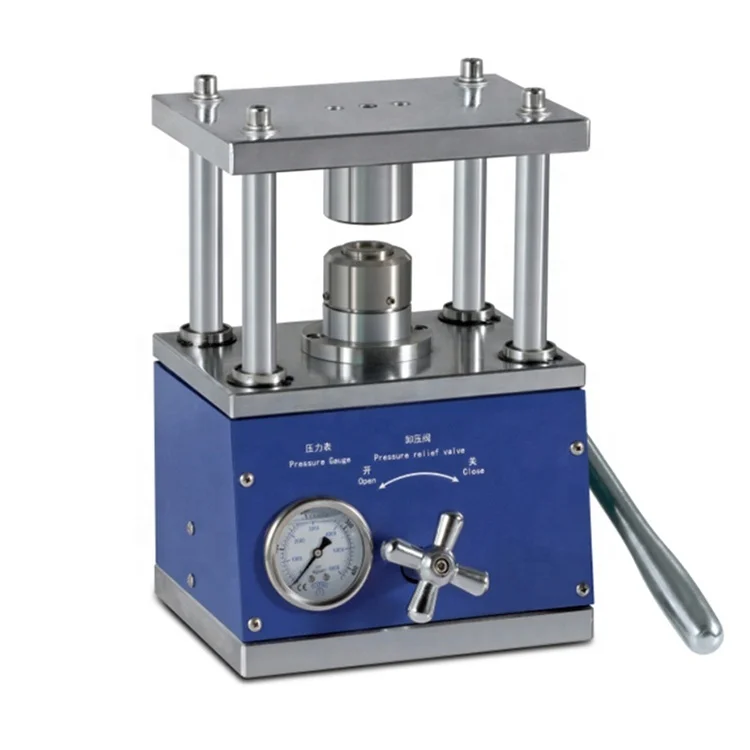

Coin battery crimping machine
1. ZK-CC20 coin cell crimper is a newly designed coin cell sealing machine, this crimper is suitable for sealing all CR20xx
series coin cell, it can adjust the sealing line to seal CR2032, CR2025, CR2016 without changing the die.
2. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die.
3. It can work in glove box with smaller volume.
4. If you also do disassembling research, you can buy one more disassembling die, so you can do crimping and disassembling on one
machine. It’s easily to replace the die.
series coin cell, it can adjust the sealing line to seal CR2032, CR2025, CR2016 without changing the die.
2. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die.
3. It can work in glove box with smaller volume.
4. If you also do disassembling research, you can buy one more disassembling die, so you can do crimping and disassembling on one
machine. It’s easily to replace the die.
technical parameter
Model | ZK-CC20 |
Crimping Die | * Standard crimping die for CR20xx series, CR2032, CR2016, CR2025 * Optional die available for crimping CR2325, CR2450, AG3, AG5 * PTFE Anti-Corrosion Core prevents coin cell from short circuited |
Rocker Pressure | <6kg |
Max Pressure | 200kg/cm2 Hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage. |
Working Pressure | 80-100kg/cm2 |
Dimension (L*W*H) | 232*170*330mm |
Weight | 25kg |
Packing Weight | 35kg |
Warranty | One Year limited warranty with lifetime support |

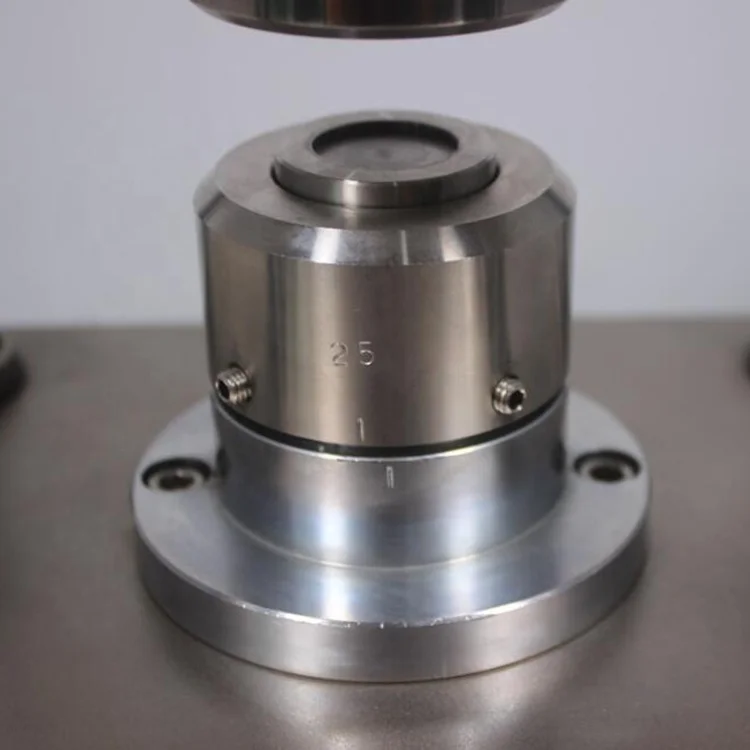

Reference Pictures | Adjusted sealing die for CR2032, CR2025, CR2016 coin cell |
