Роликовая машина QIPANG для выпрямления проволоки 5
- Категория: Машины для выпрямления металла >>>
- Поставщик: Shanghai,Qipang,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 179.56 $* | 188.31 $* |
| Aug-18-2025 | 177.65 $* | 186.78 $* |
| Jul-18-2025 | 149.28 $* | 156.34 $* |
| Jun-18-2025 | 174.26 $* | 183.69 $* |
| May-18-2025 | 152.64 $* | 160.12 $* |
| Apr-18-2025 | 171.38 $* | 180.47 $* |
| Mar-18-2025 | 170.88 $* | 179.95 $* |
| Feb-18-2025 | 168.83 $* | 176.79 $* |
| Jan-18-2025 | 167.61 $* | 175.5 $* |
Характеристики
Product Overview

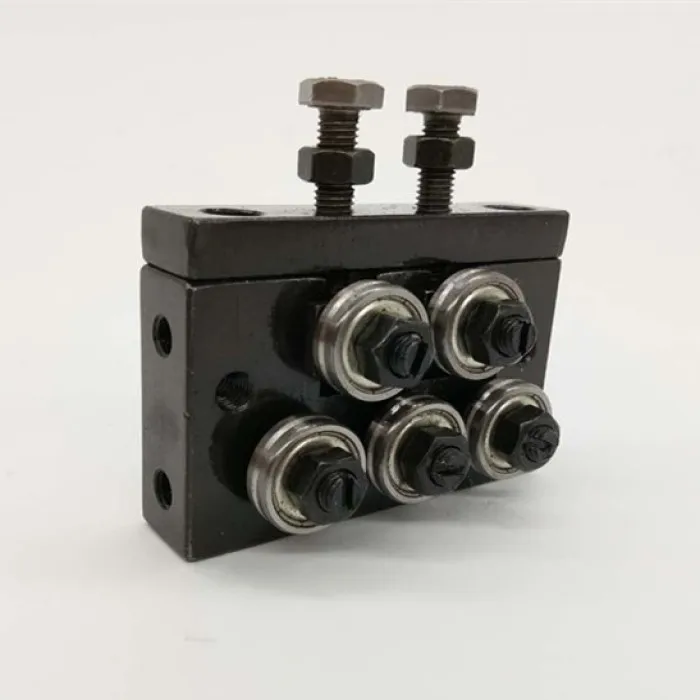

QIPANG wire drawing machine wire straightening machine roller straightening machine wire straightening technology 5 rollers
JZQ--- wire straightener
Straightening wire specification：Φ0.8mm----Φ4.0mm
30----- The number of straightening rollers
5------ The diameter of the straightening roller
V------- The groove type of straightening roller; V,R,U,and customization
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size：length 108mm×width 25mm×height77mm
Total weight of straightener：The machine is 3 kg, including package about 4 kg
Applicable to 0.8-4.0mm
Straightening wire specification：Φ0.8mm----Φ4.0mm
30----- The number of straightening rollers
5------ The diameter of the straightening roller
V------- The groove type of straightening roller; V,R,U,and customization
A------- A Type:The straightener is the integral open and close function .B Type:Single straightening wheel moves independently.
Straightener size：length 108mm×width 25mm×height77mm
Total weight of straightener：The machine is 3 kg, including package about 4 kg
Applicable to 0.8-4.0mm
PRODUCT SPECIFICATIONS
No | Product Model | Wire diameter(mm) | roller number | Roller diamter（mm） | Note |
1 | JZQ0.1-0.3/38 A.V | 0.1-0.3 | 38 | 7 | |
2 | JZQ0.3-0.5/34.A.V | 0.3-0.5 | 34 | 12 | |
3 | JZQ0.5-0.8/26.A.V | 0.5-0.8 | 26 | 16 | |
4 | JZQ0.8-2.0/18.A.V | 0.8-2.0 | 18 | 23 | customize 5，10，14，18，22、26 rollers |
5 | JZQ 0.8-4.0/18.A.V | 0.8-4.0 | 18 | 30 | customize 5，10，14，18，22 rollers |
6 | JZQ4.0-7.0/14.A.V | 4.0-7.0 | 14 | 42 | customize 10,18,22,26 rollers |
7 | JZQ4.0-10.0/5.A.V | 4.0-10.0 | 5 | 42 | customize 7.10、14、18、22、26 rollers |
8 | JZQ 4.0-20.0/14.A.V | 4.0-20.0 | 14 | 42/50/70 | 7.14.10.18.22 rollers |
