Сепаратор литий-ионной батареи для обменной мембраны 25 мкм
US $1.00-$4.00
Промышленные центрифуги с горизонтальным графином трубчатая центрифуга для
- Категория: >>>
- Поставщик: Chengdu,ZK,Separation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 35700.46 $* | 37485.54 $* |
| Aug-16-2025 | 35400.94 $* | 37170.64 $* |
| Jul-16-2025 | 29700.64 $* | 31185.95 $* |
| Jun-16-2025 | 34800.22 $* | 36540.37 $* |
| May-16-2025 | 30300.76 $* | 31815.67 $* |
| Apr-16-2025 | 34200.54 $* | 35910.40 $* |
| Mar-16-2025 | 33900.34 $* | 35595.78 $* |
| Feb-16-2025 | 33600.48 $* | 35280.24 $* |
| Jan-16-2025 | 33300.0 $* | 34965.98 $* |
Характеристики

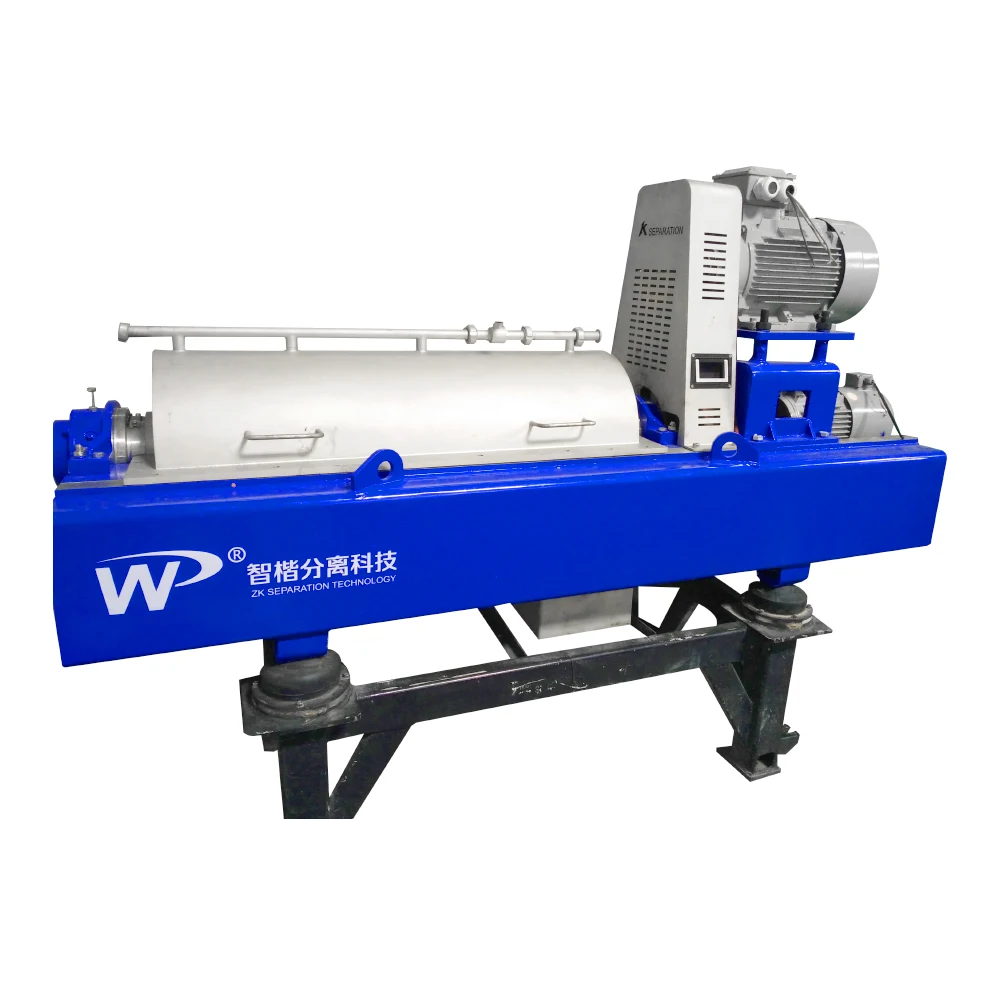

Industrial precio centrifuga horizontal decanter centrifuges tubular centrifuge for protein
Product Description
I. Basic information
Plant protein is extracted from soybeans, peas, and the like via a common acid-salt extraction process. In addition to its nutritional value, plant protein has many important functional properties. In the process of producing protein powder, to increase the output and the extraction rate as much as possible, an increasing number of centrifuges are used in the production line. [ZK Separation] high-speed centrifuge (separation factor ≥ 3500G) in the production process plays an irreplaceable important role.
II. Technical characteristics of high-efficiency protein centrifuge
*high rigidity screw rotor
[ZK Separation] Centrifuge is a typical double-rotor differential high-speed rotating device.
*Bubble breaker
[ZK Separation] centrifuge is internally set with a bubble breaker, which plays a good role.
*Discharge device for centripetal pump with pressure
[ZK Separation] centrifuge is internally provided with a discharge device for centrifugal pump with pressure to avoid the supernatant being ejected at high speed.
*Sanitation plan (CIP system)
The centrifuge control system is arranged with a fully automatic cleaning procedure. The multi-step mode of high-speed cleaning→low-speed cleaning (multi-stage)→high-speed multi-level cleaning ensures that it is thoroughly washed per mechanical cleaning.
The centrifuge control system is arranged with a fully automatic cleaning procedure. The multi-step mode of high-speed cleaning→low-speed cleaning (multi-stage)→high-speed multi-level cleaning ensures that it is thoroughly washed per mechanical cleaning.
Commonly used process flow
III. Parameter table of high-speed centrifuge for protein separation
| Centrifuge model | Drum diameter mm | Length-diameter ratio mm | Speed rpm | Separation factor | Differential speed rpm | Main moter power kW | Ancillary motor power kW | Throughput m3/h | Weight kg | Boundary dimension: (L x W x H) |
LW250× l025E | 250 | 4.1 | 5000 | 3500 | 1-50 | 7.5-11 | 3-4 | 1-5 | 1250 | 2500x 800x1150 |
LW350× l435E | 350 | 4.1 | 4000 | 3136 | 1-35 | 15-22 | 4-5.5 | 5-8 | 2500 | 3700x 1050x1200 |
LW450× l845E | 450 | 4.1 | 3500 | 3087 | 1-34 | 30-37 | 7.5-11 | 10-15 | 4200 | 4300x 1150x1450 |
LW520× 2150E | 520 | 4.1 | 3500 | 3567 | 1-34 | 45-55 | 11-15 | 15-25 | 5200 | 5100x 1250x1600 |
LW580× 2400E | 580 | 4.1 | 3000 | 2923 | 1-30 | 75-90 | 15-18.5 | 20-30 | 6500 | 5520x 1450x1700 |
LW650× 2600E | 650 | 4 | 3000 | 3267 | 1-28 | 90-110 | 18.5-22 | 30-45 | 7800 | 6250x 2000x1550 |
IV. Soybean product high-speed centrifuge parameter table
*In the industry of soybean products, high-efficiency fully-enclosed high-speed centrifuges are gradually bringing technological innovation in the soybean production line and replacing conventional filter-type equipment. Soybean hulls (similar to medium density) are hard to be removed by common centrifuges. To this end, [ZK Separation] has developed a floating object trap to solve the problem and make the separated soybean milk meet the process production requirements.
| Centrifuge model | Drum diameter mm | Length-diameter ratio mm | Speed rpm | Separation factor | Differential speed rpm | Main moter power kW | Ancillary motor power kW | Throughput m3/h | Weight kg | Boundary dimension: (L x W x H) |
LW250× l025C | 250 | 4.1 | 5000 | 3500 | 1-50 | 7.5-11 | 3-4 | 1-5 | 1250 | 2500x 800x1150 |
LW350× l435C | 350 | 4.1 | 4000 | 3136 | 1-35 | 12-15 | 4-5.5 | 5-8 | 2500 | 3700x 1050x1200 |
LW450× l845C | 450 | 4.1 | 3500 | 3087 | 1-34 | 30-37 | 7.5-11 | 10-15 | 4200 | 4300x 1150x1450 |
LW520× 2150C | 520 | 4.1 | 3500 | 3567 | 1-34 | 45-55 | 11-15 | 15-20 | 5200 | 5100x 1250x1600 |
Note: The throughput is related to material characteristics;

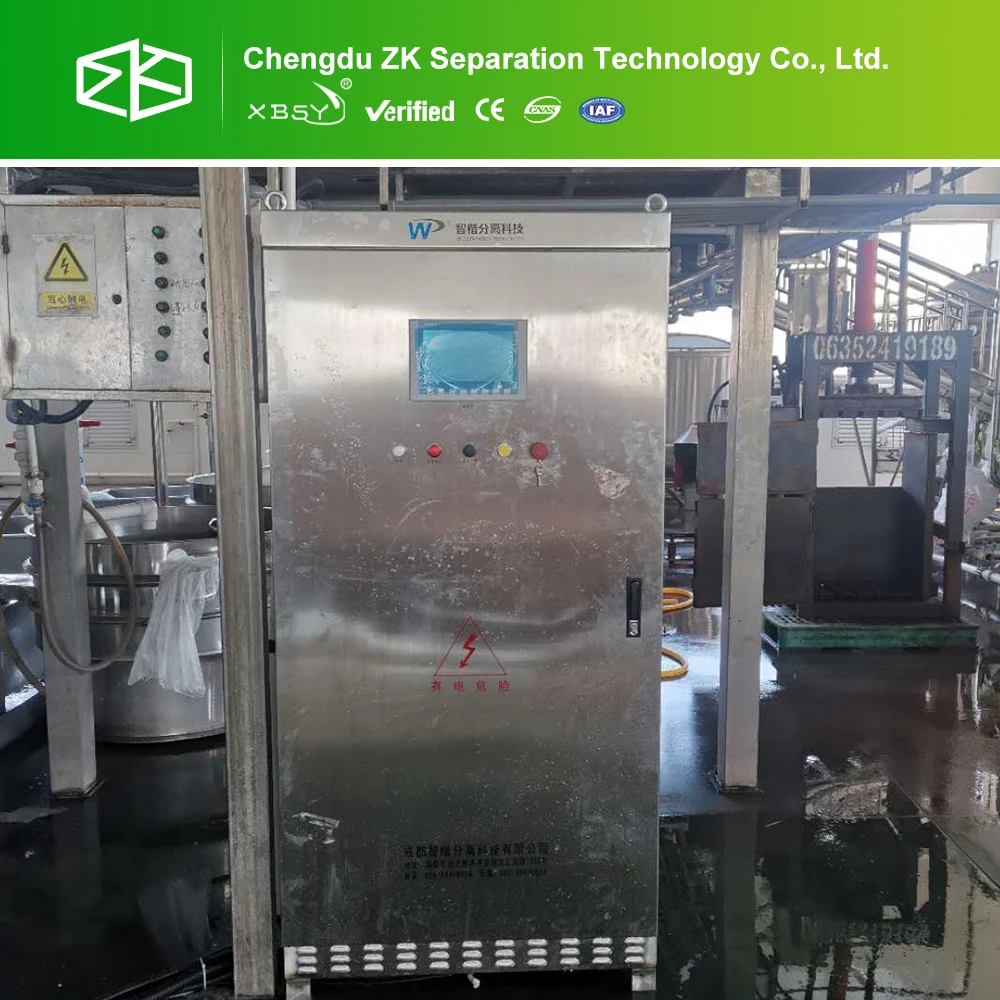

Control method: 1. direct control using an inverter (double-motor double-frequency conversion mode);
2.PLO+ touch screen control (intelligent control mode);
Material: AISI321, AISI316, AISI316L SAF2205, etc.
Safety protection: devices for measuring vibration and temperature, emergency stop button, and measures to prevent faulty operation such as hood not being covered.
Product Categories

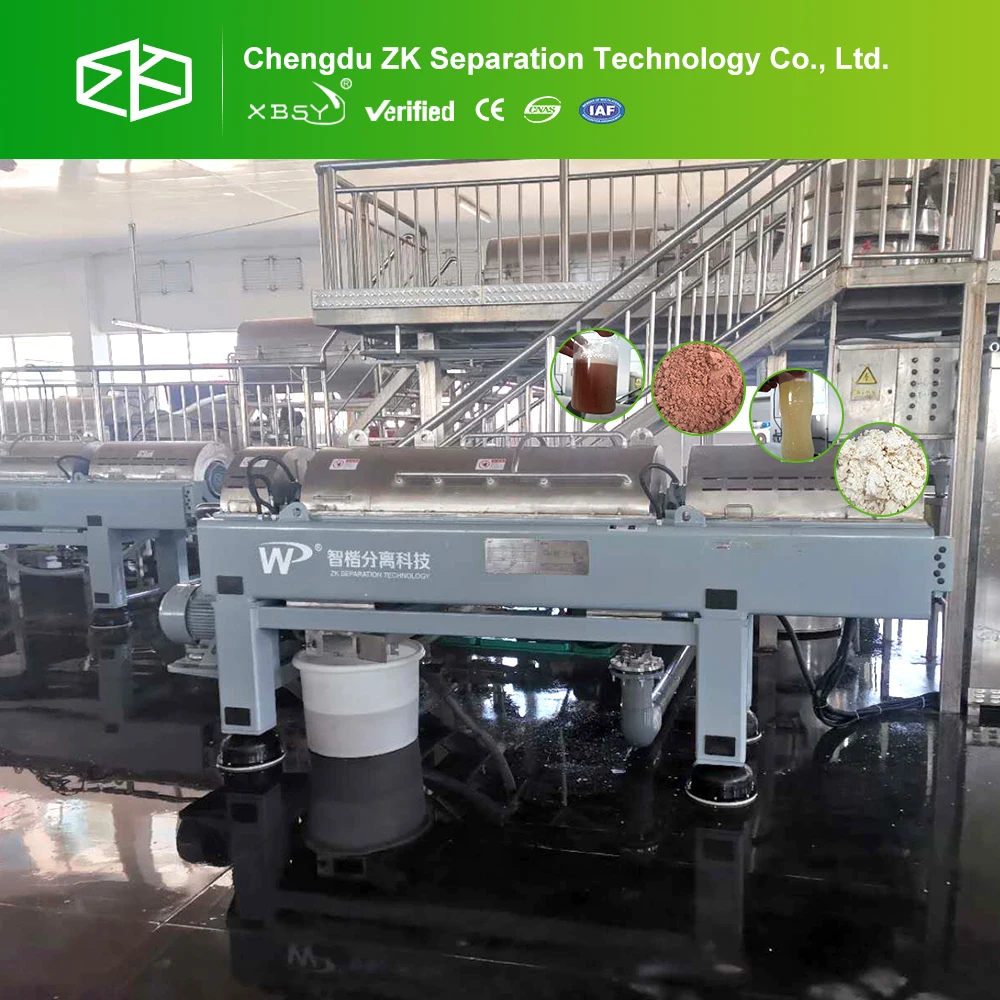

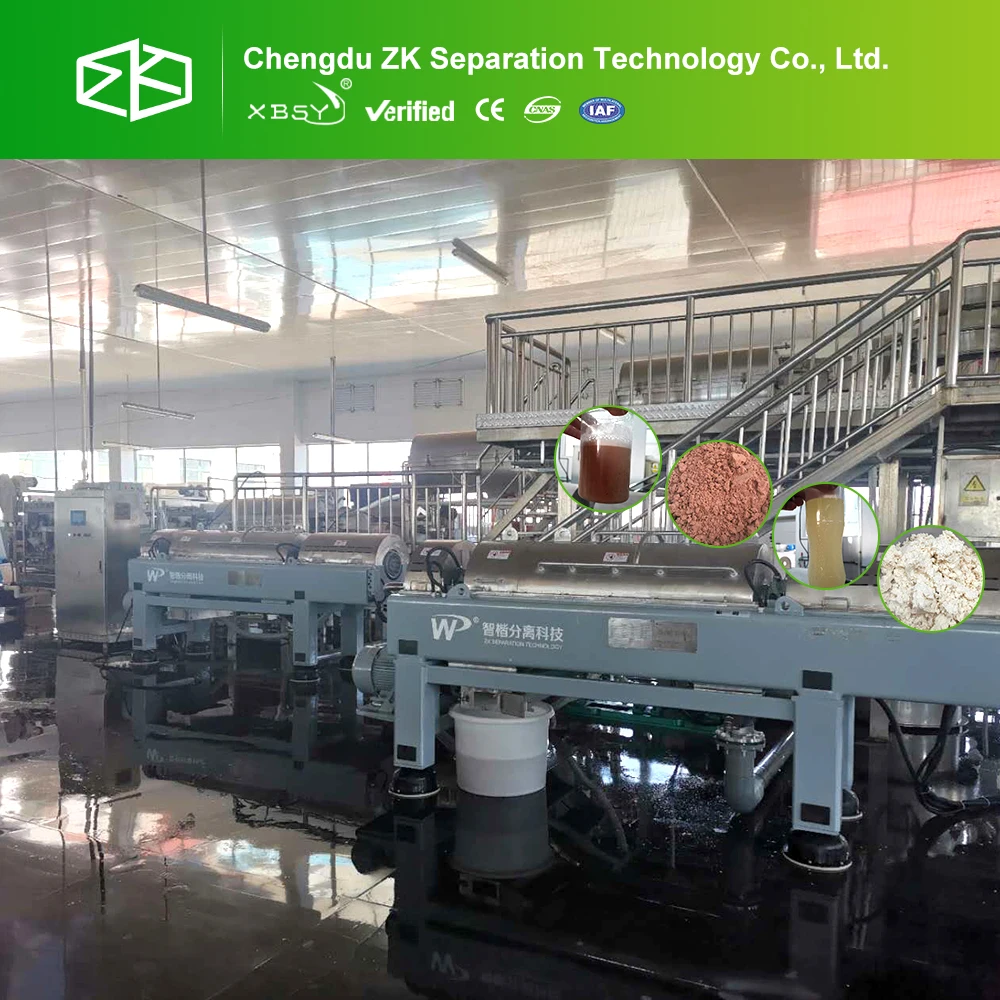

Application
Company Profile
Packaging & Shipping
FAQ
1. Are you a manufacturer or a trading company?
We are manufacturer in China.We specialize in manufacturing separation control equipment over 20 years.
2. How long is the warranty of your products?
The warranty is 12 months after install at site or 14 months after machine leaving factory. Our machine service life is more than 10 years as USA quality.
3. What kind of service u can provide?
We can give 24hrs online services and 1hurs fast feedback, please add our trade manger or Skype(Skype ID: leihonghermes) or whechat(Wechat: 0086-13882202428) once u buy our machine, we can supply spare more than 20years.
