QIPANG высокоэффективный выпрямитель проводов и режущей трубы высокого тока машина для выпрямления
- Категория: Машины для выпрямления металла >>>
- Поставщик: Shanghai,Qipang,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.86 $* | 0.87 $* |
| Aug-18-2025 | 0.74 $* | 0.62 $* |
| Jul-18-2025 | 0.44 $* | 0.55 $* |
| Jun-18-2025 | 0.18 $* | 0.36 $* |
| May-18-2025 | 0.26 $* | 0.65 $* |
| Apr-18-2025 | 0.25 $* | 0.13 $* |
| Mar-18-2025 | 0.91 $* | 0.18 $* |
| Feb-18-2025 | 0.94 $* | 0.4 $* |
| Jan-18-2025 | 0.31 $* | 0.78 $* |
Характеристики
QIPANG High Efficiency Wire Straightener And Cutting Pipe Straightening High Current Wire Straightening And Feeding Machine
Straightening process of straightener and How to use the straightener:

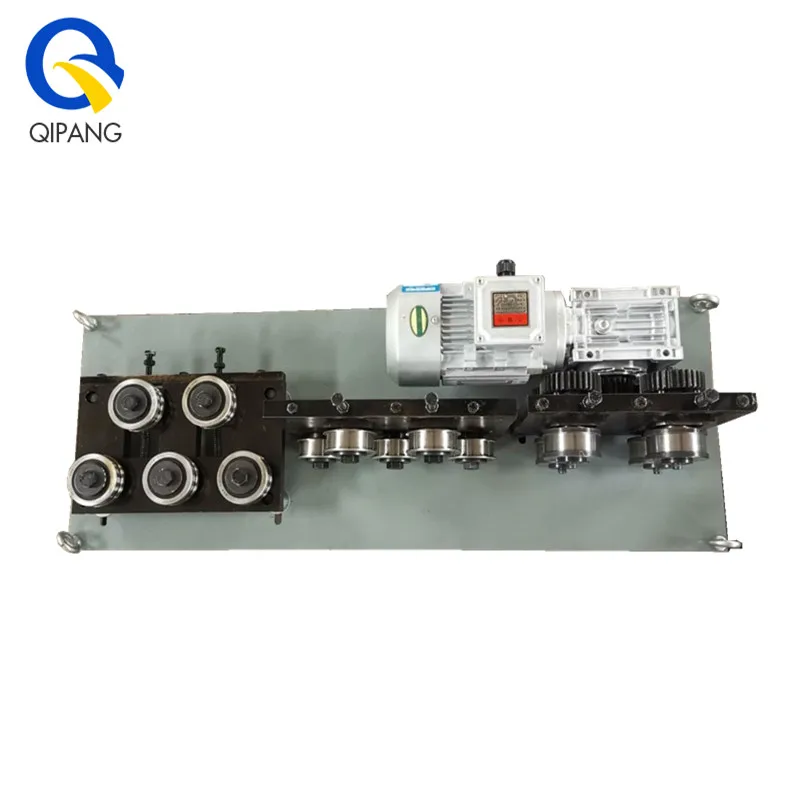

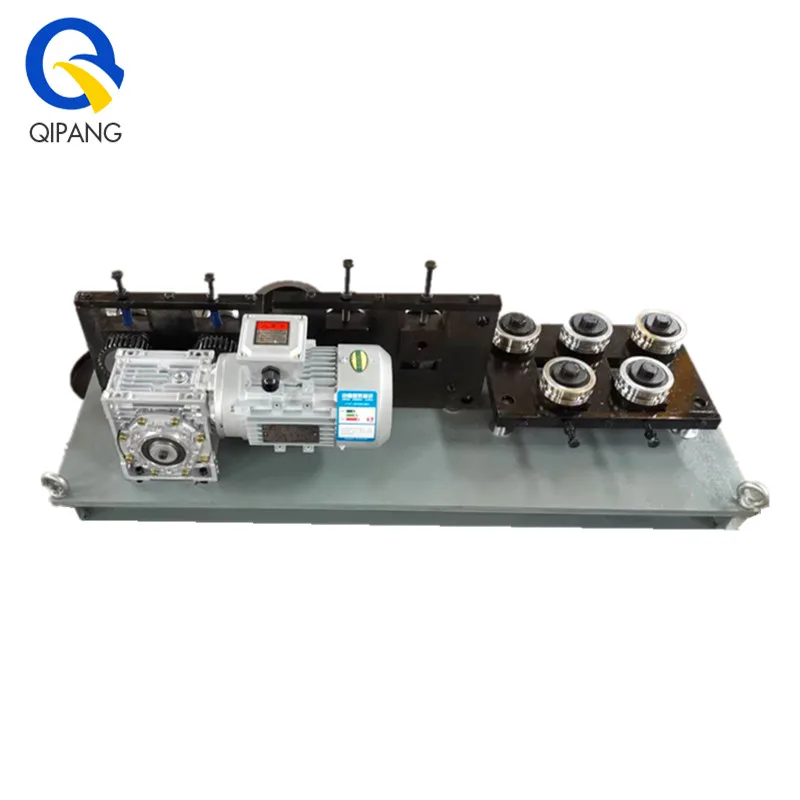

The position of the rollers is at an angle to the direction of the product being straightened. Two or three large ones are active pressure rollers, which are rotated by the motor in the same direction.
The other small rollers on the other side are driven pressure rollers.
It is rotated by the friction of a rotating round rod or pipe. In order to achieve the compression required by the rollers for these products, these small rollers can be adjusted forward or backward simultaneously or separately.
The other small rollers on the other side are driven pressure rollers.
It is rotated by the friction of a rotating round rod or pipe. In order to achieve the compression required by the rollers for these products, these small rollers can be adjusted forward or backward simultaneously or separately.
Step 1: Fix the straightener on the workbench. This step is very important. Straightening of the straightener during wire drawing will cause irregular bending of the material.

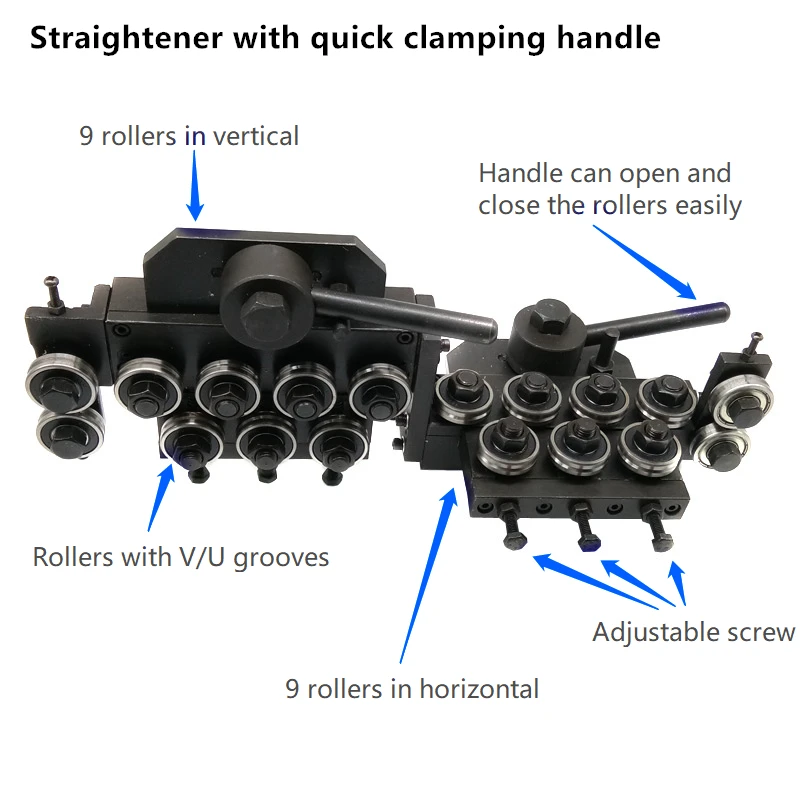

Step 2: First open the two sets of horizontal and vertical straightener control handles, and the two sets of unidirectional
adjustable straightening roller screws all move backward.
Step 3: Put the wire into the straightener groove and close the opening and closing handle (there must be tension in the front of the wire, otherwise it is easy to jumper).
Step 4: One-sided adjustable rollers are tightened one by one, close to the wire, and adjusted both horizontally and vertically.
Step 2: First open the two sets of horizontal and vertical straightener control handles, and the two sets of unidirectional
adjustable straightening roller screws all move backward.
Step 3: Put the wire into the straightener groove and close the opening and closing handle (there must be tension in the front of the wire, otherwise it is easy to jumper).
Step 4: One-sided adjustable rollers are tightened one by one, close to the wire, and adjusted both horizontally and vertically.
Specification
Model | Wire diameter mm | Roller number | Roller diameter mm | Note | |||||
1 | JZQ 0.1-0.3/24.A.V | 0.1-0.3 | 24 | 7 | |||||
2 | JZQ 0.3-0.5/34.A.V | 0.3-0.5 | 34 | 12 | |||||
3 | JZQ 0.5-0.8/26.A.V | 0.5-0.8 | 26 | 16 | |||||
4 | JZQ 0.8-2.0/18.A.V | 0.8-2.0 | 18 | 23 | |||||
5 | JZQ 0.8-4.0/18.A.V | 0.8-4.0 | 18 | 30 | |||||
6 | JZQ 4.0-7.0/14.A.V | 4.0-7.0 | 14 | 42 | |||||
8 | JZQ 4.0-20.0/14.A.V | 4.0-20.0 | 14 | 42/50/70 | |||||
Professional customization: can be customized according to customer requirements Specific selection: according to material hardness and material thickness | |||||||||
Working principle
Through this picture, you can clearly understand the process of the work
Company Profile
If you need anything, please feel free to contact me
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
