Оборудование для заводской линии обработки молока охлаждающей жидкости резервуар
- Категория: Станки для переработки молока >>>
- Поставщик: Prettech,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7735.44 $* | 8122.32 $* |
| Aug-18-2025 | 7670.60 $* | 8054.79 $* |
| Jul-18-2025 | 6435.39 $* | 6757.9 $* |
| Jun-18-2025 | 7540.77 $* | 7917.79 $* |
| May-18-2025 | 6565.99 $* | 6893.8 $* |
| Apr-18-2025 | 7410.20 $* | 7781.51 $* |
| Mar-18-2025 | 7345.74 $* | 7712.53 $* |
| Feb-18-2025 | 7280.19 $* | 7644.13 $* |
| Jan-18-2025 | 7215.11 $* | 7576.98 $* |
Характеристики
Product Description

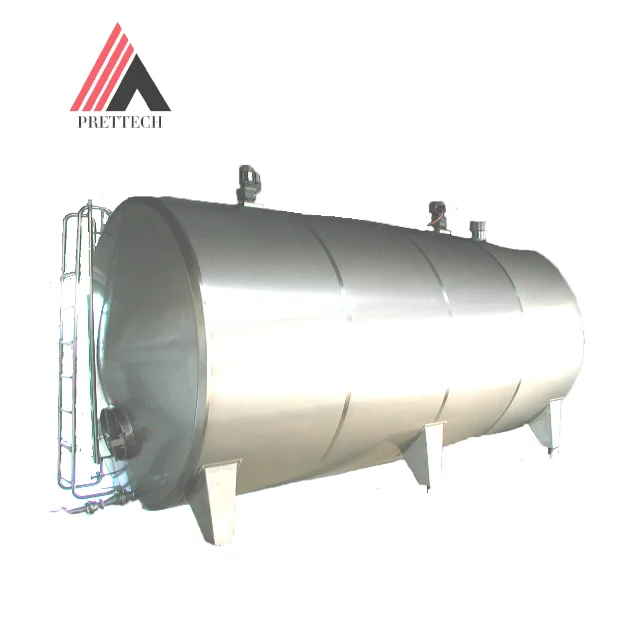

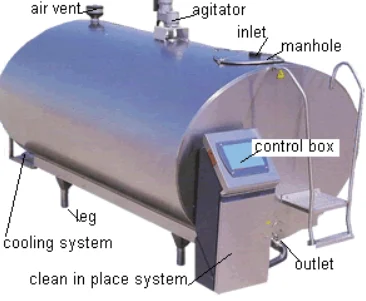

MILK COOLER (Capacity: 2000 to 10,000 Litres)
1 | Inner tank, stainless steel AISI 304 |
2 | Very efficient full flow evaporator laser welded |
3 | Outer tank, stainless steel AISI 304 |
4 | Lockable manhole ∅450 with ∅76 opening on lid for milk entry |
5 | A ∅76 pitting on tank back part for vent (possibility of reversing milk entry and vent) |
6 | Outlet valve ∅51 with SMS threading |
Agitation and Homogenization
● Low speed gear motor.
● Automatic programmed agitation as well as continuous agitation.
● Homogenization of milk fat in 2 minutes
● Automatic programmed agitation as well as continuous agitation.
● Homogenization of milk fat in 2 minutes

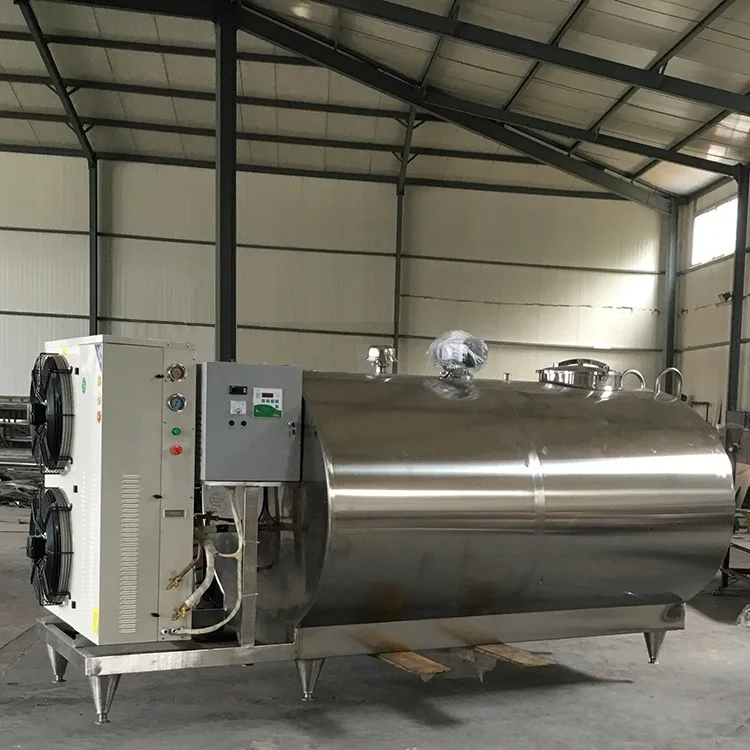

Cooling Equipment
● Cooling unit for 2AII, 2BII, 4BII etc...
● Safety Switch HP/LP.
● Reciprocating or scroll compressors.
● Refrigerant R 22 or R404A.
● Safety Switch HP/LP.
● Reciprocating or scroll compressors.
● Refrigerant R 22 or R404A.
Electric Equipment
● Electronic control unit Easy Wash with microprocessor
● Standard electric power: 400 V / 3P+N / 50 Hz
● Standard electric power: 400 V / 3P+N / 50 Hz
Company Profile
JIANGSU PRETTECH MACHINERY& TECHNOLOGY CO., LTD (Below named PRETTECH) Prettech was established in 1971 and is now known as the top brand in the industry of stainless steel tank in China, especially for food&beverage, pharmacy, biochemicals and agriculture processing. Till 2015 total sales volume comes up to US$250 million, and total number of employee reaches 4500. Our business range covers consulting, designing, fabricating, installation, commissioning &training. Product Range covers varied stainless steel tanks for liquid storage, fermenting, blending, temperature keeping, distilling,sterilizing,filtering and grain treatment. Prettech
stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
stainless steel tanks are exported to 20 countries and receive a favorable response. We provide consultation, design, producing, installation and varied shipping solution according to each client’s requirements and demands. We supply not only regular tanks, but also customized tanks.
Our Facility
Advanced Laser&CNC Processing Center, which can achieve fast cutting without burs, accurate positioning, higher efficient and fewer human errors.
Workshop Corner
Automatic welding and manual welding adopted
All welders are qualified and certified
All welders are qualified and certified
Our Certificate (ISO9001, CE, PED, etc.)
Test & Inspection
Static pressure test on tank body and jacket / Dye penetration test on welding/ X-ray inspection / NDT
Packing & Delivery
√ Seaworthy packaging&reinforcement to minimize damages during shipping&transportation.
√ Delivery to customer's door, and self-loading truck service available if necessary.
√ Varied container types are optimized including general container and flat rack.
√ Delivery to customer's door, and self-loading truck service available if necessary.
√ Varied container types are optimized including general container and flat rack.
FAQ
Q: Can you produce tanks with S.S.316L?
A: Yes we can, the wetted-parts are produced by S.S.316L to guarantee the corrosion resistance, the non-wetted parts are produced by S.S.304 to reduce cost.
Q: What’s the lead time?
A: 35-50 working days depend on the order quantity.
Q: How do you ship the goods?
A: We usually ship by sea in containers or flat rack.
Q: Are you factory or trading company?
A: We are a manufacturer and export by ourselves.
Q: Can your factory produce products according to our samples or drawing?
A: Yes, we can do OEM and customization.
Q: What is your nearest port?
A: Qingdao port,China
Q: Do you supply door to door shipping?
A: Yes we do, Prettech do ocean shipping, customs clearance, import procedures and deliver products to the appointed place.
Q: How do you guarantee this machine normally operating?
A: Every machine is tested in our factory before shipping, We will adjust the machine to optimal effect before delivery. And spare parts arew always available and free for you in warranty time.
Q:Do you supply after-sale services?
A: Yes we do, if any defects occurred, Prettech would give instructions of how to handle, arrange fast repair locally if needed.
Q: What inspections will you do before delivery in your factory?
A: All tanks would be tested by static pressure test, dye penetration or X-ray test available if requested, we have our own test lab.
