Солнечный насос, инвертор для орошения 20 кВт 55 кВт, трехфазный
US $100.00-$500.00
Водяной насос на солнечной энергии 1HP до 40HP по хорошей цене контроллер MPPT для погружного глубокого
- Категория: Solar Pump Inverter >>>
- Поставщик: Beijing,Multifit,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.29 $* | 0.3 $* |
| Aug-19-2025 | 0.40 $* | 0.4 $* |
| Jul-19-2025 | 0.17 $* | 0.27 $* |
| Jun-19-2025 | 0.43 $* | 0.77 $* |
| May-19-2025 | 0.62 $* | 0.47 $* |
| Apr-19-2025 | 0.23 $* | 0.20 $* |
| Mar-19-2025 | 0.8 $* | 0.50 $* |
| Feb-19-2025 | 0.79 $* | 0.49 $* |
| Jan-19-2025 | 0.40 $* | 0.77 $* |
Характеристики
Solar Pump Inverter
Products Description
Software Desgin
1. Dual Supply Mode - Solar DC and Grid AC Compatible
2. Compatible with All Pumps, IM and PMSM
3. Dry Run Function
4. Automatic Start and Stop
5. Pumps Max Current Protection Setting
6. Water Tank Level Detect Function
Hardware Design
1. Innovation Design with Dual CPU
2. Good Ventilation with Low Temperature
3. Full Fault Protection Design to Ensure no IGBT Damaged
4. Infineon IGBT Module
5. Long Term Service Life Design
6. GPRS Remote Control is Optional
Product Parameter
Model | For Pump | Rate Current | Max.DC/ Working DC | External Size(mm) | Packing Size(mm) | N.W. (kg) | ||||||
150~450VDC or 200~240VAC Input, 3 Phase 220~240VAC Output | ||||||||||||
MTLS-0K7KWP-2S | 0.75KW | 4A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-1K5KWP-2S | 1.5KW | 7A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.96 | ||||||
MTLS-2K2KWP-2S | 2.2KW | 10A | 450V/ 250~350V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-4K0KWP-2S | 4.0KW | 13A | 450V/ 250~350V | 247*160*178 | 302*212*231 | 2.9 | ||||||
250~900VDC or 380~480VAC Input, 3 Phase 380~460VAC Output | ||||||||||||
MTLS-1K5KWP-4T | 1.5KW | 3.7A | 900V/ 500~650V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-2K2KWP-4T | 2.2KW | 5A | 900V/ 500~650V | 143*86*114 | 178*133*150 | 0.9 | ||||||
MTLS-1K5KWP-4T | 1.5KW | 3.7A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.6 | ||||||
MTLS-1K5KWP-4T | 2.2KW | 5A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.62 | ||||||
MTLS-4K0KWP-4T | 4.0KW | 10A | 900V/ 500~650V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-5K5KWP-4T | 5.5KW | 13A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 2.9 | ||||||
MTLS-7K5KWP-4T | 7.5KW | 17A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3 | ||||||
MTLS-011KWP-4T | 11KW | 22A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3.63 | ||||||
MTLS-015KWP-4T | 15KW | 30A | 900V/ 500~650V | 247*160*178 | 302*212*231 | 3.63 | ||||||
MTLS-018KWP-4T | 18KW | 37A | 900V/ 500~650V | 171*277*180 | 440*340*310 | 9 | ||||||
MTLS-022KWP-4T | 22KW | 45A | 900V/ 500~650V | 217*335*190 | 440*340*310 | 12 | ||||||
MTLS-030KWP-4T | 30KW | 60A | 900V/ 500~650V | 285*463*225 | 560*410*350 | 17.6 | ||||||
MTLS-037KWP-4T | 37KW | 75A | 900V/ 500~650V | 285*463*225 | 560*410*350 | 19.8 | ||||||
MTLS-045KWP-4T | 45KW | 90A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 25.3 | ||||||
MTLS-055KWP-4T | 55KW | 110A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 26.2 | ||||||
MTLS-075KWP-4T | 75KW | 150A | 900V/ 500~650V | 385*600*270 | 680*525*410 | 26.2 | ||||||
MTLS-090KWP-4T | 90KW | 180A | 900V/ 500~650V | 385*600*270 | 890*610*550 | 43.7 | ||||||
MTLS-110KWP-4T | 110KW | 220A | 900V/ 500~650V | 473*700*307 | 890*610*550 | 47 | ||||||
MTLS-132KWP-4T | 132KW | 260A | 900V/ 500~650V | 579*930*375 | 890*610*550 | 75 | ||||||
MTLS-160KWP-4T | 160KW | 310A | 900V/ 500~650V | 579*930*375 | 1040*780*610 | 81 | ||||||
150~450VDC or 200~240VAC Input, 1 Phase 220~240VAC Output | ||||||||||||
MTLS-0K7KWP-21D | 0.75KW | 7A | 450V/ 250~350V | 143*86*114 | 178*133*150 | 0.96 | ||||||
MTLS-1K5KWP-21D | 1.5KW | 10A | 450V/ 250~350V | 185*118*157 | 232*172*212 | 1.67 | ||||||
MTLS-2K2KWP-21D | 2.2KW | 13A | 450V/ 250~350V | 247*160*178 | 302*212*231 | 2.9 | ||||||

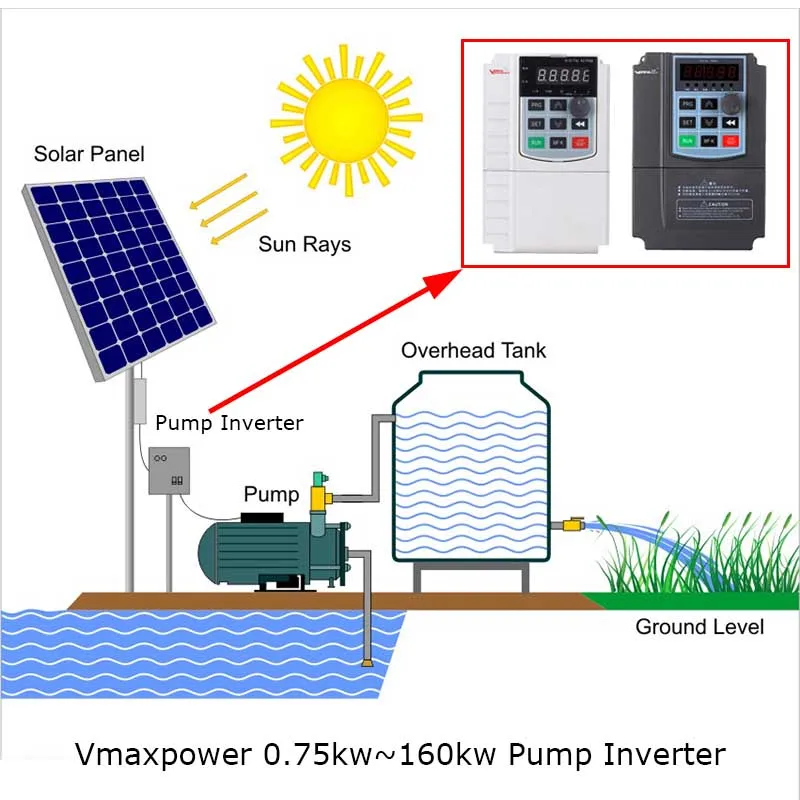

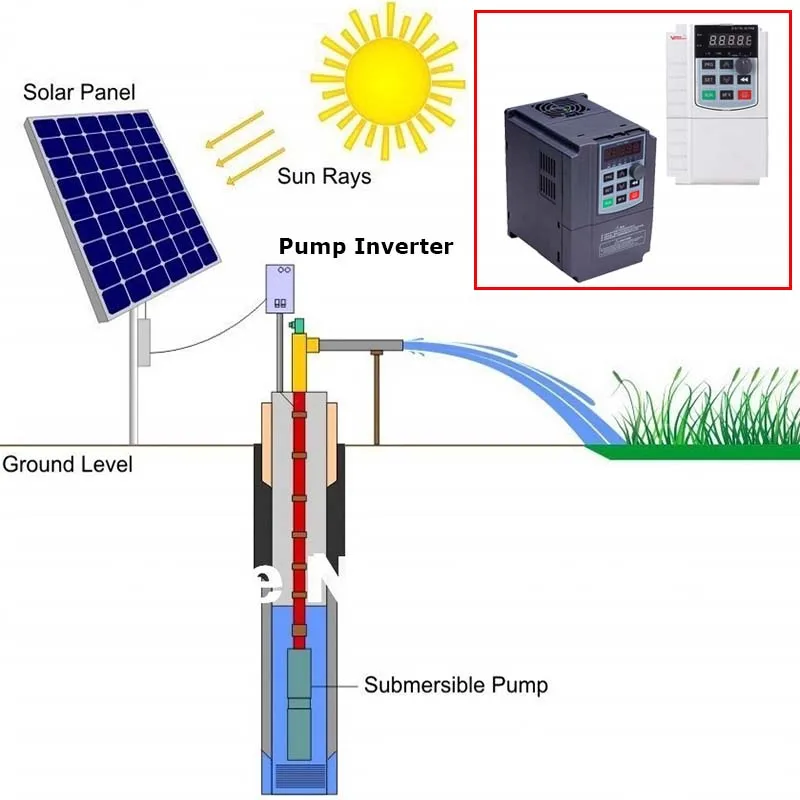

Applicantions of Solar Pumping System
Agricultural Greenhouse Water Supply
Solar agricultural greenhouses use solar modules installed in the roof of the greenhouse to meet the diverse needs of lighting, irrigation, temperature, ventilation, illumination, nutrition supplement, to achieve efficient use of solar energy and land resources three-dimensionally and to achieve the true meaning of ecology agriculture and agricultural science and technology.

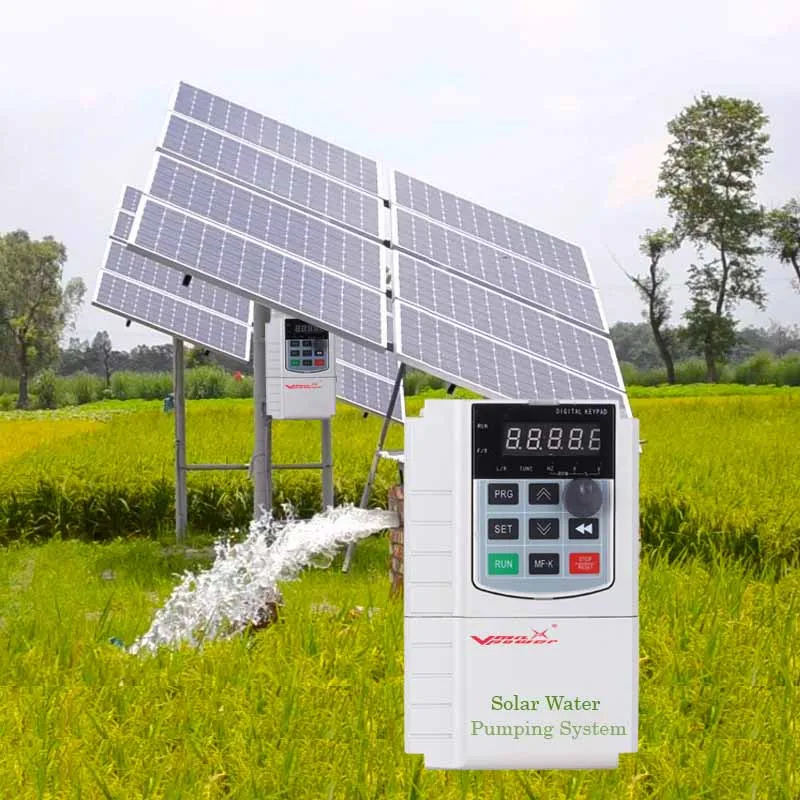

Agricultural Irrigation
Solar pumping systems can effectively provide safe and efficient power supply solutions for remote areas. It can effectively meet the water demand for irrigation.
Landscape Fountain
Solar pumping system is widely applied to outdoor garden pond, park pond, artificial grassland and swimming pool, helping to develop garden economy, beautify park, build colorful fountain and increase oxygen for fishpond or shrimp pond.
About Multifit
Multifit is expert with ISO9001, ISO14001 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 countires since 2009. Covering solar inverters, controllers, solar panels, solar cells, solar cleaning robots, solar street lights, ect.
And Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
And Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
Exbihition Shows
