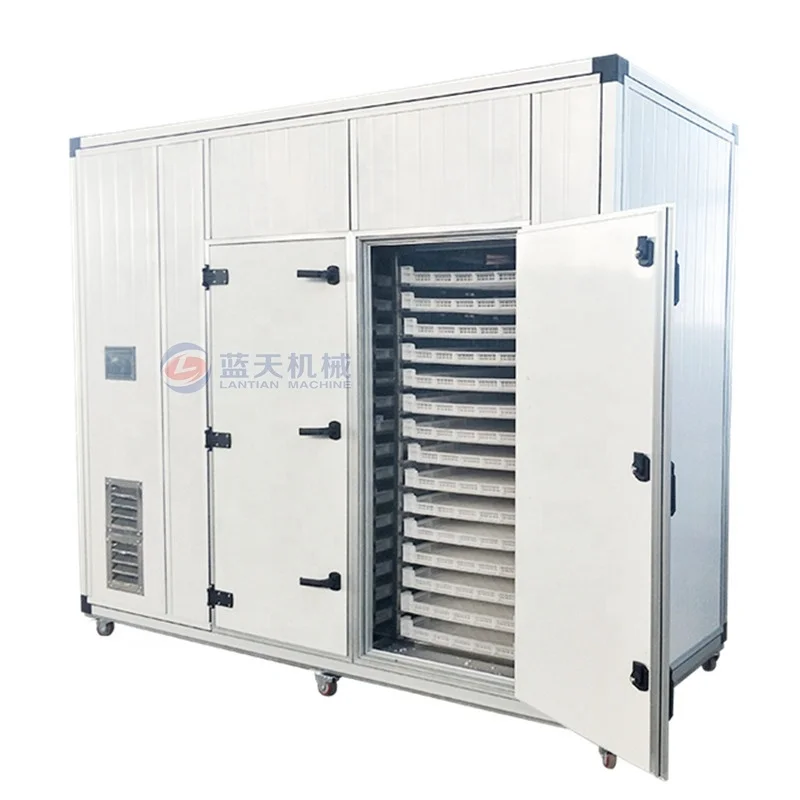

Home Drying Machine Food Freeze Dryer Heat Pump Dryer
Product Description
1-Product description of Home Drying Machine Food Freeze Dryer Heat Pump Dryer
Heat pump dryer has a wide and strong application, mainly used in dehydrating seafood, vegetables,, melon seeds, peanuts, fruits and vegetables, meat products, casing, tobacco, leather, mushrooms, Chinese wolfberry, dried fruit, bean curd stick, fertilizer, medicine, traditional Chinese medicinal materials, paper, wood, seeds, sludge, gypsum, hardware products, metallurgical products, chemical products, clay, grass, etc.
The equipment is mainly composed of heat pump, drying chamber and trays, except for standard parts such as motor and electrical parts, the rest are made of stainless steel (SUS304) material or color steel.Strong and durable equipment, stable and reliable performance;The finished product has good quality and remarkable energy saving effect;Convenient temperature and humidity control, no waste water, waste gas, waste residue in the drying process, environmental friendly;Wide application range, low operation cost, good economy and other effects.
Main Parameter
2-Main parameter for Home Drying Machine Food Freeze Dryer Heat Pump Dryer
Our factory supply different model for customer choose, we accept customs different capacity, material heat pump dryer.
Model
LT-3P
LT-6p
LT-8P
LT-16P
LT-32P
Power
2.7kw/h
6.5kw/h
8kw/h
20kw/h
37.2kw/h
Capacity
0.2-0.3
ton/batch
0.5-0.8
ton/batch
1.0-1.5
ton/batch
2.0-3.0
ton/h
5.0-6.0
ton/h
Trolley quantity
0
4
8
16
40
Trolley size
0
1057*805*1740mm
Tray quantity
30
48
96
192
480
Tray size
800*600mm
1000*800mm
Dryer size
2.4*1.1*2.2m
3.8*2.5*2.2m
4.8*2.5*2.2m
9.5*2.5*2.2m
13*4*2.3m
3-Working principle of AdjustableTemperature Industrial Dehydrator Heat Pump Food Dryer
The dryer includes a high-temperature heat pump unit. The working principle is: the refrigerant is compressed by the compressor to become high-temperature and high-pressure gas, enters the condenser, and condenses liquefied heat, which is used to heat the drying room to provide the temperature of the drying room. The moisture in the material is vaporized and evaporated by hot air. The evaporated water vapor is patted away by the dehumidification system to achieve the purpose of dehumidifying the dried materials. The dehumidification system uses a heat recovery device. The recovered heat is used to heat the fresh air, which can save 60%. % -70% of the fresh air preheats energy consumption to achieve further energy savings.
4-Struction for Home Drying Machine Food Freeze Dryer Heat Pump Dryer
This heat pump dryer used to remove moisture from different kinds fruit.It consists of drying chamber, air compressor, condenser, PLC panel, fan, temperature and humidity sensor.
With cooling system, the temperature of the machine can be between 15℃ and 75℃.
Heat pump
This heat pump has a compressor, which compresses the air inside and releases hot air.Internal circulating air carries moisture into the condenser, where it turns into water, which is then pumped out through pipes.This does not waste the hot air in the dryer, greatly reducing power consumption.The difference between a heat pump and an electric heat pipe is that the heat pump is very energy efficient, and the power consumption is much lower than that of an electric heat pipe, so more cost can be saved.
PLC Touch screen
You can set different temperatures during different working hours.After drying, the dryer will automatically stop.We just need to push the finished product into the dryer with trays and trolleys, and then push it out after it is finished. There is no need to operate during the drying period.
Trays
We use 304 stainless steel produce trays, keep trays no rusty during working, keep dried product best quality.other product use normal steel material
Also supply PP trays,its suitable drying inside the dryer
5-Drying different raw material

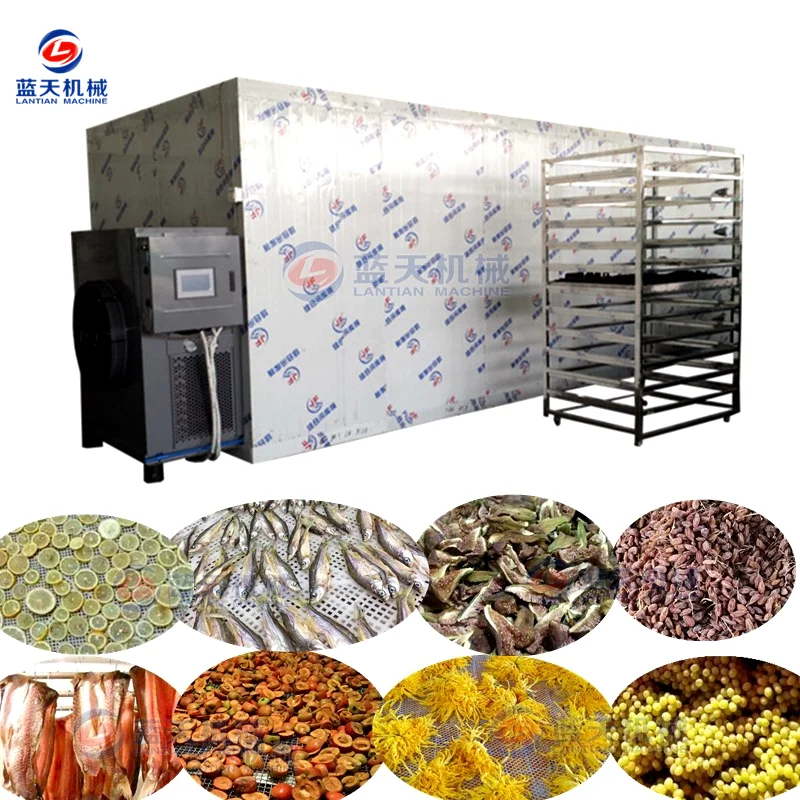

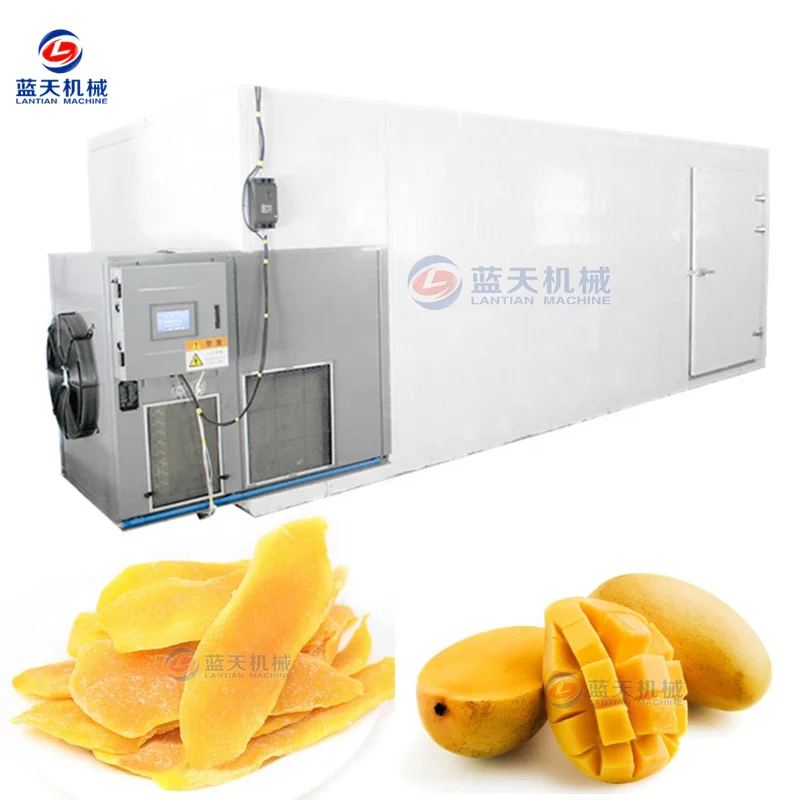

Drying seafood and fruit

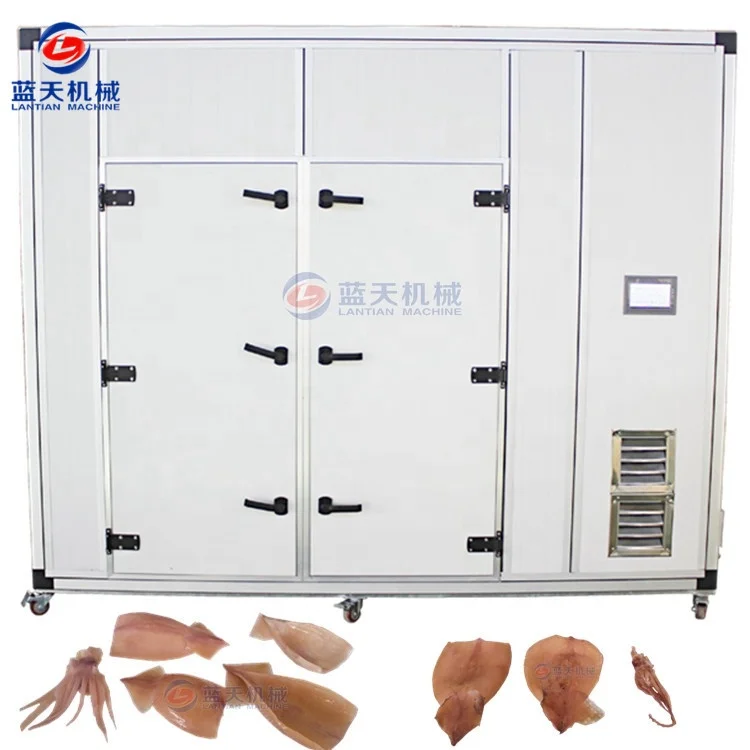

Drying seafood

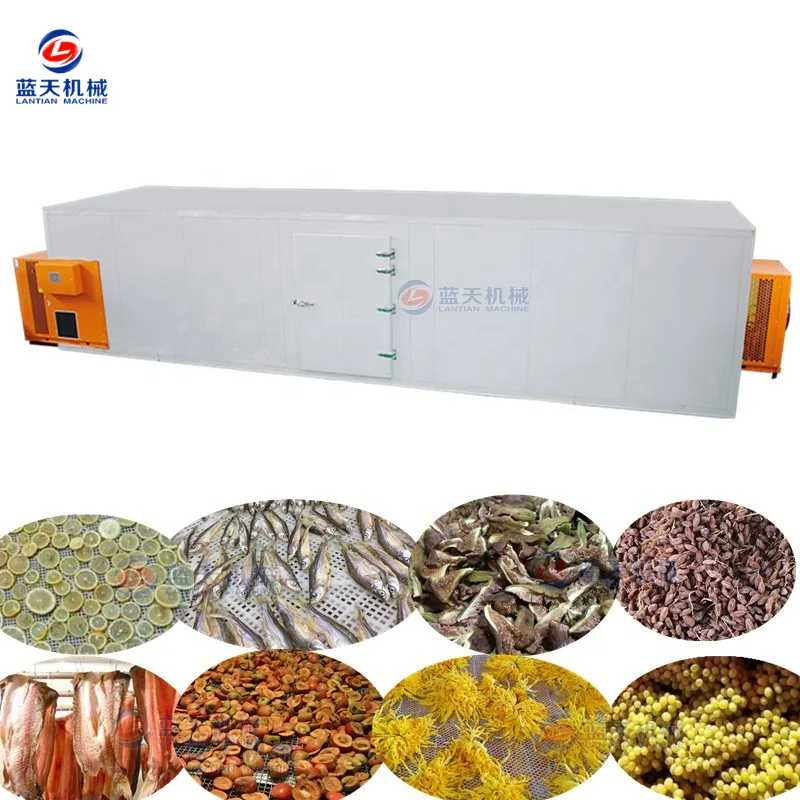

Drying other material
6-Packaging and delivery for Home Drying Machine Food Freeze Dryer Heat Pump Dryer
We are professional dryer supplier, our machines has received unanimous praise from many countries. Before delivering, we will package machines in wooden cases in order to avoid damage in long distance transport, and then we will choose right modes to ship, and there have special personal to delivery to ensure that the machine will be delivered in time.
3P heat pump dryer shipping directly ,no need separate different parts. other big model dryer should shipping separately
Customer Photo
Every week we have customer fly to factory check and test machine from different country.if customer not come, we will supply online video and quotation help customer understand machine how to working.
Our workshop
We are real manufacturer, not trade compnay, have best after-sale service.Full sets machine produce by our self, no need go to different factory to buy different machine connect product line.
