High Frequency Solar Inverter 3 Phase Converter 220/380v mppt solar motor pump


Поделиться:


Цена:225,00 $ - 236,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 286.40 $* 292.37 $*
Jul-19-2025 232.15 $* 237.75 $*
Jun-19-2025 281.87 $* 287.4 $*
May-19-2025 279.28 $* 285.41 $*
Apr-19-2025 223.84 $* 227.19 $*
Mar-19-2025 275.40 $* 281.94 $*
Feb-19-2025 272.46 $* 277.94 $*
Jan-19-2025 270.70 $* 275.22 $*

Характеристики


High Frequency Solar Inverter 3 Phase Converter 220/380v mppt solar motor pump controller



Product Description


High Frequency Solar Inverter 3 Phase Converter 220/380v mppt solar motor pump controller








































ModelM0110G3
Power range3 phase AC 380V (-15%~+30%) 0.75~11KW
Output Frequency Range0~600Hz
Control ModeV/F Control, Sensorless Vector Control, Torque Control
Starting Torque0.5Hz/150%(SVC), 1Hz/150%(V/F);
Communication portRS-485, which support MODBUS protocol
VibrationLess than 5.9m/s
Fault Protectionprotect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.

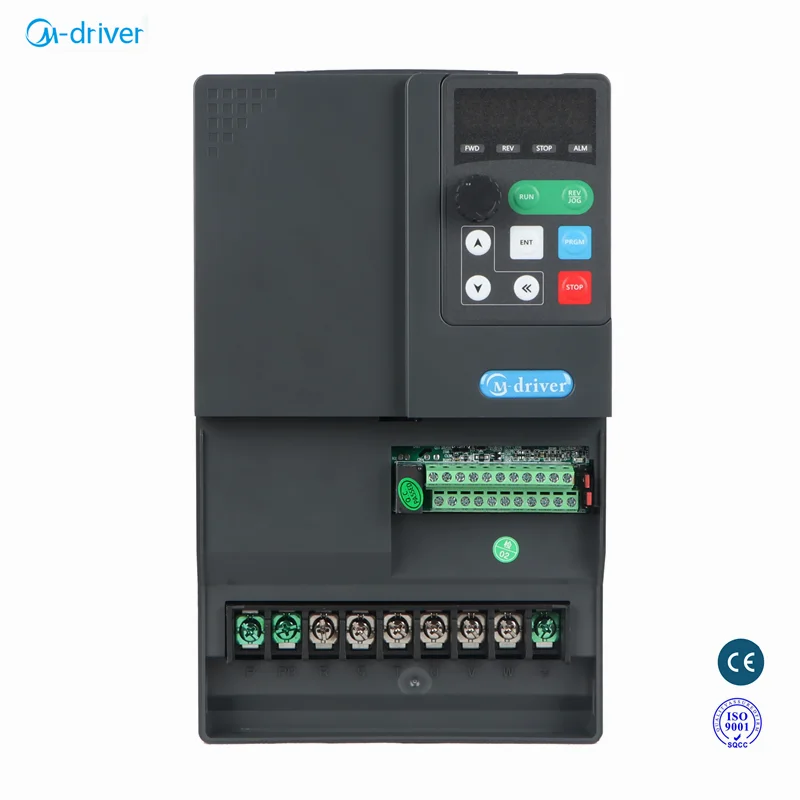

Solar inverter .jpg0.4kw to 37kw inverter .pngTerminal detail .jpg

















Advantages


Our advantages


Frequency inverter 04.jpgPLC Driver Inverter .png


High technology machine to inspect CPU


inspection machine


Highest qualiy inverters from good product line


Inverter proceed .jpg





Specification

























































































































































ItemSpecification
Basic FunctionOver load capabilityG type:150% rated current 60s;180% rated current 3s
P type:120% rated current 60s;150% rated current 3s
Torque boostAuto torque boost function; Manual torque boost 0.1%~30.0%
V/F curveLinear V/F, multi-point V/F and square V/F curve(power of 1.2,1.4,1.6,1.8,2)
V/F separation2 ways: separation and semi-separation
Acc./dec curveStraight line or S curve acceleration and deceleration mode,
Four kinds of acceleration and deceleration time. Acceleration and deceleration time range from 0.0s to 6500.0s
DC brakingDC braking frequency:0.00Hz to maximum frequency. Braking time:0.0s to 36.0s
Brake current value:0%-100%
Jog controlJog frequency range:0.00Hz~50.00Hz;
Jog acceleration/deceleration:0.0s~6500.0s.
Simple PLC  It can realize at maximum of 16 segments speed
Multiple segment speed runningRunning via the built-in PLC or control terminal.
Built-in PIDIt is easy to realize process-controlled closed loop control system.
Auto voltage regulation (AVR)It can keep constant output voltage automatically in the case of change of network voltage.
Over-voltage/current stall controlIt can limit the running voltage/current automatically and prevent frequent over-voltage/current tripping during the running process.
Quick current limitMinimize the over-current fault, protect normal operation of the AC Drive.
Torque limit & control"Excavators" characteristics, automatically limit torque during operation, prevent frequent over-current tripping. Closed loop vector mode can realize the torque control
Personalized functionInstantaneous stop non-stopWhen instantaneous power off, voltage reduction is compensated through load feedback energy, which could make AC Drive keep running in a short period of time.
Rapid current limitTo avoid AC Drive frequent over-current fault.
Timing controlTiming control function:set time range 0Min~6500.0Min.
RunningCommand sourceOperation panel reference, control terminal reference and serial communication port reference. These channels can be switched in various modes.
Frequency sourceThere are totally eleven types of frequency sources, such as digital reference, analog voltage reference , analog current reference, pulse reference, MS speed, PLC, PID and serial port reference.
Input terminal5 digital input terminals.
2 analog input terminals.
1 supporting 0-10V voltage input or 0~20mA current input terminal.
Output terminal2 digital output terminals.
2 relay output terminals.
2 analog output terminals, supporting 0~10V voltage output or 0~20mA current output.
Keyboard operationKeyboard potentiometerEquipped with keyboard potentiometer or coding potentiometer.
Protection functionIt can implement power-on motor short-circuit detection, input /output phase loss protection, over current protection, over voltage protection, under voltage protection, overheating protection and overload protection.
EnvironmentUsing placeIndoor, and be free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
AltitudeBelow 1000m
Ambient temperature-10 ℃ to +40 ℃ (Derating use when under ambient temperature of 40 ℃ to 50 ℃)
HumidityLess than 95%RH,without condensing
VibrationLess than 5.9m/s  (0.6g)

3phase inverer connection .png



Application


Application 03.jpgApplication04.jpgSolar inverter .png








Company Information


M-driver Brand Inverters&converters


"With more than 15 years experience, we focus on R&D, production and sales."


Shenzhen M-Driver Technology Co., LTD. (M-Driver) is located in Shenzhen, the "National Innovative City".Since its establishment,M-Driver company has been focusing on frequency control system and other power electronic transmission technology from R&D,production and marketing.Relying on the core technology platform of high-performance vector frequency conversion control technology and power electronic drive technology,and powerful marketing network platform,we provide customers with professional motor drive and auxiliary solutions such as PLC, man-machine interface and servo drive. At present,our products have been sold to more than 50 countries and regions,and won praise from customers at home and abroad.


We take "customer first" as the business model to achieve the common growth of enterprise value and customer value.The company has set up 10 marketing offices throughout the country to provide customers with professional and convenient services.Our products are widely used in machine tools,wire and cable, plastics, printing, packaging, textile, electronic equipment,building materials,metallurgy,coal mine,municipal engineering and other industries.


The company constantly improves the comprehensive competitiveness of the enterprise, pays attention to the construction of core technology platform, implements a strict development model of IPD product,long-termly absorbs and reserves high-end technical personnel,establishes a wide range of cooperation with the domestic famous universities and scientific research institutions, continue to launch a distinctive and professional series of products.


The company owns large-scale advanced inspection and testing equipment, experimental equipment and production equipment, with an annual capacity of more than 150,000  sets. he company's products have passed the inspection and product registration by the national authority, besides ,our products have passed the CE certification and ISO9001 certification of quality management system.


At present, we have established a nationwide marketing and after-sales service network in many cities and provinces in China. At the same time, our overseas business is booming rapidly. If you get any interest in being the reseller or distributor of M-driver products in your local market, please contact us for more information.


In the future,M-Driver will continue to adhere to the corporate vision of "becoming the first choice supplier of the first-class universal drive",will constantly improve,develop and surpass myself,and create a better tomorrow with all walks of life.


M-driver company .jpg


M-driver inverter .pngInverter Assembly Line .pngWarehouse_03.pngM-driver inverter  01.webp.jpg


 Certification  (2).jpgCertification .jpg





Packaging & Shipping







FAQ


Q 1: Are you trading company or manufacturer ?


A: We are factory.





Q 2: How long is your lead time?


A: Generally it is 3-7 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.





Q 3: Do you provide samples ? is it free or extra ?


A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.





Q 4: What is your terms of payment ?


A:We accept T/T, L/C and CASH.





Q 5: What is the standard of package?


 A: Export standard package or special package according to customer requirement.





Q 6. Is there any discount ?


A. The discount will depend on the quanlity you purchase.





Q 7. What is your supply capacity?


A. The week output of the factory exceeds 500 PCS.





Q 8.Do you provide warranty for the goods?


A. Yes, we provide 18 months of warranty for all the goods from us.





Q 9.Could M-driver provide technical support?


A.We' have more than 12 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
