Официальный грузовик XCMG DG68 с воздушной платформой 68 м китайская пожарная машина на
- Категория: Fire Trucks >>>
- Поставщик: XCMG,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 59500.21 $* | 62475.0 $* |
| Aug-19-2025 | 59000.36 $* | 61950.49 $* |
| Jul-19-2025 | 49500.7 $* | 51975.20 $* |
| Jun-19-2025 | 58000.34 $* | 60900.30 $* |
| May-19-2025 | 50500.97 $* | 53025.2 $* |
| Apr-19-2025 | 57000.3 $* | 59850.46 $* |
| Mar-19-2025 | 56500.40 $* | 59325.21 $* |
| Feb-19-2025 | 56000.62 $* | 58800.3 $* |
| Jan-19-2025 | 55500.21 $* | 58275.7 $* |
Характеристики
Product Description
XCMG official DG68 aerial platform truck 68m chinese fire engine truck for sale
Operational height of DG68 Aerial Platform Fire Truck is up to 68m, the rated working depth is 13.73m, rated load of platform is 400kg, max. working range is 23m, and BENS five-bridge chassis for ultra low driver’s cab is adopted, weight of the vehicle is 48t.
The outrigger is two-echelon telescopic type, and the boom adopts Level-2 telescopic boom (four Level-1 booms and three Level-2 booms) combination, with a total of 7 joints. CANBUS-based variable pump constant pressure control system is adopted for the control system, with application of servo proportional control, PLC integrated control, multimedia dynamic display and various other advanced technologies, which ensures the stability of boom movement as well as good micro mobility.
The vehicle has 25 safety protection devices, which forms a perfect multi-layer protection system and intelligent fault diagnosis system.
DG68 Aerial Platform Fire Truck integrates functions of high altitude fire fighting as well as people saving and property rescuing. It has wide working r, strong fire rescue ability and good maneuverability, the excellent operational performance is widely applicable to high-level, super-level fire rescue operations in the city.
Product Paramenters
Type | Items | Unit | Parameters | ||||
Dimension parameters | Overall length of whole machine | mm | 15060 | ||||
Overall height of whole machine | mm | 4000 | |||||
Overall width of whole machine | mm | 2500 | |||||
Axle distance | Axle 1—Axle 2 | mm | 1700 | ||||
Axle 2—Axle 3 | mm | 3400 | |||||
Axle 2—Axle 3 | mm | 1350 | |||||
Axle 2—Axle 3 | mm | 1350 | |||||
Quality parameters | Curb weight | 48050 | Axle load of Axle 1 and 2 | kg | 16000 | ||
Axle load of Axle 3 and 4 | kg | 24700 | |||||
Axle load of Axle 5 | kg | 7350 | |||||
Full mass | 48200 | Axle load of Axle 1 and 2 | kg | 16240 | |||
Axle load of Axle 3 and 4 | kg | 24620 | |||||
Axle load of Axle 5 | kg | 7340 | |||||
Power parameters | Engine type | OM501LA.Ⅲ/17 | |||||
Engine power/speed | kw/r/min | 300kw/1800rpm | |||||
Driving parameters | Max. vehicle speed | Km/h | ≥85 | ||||
Min. turning diameter | m | ≤24 | |||||
Approach angle | ° | 9 | |||||
Departure angle | ° | 9 | |||||
Braking distance (vehicle speed 30km/h) | m | ≤9.5 | |||||
Min. ground clearance | mm | 331 | |||||
Max. gradient | % | ≥25% | |||||
Performance parameters | Rated working height | m | 68 | ||
Max. working range | m | 23 | |||
Max. probing depth of aerial platform | m | 13.7 | |||
Rated load of aerial platform | kg | 400 | |||
Outrigger span (longitudinal×horizontal) | m | 7.635×7.0 | |||
Amplitude variation of No. 1 boom | ° | 1～84 | |||
Amplitude variation of No. 2 boom | ° | -74～74 | |||
Working speed | Operation time of boom | s | ≤200 | ||
Spreading time of outrigger | s | ≤30 | |||
Fire fighting performance | Fire monitor | Rated flow | L/s | 50 | |
Rated pressure | MPa | 0.8 | |||
Rated jetting distance | m | ≥70 | |||
Swinging range of monitor head | ° | Up and down: -45~90 Left and right: ±90 | |||

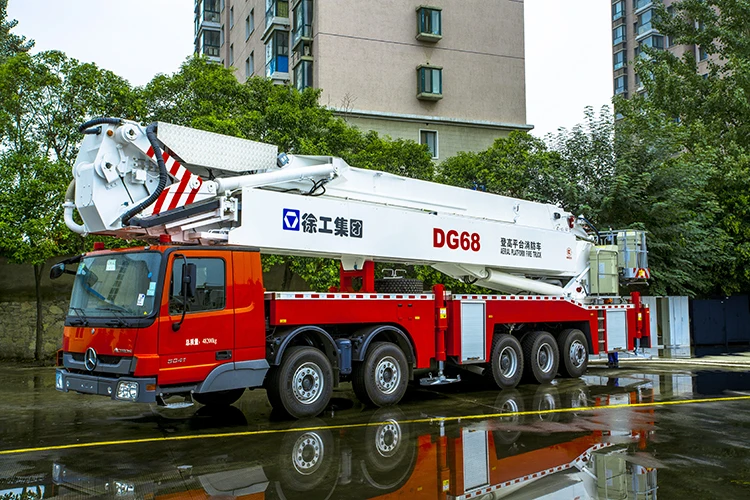

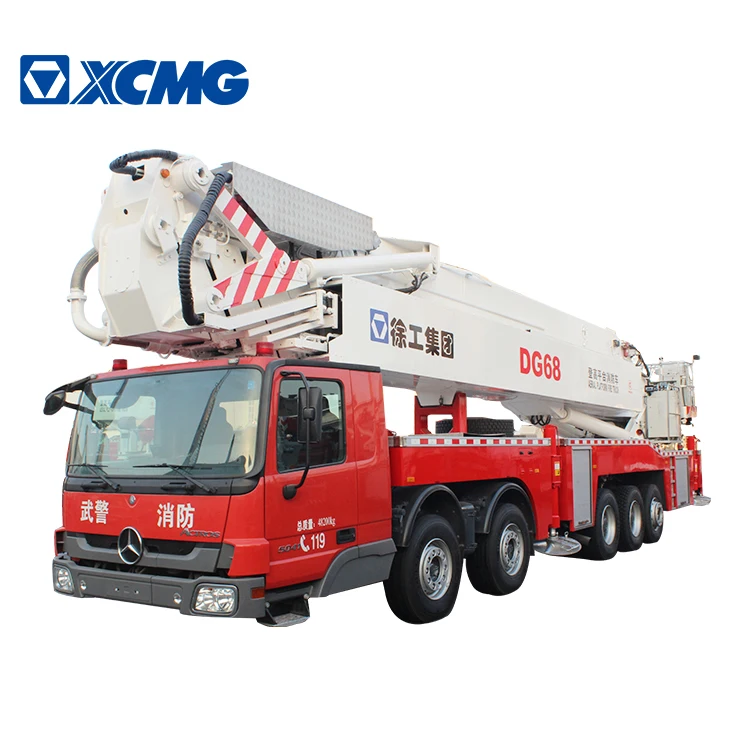

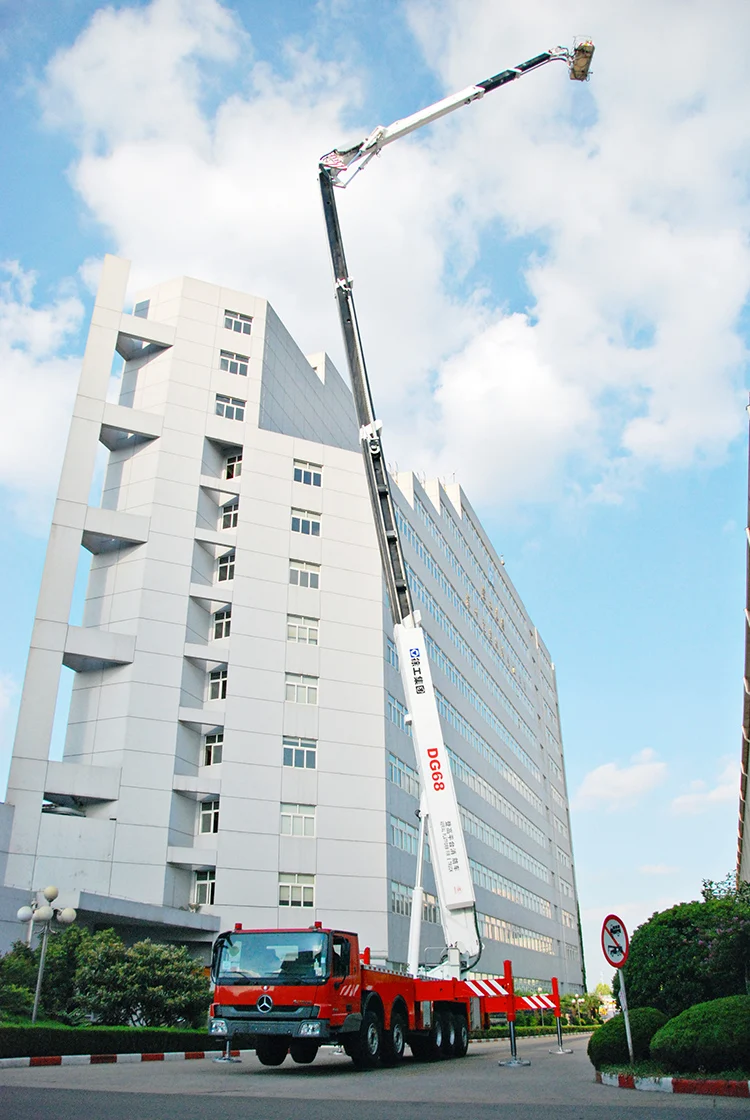

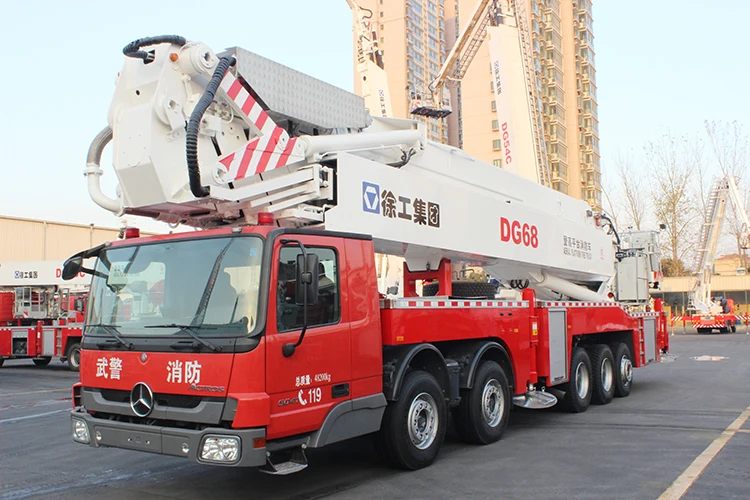

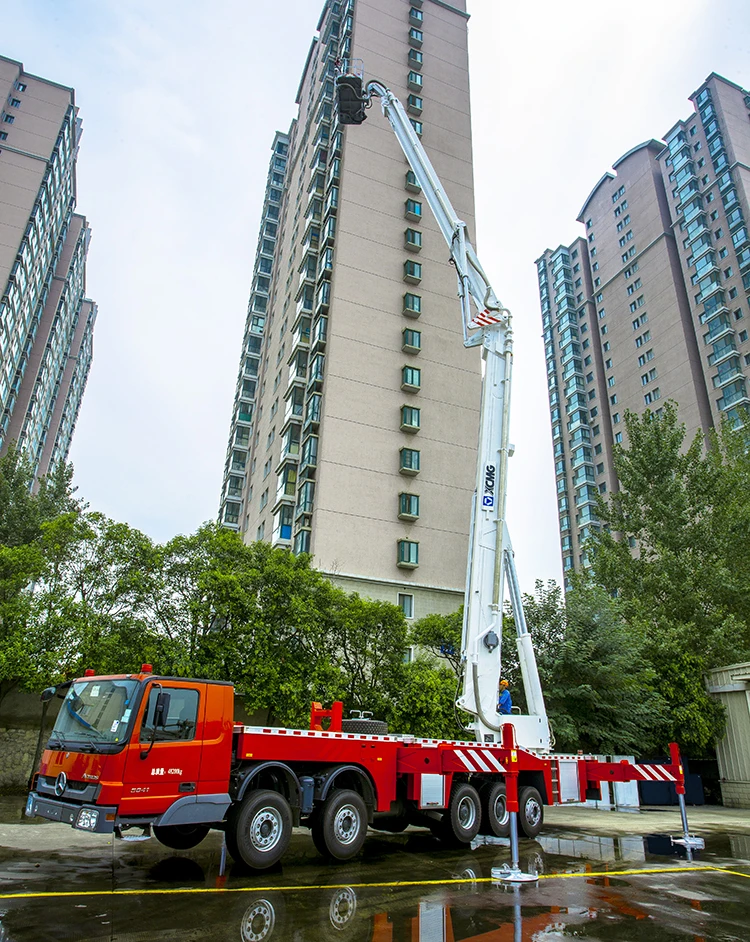

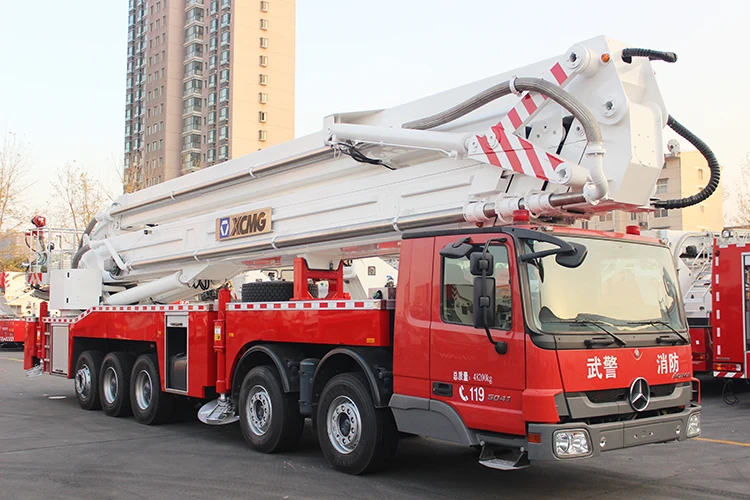

Product Show
