Характеристики
Paint factory real stone Liquid automatic filling machine explosion-proof coating paint quantitative weighing canning machine
Introduction of Automatic weighing liquid paint filling machine
It adopts gravimetric method to measure, by weighing sensor output signal to control the charging valve opening, so as to realize the purpose the purpose of automatic filling. By equipped with a pump in the front end of the feeding port, or pressuring the material tanks Sent material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products. It has the advantage of high efficiency and small filling error, it's widely used in coating, ink, paint, asphalt, glue, lubricant, petrochemical, fineness chemical industries. It is not only suitable for liquid filling, but also for ointment product filling.
Technical Parameters of Automatic weighing liquid paintfilling machine
Model | Capacity(Liter) | Filling speed(drum/min) | Accuracy(g) | Air source(Mpa) |
MN-30-A | 0.5-30 | 6-8 | ±2g | 0.4-0.6 |
Working Principle of Automatic weighing liquid paintfilling machine
Automatic control instrument received weight signal of weight signal from the weighing sensor, control the quick or slow speed of feeding device, to achieve the purpose of automatic filling; With a semi-automatic roller conveyor and lid-pressing/clamping device to complete the filling and sealing process.
Advantages of Automatic weighing liquid paint filling machine
1. The filling machine adopts high precision gravimetric measuring software system, so the measuring result is very correct.
2. There are fast and slow feeding valves, fast valve increases filling speed and slow valve ensure filling precision greatly, which also controlled by pneumatic system.
3. Widely measuring range and the accuracy is just +-10g/barrel.
4. Filling nozzle adopts anti-leaking type, which make sure that there is not any airs into the filling materials.
5. Feeding and filling automatically, equipped with pneumatic nipping and capping device for 1-30KG capacity depended on the model.
6. Stainless steel roller, stand and legs are provided to good operation

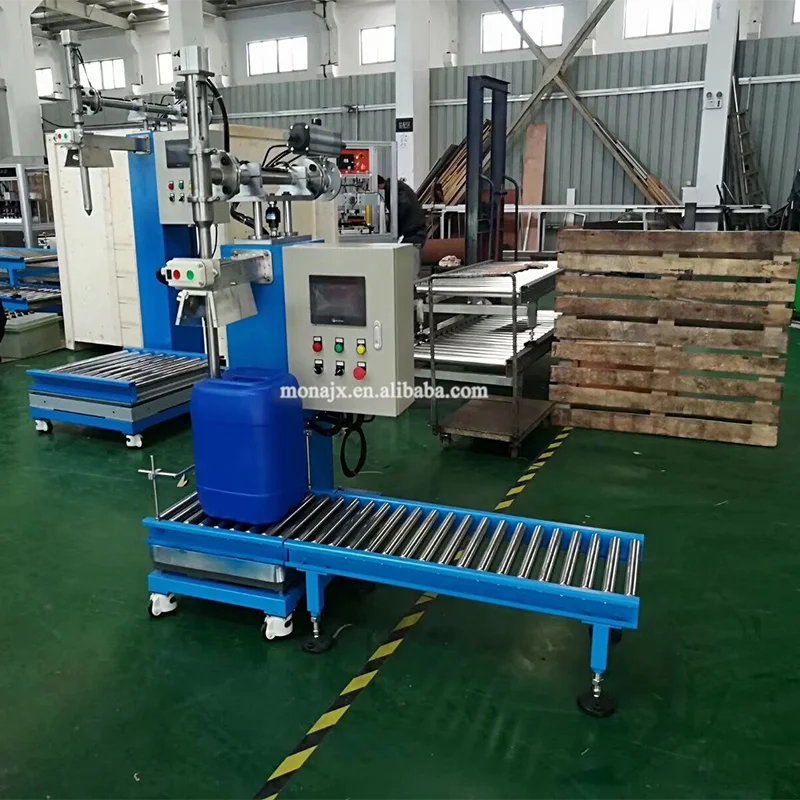

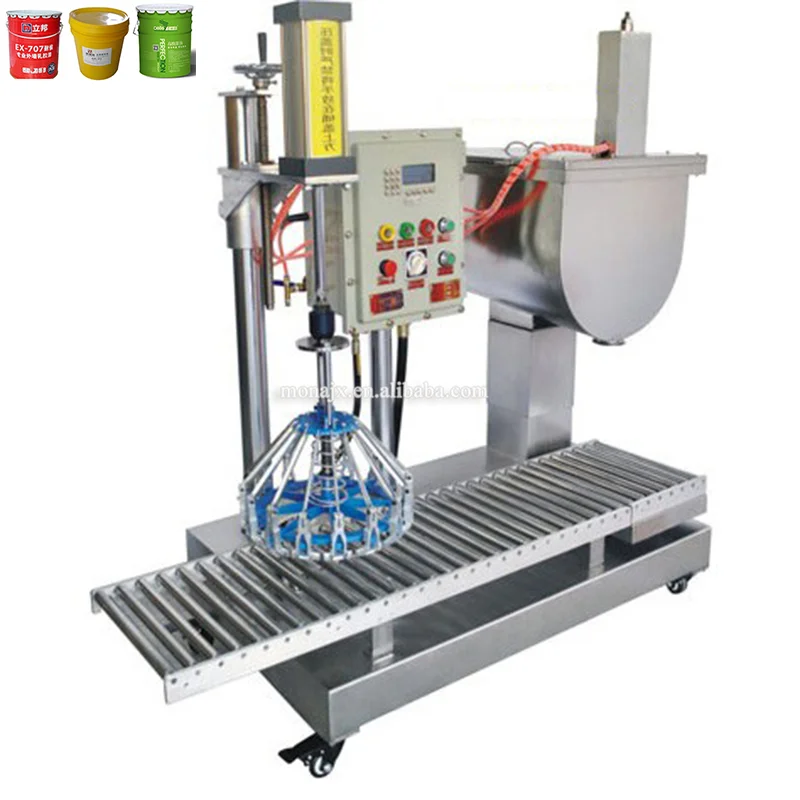

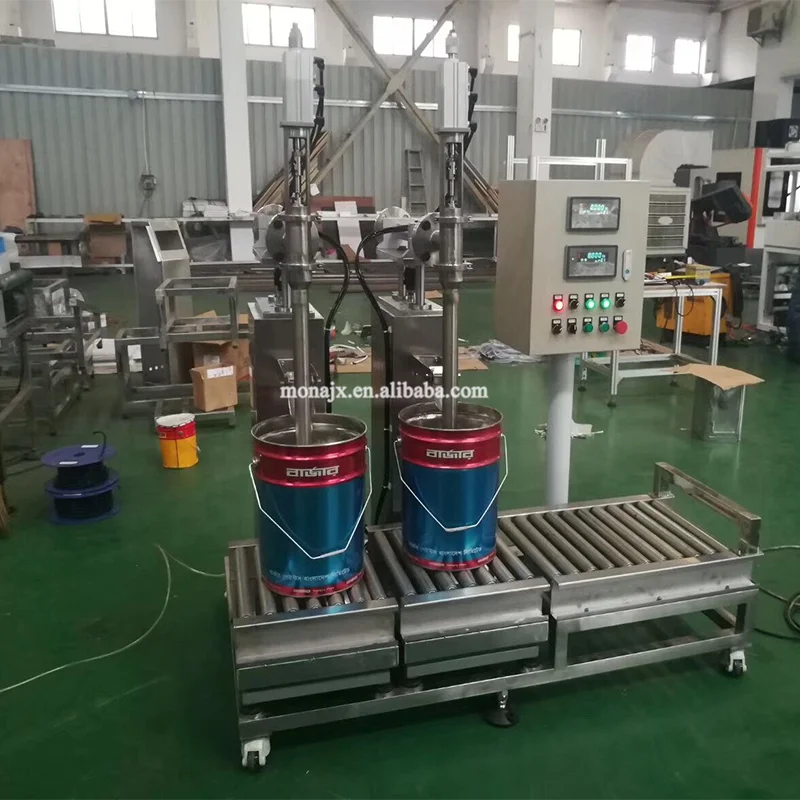

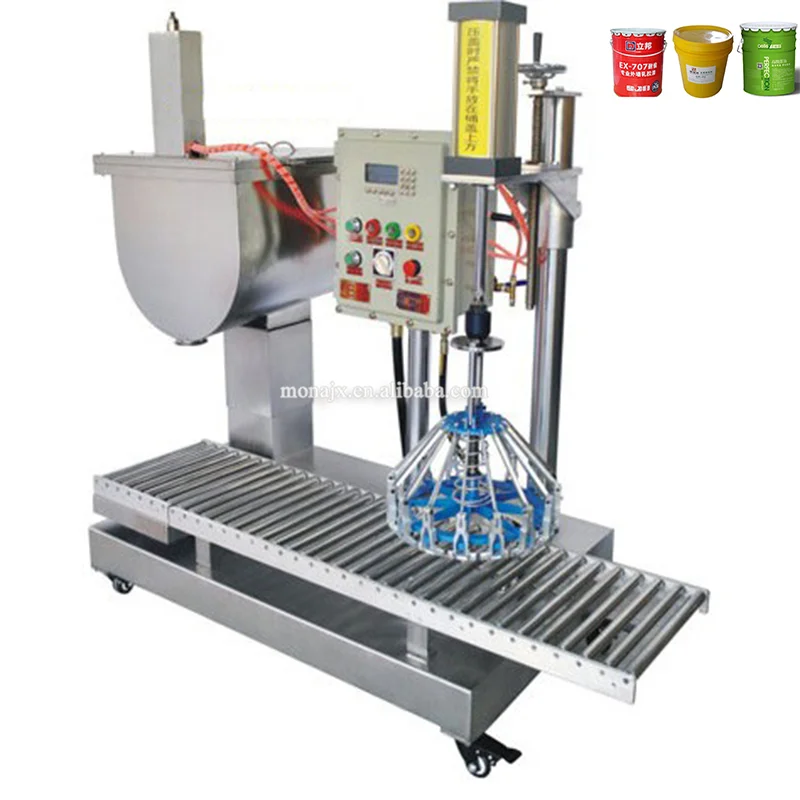

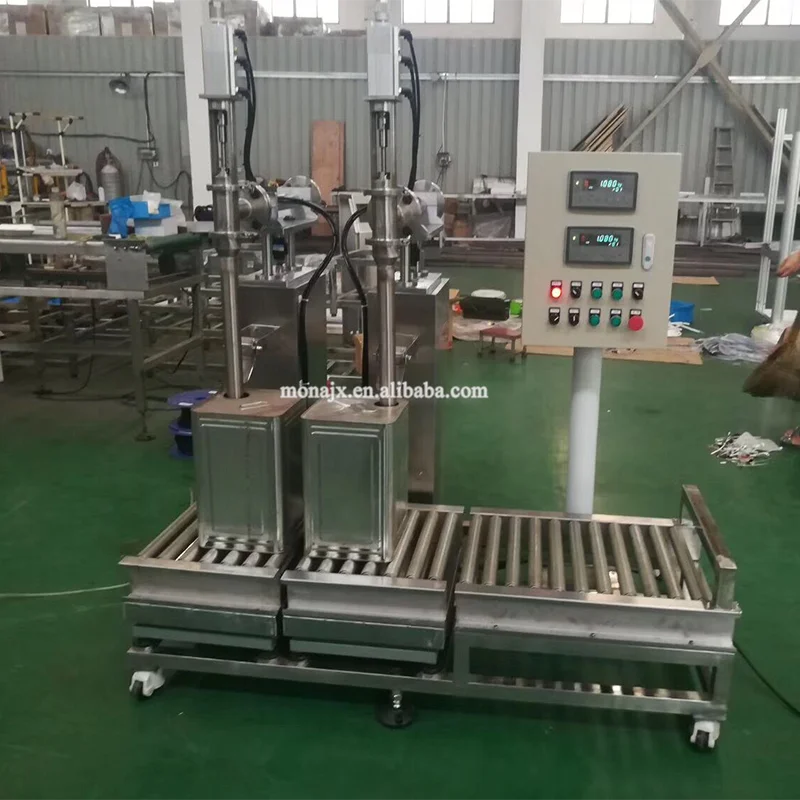

Picture of Automatic weighing liquid paint filling machine
