Products Description
Description
melting tank is consisted of tank body and mixing part. The mixing tank made of stainless steel with jacket for heating or cooling and insulating layer for outer. There are many options for choosing the type of Jacketed heating, such as electric heatin steam heating, oil heating. According to technological requirements, the mixing part can choose high shear, high speed dispersion or low speed anch or mixing, paddle mixing, propeller mixing and so on.
Structure characteristics
1. Contact parts of machine are completely made of food grade stainless steel 304/316L, meeting the standard of GMP.
2. Pure copper motor: low noise, stable dynamic, sustainable work.;Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.
3. Flat cover with double open lids and Handle,Creative handle, quick to open, convenient for production
4. Inlet port and outlet port,Available port connection: Clamp, Thread Butt weld, Flange etc.Flange process arc transition smooth, easy to clean no dead ends, beautiful appearance.
5.Sight glass: tempered glass material, threaded connection form.
6.Electric heating: the interlayer is provided with electric heating rods.
7. For SS agitator; Rotation speed can be constant speed, also can be equipped with VFD according to real work condition. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.
8. Electrical heated tube(electric heating rods), adopt threaded connection form, convenient assembly.
10. pad adopt Import material, Resistant to 300 degrees temperature, difficult to leak.
Application:
1.Chocolate melting tank is in the chocolate production necessary equipment, mainly uses in after the correct grinding chocolate syrup heat preservation storing, satisfies the chocolate production the technological requirement, adapts to the continuous production request.
2.Chocolate melting tank besides has functions and so on temperature decrease, elevation of temperature, heat preservation, may carry on to the chocolate pulp does not stop stirs, but also has the degasification, the air sweetening, to dehydrate as well as to prevent functions and so on pulp fat separation.
2. Pure copper motor: low noise, stable dynamic, sustainable work.;Dust proof engine base: inside stainless steel bearing, with dust cover to avoid dust and grease dirt into tank.
3. Flat cover with double open lids and Handle,Creative handle, quick to open, convenient for production
4. Inlet port and outlet port,Available port connection: Clamp, Thread Butt weld, Flange etc.Flange process arc transition smooth, easy to clean no dead ends, beautiful appearance.
5.Sight glass: tempered glass material, threaded connection form.
6.Electric heating: the interlayer is provided with electric heating rods.
7. For SS agitator; Rotation speed can be constant speed, also can be equipped with VFD according to real work condition. Agitator can be frame mixer, paddle, scattered disk, scraper, ribbon etc.
8. Electrical heated tube(electric heating rods), adopt threaded connection form, convenient assembly.
10. pad adopt Import material, Resistant to 300 degrees temperature, difficult to leak.
Application:
1.Chocolate melting tank is in the chocolate production necessary equipment, mainly uses in after the correct grinding chocolate syrup heat preservation storing, satisfies the chocolate production the technological requirement, adapts to the continuous production request.
2.Chocolate melting tank besides has functions and so on temperature decrease, elevation of temperature, heat preservation, may carry on to the chocolate pulp does not stop stirs, but also has the degasification, the air sweetening, to dehydrate as well as to prevent functions and so on pulp fat separation.
Material | SS304 or SS316L | |||||
Volume | 50L-10,000L | |||||
Pressure | Atmospheric Pressure | |||||
Tank type | Vertical type | |||||
Structure | inner layer+jacket+insulation | |||||
heating mode | electric heating | |||||
Agitator type | Scraped Wall Mixer | |||||
0-36RPM | ||||||
Parts details | 1.Half Open Covers . | |||||
2.Various types of CIP cleaners | ||||||
3.Sterile respirator | ||||||
4.Adjustable Legs | ||||||
5.Inlet and Outlet sanitary valve. | ||||||
6.Thermometer (According to customer requirements ). | ||||||
7.Scraped Wall Mixer .(According to customer requirements). | ||||||
8.Temperature Control Box | ||||||
We can customize the equipment according to customer requirements. | ||||||
Technical Parameters | ||||||||||
Model | Effective volume(L) | Dimension of tank(D*H)(mm) | Heating power(KW) | Motor power(kw) | Scraped Wall Speed(r/min) | |||||
ACE-100 | 100 | 550*500 | 2 | 0.55 | 0-36RPM | |||||
ACE-200 | 200 | 650*500 | 4 | 0.75 | ||||||
ACE-300 | 300 | 750*700 | 4 | 1.1 | ||||||
ACE-500 | 500 | 900*850 | 6 | 1.5 | ||||||
ACE-600 | 600 | 1000*1000 | 6 | 1.5 | ||||||
ACE-800 | 800 | 1100*1000 | 8 | 2.2 | ||||||
ACE-1000 | 1000 | 1200*1000 | 10 | 2.2 | ||||||

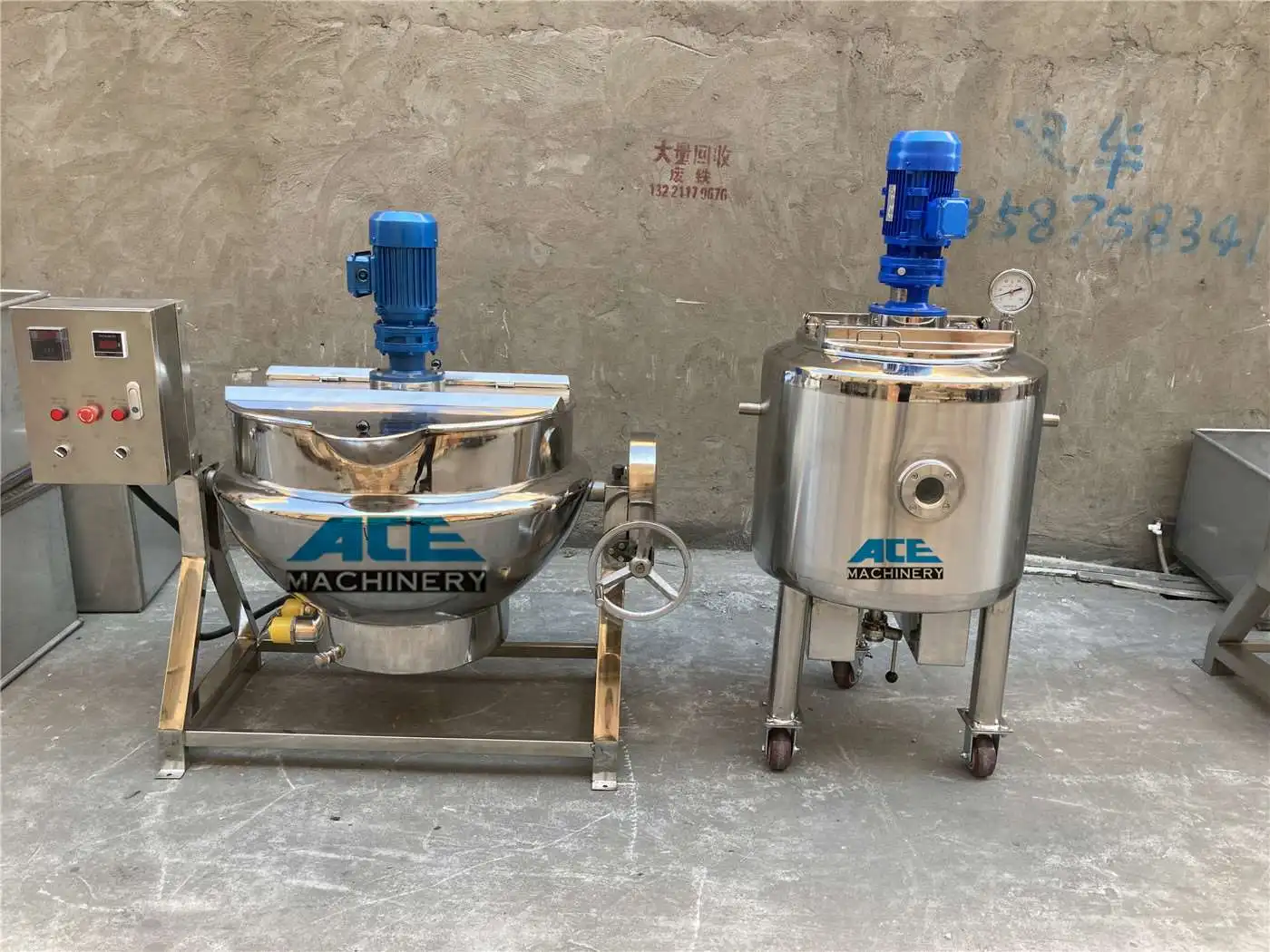

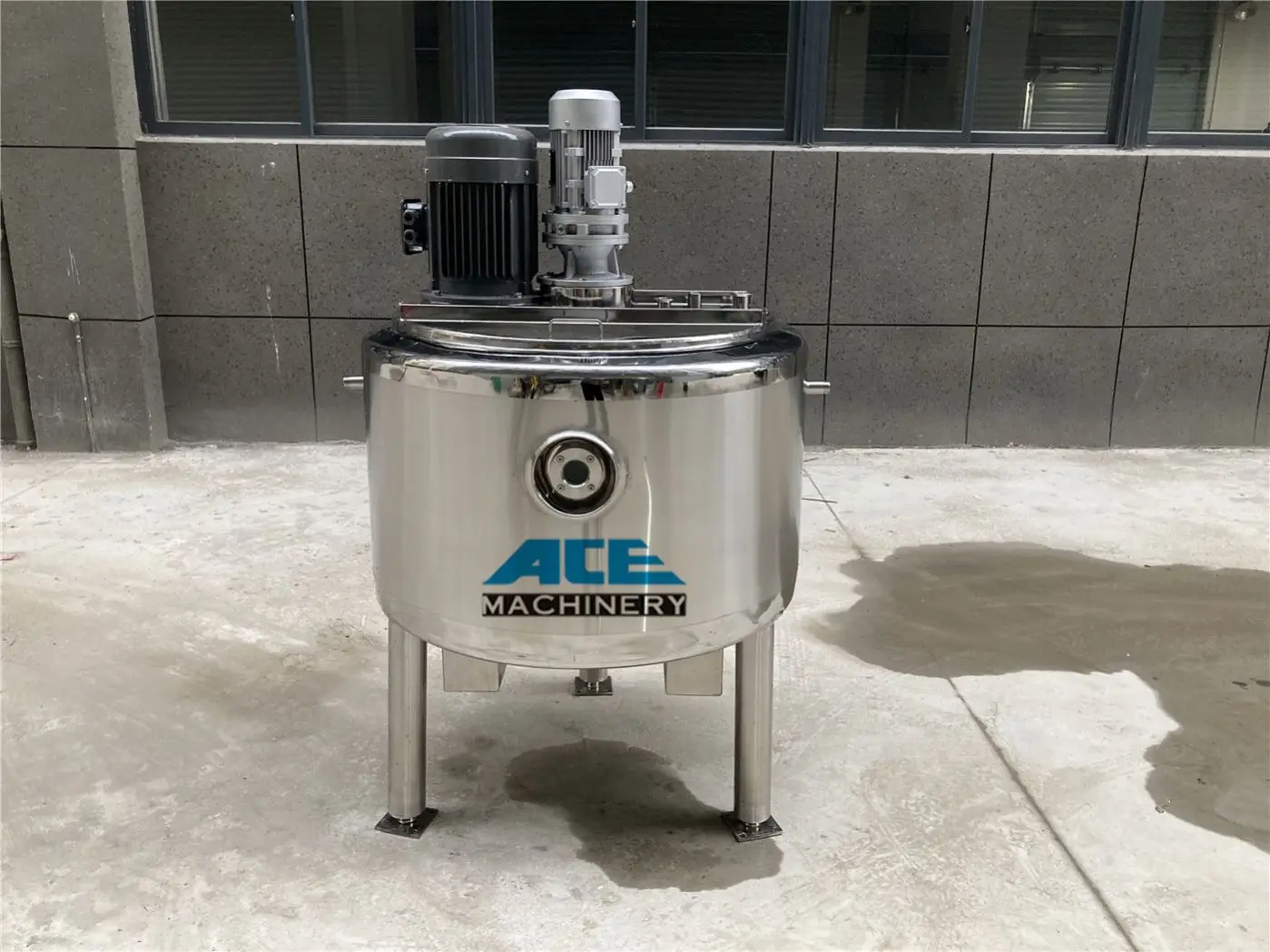

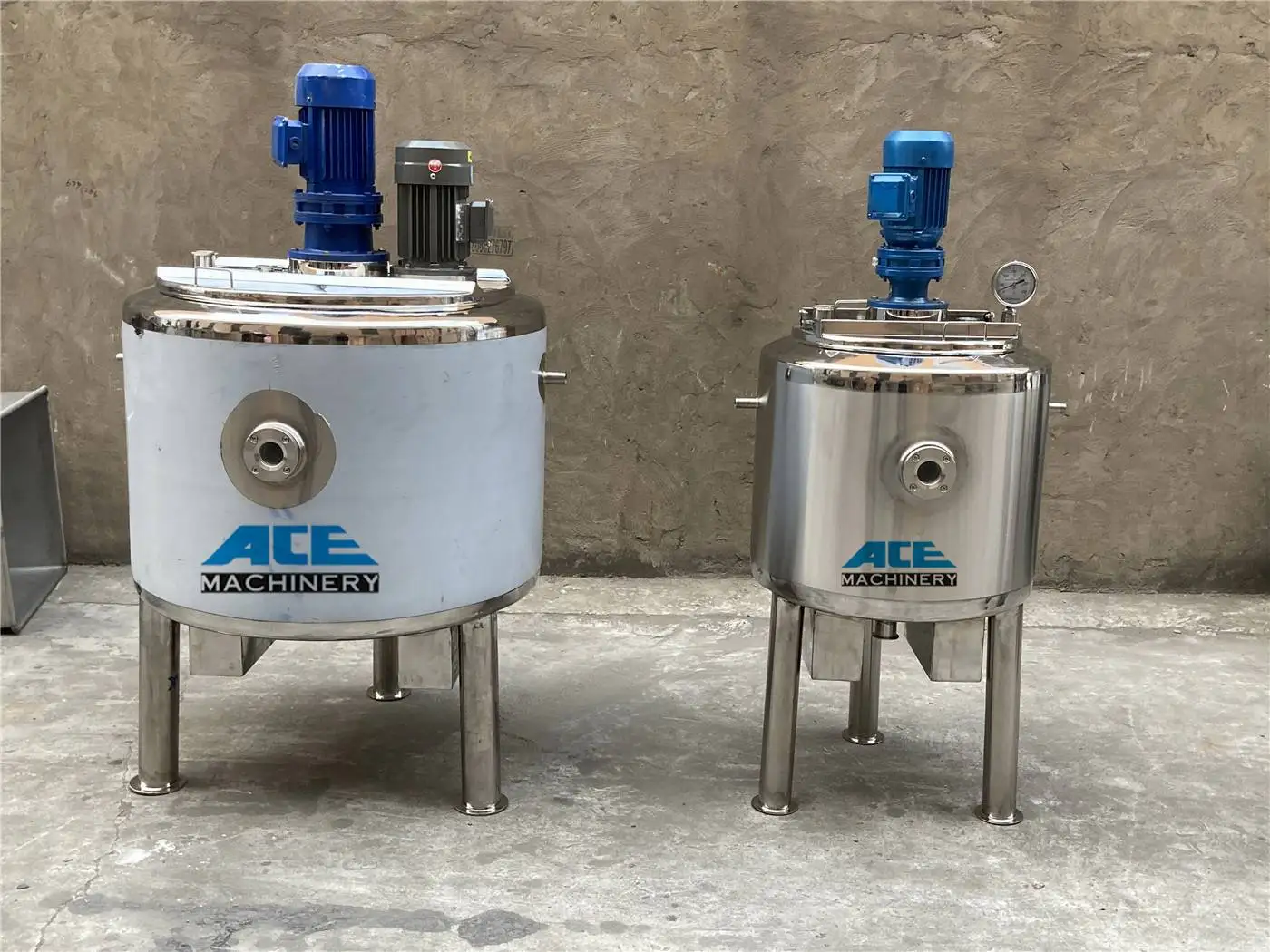

Details Images
Packaging & Shipping
We are experienced in the whole packing and shipping process,and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in plywood case or carton package for small parts.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T in advance, 30% as deposit, and finish 70% balance payment before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 4 weeks after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
