Автоматическая машина для ламинирования
- Категория: Ламинаторы >>>
- Поставщик: Weifang,Swan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.12 $* | 0.4 $* |
| Aug-16-2025 | 0.3 $* | 0.55 $* |
| Jul-16-2025 | 0.50 $* | 0.42 $* |
| Jun-16-2025 | 0.87 $* | 0.20 $* |
| May-16-2025 | 0.78 $* | 0.88 $* |
| Apr-16-2025 | 0.84 $* | 0.36 $* |
| Mar-16-2025 | 0.60 $* | 0.32 $* |
| Feb-16-2025 | 0.14 $* | 0.51 $* |
| Jan-16-2025 | 0.18 $* | 0.67 $* |
Характеристики
Product Description

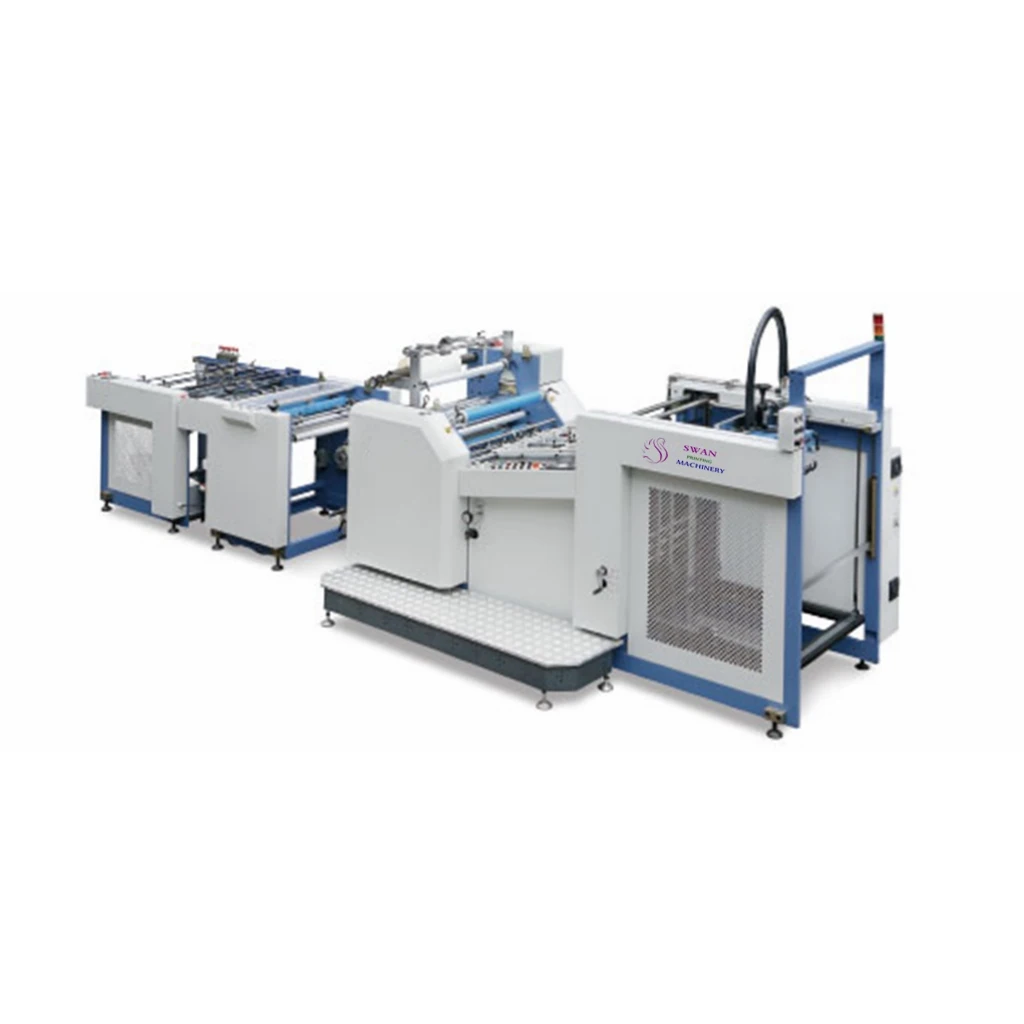

Automatic film Laminating machine
filim laminator for paper packaging
Specification
Model | SW520A | SW750A | SW820A | SW920A | SW1100A |
Max. Paper Size | 520mm | 750mm | 820mm | 920mm | 1100mm |
Paper Thickness | 100-500gsm | 100-500gsm | 100-500gsm | 100-500gsm | 100-500gsm |
Laminating Speed | 0-65m/Min | 0-65m/Min | 0-65m/Min | 0-65m/Min | 0-65m/Min |
Power | 14Kw | 19Kw | 21Kw | 23Kw | 25Kw |
Weight | 3000kg | 3600kg | 4000kg | 5500kg | 7600kg |
Dimension | 4.8x1.6x1.6m | 5.9x2x1.9m | 6.2x2x1.9m | 6.8x2.2x2.1m | 8.3x2.6x2.1 |
Auto Feeder
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine
Separation system
Pneumatic separation system to separate the paper stably and quickly.
Pneumatic separation system to separate the paper stably and quickly.
Human-computer interface
A user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
A user-friendly interface system with a colour touchscreen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.
Side Lay Regulator
The Servo controller and Side Lay Mechanism guarantees precise paper alignment at all times.
Electromagnetic Heater
Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.
Anti-curvature Device
The machine is equipped with an anti-curl device, which ensures that paper remains flat and smooth during
the lamination process.
the lamination process.
Corrugrated Delivery
A corrugatted delivery system collects paper easily.
Automatic Stacker
Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets
Packing & Delivery
Aftersale Service
We have an experienced engineer team who can provied field installation, training all around the world.
Contact Us
