Автоматическая лиофилизирующая машина Pilot для сушки
- Категория: >>>
- Поставщик: Ningbo,Device,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 18207.19 $* | 19117.98 $* |
| Aug-17-2025 | 18054.72 $* | 18957.82 $* |
| Jul-17-2025 | 15147.85 $* | 15904.10 $* |
| Jun-17-2025 | 17748.58 $* | 18635.67 $* |
| May-17-2025 | 15453.27 $* | 16226.22 $* |
| Apr-17-2025 | 17442.94 $* | 18314.66 $* |
| Mar-17-2025 | 17289.53 $* | 18153.37 $* |
| Feb-17-2025 | 17136.73 $* | 17993.15 $* |
| Jan-17-2025 | 16983.17 $* | 17832.5 $* |
Характеристики
Product Description

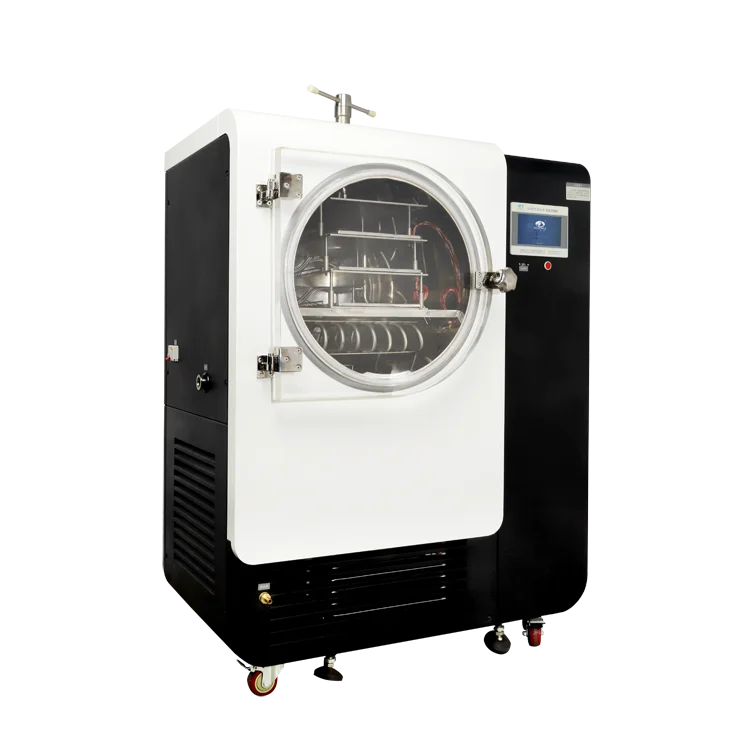

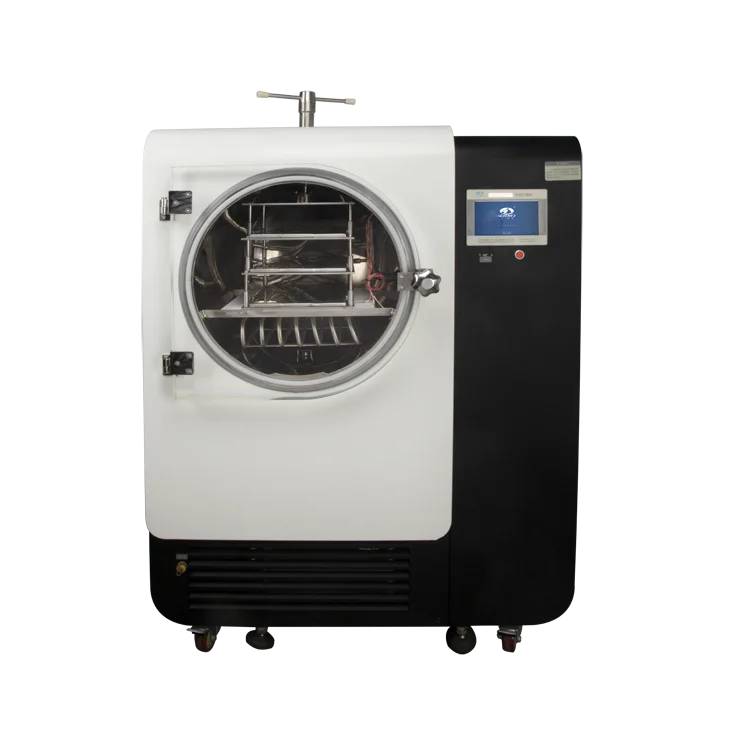

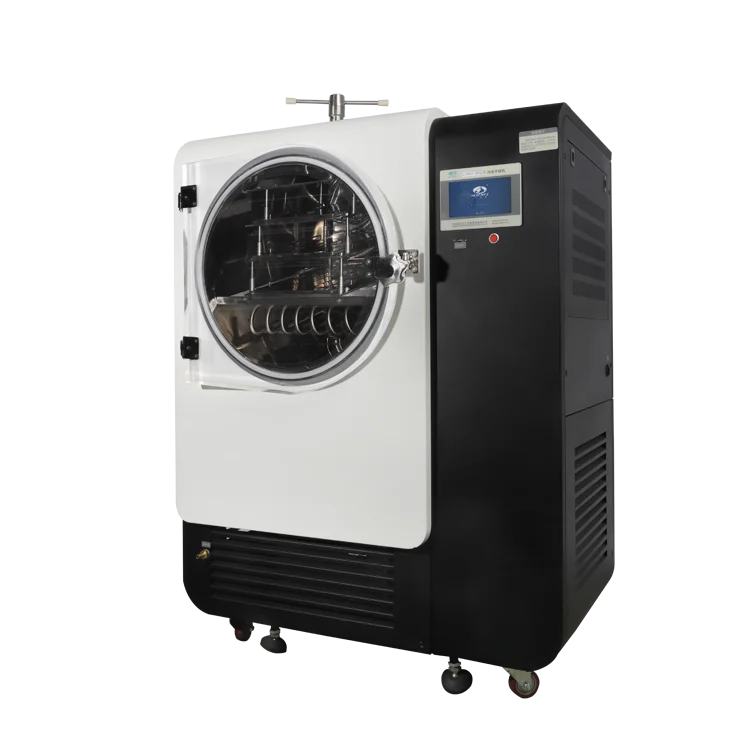

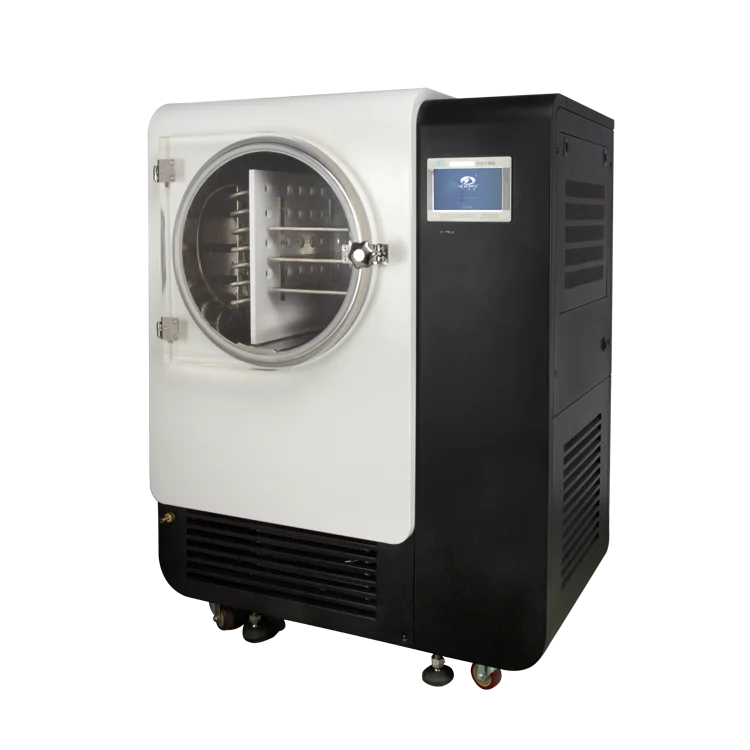

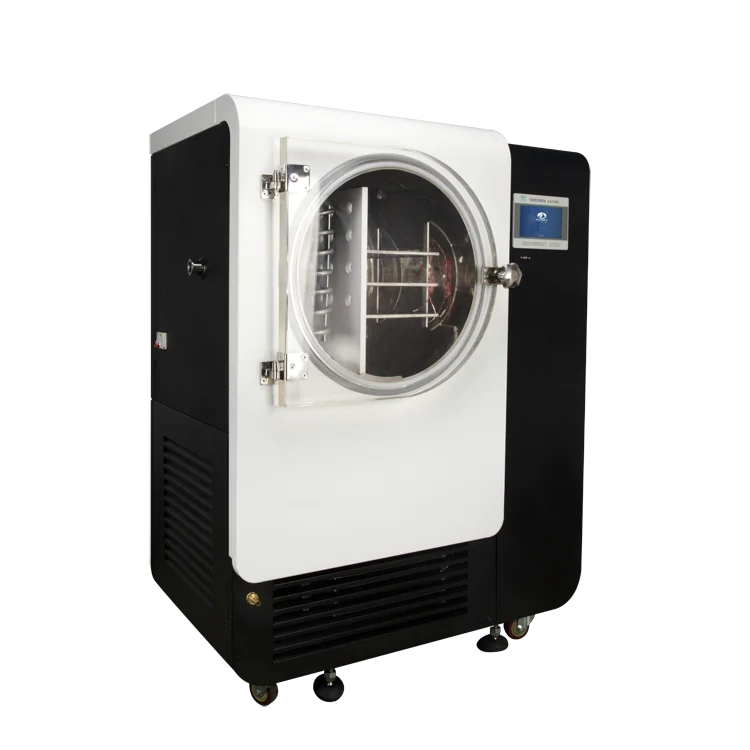

YG series freeze-drying machine
SCIENTZ-YG series silicone oil in-situ freeze-drying machine can be used to explore freeze-drying curves and process temperature-sensitive samples (especially medicines, microbiological products, precious medicinal materials, etc.). It can be used for small-scale and small-scale enterprise trials. Large-scale production is especially suitable for exploring the freeze-drying process.
Specification
Model | Scientz-10YG | Scientz-30YG | Scientz-50YG | ||||||||||
Type | Ordinary | Top press | Ordinary | Top press | Ordinary | Top press | |||||||
Dryer area(㎡) | 0.2 | 0.1 | 0.3 | 0.3 | 0.5 | 0.5 | |||||||
Ability to capture water (kg/batch) | 3 | 1.5 | 6 | 6 | 10 | 10 | |||||||
Vial quantity | 12mm | 1300 | 650 | 1950 | 1950 | 3690 | 3690 | ||||||
16mm | 770 | 338 | 1160 | 1160 | 1940 | 1940 | |||||||
22mm | 410 | 205 | 615 | 615 | 1020 | 1020 | |||||||
plate load capacity(L) | 2 | 1 | 3 | 3 | 6 | 6 | |||||||
Plate size | L/min | 430 | 430 | ||||||||||
M/min | 240 | 240 | 240 | 240 | 300 | 300 | |||||||
Plate distance(mm) | 70 | ||||||||||||
Plate quantity(pc) | 2 | 1 | 3 | 3 | 4 | 4 | |||||||
Plate temperature range(℃) | -42_+70(no load) | ||||||||||||
Cold trap lowest temperature (℃) | ≤-56(no load) | ||||||||||||
Ultimate vacuum(pa) | ≤-5(no load) | ||||||||||||
Power kw | 1.7(220V) | 1.6(220V) | 2.2(220V) | 2.2(220V) | 3.0(380V) | 3.0(380V) | |||||||
Amibient temperature (℃) | ≤25 | ||||||||||||
Overall dimension(mm) | 750(L)*640(W)*1200(H) | 1100(L)*760(W)*1410(H) | 1100(L)*760(W)*1410(H) | ||||||||||
Weight(kg) | 164 | 164 | 224 | 240 | 256 | 270 | |||||||

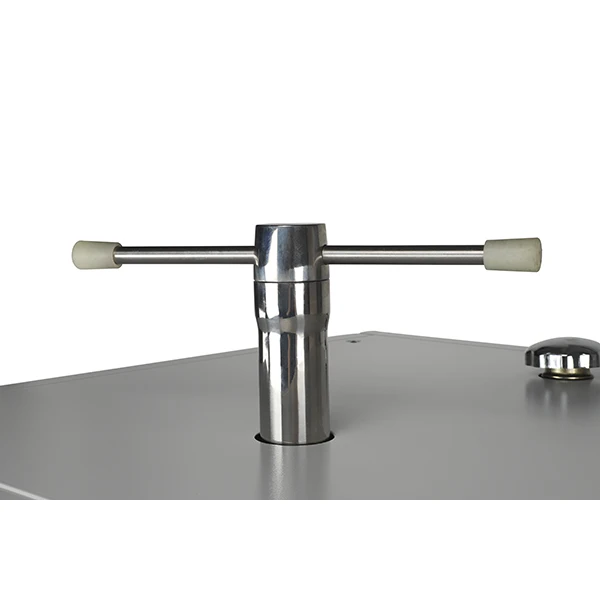

Special note | The device size and weight not included in the external vacuum pump, top press model height not included in manual gland handle(the handle height is 90mm). | ||||||||||||
Packing List
Features
1) The pre-freeze drying is carried out in situ, which reduces the complicated operation of the drying process and realizes automation;
2) The shelf temperature error is ≤1℃, and the drying effect is uniform;
3) The temperature of the partition is adjustable, controllable, groping, pilot-scale and production technology;
4) 7-inch touch screen operation, PID adjustment, display drying curve and historical curve, equipped with USB download
5) Interface, host computer software, curve printing.
6) The square tray is not easy to deform, easy to operate, and easy to clean;
7) Equipped with an inflation valve, which can be filled with dry inert gas;
8) The drying chamber adopts a high light-transmitting colorless transparent plexiglass door, which can clearly observe the
changing process of the material during the operation.
9) Each partition has a separate sample probe to observe the sample temperature in real time.
10) Imported compressor, dual-machine cascade technology, large refrigeration capacity and low temperature.
11) It can be operated in manual and fully automatic modes.
2) The shelf temperature error is ≤1℃, and the drying effect is uniform;
3) The temperature of the partition is adjustable, controllable, groping, pilot-scale and production technology;
4) 7-inch touch screen operation, PID adjustment, display drying curve and historical curve, equipped with USB download
5) Interface, host computer software, curve printing.
6) The square tray is not easy to deform, easy to operate, and easy to clean;
7) Equipped with an inflation valve, which can be filled with dry inert gas;
8) The drying chamber adopts a high light-transmitting colorless transparent plexiglass door, which can clearly observe the
changing process of the material during the operation.
9) Each partition has a separate sample probe to observe the sample temperature in real time.
10) Imported compressor, dual-machine cascade technology, large refrigeration capacity and low temperature.
11) It can be operated in manual and fully automatic modes.
Company Profile
NINGBO LAB DEVICES is a wholly-owned subsidiary of Ningbo Scientz Biotechnology Co.,Ltd (stock code:430685).
FAQ
Q1.Are you factory or trading company?
Products can be customized according to your requirements;OEM service available with customers' brand.
A:We are a factory
Q2.What is your principle for the samples?
A:We do not provide free sample.
Q3.Which payment can be acceptable?
A:We could accept the payment by T/T、Paypal,etc
Q4.How about your delivery me?
A:Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
A:We could provide Online instruction;Real-time support by call or voice-chat
During warranty time,we can send product accessories when you need for free.
Technical guidance is free and ready forever
Q6.Training
A:Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(installation、training、debugging、maintenance);
Q2.What is your principle for the samples?
A:We do not provide free sample.
Q3.Which payment can be acceptable?
A:We could accept the payment by T/T、Paypal,etc
Q4.How about your delivery me?
A:Generally, it will take 7to 15 working days after receiving your payment.Depend on the quantity.
Q5.Service
A:We could provide Online instruction;Real-time support by call or voice-chat
During warranty time,we can send product accessories when you need for free.
Technical guidance is free and ready forever
Q6.Training
A:Your technicians can come to our factory for training,SCIENTZ engineers can go your place for local support(installation、training、debugging、maintenance);
Products can be customized according to your requirements;OEM service available with customers' brand.
