Заводское оборудование 3 в 1 катушка стальной лист декойлер выпрямитель кормушка машина Автоматический
- Категория: Metal Straightening Machinery >>>
- Поставщик: Zhejiang,Jinaolan,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2520803.56 $* | 2646843.18 $* |
| Aug-18-2025 | 2499620.9 $* | 2624601.10 $* |
| Jul-18-2025 | 2097139.81 $* | 2201996.49 $* |
| Jun-18-2025 | 2457254.77 $* | 2580117.24 $* |
| May-18-2025 | 2139505.90 $* | 2246480.32 $* |
| Apr-18-2025 | 2414887.28 $* | 2535631.25 $* |
| Mar-18-2025 | 2393704.60 $* | 2513389.22 $* |
| Feb-18-2025 | 2372521.8 $* | 2491147.49 $* |
| Jan-18-2025 | 2351337.35 $* | 2468904.25 $* |
Характеристики
Decoiler
Function instruction: uncoiling is to fix coil on the spindle of uncoiler, a supporting table to support coil Inner diameter,
while working automatically, through material loop controlling instruction to make spindle uncoiling and loosing coil
intermittently, equipped with coil diameter detection, to control uncoiling speed, ensure uncoiling line speed is uniform
velocity, improved material loosing problem.
Components included: expansion and contraction part, press arm part, limit wheel part, material loop controlling part.
Expansion method: hydraulic expansion.
Spindle expansion range: Φ450-Φ530mm.
Spindle driven motor: AC motor, with inverter.
Spindle driven method: variable frequency gear motor.
Spindle brake: disc brake.
Spindle uncoiling direction: down uncoiling.
Press material wheel specification: PU rubber tires
Press material wheel driven method: AC motor, with inverter

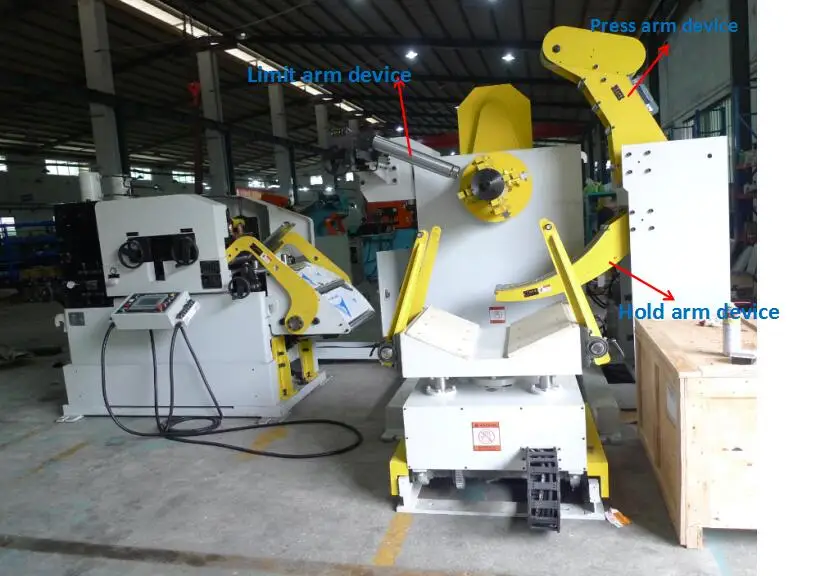

Function of press arm: from cut off bundling belt which is used for fixing coil until the coil head is pressed tightly by
straightener roller, to prevent coil rebounding; while whole feeding line working, let the coil uncoiling smoothly, to prevent
coil dispersing and the press arm is motorized, with tracking and follow up function ie. Rotating speed of press arm roller is
absolutely the same with uncoiling line speed, then tensioning metal strip, to prevent coil loosing.![]()
![]()
while working automatically, through material loop controlling instruction to make spindle uncoiling and loosing coil
intermittently, equipped with coil diameter detection, to control uncoiling speed, ensure uncoiling line speed is uniform
velocity, improved material loosing problem.
Components included: expansion and contraction part, press arm part, limit wheel part, material loop controlling part.
Expansion method: hydraulic expansion.
Spindle expansion range: Φ450-Φ530mm.
Spindle driven motor: AC motor, with inverter.
Spindle driven method: variable frequency gear motor.
Spindle brake: disc brake.
Spindle uncoiling direction: down uncoiling.
Press material wheel specification: PU rubber tires
Press material wheel driven method: AC motor, with inverter
Function of press arm: from cut off bundling belt which is used for fixing coil until the coil head is pressed tightly by
straightener roller, to prevent coil rebounding; while whole feeding line working, let the coil uncoiling smoothly, to prevent
coil dispersing and the press arm is motorized, with tracking and follow up function ie. Rotating speed of press arm roller is
absolutely the same with uncoiling line speed, then tensioning metal strip, to prevent coil loosing.
Straightener Feeder
Function instruction: use unbending principle to release material bending stress to straighten plate, then feed into press
equipment according to set length and speed.
Driven method: AC servo motor
Straightening-feeding roller combination: straightening roller; assistant roller; feeding roller.
Straightening measure display method: dial display.
Straightning roller release method: pneumatic release.
Straightening measure adjusting method: manually by hand wheel (Electrically Adjust for optional)
Straightening measure adjusting method: electrically adjust (for optional), no need rotate the hand wheel, more precise, with
date storing function to store each group of material of straightening adjustment date which can save time for future using,
convenient for operation.
Roller driven method: gear driving, all gears adopt tempering, carburization, high frequency quenching, precise grinding gear
IT6 level precise standard.
Straightening-feeding rollers flip up system (for optional): upper straightening-feeding rollers can be lifted by hydraulic
cylinder from one side, lifting angle can reach up to 30 degree. Through operating touch screen HMI or button of hand operating
box to open straightening-feeding rollers, by this way, easy for clear rollers, to ensure material surface flatness and
cleanliness. Adopts double oil cylinder to control.
![]()
![]()
![]()
![]()
![]()
![]()
equipment according to set length and speed.
Driven method: AC servo motor
Straightening-feeding roller combination: straightening roller; assistant roller; feeding roller.
Straightening measure display method: dial display.
Straightning roller release method: pneumatic release.
Straightening measure adjusting method: manually by hand wheel (Electrically Adjust for optional)
Straightening measure adjusting method: electrically adjust (for optional), no need rotate the hand wheel, more precise, with
date storing function to store each group of material of straightening adjustment date which can save time for future using,
convenient for operation.
Roller driven method: gear driving, all gears adopt tempering, carburization, high frequency quenching, precise grinding gear
IT6 level precise standard.
Straightening-feeding rollers flip up system (for optional): upper straightening-feeding rollers can be lifted by hydraulic
cylinder from one side, lifting angle can reach up to 30 degree. Through operating touch screen HMI or button of hand operating
box to open straightening-feeding rollers, by this way, easy for clear rollers, to ensure material surface flatness and
cleanliness. Adopts double oil cylinder to control.
Product packaging![]()
![]()
![]()

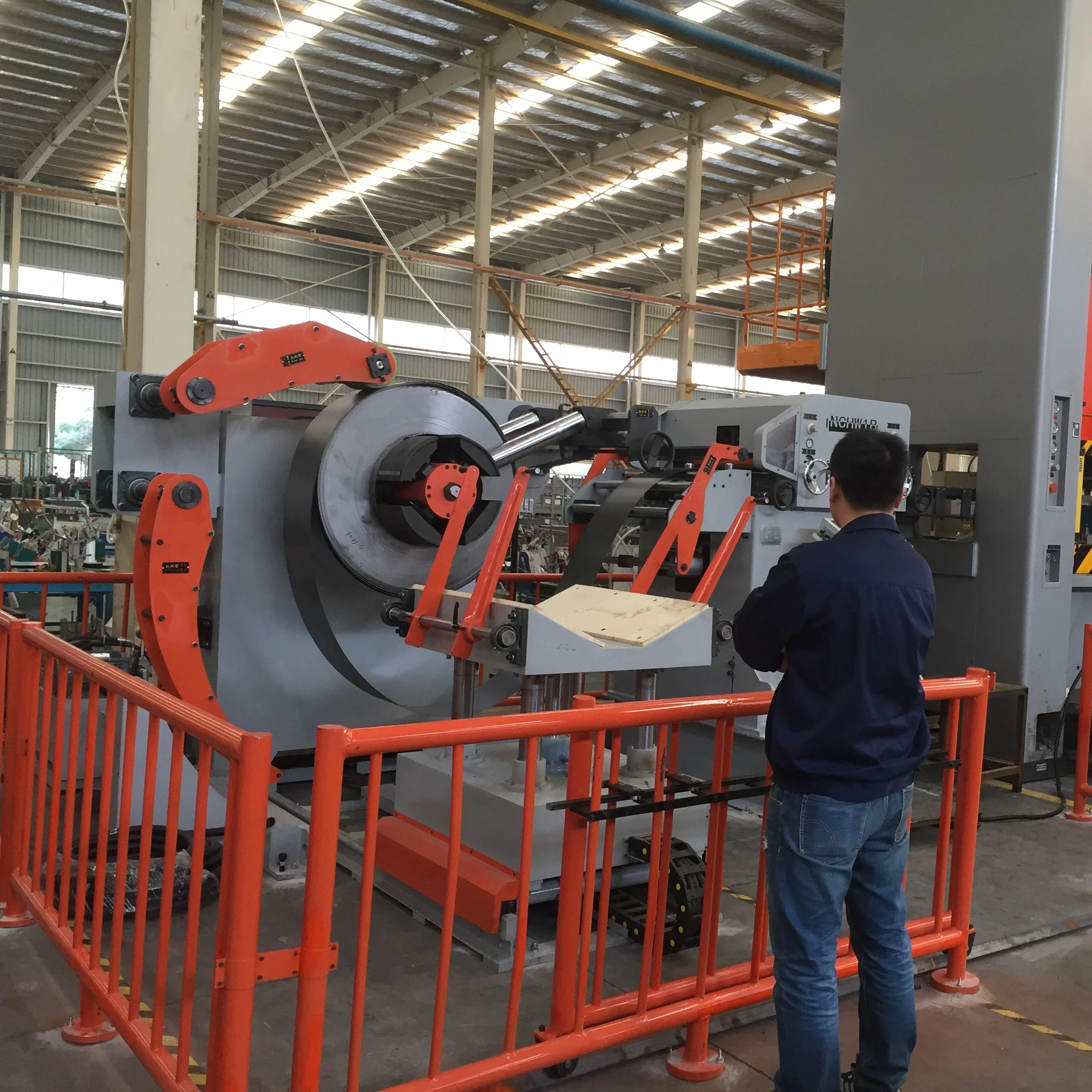

Customer Photos![]()
![]()
![]()
![]()
![]()
![]()
FAQ
Q: Are you a factory or trading company?
A: We are a factory which has been producing stamping machines for more than 35 years.
Q: What are your main products?
A: We specialize in manufacturing press machine, decoiler straightener and feeder, metal stamping die, transfer arms etc. ie, we
mainly help customers contract to build the whole stamping line projects.
Q: What's the delivery time?
A: The standard machine is 25 to 30 days after payment. If asked to supply whole production line by our customer, we will confirm
the delivery time based on the specific project itself.
Q: What's your payment term?
A: we advise 30% T/T deposit, balance paid before shipment.
Q: Do you receive OEM?
A: Yes, we warmly welcome customers to do OEM in our factory.
A: We are a factory which has been producing stamping machines for more than 35 years.
Q: What are your main products?
A: We specialize in manufacturing press machine, decoiler straightener and feeder, metal stamping die, transfer arms etc. ie, we
mainly help customers contract to build the whole stamping line projects.
Q: What's the delivery time?
A: The standard machine is 25 to 30 days after payment. If asked to supply whole production line by our customer, we will confirm
the delivery time based on the specific project itself.
Q: What's your payment term?
A: we advise 30% T/T deposit, balance paid before shipment.
Q: Do you receive OEM?
A: Yes, we warmly welcome customers to do OEM in our factory.
